Denon DN-X1500 Manuel utilisateur

Professional DJ Mixer

DN-X1500

Main Features

• Matrix Input Assignment

8 input sources are freely assignable to any channel.

• 45mm Penny+Giles Professional Cross Fader with Contour

function

- Multi-channel assignable

- Exceptional electrical and mechanical performance

- Environmental shielding

- Glass-smooth conductive plastic tracks

- Precious metal multi-finger contacts

• Sampler (CD quality sound)

The sampler utilizes audio from any of 6 mixer sources (Ch1/2/3/4,

Mic, Master), and offers edit options including Loop, Reverse Loop,

stutter, Single playback and A-B Trim, with overall Pitch Control

adjustment of up to ±100%.

• Internal Digital effects: Delay, Echo1, Echo2, Filter 1,

Filter 2, Flanger, Auto Pan, Trans, and Key % over

Ch1/Ch2/Ch3/Ch4/Main Mic/Master

• Auto BPM/Manual Input (by Tapping a button or rotating a

knob) of BPM values/BPM Lock

• Cross Fader Start and Channel Fader Start

Cross and Channel Fader Start Trigger is possible and compatible with

our CD Players (DN-S5000, S3000, D4000, etc.).

• Constant Digital output: 44.1 kHz, SPDIF (Coaxial terminal)

The DN-X1500 allows you to record directly to CD-R or hard disc device

via coaxial digital output terminal.

• Stereo Send/Return terminals for external effects processor

• 3-band EQ (on/off switchable) with parametric frequency

adjustment

• Gain control with Pre Fader (PFL) levels for each channel

All input channel levels can be pre-adjusted to match the output level

meter ensuring a smooth transition between fades.

• Main Mic and Aux Mic inputs (one-XLR and two-1/4" TRS) with

Main and Aux/Sub level control and EQ

• Mic Post feature passes the Mic signal into BOOTH, REC or

DIGITAL output signal path

• Preset function

It is possible to customize the machine to your preference by saving

your favorite setting to internal memory.

• Headphone output selector (Split Cue)

• Booth Output

You are able to pre-monitor any channel and effect through the booth

output in the same manner as you would with your headphones, only

out loud!

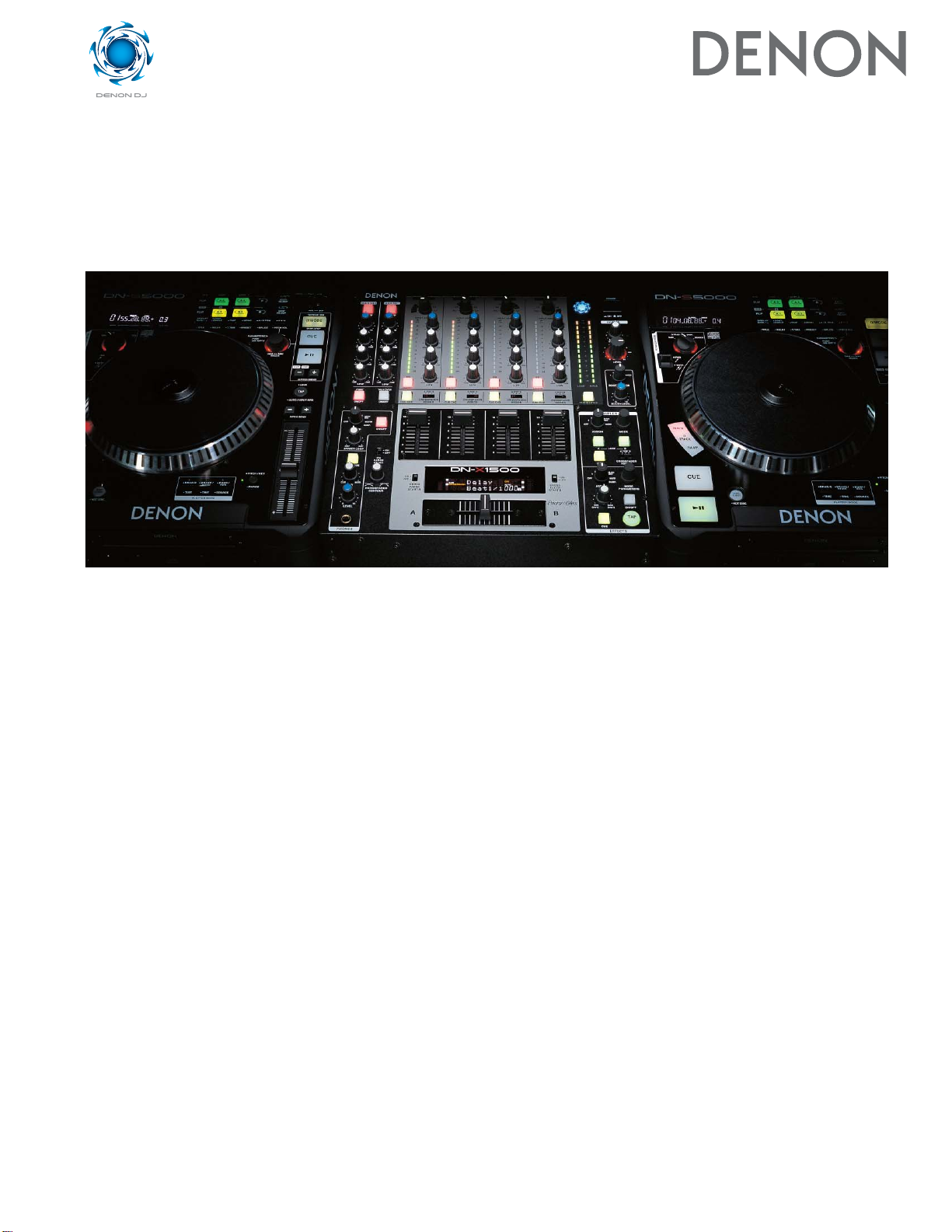

Superior Features and Reliability Supporting High-level DJ Performance.

DENON's Latest DJ Mixer for Professional Use is Now Here.

To equal the incredible abilities of its renowned DN-S5000 and DN-S3000 single CD/MP3 players, DENON announces the DN-X1500 DJ mixer, offering

advanced features with unprecedented functionality and flexibility. All the internal circuitry is now digital, ensuring low noise and exceptional audio quality.

The Effector and Sampler are built in to further boost the DJ's creative powers. Denon has strictly selected the Cross Fader to provide high sound quality

and reliability, even under heavy usage. Additionally, the DN-X1500 is conveniently equipped with a USB port, allowing firmware updates via a PC.

* The DN-S5000s beside are not included in the DN-X1500.

SPECIFICATIONS

GENERAL

Dimensions: 310 (W) x 110 (H) x 327 (D) mm

12.2 (W) x 4.3 (H) x 12.9 (D) inch

Weight 6.7 kg, 14.7 lbs.

Power supply AC120 V ±10%, 60 Hz

Power consumption 45 W

AUDIO SECTION

Input Level & Impedance:

8-Line -14 dBV (200 mV) 50 kΩ/kohms

3-Phono -50 dBV (3.0 mV) 50 kΩ/kohms

Effect (Return) -14 dBV (200 mV) 50 kΩ/kohms

Main Mic -54 dBV (2.0 mV) 2 kΩ/kohms

Aux Mic -60 dBV (1.0 mV) 1 kΩ/kohms

Output level & Impedance:

Balanced 4 dBu (1.23 V) 150 Ω/ohms

Unbalanced 0 dBV (1.0V) 1 kΩ/kohms

Effect (Send) -14 dBV (200 mV) 1 kΩ/kohms

Headphone 0 dBV (1.0 V) 100 Ω/ohms

Frequency Response:

Line 20 to 20 kHz ±2 dB

Phono 20 to 20 kHz RIAA ±2 dB

Mic 20 to 20 kHz ±3 dB

Signal to Noise ratio:

Line 85 dB (at Noise Gate ON)

Phono 73 dB (at Noise Gate ON)

Main Mic 65 dB (at Noise Gate ON)

Total harmonic distortion rate:

Line Below 0.02%

Phono Below 0.05%

Cross talk Over 70 dB

Channel equalizer:

Hi +10 dB (8 kHz), -33 dB (15 kHz)

Mid +10 dB (8 kHz), -40 dB (1 kHz)

Low +6 dB (8 kHz), -40 dB (60 Hz)

Microphone equalizer:

Hi +12 dB, -12 dB (10 kHz)

Mid +12 dB, -12 dB (1 kHz)

Low +12 dB, -12 dB (100 Hz)

Digital output (COAXIAL):

Signal format IEC958 Type II

Output level 0.5 Vp-p 75 Ω/ohms

Output signal level -6 dB

62170104 A

DENON, LTD.

3-16-11, YUSHIMA, BUNKYO-KU, TOKYO 113-0034, JAPAN

Design and specifications are subject to change without notice.

DENON ELECTRONICS (USA), LLC.

19 CHAPIN ROAD, BLDG. #C, PINE BROOK, NJ 07058-9777, USA

www.usa.denon.com

DENON CANADA INC.

505 APPLE CREEK BLVD, UNIT 5, MARKHAM, ONTARIO, CANADA L3R 5B1

www.denon.ca



310 mm, 12.2 inch

327 mm, 12.9 inch

90 mm, 3.5 inch

20 mm, 0.8 inch
