Denali T3 Manuel utilisateur

Instruction Rev00

0mm 10 20 30 40 50 60 70 80 90

Thank you for choosing DENALI

We know you would rather be riding your bike than wrenching on it, so we go the extra

mile to make sure our instructions are clear and as easy to understand as possible. If

you have any questions, comments, or suggestions don’t hesitate to give our gear

experts a call at 401.360.2550 or visit WWW.DENALIELECTRONICS.COM

Please Read Before Installing

DENALI products should always be installed by a qualified motorcycle technician. If

you are unsure of your ability to properly install a product, please have the product

installed by your local motorcycle dealer. DENALI takes no responsibility for damages

caused by improper installation. Caution: When installing electronics it is extremely

important to pay close attention to how wires are routed, especially when mounting

products to the front fender, front forks, or fairing of your motorcycle. Always be sure

to turn the handlebars fully left, fully right, and fully compress the suspension to

ensure the wires will not bind and have enough slack for your motorcycle to operate

properly.

Installation Tips

We strongly recommend using medium strength liquid thread locker on all screws,

nuts, and bolts. It is also important to ensure that all hardware is tightened to the

proper torque specifications as listed in your owner’s manual. For included accessory

hardware please refer to the default torque specifications provided below. Inspect all

hardware after the first 30 miles to ensure proper torque specifications are

maintained.

Hardware Sizing Guide

Not sure what size bolt you have? Use this ruler to measure screws, bolts, spacers, etc.

Remember, the length of a screw or bolt is measured from the start of the “mounting

surface” to the end of the screw, so only include the screw head when measuring

countersunk screws.

M3 10.0 in-lbs - 1.0 Nm

M4 23.0 in-lbs - 2.5 Nm

M5 44.5 in-lbs 3.5 ft-lbs 5.0 Nm

M6 78.0 in-lbs 6.5 ft-lbs 9.0 Nm

M8 - 13.5 ft-lbs 18.0 Nm

M10 - 30.0 ft-lbs 41.0 Nm

M12 - 52.0 ft-lbs 71.0 Nm

in-lbs

ft-lbs NmBolt Size

0in 1 2 3

What’s In The Box?

DENALIELECTRONICS.COM

T3 Crashbar Mount Kit

LAH.T3.10100

Instruction Manual

(a) Mounting Bracket ................................................................Qty 2

(b) VHB Double-Sided Tape........................................................Qty 1

Kit Contents Tools Required

#2 Phillips Head Screw Driver, Step Drill Bit, Heat Gun, Rubbing Alcohol

(b)

(a)

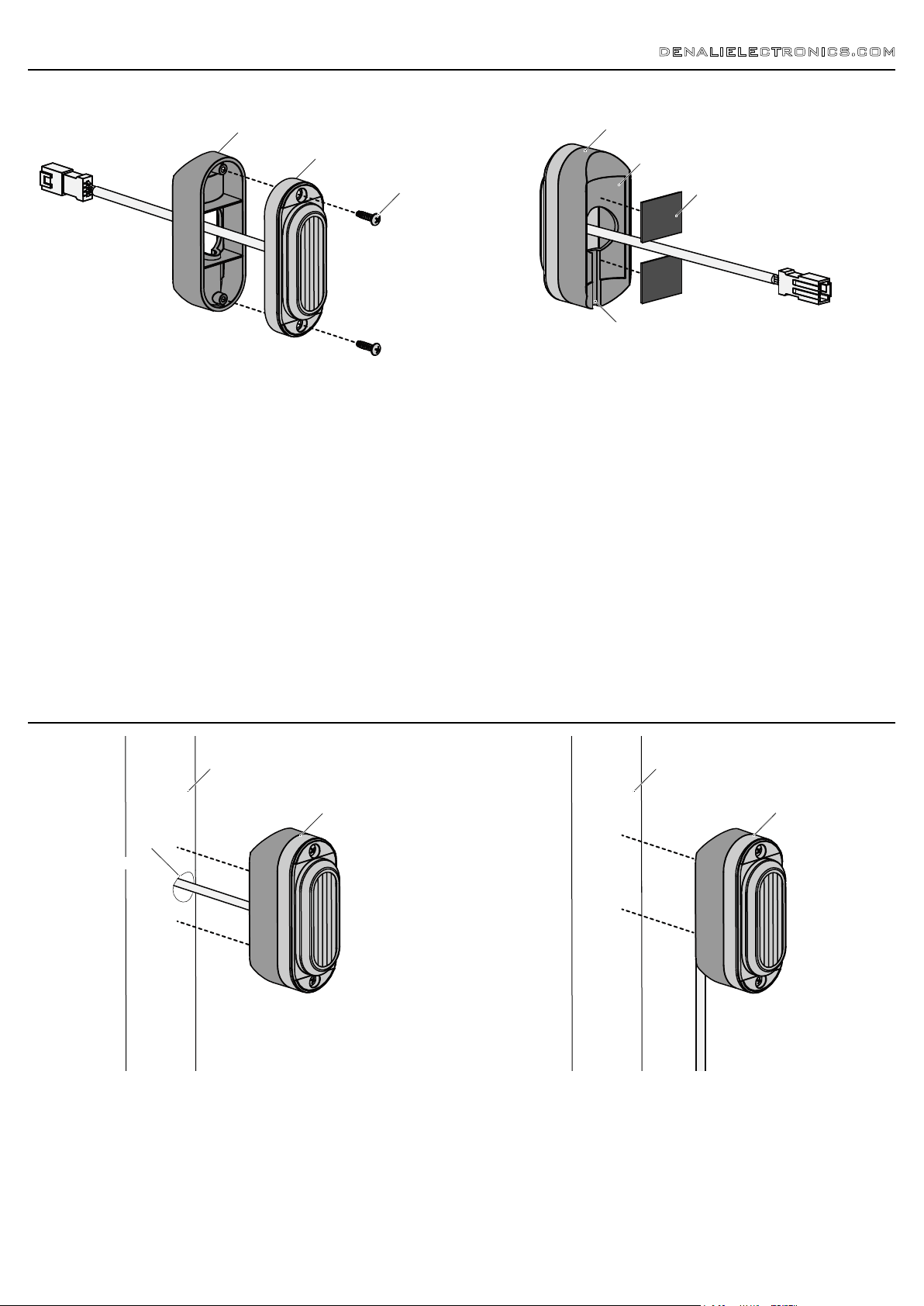

1. Assembling The Crashbar Mounts

2. Installing The Crashbar Mounts

1.1 - Assembling The Mount 1.2 - Applying The Double-Sided Tape

Step One: Feed the harness through the center of the Mounting Bracket

(a).

Step Two: Use the self tapping screws that were included with the T3

Light Pod to attach it to the Mounting Bracket (a).

Repeat steps One & Two using the second Mounting Bracket and T3 Pod.

Step One: Cut the strip of VHB Doubled-Sided Tape (b) into four even

length pieces.

*Note: For External Wiring (Figure 2.2) place the harness in the wire

channel before applying the VHB Doubled-Sided Tape (b) to the Crashbar

Mount (a).

Step Two: Prep and clean the surface of the tape pocket using rubbing

alcohol, then use a heat gun to gently warm the surface. Peel off one side

of the liner from VHB Double-Sided Tape (b) and apply two pieces to the

back of the Crashbar Mount (a).

Repeat steps One & Two using the second Mounting Bracket and the two

remaining tape pieces.

DENALIELECTRONICS.COM

2.1 - Internal Wiring

Step One: Drill a 14mm hole into the surface of the crashbar of which you will

be mounting the T3 Light Pod. Use of a step drill bit is recommended for best

results.

Note: If the crashbar does not have an existing opening at the end of the

tubing, drilling a second 14mm hole will be required to allow the harness to exit

the crashbar.

Step Two: Feed the harness into the 14mm hole and run/fish it through the

crashbar and out the second exit hole.

Step Three: Prep and clean the surface of the crashbar using rubbing alcohol,

then use a heat gun to gently warm the surface. Peel and remove the

remaining liner from the VHB Double-Sided Tape and apply the assembly to the

crashbar using moderate pressure.

2.2 - External Wiring

Step One: Prep and clean the surface of the crashbar using rubbing alcohol,

then use a heat gun to gently warm the surface. Peel remaining liner from the

VHB Double-Sided Tape and apply the assembly to the crashbar using

moderate pressure.

Step Two: Run the harness along the outside of the crashbar and secure using

zip ties.

T3 Light Pod

(Sold Separately)

Crashbar Mount

14mm Hole

Self Tapping Screw

(Included w/ T3 Pod)

T3 Light Pod

w/ Crashbar Mount

Crashbar Crashbar

T3 Light Pod

w/ Crashbar Mount

Crashbar Mount

VHB Double-Sided Tape

Tape Pocket

Wire Channel*
