DENAFRIPS VENUS II Manuel utilisateur

V1.

16th May 2021

VENUS

DAC

OWNER’S MANUAL

Contents

1. INSTALLATION & SAFETY INSTRUCTIONS ........................................................................... 2

2. INTRODUCTION .................................................................................................................. 3

3. DESIGN HIGHLIGHTS ........................................................................................................... 4

3.1 ADAPTIVE FIFO BUFFER RECLOCKING ......................................................................... 4

3.2 I2S INPUT ..................................................................................................................... 4

3.3 PROPRIETARY, STATE-OF-THE-ART USB INTERFACE ................................................... 4

3.4 PROPRIETARY SPDIF DIGITAL AUDIO RECEIVER .......................................................... 4

3.5 NOS/OS ........................................................................................................................ 5

3.6 PROPRIETARY R-2R AND DSD DECODING ARCHITECTURE .......................................... 5

3.7 DAC ARCHITECTURE .................................................................................................... 6

4. OPERATING INSTRUCTION .................................................................................................. 7

4.1 Quick Start Guide ........................................................................................................ 7

4.2 USB DRIVER INSTALLATION – WINDOWS OS ............................................................ 12

5. SPECIFICATIONS ................................................................................................................ 16

6. WARRANTY ....................................................................................................................... 17

1. INSTALLATION & SAFETY INSTRUCTIONS

This DAC is designed and built to provide trouble-free performance, but as with all

electronic devices it is necessary to observe a few precautions:

 Unpack the DAC carefully.

 Position the DAC on a stable, horizontal surface, i.e. sturdy rack.

 The DAC supports voltage 100-250VAC worldwide voltage. Please connect the AC

power cord with earth(ground) pin unless it is absolutely required to reduce hum

from the ground loops of the connected devices.

 Always ensure that when disconnecting and reconnecting your audio equipment the

mains supply is turned off.

 Position the power cord and signal interconnects where they are not likely cause trip

and fall hazard.

 Do not use the DAC near water, or place water-filled containers on the DAC. Entry of

liquid into the DAC is hazardous and may cause electric shock and/or fire hazard.

 Do not place the unit under direct sunlight or heat source.

 Do not remove any covers or try to gain access to the inside. There are no user

adjustments or fuses to change without qualification.

 Clean regularly with a damp soft cloth. Do not use any cleaning agents as it might

damage the surface finishing.

 The electronics in modern hi-fi equipment is complex and may, therefore, be

adversely affected or damaged by lightning. For protection of the audio system

during electrical storms, disconnect the mains plugs.

2. INTRODUCTION

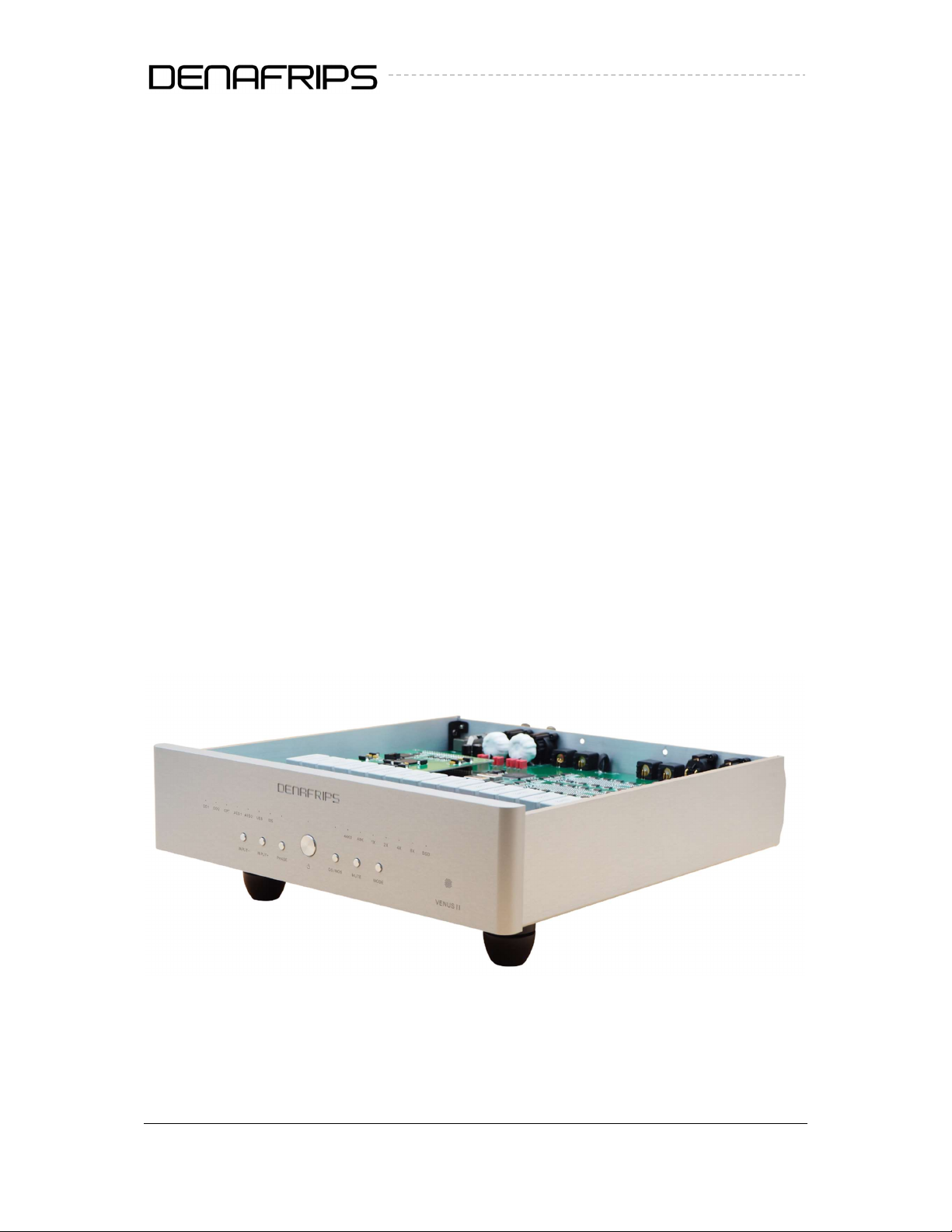

Thank you for purchasing the DENAFRIPS VENUS DAC.

VENUS fits well in DENAFRIPS DAC offering, right in between the PONTUS – TERMINATOR

DAC. To achieve the highest possible sound quality within the price constraint, DENAFRIPS

adopted a lot of the technology and architecture can be found in the flagship DAC, the

TERMINATOR. Yes, that’s right, VENUS is designed about the similar architecture of the

Terminator. VENUS is further enhanced in the power supply design compared to Pontus

with premium components. The power supply is encapsulated in a 1.5mm thick metal alloy,

equipped with dual o-core transformers, completely isolated super linear regulator power

supply for digital and analogue section, ensuring low noise, high availability power supply to

the DAC.

The VENUS employs true balance R-2R DAC design. Each channel is equipped with

independent high-speed FPGA to control the decoding by 4 sets of 0.005% R-2R network

and FEMTO clocks. This design has very small linear error, high decoding speed, low digital

noise, not only to ensure that the audio signal is low distortion, but also to ensure a very low

background music noise; allow listener to enjoy the true music with dark background.

3. DESIGN HIGHLIGHTS

3.1 ADAPTIVE FIFO BUFFER RECLOCKING

The DENAFRIPS approach to address the jitters issue by FIFO BUFFER RECLOCKING. The

adaptive FIFO buffer store the source digital audio data in the memory. These data are read

from the memory using the low phase noise, precision FEMTO TCXO Clock, located right in

the DAC.

This technology is close to the perfection, especially so with the local FEMTO TCXO Clock.

The jitter is so small that it can be neglected.

3.2 I2S INPUT

VENUS comes with a LVDS I2S input over the HDMI connector. Despite the I2S input has no

industrial standard, it is probably the best digital input interface to-date. NOTE: DENAFRIPS

cannot guarantee the compatibility with other I2S devices.

3.3 PROPRIETARY, STATE-OF-THE-ART USB INTERFACE

The VENUS is equipped with the proprietary USB Audio Solution, powered by STM32F446

Advanced AMR Based MCU. DENAFRIPS redesigned and optimized circuitry, allow the DAC

to be used as high-end DAC with computers / streamers. It supports 24bit/1536kHz* PCM

data stream, and native decoding of DSD up to DSD1024*. It comes with licensed THESYCON

USB Driver for Windows Platform.

NOTE: The USB Module is designed to trigger on only when USB Input is selected. This is

intended design to reduce digital input interfaces cross-interference for best sound

reproduction. *High-res support may vary depending on system compatibility.

3.4 PROPRIETARY SPDIF DIGITAL AUDIO RECEIVER

The SPDIF Coaxial, Optical, AES/EBU input support up to 24bit/192kHz digital audio format.

The VENUS abandon the use of Digital Audio Receiver chip. The digital data is decoded by

the on-board FPGA (Field Programmable Gate Array), signal path is shortened and

eliminated the undesirable coloration.

3.5 NOS/OS

The VENUS allow the user to change the sampling mode on the fly.

NOS, as the name suggested, does not over-sampling to digital input data.

In OS mode, the PCM 44.1kHz or 48kHz based audio data are up-sampled to the maximum

rate of PCM1411.2 or PCM1536. There is no up-sampling of DSD audio signal.

3.6 PROPRIETARY R-2R AND DSD DECODING ARCHITECTURE

The VENUS is equipped with 24Bit R-2R DAC to decode PCM data stream and 32 steps FIR

analogue filters hardware decoder to decode DSD data stream. These designs guaranteed

the PCM format can be perfectly decoded, at the same time, the DSD format can be

perfectly decoded as well. It is rare in the currently market that a R-2R DAC can hardware

decode both the PCM and DSD formats.

3.7 DAC ARCHITECTURE

DIGITAL SIGNAL PROCESSING – All digital input data are stored in the on-board FPGA high-

speed RAM.

FEMTO TXCO CLOCK – These data are read from the memory using the low phase noise,

accurate FEMTO TCXO Clock, located right in the DAC. The processed data are sent to the

final stage Discrete R-2R for DA conversion.

R-2R LADDER NETWORK – The data bits are converted to analogue signal by the true

balanced R-2R ladder network arrays. The linearity of the conversion is guaranteed by the

high-precision thin film resistors, with low thermal effect temperature coefficient of the low

10/15ppm.

4. OPERATING INSTRUCTION

4.1 Quick Start Guide

Figure 1. Front Panel

(1) Standby Button

Press the button once to switch on the DAC, vice versa, press once to put the DAC into

standby mode. The Standby LED shall be on when the DAC is in Standby Mode. The LED shall

be off when the DAC is in Operating Mode.

(2) Control Button (From left to right)

a. INPUT + / Input - :

Press the buttons to select the input source, namely, CO1, CO2, OPT, AES1, AES2,

USB, I2S. Press + to select the next right input. Press – to select the previous left

input. The respective input source LED shall be on to indicate that the input source is

selected.

b. PHASE

Press the button to toggle Phase Output. LED On: Positive Phase, LED Off: Negative

Phase

c. OS/NOS

Press the button to toggle between OS/NOS model. The LED lit to indicate the DAC is

in NOS mode.

d. MUTE

Press the button to enable/disable Mute. When mute, the Input Signal LED will be

blinking from Left to Right.

(3) Digital Audio Signal Input Sampling Rate

The following table illustrate the Input Sampling Rate LED status.

Base Sampling Rate Multiplier Input Format

44.1 kHz

1X 44.1 kHz

2X 88.2 kHz

4X 176.4 kHz

8X 352.8 kHz

16X = 2X + 8X 705.6 kHz

32X = 4X + 8X 1,411.2 kHz

48 kHz

1X 48 kHz

2X 96 kHz

4X 192 kHz

8X 384 kHz

16X = 2X + 8X 768 kHz

32X = 4X + 8X 1536 kHz

DSD

1X DSD 64

2X DSD 128

4X DSD 256

8X DSD 512

16X = 2X + 8X DSD 1024

Table 1. Sampling Rate

Parameter Settings:

(1) Filter Selection (Effective in OS Only)

1. Press the Mute button once to enter configuration mode

2. Press the Mode momentarily

 OPT On = Slow Filter

 OPT Off = Sharp Filter

3. Wait for 10s

4. DAC back in operational mode

(2) Dual AES/EBU Input

1. Press the Mute button once to enter configuration mode

2. Press the INPUT+ momentarily, CO1, CO2 LED will turn on/off

 CO1 On = Dual AES/EBU Input Enabled

 CO2 Off = Dual AES/EBU Input Disabled

3. Wait for 10s

4. DAC back in operational mode

(3) I²S Pinout Configuration

1. Select I²S-A Input

2. Press the Mute button once to enter configuration mode

3. Press the Phase button momentarily, 1X 2X 4X will turn on/off in a fixed pattern to

denote binary 000-111

4. Wait for 10s

5. DAC back in operational mode

Video Guide:

https://www.denafrips.com/config-pontus
