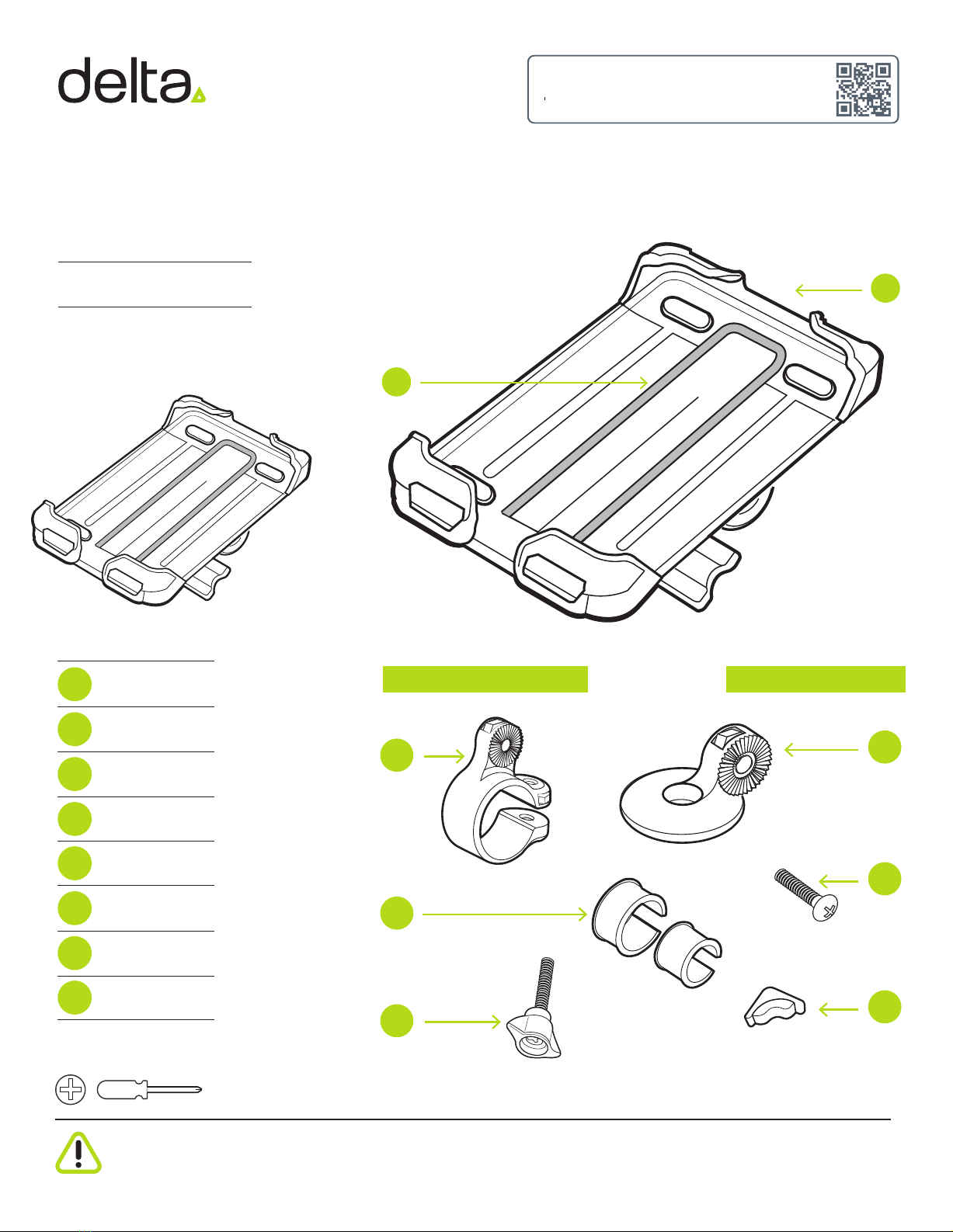

Assembly instructions HL6002/HL6500
Smartphone
Holder
x1 — Phone Holder
x1 — Bungee
x1 — Handlebar Clamp Bolt
x2 — Rubber Shim
x1 — Thumb Screw
x1 — Stem Mount
x1 — Short Bolt
x6 — Foam Inserts
Parts
A
B
C
D
E
F
G
H
Tool Required
Phillips Head Screwdriver
WARNING
Using phone device while riding can cause accidents resulting in serious injury.
Important: Nuts and bolts can loosen over time, resulting in serious danger should the item fall o while in motion.
Check frequently to ensure all bolts are properly tightened. Ensure the device ts snugly in the holder before riding.
Not for o-road use.
STEM MOUNT OPTION
HANDLEBAR CLIP OPTION
H
F
Assembly video
Visit designbydelta.com/downloads
STEM BOLT
1
1
2
2
1
1
2
2
Using the Handlebar Clamp
Using the Stem Mount
IMPORTANT
SAFETY NOTE
Do not attach clamp
to any tapered section
of your handlebar.
IMPORTANT
SAFETY NOTE
Connect phone holder to handlebar clamp using
short bolt and adjust angle before full tightening.
Open slightly in order to allow easy access to insert
the bolt. Insert the bolt on the same side as the
locking mechanism. (FIGURE 1)
Connect handlebar clamp to bar using rubber shims
as needed. Use thumb screw; tighten to secure the
handlebar clamp.
If necessary use the adhesive foam inserts to provide
a snug t for your device. (FIGURE 2)
Remove existing stem cap from bicycle. Use existing
stem bolt to install Smartphone Holder stem mount on to
your bicycle stem. Open slightly in order to allow easy
access to insert the bolt. Insert the bolt on the same side
as the locking mechanism. (FIGURE 1)
Connect phone holder to stem mount using short bolt
and adjust angle before full tightening.
If necessary use the adhesive foam inserts to provide
a snug t for your device. (FIGURE 2)
Never loosen the
stem clamp bolts.
FIGURE 1
FIGURE 1
FIGURE 2
FIGURE 2
Service: Please do not return to store;
for immediate response email
service@designbydelta.com
Delta Cycle Corporation
36 York Avenue, Randolph, MA 02368 USA
800-474-6615 / www.designbydelta.com
V-210914
