Installation Manual -

AC Charger

V1.0.0

This document provides instructions for the AC Charger and should not be used for any

other product. Before installation or use of this product, you should review this manual

carefully and consult with a licensed contractor, licensed electrician, or trained installation

expert to make sure of compliance with local building codes and safety standards.

Installation Manual -

AC Charger

V1.0.0

BEFORE INSTALLATION

Safety Check

CAUTION!

DISCONNECT ELECTRICAL POWER PRIOR TO INSTALLING THEAC CHARGER.

FAILURE TO DO SO MAY CAUSE PHYSICAL INJURY OR DAMAGE TO THE

ELECTRICAL SYSTEM AND CHARGING UNIT.

The AC Charger shall be installed only by a licensed contractor, and/or a licensed electrician

in accordance with all applicable state, local and national electrical codes and standards.

Before installing the AC Charger, review this manual carefully and consult with a licensed

contractor, licensed electrician and trained installation expert to ensure compliance with local

building practices, climate conditions, safety standards, and state and local codes.

Use appropriate protection when connecting to the main power distribution cable.

Grounding Instructions

The AC Charger must be connected to a grounded, metal, permanent wiring system; or an

equipment grounding conductor must be run with the circuit conductors and connected to

the equipment grounding terminal or lead on the product.

Recommended Tools

The following tools are recommended for AC Charger installation:

–Vendor-supplied accessories and components:

EVSE mounting bracket

Torx T30 bolts (x3) for securing the EVSE to the mounting bracket

Cable hanger bracket (optional)

1/4 inch expansion bolts (x2)

No. 8 wood screws (x2)

–Installer-supplied components:

Conduit of trade size 1/2 inch for Ethernet cable

Conduit of appropriate trade size for power wire

–Recommended tools:

Torx T30 screw driver

Torx T20 screw drive

Installation Manual -

AC Charger

V1.0.0

INSTALLING THE AC CHARGER

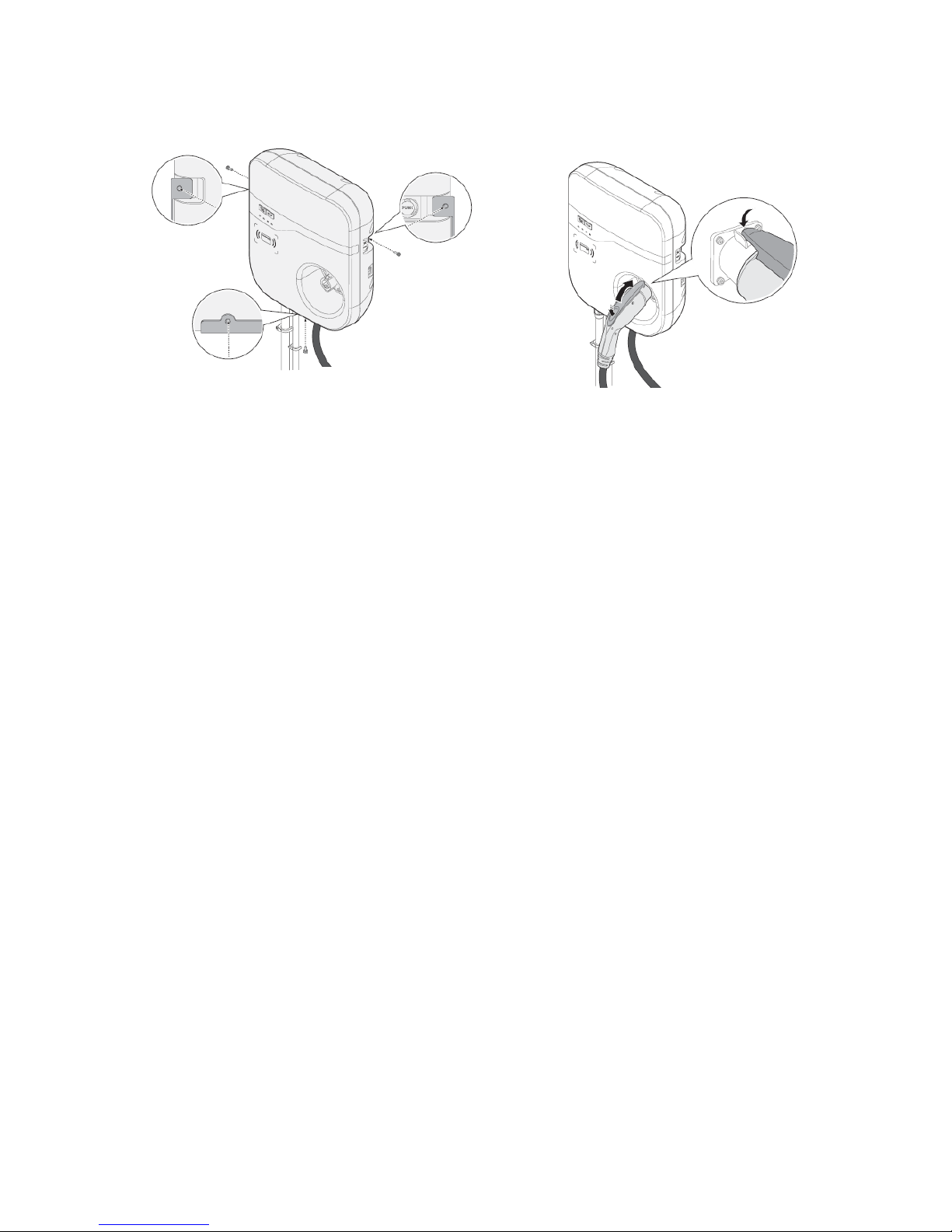

1. Drill bolt holes in the wall for the

mounting bracket and the optional cable

hanger.

Note: Follow applicable accessibility

requirements for the mounting position. The

unit shall be mounted at a sufficient height

from grade such that the height of the

storage means for the coupling device is

located between 600 mm (24 inches) and

1.2 m (4 feet) from grade per NEC Article

625.

2. Secure the main body mounting bracket

and the optional cable hanger bracket to

the wall with appropriate bolts as

follows:

For masonry walls use 1/4”expansion

bolts and torque to 78 lb·in (8.8 N·m).

For finished walls supported by wood

studs use #8 wood screws of 2”or

above screw length and torque to 26

lb·in (3 N·m).

3. Connect the electrical wiring to the

EVSE. Choose the appropriate conduit

in accordance with all applicable state,

local and national electrical codes and

standards. Use No. 8 AWG, 75ºC or

space before copper wire and torque to

17.7 lb·in (2.0 N·m) when connecting to

input terminal block. When connecting to

RJ45 connector use tubing/sleeving of

R/C (YDPU2/8), R/C (YDPU2)/CSA

Certified, R/C (UZFT2/8) or R/C

(UZFT2)/CSA Certified rated for

minimum 300 V, 200ºC overall to sleeve

data procession wires in the wiring

compartment.

There is a separate opening for the

Ethernet cable

4. Align the screw holes of the mounting

bracket with the AC charger holes.

Installation Manual -

AC Charger

V1.0.0

5. Install and secure with 3 screws to the

support bracket.

6. Secure the charger plug to the charger

and place the charger plug cable on the

cable hanger.
