25) SERIES OPERATION
Series operation is allowed up to 600 V total voltage. The power supplies
can be connected in series without special precautions.
For easier control, Master / Slave operation is recommended (fig. 3- 23).
By using the Master / Slave series feature a dual tracking power supply
can be made with one unit as master and one as slave.
For series operation in combination with Power Sink option, all units must
have a Power Sink built inside otherwise no power can be absorbed.
26) PARALLEL OPERATION
Paralleling of the units has no limitations. The power supplies can be con-
nected in parallel without special precautions.For easier control, Master /
Slave operation is recommended (fig. 3 - 24).
Normal parallel operation of Fast Programming units can give problems,
each combination has to be tested first, in combination with the load !
For parallel operation in combination with Power Sink option, only one unit
can have a Power Sink. Refer to Power Sink manual for details and restric-
tions.
27) MASTER / SLAVE OPERATION
The Master / Slave feature makes it possible to use the power supplies as
building blocks to form one large unit, see fig. 3 - 23 and fig. 3 - 24.
The resulting combination of units behaves like one power supply and can
be programmed on the master. In the Master / Slave mode the autoranging
feature still works. Fig. 3 - 26 shows a computer controlled M / S parallel
combination.
Mixed parallel - series operation is also possible (fig. 3 - 25), to a maximum
of 600 V.Here the MASTER / SLAVE SERIES ADAPTER(δ-product) must
be used. For parallel operation connections can easily be made on the ana-
log programming connector.
In series mode the master controls one slave, which in turn controls the
second slave and so on. In parallel mode the master controls all the slaves.
The result is true current or voltage sharing in the parallel or series mode
respectively.
Note: Master / Slave parallel operation is not recommended for more
than 3 units or in combination with Fast Programming option.
Consult factory for a solution.
28) REMOTE SENSING
The voltage at the load can be kept constant by remote sensing. This fea-
ture is not recommended for normal use but only when the load voltage is
not allowed to vary a few millivolts. Always use a shielded cable for sens-
ing. Note that the SM3004-D has no remote sensing.

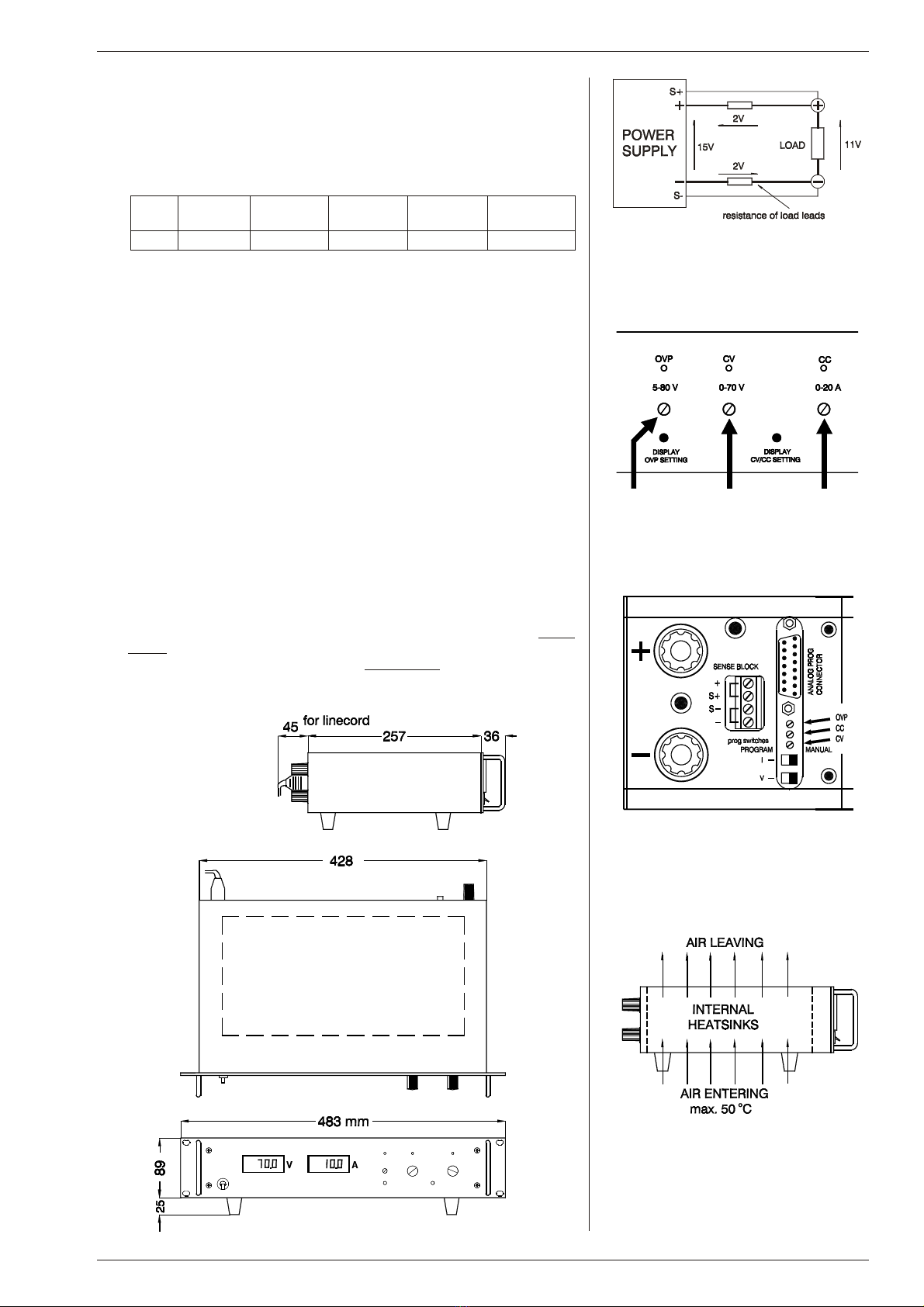

In order to compensate for the voltage drop across the load leads, the unit
will have to supply a higher voltage: Uout = (voltage drop across each lead)
+ (voltage across the load), see fig. 3 - 27. The OVP reads the voltage di-
rectly at the output and the setting must be increased by the total voltage
drop across the load leads.
The voltmeter is connected to the sense leads and therefore reads the volt-
age across the load and not the voltage on the output terminals.
The sense leads are protected for accidental interruption, in which case
the output voltage will go to a max. of 115% of the set value.
Warning: Do not interrupt the minus lead while the S– lead is still con-
nected to the load, during operation. It is possible that the capacitor C808
on P385 or P386 will be damaged.
For sensing on a pulsating load see par.17) of this chapter.
29) OVP
The Over Voltage Protector will protect your circuit from unwanted high
voltages.
A high output voltage could be caused by accidental interruption of leads,
accidentally turning up the voltage potmeter or a defect in the power sup-
ply. The OVP circuit uses a separate voltage devider connected directly to
the output terminals.
The OVP limits the output voltage to a value which can be set by the OVP
potmeter on the front panel. While doing this, press the DISPLAY OVP
SETTING button to read the limit value in the left display. The led on the
front panel will indicate whether the OVP has reached the limit. The OVP
status output will give a logic 1 (+5 V)
fig. 3 - 22
Dual tracking power supply

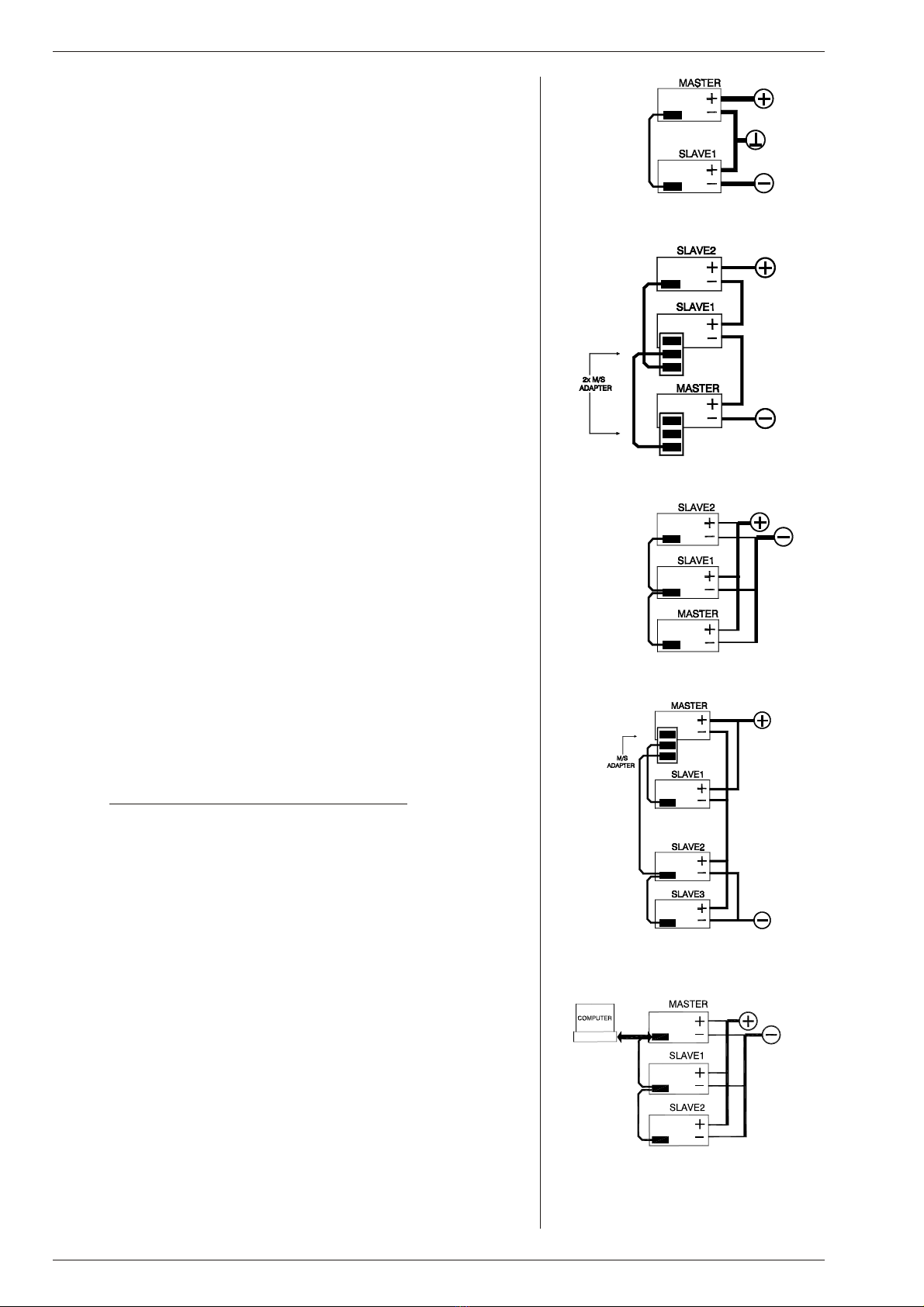

fig. 3 - 23
Master / Slave series operation
fig. 3 - 24
Master / Slave parallel operation
fig. 3 - 25
Master / Slave mixed Series-Parallel
fig. 3 - 26
The Master / Slave combination can also
be programmed with the interfaces
PSC-488 or the PSC-232
