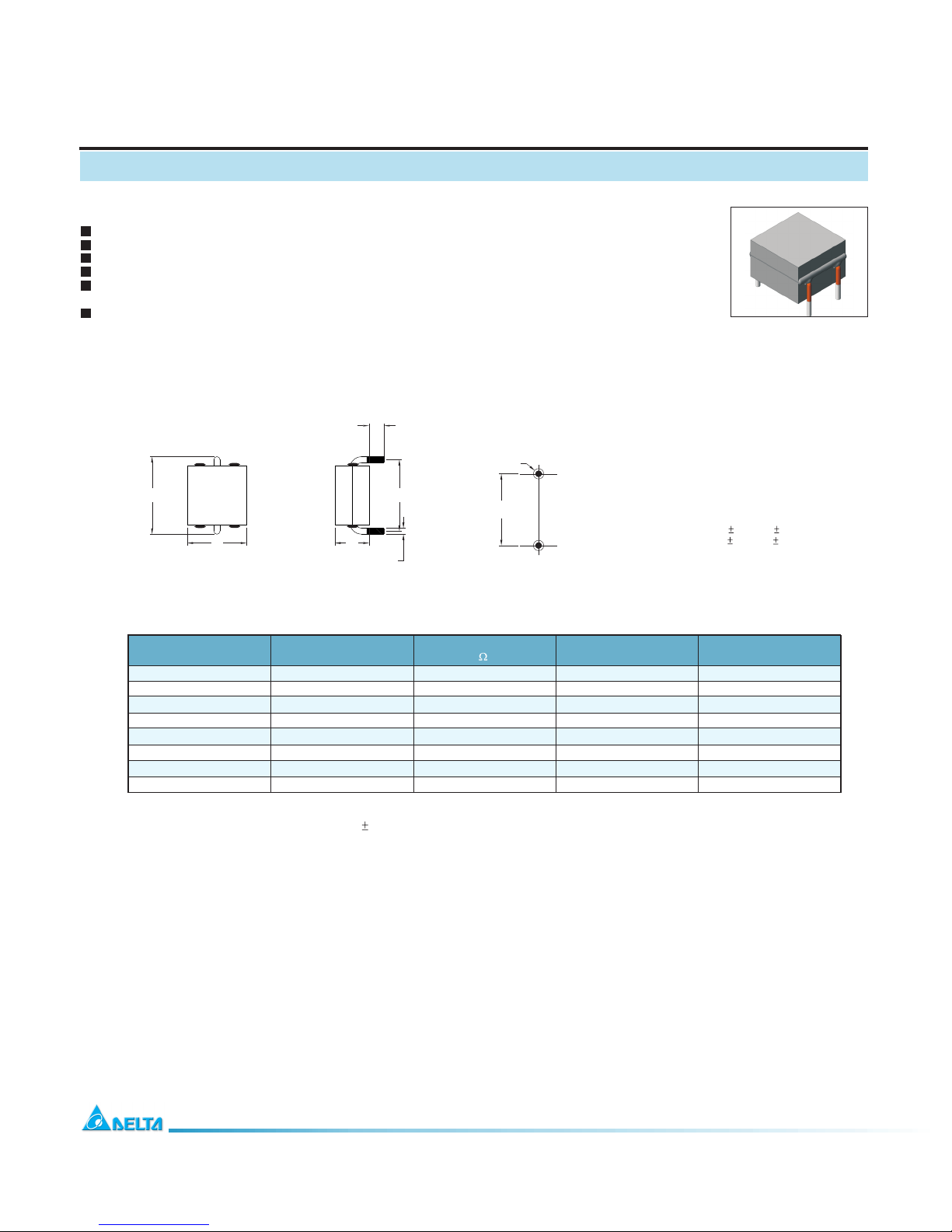

Through Hole Power Inductors

THCBR1090 Type

Mechanical Dimension:

High current (lsat up to 70A ) though hole type.

Magnetically shielded, suitable for hight density mounting.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Ideal for power source circuits, DC-DC converter,

DC-AC inverters inductor application.

In addition to the standard versions shown here,

customized inductors are available to meet your exact requirements.

Features

Electrical Characteristics:

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

At 25 : 100KHz, 1.0V

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com

151

UNIT:mm/inch

A =10.5/0.42 MAX

B = 9.0/0.36MAX.

C = 9.0/0.36MAX

E = 3.5 0.5/0.14 0.02

F = 0.9/0.03

Dimension "C"

(mm / inch) MAX

9.0+/-1.0

1.3(REF.)

D = 9.0 0.5/0.36 0.02

1.Tolerance of inductance : 150~900nH 20%

2.Isat is the DC current which cause the inductance drop less than 20% of its nominal inductance without current

3.Irms is the DC current which cause the surface temperature of the part increase less than 45 C

4.Operating temperature: -40 C to 125 C ( including self-temperature rise )

PART NO. L DCR Isat Irms

(nH) (m ) MAX (Adc) (Adc)

THCBR1090-151 150 0.70 73 40

THCBR1090-181 180 0.70 60 40

THCBR1090-241 240 0.70 40 40

THCBR1090-281 280 0.70 36 40

THCBR1090-351 350 0.70 26 40

THCBR1090-401 400 0.70 20 40

THCBR1090-551 550 0.70 12 40

THCBR1090-901 900 0.70 6.0 40

RECOMMENDED PAD PATTERNS
