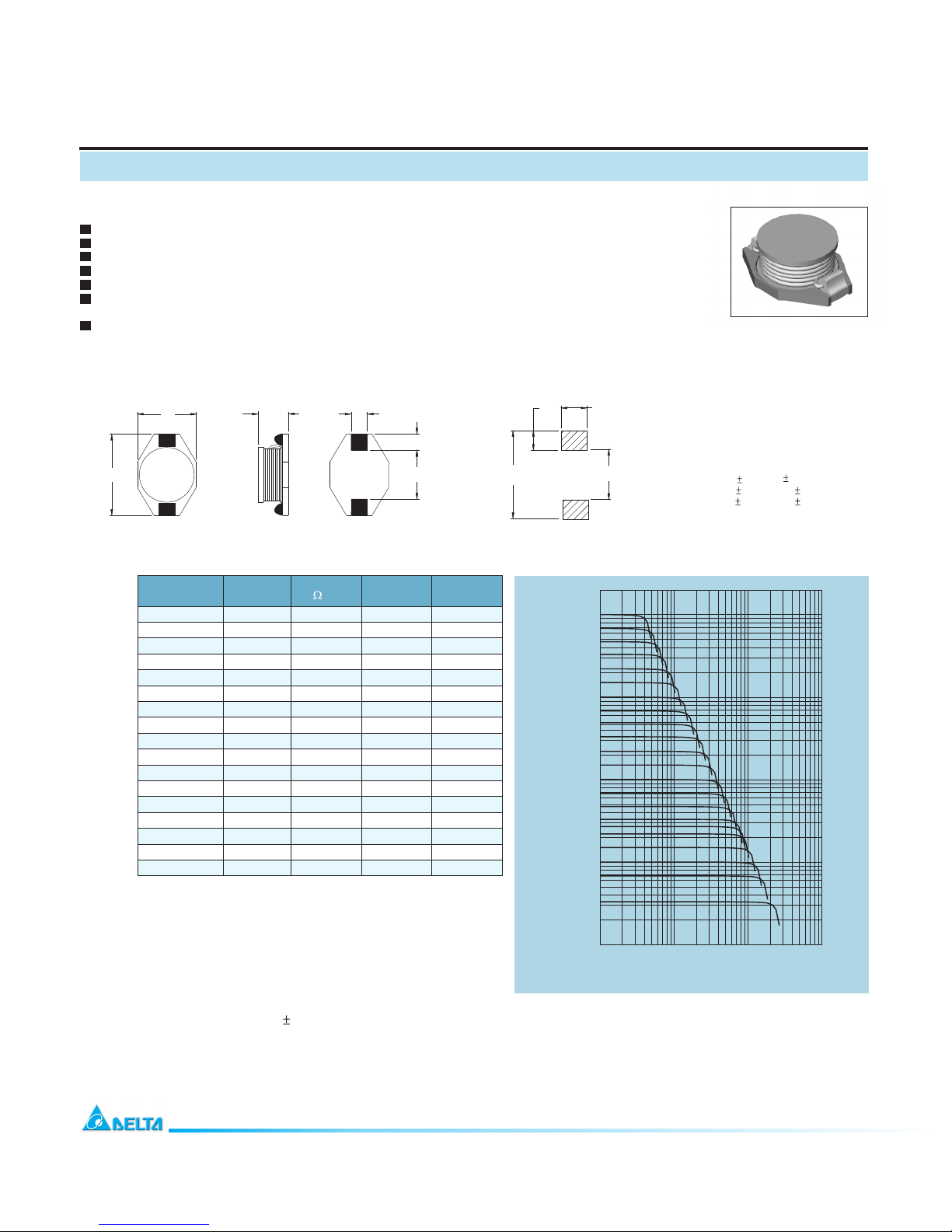

Delta Electronics SISH136 Manuel utilisateur

SMT Power Inductor

SISH136 Type

25 : 100KHz, 0.1V

Features

RoHS compliant.

Low profile (7.0mm max. Height), high current (8.6A, 1uH) SMD type.

Unshielded, suitabel for high density mounting.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Ideal for power source circuits, DC-DC converter, DC-AC inverters

inductor applications.

In addition to the standard versions shown here, customized inductors

are available to meet your exact requirements.

Electrical Characteristics:

0.101.0010.00100.00

CURRENT(A)

0.10

1.00

10.00

100.00

1000.00

INDUCTANCE(uH)

102

681

471

331

221

151

101

680

470

330

220

150

100

6R8

4R7

3R3

2R2

1R5

1R0

2R7

R68

R33

SISH136 - 1R0 1.0 0.012 20.0 8.60

SISH136 - 2R2 2.2 0.016 16.0 7.10

SISH136 - 3R3 3.3 0.018 14.0 6.20

SISH136 - 5R6 5.6 0.025 12.0 5.30

SISH136 - 100 10.0 0.036 10.0 4.30

SISH136 - 150 15.0 0.041 8.0 4.00

SISH136 - 220 22.0 0.054 7.0 3.50

SISH136 - 330 33.0 0.075 5.5 3.00

SISH136 - 470 47.0 0.100 4.5 2.60

SISH136 - 680 68.0 0.150 3.5 2.30

SISH136 - 101 100.0 0.218 3.0 1.80

SISH136 - 151 150.0 0.287 2.6 1.50

SISH136 - 221 220.0 0.437 2.4 1.20

SISH136 - 331 330.0 0.644 1.9 1.00

SISH136 - 471 470.0 0.977 1.4 0.82

SISH136 - 681 680.0 1.380 1.2 0.72

SISH136 - 102 1000.0 2.070 1.0 0.56

PART NO.

(uH)

DCR

( )MAX

Isat

(Adc)

1. Tolerance of inductance: 20%.

2. Isat is the DC current which cause the inductance drop less than 10% of its nominal inductance without current.

3. Ir is the DC current which cause the surface temperature of the part increase less than 45

4. Operating temperature : -20 to 105 (including self-temperature rise)

oC.

C C

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG) 252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com

Mechanical Dimension:

UNIT:mm/inch

A =18.5 / 0.728Max.

B = 15.2/ 0.598 Max.

C = 7.1/ 0.280 Max.

D = 12.7 0.2 / 0.5 0.008

E = 2.54 0.2 / 0.100 0.008

F = 2.54 0.2 / 0.100 0.008

RECOMMENDED PAD PATTERNS

3.5

7.0

14.0
