Delta Electronics Delphi Q48DB Manuel utilisateur

Delta Electronics, Inc.

DATABRIEF

DB_Q48DB_04262006

APPLICATIONS

 Telecom/DataCom

 Wireless networks

 Optical network equipment

 Server and data storage

 Industrial/Test Equipment

OPTIONS

 Positive On/Off logic

 Short pin lengths available

FEATURES

 High efficiency: 90%@ ±12V/2.7A

 Size: 57.9mm x 36.8mm x 8.5mm

(2.28”×1.45”×0.33”)

 Industry standard pin out

 Fixed frequency operation

 Input UVLO, Output OCP, OVP, OTP

 Basic insulation

 No minimum load required

 Adjustable output voltage

 ISO 9001, TL 9000, ISO 14001, QS 9000,

OHSAS 18001 certified manufacturing

facility

 UL/cUL 60950 (US & Canada)

Recognized, and TUV (EN60950) Certified

 CE mark meets 73/23/EEC and

93/68/EEC directives

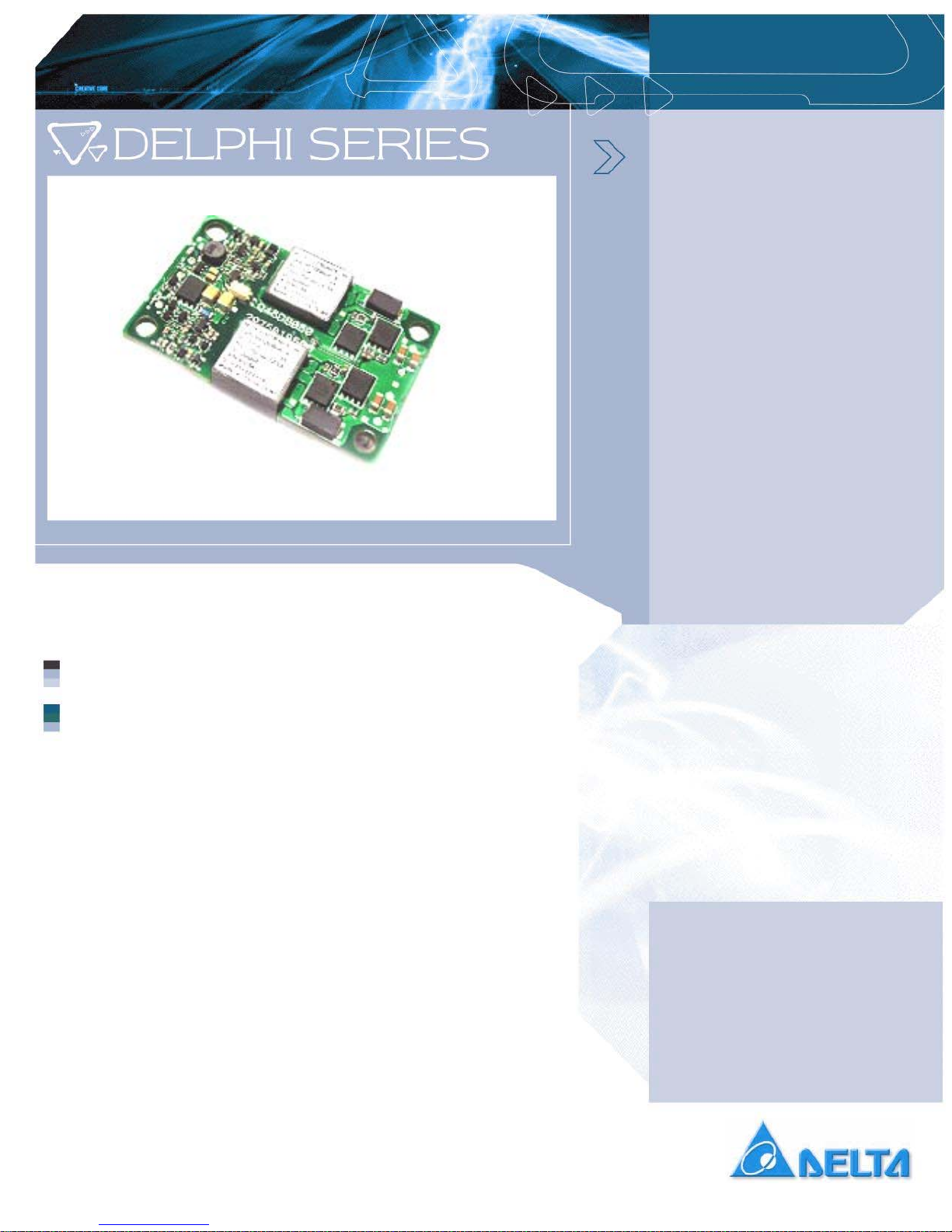

Delphi Series Q48DB, 65W Quarter Brick Dual Output

DC/DC Power Modules: 48V in, ±12V Output

The Delphi Series Q48DB Quarter Brick, 48V input, positive and negative

bipolar dual output, and isolated DC/DC converters are the latest offering

from a world leader in power system and technology and manufacturing ―

Delta Electronics, Inc. This product family provides positive and negative

bipolar output (output voltage is 12V) and up to 65 watts of power in an

industry standard quarter brick package size. Both output channels can be

used independently. With creative design technology and optimization o

component placement, these converters possess outstanding electrical

and thermal performance, as well as extremely high reliability under highl

stressful operating conditions.

ll models are fully protected from

abnormal input/output voltage, current, and temperature conditions. The

Delphi Series converters meet all safety requirements with basic

insulation.

SPECIFICATIONS

GENERAL SPECIFICATIONS OUTPUT SPECIFICATIONS

Input Voltage 36~75V Voltage Accuracy Typical ±1.5%

Switching Frequency Typical 300KHz Line Regulation Typical (balance load) ±0.5%

Isolation Voltage In/Out 1500V Load & Cross Regulation Typical (balance load) ±1%

Isolation Capacitance Typical 2000 pF Ripple & Noise Typical 50 mV

Isolation Resistance Minimum 10M Ohms Current Limits Typical 135%

MTBF Bellcore 1.17M hours

Over Voltage Typical 130%

OTP Typical 130°C Voltage Trim +10%, -10%

Size (2.28”×1.45”×0.33”) 57.9x36.8x8.5mm

PART NUMBERING SYSTEM

Q 48 D B 120 03 N R F A

Type of

Product Input

Voltage Number of

Outputs Product

Series Output

Voltage Output

Current ON/OFF

Logic Pin Length Option Code

Q - Quarter

Brick

48V D – Dual

Output

B – Bipolar

output

120 - 12V

03-2.7A

N- Negative

P- Positive

R- 0.150”

N- 0.145”

K- 0.110”

F- RoHS 6/6

(Lead Free)

A- Standard

Functions

MODEL LIST

MODEL NAME INPUT OUTPUT Efficiency @ Full Load

Q48DB12003NRFA 36V~75V 2.4A ±12V 2.7A 90%

MECHANICAL DRAWING

CONTACT: www.delta.com.tw/dcdc

USA:

Telephone:

East Coast: (888) 335 8201

West Coast: (888) 335 8208

Fax: (978) 656 3964

Email: [email protected]

Europe:

Telephone: +41 31 998 53 11

Fax: +41 31 998 53 53

Email: DCDC@delta-es.tw

Asia & the rest of world:

Telephone: +886 3 4526107 ext 6220

Fax: +886 3 4513485

Email: [email protected]

WARRANTY

Delta offers a two (2) year limited warranty. Complete warranty information is listed on our web site or is available upon request from

Delta.

Information furnished by Delta is believed to be accurate and reliable. However, no responsibility is assumed by Delta for its use, nor

for any infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or

otherwise under any patent or patent rights of Delta. Delta reserves the right to revise these specifications at any time, without notice.
