Delphi Corporation
1441 West Long Lake Road • Troy, Michigan 48098-5090 U.S.A.
Customer Service/Technical Support: [1] 877.GO DELPHI
www.delphi.com
www.shopdelphi.com
XM, SKYFi, and Roady are trademarks of XM Satellite Radio Inc.
MyFi is a trademark of Delphi Corporation.
© 2005 Delphi Corporation. All rights reserved.
DPSS-05-E-024
Setting Up the Transmitter
Note: Your Delphi XM Satellite Radio Signal
Repeater transmitter should be placed in a location
that allows for connection to a properly placed XM
home antenna (i.e., near a south-facing window).
See your satellite radio receiver user guide for
more information on locating a suitable location
for the antenna.

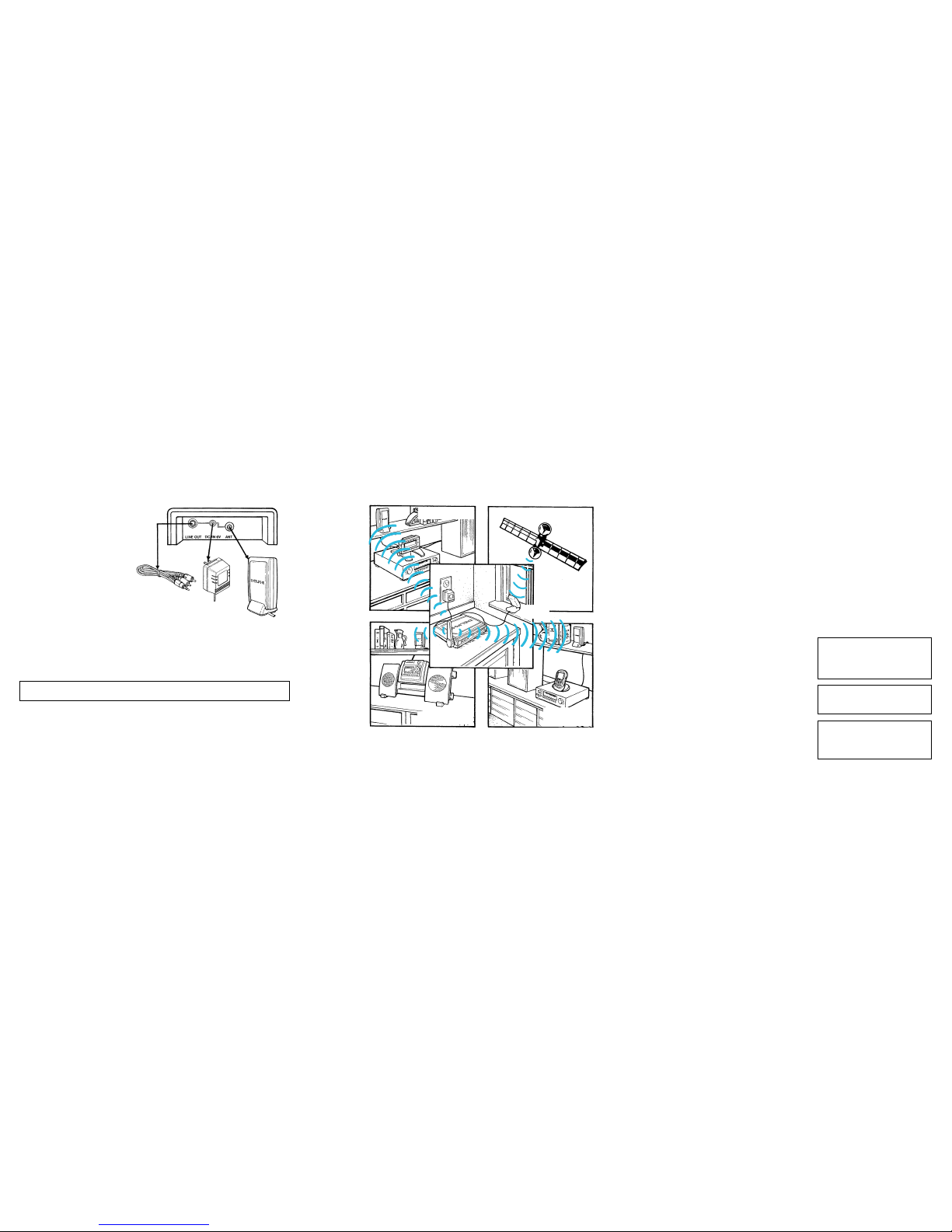

1. Connect your home antenna
and the A/C power adaptor that
came with your Delphi XM
Satellite Radio Signal Repeater in
the appropriate jacks at the back
of the transmitter. You should
see a blue light on the front when the A/C power adaptor is plugged in, and
a second blue light when the antenna is connected.
2. Start by rotating the antenna to a vertical position. If necessary, adjust it
to ensure the strongest signal is transmitted to the repeater antenna.
3. Make sure the PWR OUT switch on the back is set to the right-hand
(maximum) setting to start. See your user guide for more information
on this function.
4. Your transmitter may rest flat on a horizontal surface, or it may be
wall-mounted. See your user guide for more information.
MYFi Pack
SKYFi Holiday Pack
SKYFi2 Overpack
Roady2 Matchbox
Icon Families
Delphi XM Satellite Radio
Signal Repeater Quick Guide
color logo
color logo
color logo
white logo
white logo
white logo
For Use With Any Delphi XM Satellite
Radio Unit Home Kit or Audio System
SA10116-11B1
Caution:
The Delphi XM Satellite Radio Signal Repeater operates on a 900 MHz
frequency and may cause interference with other wireless equipment. For best
results, do not operate the Delphi XM Satellite Radio Signal Repeater in the vicinity
of other equipment operating at this frequency.
Caution:
This quick guide and your user manual contain important safety and
operating information. Please read and follow the instructions in both. Failure to do
so could result in damage to your audio system, your home, and/or other property.
Note: See the Delphi XM
Satellite Radio
Signal Repeater user guide and your satellite radio receiver user
guide for more information. (Go to www.shopdelphi.com to download a copy if you need a new one.)
Setting Up the Repeater Antenna
1. Connect the repeater
antenna and the A/C
power adaptor that came
with your home system in
the appropriate jacks.
2. If using a home kit,
connect the ministereo
(black connector) to the
jack labeled “LINE OUT”
on the back of the unit.
If your receiver does not
have a built-in modulator or you choose not to use it, connect the red and
white connectors to the input jacks on your home stereo equipment.
3. Place the repeater antenna up to 75 feet away from the transmitter. Try
different orientations until you have the best reception.
The Delphi XM
Satellite Radio
Signal Repeater can be used with
any of the satellite radio receiver
products shown—up to 75 feet
away. In fact, one transmitter can
service several receivers by attaching
a repeater antenna to each receiver!
(Additional receiver antennas sold
separately.)
Using Your Signal Repeater
*For use with either SKYFi or SKYFi2.
**For use with either Roady or Roady2.
Caution: C
onnect only appropriate input
devices to the Delphi XM
Satellite Radio
Signal Repeater. Connecting an incorrect
input device may damage the system
and/or the external electronic device.
Also for use with Delphi XM SKYFi Audio System*
and Delphi XM SKYFi Home Adaptor Kit.*
Note: Any obstructions in direct line of sight
(such as furniture, walls, floors, or people)
may result in degradation of signal.
Note: The repeater antenna should be
placed as high as possible for best
reception. For optimal performance, place
the repeater antenna in direct line of sight
with the transmitter.
Home
antenna
Transmitter
antenna
Delphi XM SKYFi CD
Audio System*
Delphi XM Roady™
Home Adaptor Kit**
Delphi XM MyFi
Receiver
(in home stand)
