Delphi Roady 2 Manuel utilisateur

Satellite

Radio

Receiver

User

Guide

SA10085

Important: This manual contains important safety and operating information.

Please read and follow the instructions in this manual. Failure to do so could result

in personal injury, death, and/or damage to your Roady2 and/or to your vehicle.

All manuals and user guides at all-guides.com

all-guides.com

FCC ID: RS2SA10085

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received,

including interference that may cause undesired

operation.

IMPORTANT: The FCC and FAA have not certified the

Delphi XM Roady2 Satellite Radio Receiver for use in any

aircraft (neither portable nor permanent installation).

Therefore, Delphi cannot support this type of application

or installation.

All manuals and user guides at all-guides.com

Welcome

Thank you for purchasing a Delphi XM®Roady2™Satellite Radio Receiver.

Your Roady2 gives you access to over 120 XM Satellite Radio channels of

music, news, and information from coast-to-coast.*

Your Roady2 must be used with the enclosed connecting devices (or

other approved accessories) to ensure maximum performance and safety.

*XM subscription required for reception. Not available in Alaska or Hawaii.

Caution: Do not modify or alter wires or connections in any way. Shortening wires or

connections may prevent proper functioning of the protection circuit. Doing so may

damage your receiver and will void your warranty.

All manuals and user guides at all-guides.com

About Roady

Roady2 is the latest in the acclaimed line of portable devices from Delphi and

XM Satellite Radio and represents the best in audio technology. The smallest

and lightest satellite radio receiver currently available, Roady2 is always ready

to go with you. Just plug it in and go! Roady2 now contains an integrated

wireless FM modulator (that lets you play XM through an empty frequency on

the FM dial of your car or home radio) for the ultimate in convenience, and a

stock ticker that will let you track up to 20 of your favorite stocks while listening

to any XM channel.

About Delphi

Delphi is a worldwide leader in mobile electronics and transportation

components of audio technology. Delphi created the first in-dash car radio

decades ago, and is responsible for many audio innovations through the

years. Now Delphi technology has helped make satellite radio a reality,

and Delphi continues to expand its in-vehicle and consumer electronics

technologies. Delphi has a broad portfolio of products to answer a wide

variety of information and entertainment needs.

About XM

One big idea can change everything. And XM Satellite Radio is one big idea:

Radio to the Power of X®. America’s most popular satellite radio service offers

over 120 digital channels of sheer variety: music, sports, talk, comedy, drama,

news, traffic and weather, kids programming, and more. All 68 XM music

channels are 100 percent commercial-free, and XM’s instant traffic and weather

channels provide the most comprehensive, in-depth information on traffic

incidents, delays, and road conditions available on radio. These services are

available for a low monthly subscription, and additional devices may qualify

for a reduced subscription fee through the XM Family Plan.

All manuals and user guides at all-guides.com

Contents

Section 1

Getting Started: Activating

Roady2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Section 2

Roady2 Receiver

Roady2 Display Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Roady2 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Section 3

Basic Operations

Turning Roady2 On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Basic Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Changing the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Save and Recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Section 4

Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Section 5

Installation

Roady2 Kit Set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Roady2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

XM Antenna Set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Section 6

Reference

Taking Care of Your Roady2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Contacting Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Section 7

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

All manuals and user guides at all-guides.com

Section 1

Getting Started: Activating Roady2

To quickly begin enjoying Delphi XM Satellite Radio, follow these simple steps:

1. Set up your Roady2 using the installation instructions in Section 5 of this

guide (see page 17) or with the help of a professional installer.

2. Press the power button to turn your Roady2 on and verify that it is

playing Channel 1, the XM Preview Channel.

3. Select Channel 0. The receiver’s eight-character XM Satellite Radio ID

number will appear on the display. Write the number here:

4. Activate your XM Satellite Radio service. To subscribe, make sure you

have a major credit card and your XM Satellite Radio ID number

handy and contact XM at http://activate.xmradio.com. You can also

activate your service by calling 1-800-852-9696.

Note: You will need to keep your Roady2 on for at least one hour after activation and installation to

receive the full channel lineup.

Caution: Failure to properly fol-

low all installation instructions may result

in personal injury or damage to your Roady2

or to your vehicle.

Warning: When using this product it is always

important to keep your eyes on the road and your hands

on the wheel. Not doing so could result in injury to you

or to others or in property damage.

Note: Carefully check your XM Radio ID. The letters I, O, S, and F are not used.

All manuals and user guides at all-guides.com

all-guides.com

Section 2

Roady2 Receiver

Roady2 Display Screen

While tuned to an XM channel, the Roady2 default display contains

information about that channel and the Roady2 settings. See figure 1.

Signal-strength indicator

(zero to three bars) Direct/preset mode (Direct, Preset A,

Preset B, or Preset C)

Channel name

and number

Artist name

Figure 1. Roady2 display.

Display mode

indicator

Category search

indicator

Power button

Category search

Control keys

Figure 2. Roady2 controls.

Number keys

Infrared lens

Roady2 Controls

Tuning Wheel

(inset on corner

of unit)

All manuals and user guides at all-guides.com

The Roady2 unit has seven function buttons, a Tuning Wheel, and 10 number keys.

Turns the Roady2 on or off.

The display button toggles between four display options:

1. Channel name, channel number, artist name

2. Channel name, channel number, song title

3. Artist name, song title

4. Artist name, stock ticker

Press Memory to save artist name and song title information. Press

and hold memory key to recall information (or access this informa-

tion from “Memory Recall” in the menu).

Press Menu to select and change receiver configuration options.

Pressing Menu when in menu mode will allow the user to back out

to the previous level.

Switches between Direct Entry, Preset A, Preset B, and Preset C.

Enters category search and displays channels grouped by category.

Continued presses step through available categories. Use the

Tuning Wheel to scroll through channels within a category; press

the Tuning Wheel in to select a channel. Category search times out

after approximately 8 seconds if no channels are selected.

Use the Tuning Wheel to scroll through channel or menu options.

Pressing the Tuning Wheel in selects a channel or menu option.

Number keys are used to select a channel directly (when in Direct

Entry mode), and to select or set presets when in a Preset mode.

display

category

preset/direct

memory

Section 2

All manuals and user guides at all-guides.com

Section 3

Basic Operations

Turning Roady2 On and Off

Press on the Roady2. When first turned on, the receiver will

automatically tune in to the last channel listened to and recall the

previous settings.

Basic Channel Selection

Select a channel by number

1. Make sure that Roady2 is in Direct Entry mode. “Direct” should appear in the

upper right corner of the display. If A, B, or C appears, press until the

display says “Direct.”

2. Enter channel number using the number keys, i.e., 5 then 0 for Channel 50.

Set/select channel presets

Your Roady2 can store up to 30 preset channels. They are organized into

three different groups (Preset A, Preset B, and Preset C), each with 10

channels corresponding to the 10 number keys. For the tenth preset in

each group, press the “0” key.

Selecting channel presets

Press until an A, B, or C appears in the upper right corner of the

display. Press the number key corresponding to the desired preset.

Setting channel presets

1. Tune in the channel you want to register as a preset, making sure it is playing.

2. Select either Preset A, Preset B, or Preset C by pressing until an A,

B, or C appears in the upper right corner of the display.

preset/direct

Warning: When using this product it is always important to keep your eyes on the road and your

hands on the wheel. Not doing so could result in injury to you or to others or in property damage.

All manuals and user guides at all-guides.com

Section 3

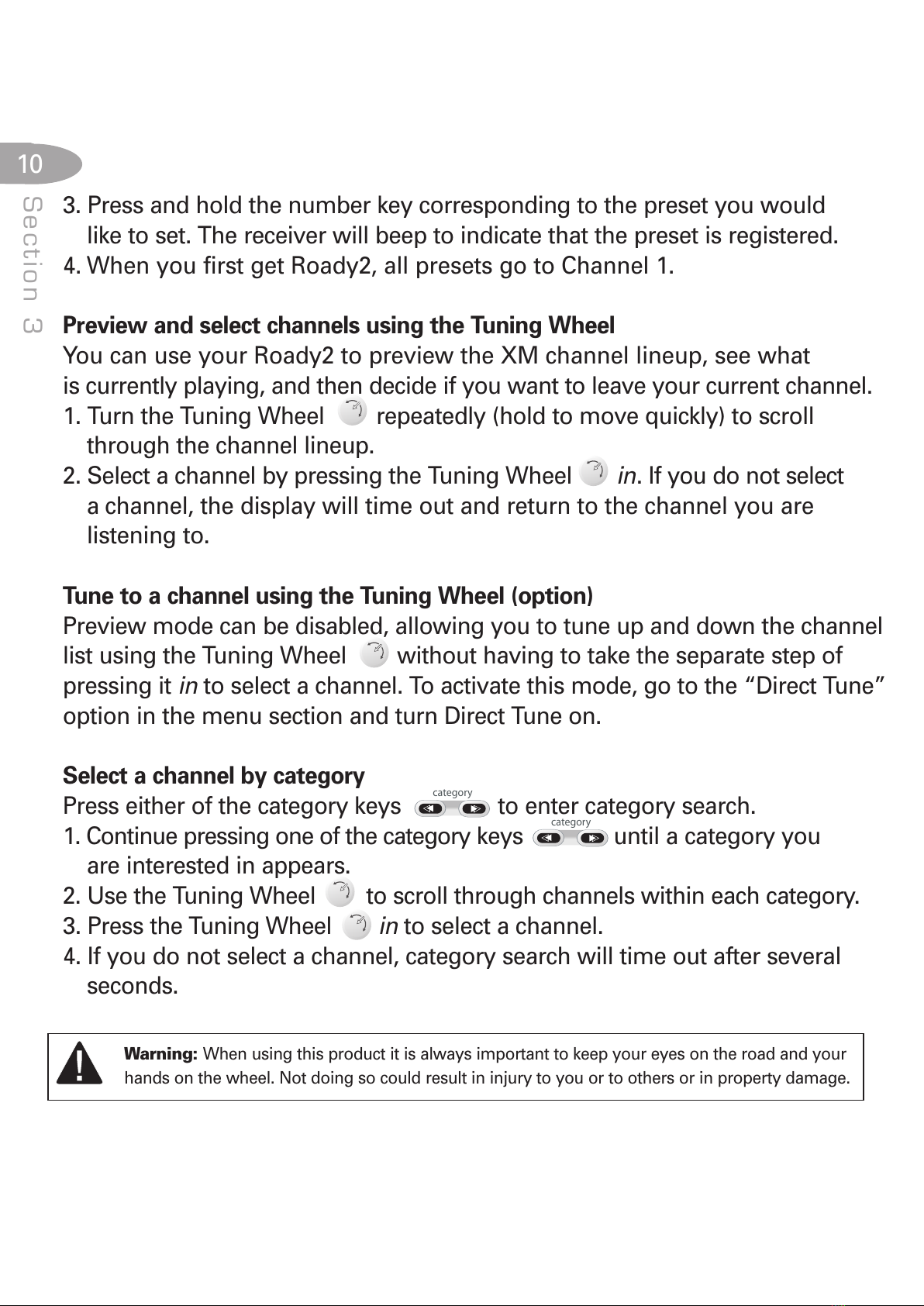

3. Press and hold the number key corresponding to the preset you would

like to set. The receiver will beep to indicate that the preset is registered.

4. When you first get Roady2, all presets go to Channel 1.

Preview and select channels using the Tuning Wheel

You can use your Roady2 to preview the XM channel lineup, see what

is currently playing, and then decide if you want to leave your current channel.

1. Turn the Tuning Wheel repeatedly (hold to move quickly) to scroll

through the channel lineup.

2. Select a channel by pressing the Tuning Wheel in. If you do not select

a channel, the display will time out and return to the channel you are

listening to.

Tune to a channel using the Tuning Wheel (option)

Preview mode can be disabled, allowing you to tune up and down the channel

list using the Tuning Wheel without having to take the separate step of

pressing it in to select a channel. To activate this mode, go to the “Direct Tune”

option in the menu section and turn Direct Tune on.

Select a channel by category

Press either of the category keys to enter category search.

1. Continue pressing one of the category keys until a category you

are interested in appears.

2. Use the Tuning Wheel to scroll through channels within each category.

3. Press the Tuning Wheel in to select a channel.

4. If you do not select a channel, category search will time out after several

seconds.

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
