DeLorme Earthmate PN-30 Manuel utilisateur

Earthmate®

PN-Series

DELORME

User Manual

Updated for 2.6 Firmware

GPS for Serious Outdoor Adventures

Earthmate®PN-Series Accessories

We offer a variety of products designed to carry, securely mount, and power your Earthmate

GPS. You can also inexpensively subscribe for a year’s worth of supplemental data downloads,

including color aerial imagery, USGS 7.5-minute topographic quads, and NOAA nautical charts.

Also Available from DeLorme

DeLorme is a leading provider of mapping software for both consumer and professional markets.

Our Street Atlas USA®software titles deliver intelligent mapping, routing, and GPS navigation

solutions for laptop PCs and PDAs. XMap®is a three-tiered GIS software suite that integrates

advanced geospatial data management into DeLorme's core GPS mapping framework.

We also publish the Atlas & Gazetteer™series of topographic map books for individual states.

Table of Contents

Getting Started ............................................................................................................................. 2

General Information...................................................................................................................... 6

The Satellites Page ..................................................................................................................... 12

The Map Page............................................................................................................................. 16

The Compass Page..................................................................................................................... 26

The Trip Info Page ....................................................................................................................... 29

The Find Page............................................................................................................................. 31

The Waypoints Page ................................................................................................................... 35

The Geocaches Page .................................................................................................................. 40

The Routes Page ........................................................................................................................ 47

The Tracks Page .......................................................................................................................... 52

The Sun/Moon Page ................................................................................................................... 56

The Tide Page ............................................................................................................................. 58

The Hunt/Fish Page .................................................................................................................... 60

The Device Setup Page .............................................................................................................. 62

Info Fields Table .......................................................................................................................... 68

Additional Information................................................................................................................. 72

Index........................................................................................................................................... 82

Getting Started

PN-Series

This manual is for use with DeLorme Earthmate® PN-30

and PN-40 GPS devices.

How to Use this Manual

For more information about the buttons on the PN-Series

GPS, see Using the Buttons on page 6.

When the manual instructs you to do something, use

these actions on the device:

To select an item on the screen, such as a eld,

check box, button, drop-down list, menu item, or

search result—use the arrow keypad to move/scroll to

the item to highlight it and press ENTER.

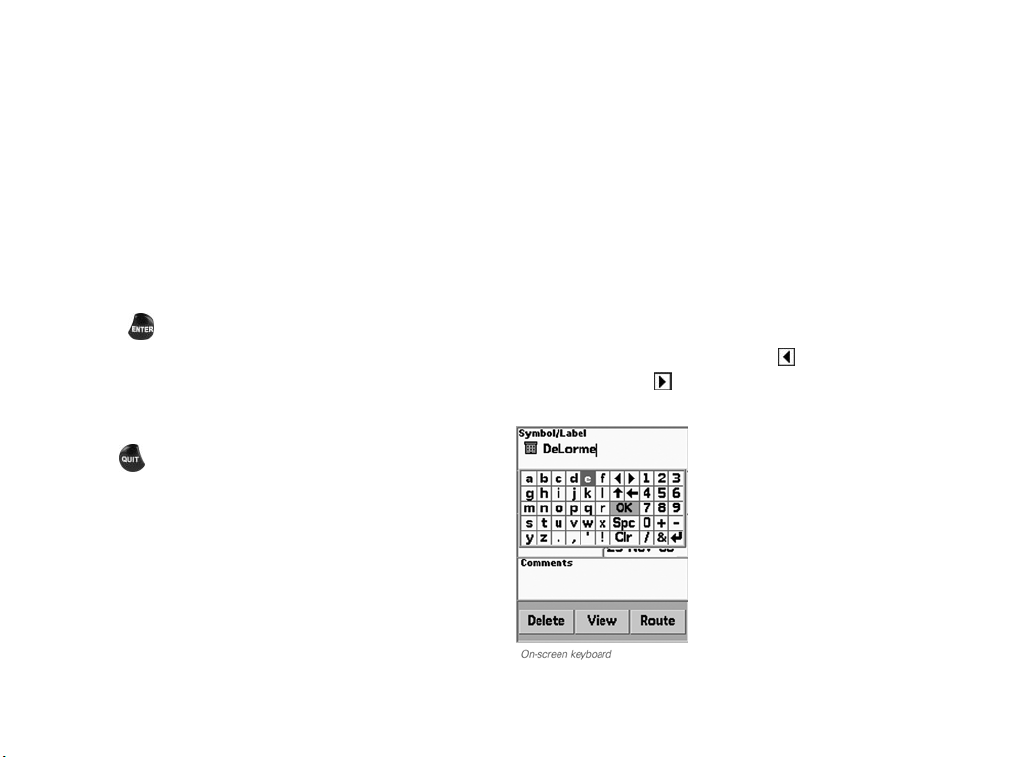

To edit alphanumeric elds, use the on-screen»

keyboard. See Using the Keyboard on page 8.

To edit numeric elds, use the up/down arrows on»

the arrow keypad to increase/decrease numbers and

change other information. Use the left/right arrows

to move the selection.

To clear a selected check box, press» ENTER.

Once you make a selection or nish editing

information, press ENTER to complete the action.

To exit a page or screen, pressQUIT.

To complete a series of steps—an arrow ( > ) indicates

the sequence. Note that the sequences do not include

ENTER and QUIT button presses described above.

Example To change your battery type, go to MENU >

Device Setup > System > Battery Type. In this case, you

would press the MENU button; use the arrow keypad to

highlight Device Setup and press ENTER; use the arrow

keypad to highlight System and press ENTER; use the

arrow keypad to highlight Battery Type and press ENTER

to open the drop-down list; use the arrow keypad to

highlight the new battery type and press ENTER; and then

press QUIT to exit the Device Setup Page.

Installing the Batteries and SD

Card

You can power your PN-Series GPS with two AA batteries

(NiMH, alkaline, or lithium) or a DeLorme rechargeable Lith-

ium-ion (Li-ion) battery. The PN-Series GPS has a real-time

clock that requires power even when the device is turned

off. The SD card slot is underneath the batteries inside the

battery compartment.

Getting Started

To install batteries and the SD card

Unscrew the D-rings on the back of the device until1.

you can remove the battery cover.

Optional. To insert an SD card, gently press down the2.

SD card latch, insert the card in the slot, and press

down the slot to close the latch. Note Do not lift the

SD card latch as this could cause damage.

Insert two AA batteries or a DeLorme Li-ion3.

rechargeable battery according to the polarity symbols

inside the battery compartment. Be sure to insert

batteries correctly.

Position the battery cover on the device and screw in4.

the D-rings.

Go to5. MENU > Device Setup > System > Battery

Type and ensure the correct battery type is selected.

This ensures that the battery indicator displays the

correct amount of battery life remaining.

To view the battery indicator

The battery indicator is on the Satellites Page; for more

information, see Battery Indicator on page 14.

To charge a DeLorme Li-ion battery in the

PN-Series GPS

Install the battery in the device.1.

Connect the device to your computer with the USB2.

cable.

You can leave the device fully powered on.

You can set it to charging mode; with the device

powered off, quickly press Power once. The screen

displays "Charging" or "Charge Complete."

To improve battery life

Automatically turn off the backlight after 15 seconds;

go to MENU > Device Setup > Display > Backlight

Timer > 15 sec.

Use the power saving option; go toMENU > Device

Setup > System > GPS Settings > Power Saving.

Disable the GPS when inside. Go toMENU > Device

Setup > System > GPS Settings > Disable GPS OR

from the Satellites Page, go to MENU > Disable GPS.

Use batteries with higher milliamp-hour (mAh) ratings

(such as Duracell Ultras, Energizer E2s, etc.).

Turning the PN-Series GPS On or

Off

The Power button is at the bottom right corner of the

button area.

To turn on the PN-Series GPS

Press and hold Power until you see the Welcome screen.

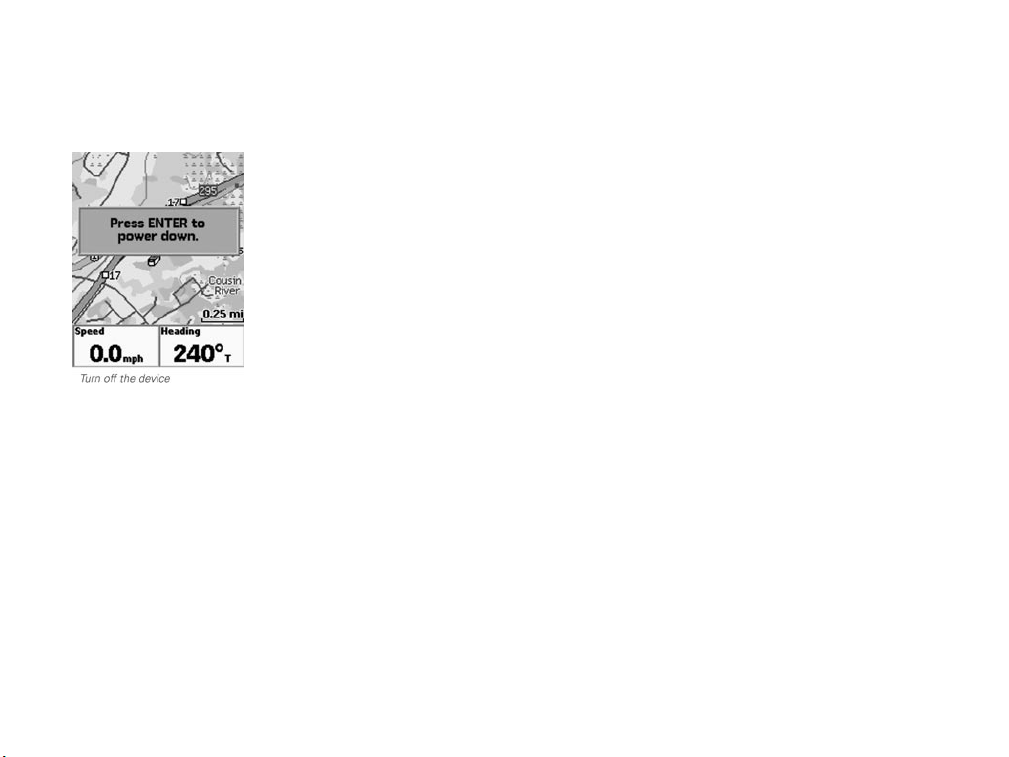

To turn off the PN-Series GPS

Press Power and then press ENTER when you see the

conrmation message.

To view or hide Demo Mode

When you rst turn on the PN-Series GPS, it opens in

Demo Mode.

To view the demo, follow the on-screen instructions.

To exit the demo, pressQUIT.

To disable Demo Mode—from the rst screen, press

ENTER to clear the Show at Startup check box.

To restore Demo Mode, go toMENU > Device Setup

> System > GPS Settings > Demo Mode.

Note You must disable Demo Mode if you want to view

the Connect to Computer screen when you connect your

device to your computer. For more information about con-

necting your device to your computer, see Connecting to a

Computer on page 72.

To reset the PN-Series GPS

To reset the PN-Series GPS when it is on, press and hold

Power for seven seconds. You can also remove the

batteries and then reinstall them.

Data Management

The PN-Series GPS stores waypoints, geocaches, tracks,

routes, and the base map data in its internal memory. You

can save maps in the device's internal memory or on a

removable memory card (SD/SDHC/MMC) located under

the battery compartment.

To view and manage memory information, go to MENU >

Device Setup > System > Memory Use.

Detailed Map Data

Your PN-Series GPS comes with a base map showing

overview-level worldwide coverage, as well as U.S. inter-

states and routes, state routes, and major roads. While

this provides a great view of a large area, chances are that

you will want a detailed view of a smaller area for hiking,

geocaching, and other activities.

You can transfer detailed maps and map packages to the

PN-Series GPS using:

Getting Started

PN-Series detailed map DVDs–Included with your

device are DVDs with detailed pre-formatted Topo

USA®data of the entire U.S. Insert the DVD for your

area of interest in your computer's DVD drive and

follow the on-screen instructions to easily copy the

maps you want onto your device.

Note Once you install the detailed data on your

device, you are ready to use your PN-Series GPS. The

Topo USA or XMap software included with your device

offers additional functionality best explored once you

have loaded maps from the detailed DVDs and spent

some time investigating your PN-Series GPS.

Compatible DeLorme mapping software—

Instructions for sending map packages, data, draw

layers, and more to your PN-Series GPS vary by

application. For more information, see the mapping

application’s Help.

Map Library–Use the NetLink tab in your DeLorme

mapping software or the DeLorme Online Map Center

(http://data.delorme.com) to download many types

of imagery and data, such as satellite imagery, aerial

imagery, USGS Topo Quad maps, NOAA nautical

charts, and more. With an annual Map Library

subscription, you can download unlimited imagery and

data for the entire year—the maps are yours to keep.

Non-DeLorme maps–DeLorme’s professional GIS

software, XMap®, allows you to register non-DeLorme

maps and transfer them to a PN-Series GPS.

Navionics lake maps and marine charts—Add shing

maps and boating maps and charts to your device with

Navionics SD cards. For more information, see

Navionics on page 24.

Tip A map package is a dataset you create for an area of

interest that you can layer with DeLorme map data and other

map datasets available from the NetLink Map Library.

General Information

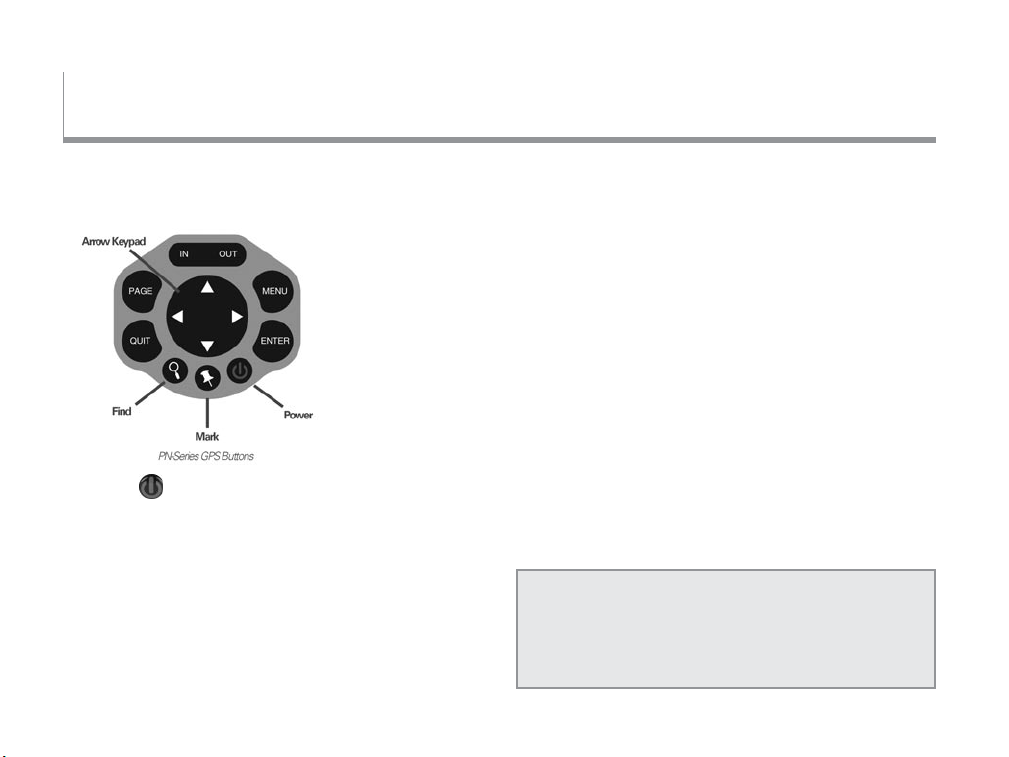

Using the Buttons

Power

Use the Power button to turn the PN-Series GPS on and

off, to change the backlight settings, or to reset the device.

To turn on the device, press and hold thePower button

until the Welcome screen displays.

To turn off the device, press thePower button. When

you see the conrmation message, press the ENTER

button. If you do not want to turn off the device, wait

ve seconds or press QUIT.

To change the backlight intensity percentage, press

and hold the Power button for approximately two

seconds until you see the backlight indicator. To

decrease the backlight intensity, press the left arrow on

the arrow keypad. The right arrow increases the

intensity. Each level of intensity represents a 10%

change (100% is the maximum and 10% is the

minimum).

Note: When you charge the device, the backlight is set

to a default charging intensity that is lower than 100%.

To turn the backlight off when the timer is set to

Always On, press and hold the Power button for three

seconds until the backlight shuts off.

To turn the backlight on, press any button once.

To reset the device when it is on, press and hold the

Power button for seven seconds.

Tips Reducing the backlight intensity and decreasing the timer

can signicantly improve battery life. The daylight readable TFT

screen is designed to be readable in direct sunlight or slanting

light conditions. For more information about backlight intensity

and the back light timer, see the Device Setup > Display

section on page 63.

General Information

In/Out

Use the IN/OUT button to zoom the map in or out or scroll

through a list.

PressIN once to zoom the map in one level and show

more detail.

Press and holdIN to zoom the map in all the way.

PressOUT once to zoom the map out one level and

show less detail.

Press and holdOUT to zoom the map out all the way.

PressIN or OUT to move forward or backward a page

at a time.

Page

Press the PAGE button to move forward through the

enabled pages. To add, remove, or reorder pages, go to

MENU > Device Setup > Page Order (for more informa-

tion, see Page Order on page 66).

The default page sequence is:

Satellites

Map

Compass

Trip Info

Directions (available when navigating)

Press the MENU button to access functions for the page

or screen you are using and pages that are not enabled in

the page order.

The menu's top section lists actions specic to the

active page—select the item and press ENTER.

The bottom section lists the pages you may want to

quickly access at any time.

Find

The Find button is labeled with a magnifying glass. Use it

to search for a point of interest, waypoint, geocache, ad-

dress, coordinate, and more. You can search for a location

by name or by its proximity to the current map center. For

more information, see The Find Page section starting on

page 31.

Mark

The Mark button is labeled with a pushpin. Use it to mark

a waypoint at your current GPS location or, when panning,

at the cursor location. Once you mark a waypoint, use its

details page to manage it, view it on the map, or create a

route to it. For more information, see The Waypoints Page

section starting on page 35.

Arrow Keypad

The arrow keypad lets you move around pages and

screens.

Press once to move the map cursor left, right, up, or

down in increments.

Press and hold to pan the map.

Highlight options in menus or lists. Press down to

move to the next entry, press up from the rst entry to

go to the last entry, or down from the last entry to go

to the rst entry.

Highlight elds and highlight characters on the

keyboard screen.

Press and hold to quickly scroll through a menu or list.

On the Map Page, press any arrow once to turn on the

backlight.

Enter

Press the ENTER button to:

Select a menu entry, eld, or screen button.

Get information about a point on the map to see

detailed information, if available.

Quit

The function of the QUIT button varies depending on the

status of the PN-Series GPS; some of the things you can

do are:

Exit a page or screen.

Cancel actions (for example, panning).

Close the keyboard and cancel changes.

Delete individual points when measuring distance.

Move backwards through the page order sequence.

Using the Keyboard

The on-screen keyboard is available when you need to

enter text, such as when editing a waypoint label, adding

text to a comment eld, or entering search parameters.

Use the arrow keypad to highlight the letter (A–Z), number

(0–9), symbol (+, -, /, &), or punctuation you want to use,

and then press ENTER after each selection. When you

are nished using the keyboard, highlight OK and press

ENTER.

For existing text, enter a letter to replace the highlighted

content. To keep the existing text but move the cursor to

the beginning/end of the text, select to move the cursor

to the beginning or to move the cursor to the end of the

text.

General Information

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels DeLorme GPS

DeLorme

DeLorme Earthmate GPS PN-60 Manuel utilisateur

DeLorme

DeLorme Earthmate GPS PN-20 Manuel utilisateur

DeLorme

DeLorme GPS2058 Manuel utilisateur

DeLorme

DeLorme Earthmate GPS PN-60 Manuel utilisateur

DeLorme

DeLorme inReach Manuel utilisateur

DeLorme

DeLorme Earthmate PN-40 Manuel utilisateur

DeLorme

DeLorme Earthmate LT-40 Manuel utilisateur

DeLorme

DeLorme inReach se Manuel utilisateur

DeLorme

DeLorme Earthmate GPS PN-20 Manuel utilisateur

DeLorme

DeLorme Earthmate PN-30 GPS Manuel utilisateur

DeLorme

DeLorme Earthmate PN-40 Manuel utilisateur

DeLorme

DeLorme Earthmate GPS PN-20 Manuel utilisateur

DeLorme

DeLorme Earthmate GPS PN-60 Manuel utilisateur

DeLorme

DeLorme Earthmate GPS PN-60 Manuel utilisateur

DeLorme

DeLorme inReach Manuel utilisateur

DeLorme

DeLorme Earthmate PN-40 Manuel utilisateur

DeLorme

DeLorme Earthmate GPS PN-20 Manuel utilisateur

DeLorme

DeLorme Earthmate GPS PN-20 Manuel utilisateur

DeLorme

DeLorme inReach se Manuel utilisateur

DeLorme

DeLorme inReach Explorer Manuel utilisateur

DeLorme

DeLorme Earthmate PN-40 Manuel utilisateur

DeLorme

DeLorme Earthmate PN-60w Manuel du propriétaire

DeLorme

DeLorme Earthmate PN-40 Manuel utilisateur

DeLorme

DeLorme Earthmate PN-60w Manuel utilisateur

Manuels GPS populaires d'autres marques

Raven

Raven Cruizer II Manuel

Hama

Hama 53118 Manuel utilisateur

Garmin

Garmin SOUNDER 125 Manuel utilisateur

Garmin

Garmin DEZL 580 Manuel utilisateur

Jigabot

Jigabot EX Manuel utilisateur

Pointer

Pointer Cellocator CelloTrack XT LTE Guide d'installation

Queclink

Queclink GV55LITE Manuel utilisateur

Voxson

Voxson Voxtrack GPS500 Manuel d'instructions

Garmin

Garmin ECHOMAP PLUS Manuel utilisateur

Starcom Systems

Starcom Systems Kylos Compact Manuel utilisateur

Garmin

Garmin 15 H Series Manuel utilisateur

Cobra

Cobra Marine MC 600Ci Manuel utilisateur

Cellocator

Cellocator CelloTrack T Manuel utilisateur

Enfora

Enfora Mini-MT GSM2228UG001 Manuel utilisateur

Magellan

Magellan eXplorist 100 Manuel utilisateur

LTE

LTE G50B Manuel utilisateur

Garmin

Garmin DEZL OTR500 Manuel utilisateur

SkyGolf

SkyGolf SkyCaddie SG1 Manuel utilisateur
