Delock HD-SDI Outdoorcamera Bullet
Description
This HD-SDI Surveillance Camera features a
high-resolution 2 Megapixel sensor and delivers
crystal-clear, uncompressed images with full HD resolution
in real time. The HD-SDI output is compatible with other
HD-SDI equipment. The signal is transmitted via a
conventional 75 ohm coaxial cable with BNC connector, so
an already existing infrastructure can be used. The built-in
infrared LEDs and automatic day / night switching
deliver detailed images even in the dark. The weatherproof
enclosure is suitable for indoor and outdoor installation.
Specification
• Connector:
1 x BNC female (HD-SDI: 1920 x 1080p with 25 or 30 Hz,
SMPTE 292M)
1 x BNC female (Composite Video: PAL or NTSC)
1 x DC 5.5 x 2.1 mm Power (DC 12 V / 1.5 A)
• 2 Megapixel Progressive Scan CMOS Sensor (1 / 2.8")
• 2.8 - 12 mm zoom lens (manual)
• 72 integrated Infrared-LEDs, max. 60 m distance
• Internal cable routing (tamper protection)
• Water resistant enclosure with canopy
• Wired Joystick for OSD-control (optional controllable via RS-485)
• Picture Optimization: Automatic shutter control, automatic gain control (AGC), adaptive
color and contrast adaptation (ACCE), digitale noise reduction (2D and 3D DNR),
backlight compensation (BLC), automatic white balance (ATW), automatic day- / night
switching.
• Operating temperature: -10 ~ +50 °C
• Humidity: 0 ~ 85 % (non condensing)
• Dimensions (LxWxH): ca. 29 x 13 x 11 cm
• Weight: ca. 1.4 kg
Item No. 93235
EAN
4043619932351
Country of origin
China
System requirements
• Device with HD-SDI or HD-SDI input signal converter
• Power supply with DC 12 V / 1.5 A (not included)
Package content
• HD-SDI Bullet Camera
• Mounting screws and dowels
• Allen wrench
• User manual
Package
• Box
© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted. www.delock.com 1

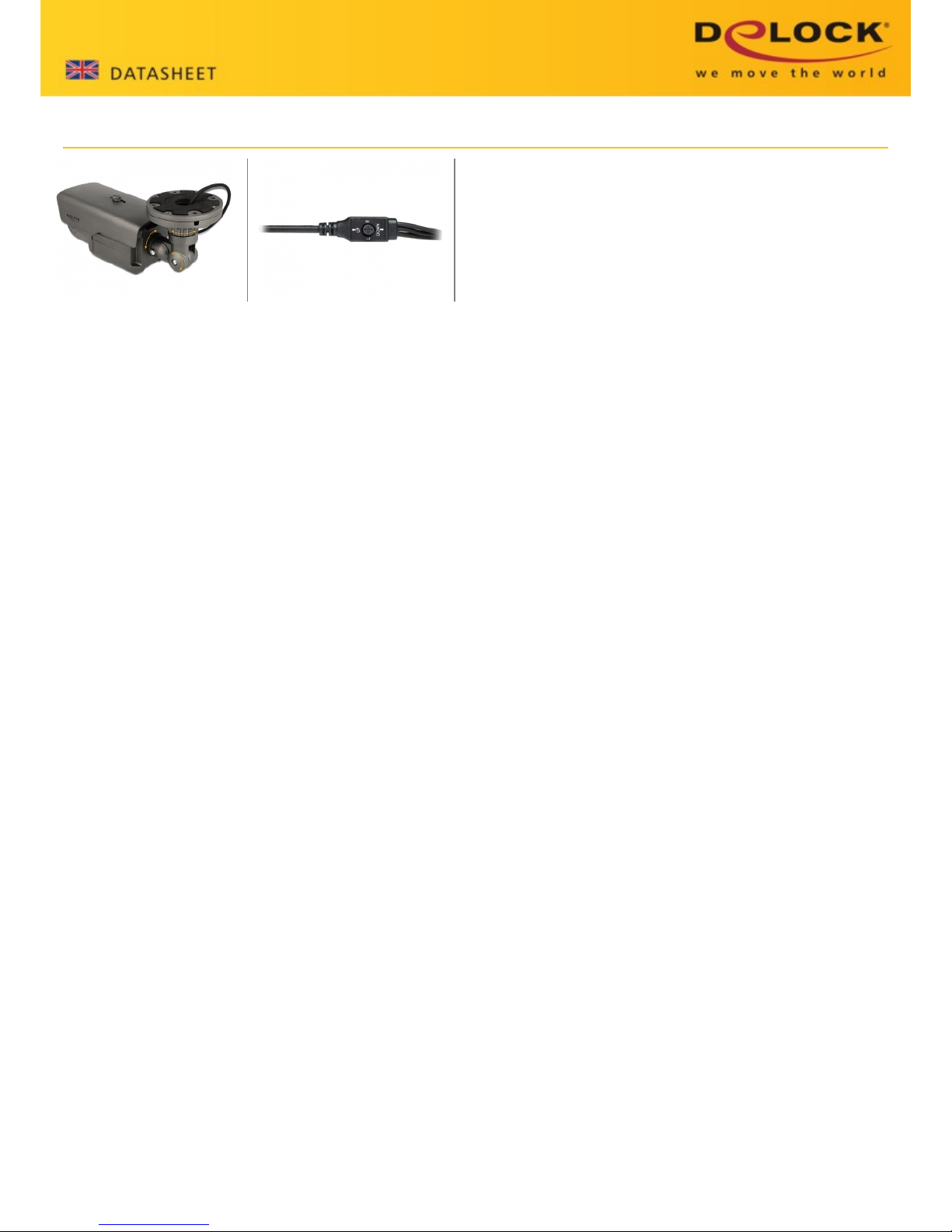

Images
