Dellonda DG177 Manuel utilisateur

Model No. DG177

Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,

if used according to these instructions, and properly maintained, give you years of trouble free performance.

DG177 Issue:1 07/12/2021

www.dellonda.co.uk

Dellonda Folding Parasol/Gazebo/Patio

Outdoor Infrared Heater Three Panels

Electrical Safety

• WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:

• You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets

and any other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of

appropriate safety devices. A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. You must also read

and understand the following instructions concerning electrical safety.

• Ensure that cables are always protected against short circuit and overload.

• Regularly inspect power supply cables and plugs for wear or damage and check all connections

to ensure that none are loose.

• IMPORTANT: Ensure that the voltage marked on the appliance matches the power supply to be

used and that the plug is tted with the correct fuse - see fuse rating at right.

• DO NOT use worn or damaged cables, plugs or connectors. Have any faulty item repaired or

replaced immediately by a competent electrician.

• This product is tted with a BS1363/A 13 Amp 3 pin plug. If the cable or plug is damaged during use,

switch off the electricity supply and remove from use.

• Replace a damaged plug with a BS1363/A 13 amp 3 pin plug.

• If in doubt contact a qualied electrician.

• Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.

• Dellonda recommend that repairs are carried out by a qualied electrician.

• Fit a new plug according to the following instructions (UK only).

• a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.

• b) Connect the BROWN live wire to the live terminal ‘L’.

• c) Connect the BLUE neutral wire to the neutral terminal ‘N’.

General Safety

• WARNING! This product is for outdoor use only.

• WARNING! Ensure the heater is disconnected from the mains supply before performing any cleaning or maintenance.

• WARNING! Ensure the heater is at least 1m from any object, 500mm from the ceiling and 1800mm from oor level.

• WARNING! This heater is not equipped with a device to control the room temperature. Do not use this heater in small spaces when

they are occupied by persons not capable of leaving the area on their own, unless constant supervision is provided.

• WARNING! If a fuse blows, ensure it is replaced with an identical fuse type and rating.

• WARNING! Never touch the element directly with ngers. Use a soft cloth, otherwise the tube may get damaged.

• WARNING! In order to avoid overheating, do not cover the heater.

• Familiarise yourself with the applications and limitations of the heater.

• Ensure the heater is in good condition before use. If in any doubt do not use the unit and contact your supplier.

• Only use recommended attachments and parts. Using unauthorised parts may be dangerous and will invalidate your warranty.

• Check that element guards are in place, undamaged and rmly attached.

• Keep curtains, furnishings or any combustible material well away from the heater or it’s installation location.

• Keep children and unauthorised persons away from the heater, as it gets very hot.

• Disconnect from mains and allow to cool before moving or attempting any cleaning or maintenance.

• DO NOT USE WITH AN EXTENSION CABLE.

• DO NOT use this heater with timers or other devices which switch the heater on automatically.

• DO NOT immerse the heater in water.

• DO NOT locate the heater below the power outlet.

• DO NOT move the heater whilst in operation or even when still warm.

• DO NOT use the heater to perform a task for which it has not been designed.

• DO NOT use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on

automatically, since a re risk exists if the heater is covered or positioned incorrectly.

• DO NOT use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• NOTE: Two dark points may exist on the surface of the heating element, or the surface of the heating element may turn white during the rst

few minutes of operation. This is normal and will not affect the performance of the heater.

• CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and

vulnerable people are present.

• NOTE: Children of less than 3 years should be kept away unless supervised continuously.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed

in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform

user maintenance.

Important Information

Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care

for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these

instructions safe for future use.

www.dellonda.co.uk

Refer to

instruction

manual

Electrical shock

hazard

Hot surfaces DO NOT cover

Recommended fuse rating

13 Amp

• NOTE: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance

shall not be made by children without supervision.

About the Product

Outdoor infrared heater is the perfect companion for your parasol or gazebo all year round. A totally dry heat, no condensation, no gas, no fumes

and no smell. Heats an area of up to 10m². Outdoor use only (IPX3). Features extra long 5m cable.

• SPECIFICATION

• Model no: ................................................................... DG177

• Heated Area: ................................................................. 10m²

• Product Dimensions (W x D x H): ........ 485 x 455 x 140mm

• Power: ......................................................................... 1350W

• Supply: ........................................................................... 230V

• Cable Length: .................................................................... 5m

• IP Rating: ........................................................................ IPX3

Assembly

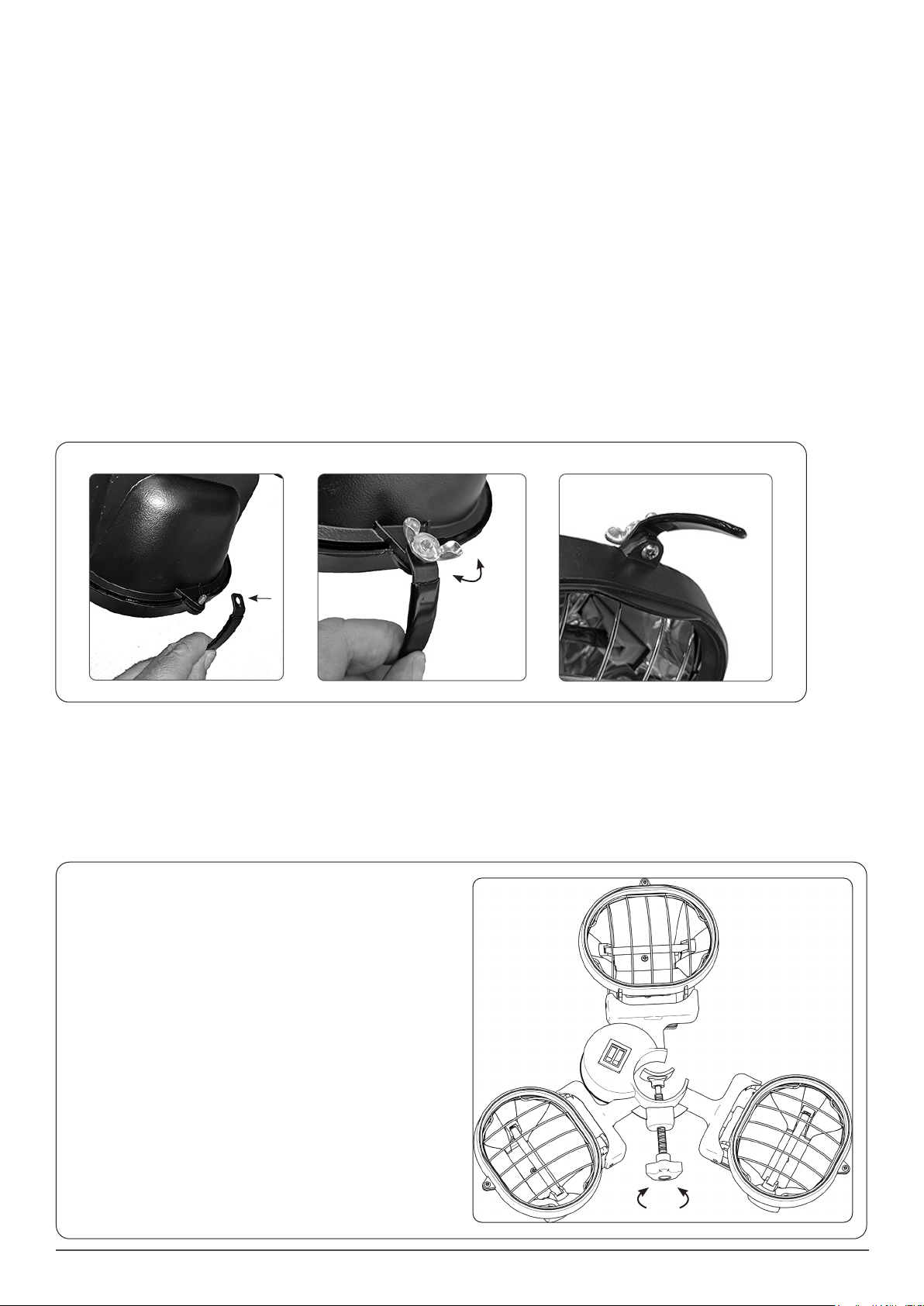

To attach the tilt handles to the heads of your heat lamp it is best to do this prior to tting to your parasol. Unpack the parasol light and lay it face

down on a sheet of cardboard. Follow the illustration to simply t the tilt handles.

www.dellonda.co.uk

Step 1:

Ensure that the parasol or pole to be afxed to is stable using a suitable

base or xing.

Loosen the pole clamp to allow the parasol lamp to be mounted onto the

pole then screw the pole clamp back up ensuring that the heat lamp is at

least 1.8 metres above ground level.

Hook the tilt handle onto the protruding screw in the back of the lamp head (1), Tighten down with the wing nuts provided (2).

1. 2. 3.

Installation

The heater must be installed no less than 1 metre from side walls and no less than 1.8 metres from ground level. When choosing the mounting

position it is very important to ensure the lights are NOT pointed towards any combustible materials or surfaces (refer to safety section for specic

dimensions). To adjust the lamps themselves loosen the wing nut connecting the lamp to the support bracket, set the heater to the desired position

using the tilt handle and re-tighten take care to ensure that no cables are trapped, stretched or under pressure. Never adjust your heater when it is

hot!

• WARNING! Ensure that the supply cable is well positioned and will not come into contact with the reector of the heater or that it does not trail

into the heated area.

Operation

• Connect the 3pin mains plug into a suitable RCD protected outdoor weatherproof socket.

• The parasol heater has two on/off switches and these operate as one pair and one single lamp, turn on both switches to illuminate all three

elements.

• Always make sure you turn off your lamps when they are not required.

Changing a heating element

• WARNING! Always ensure the appliance is switched off and disconnected from the mains power source before attempting maintenance.

• When handling the element bulb ensure you are wearing clean lint free gloves, if your skin does come into contact with the element ensure it is

cleaned thoroughly with something like methylated spirit and dried with a clean cloth.

www.dellonda.co.uk

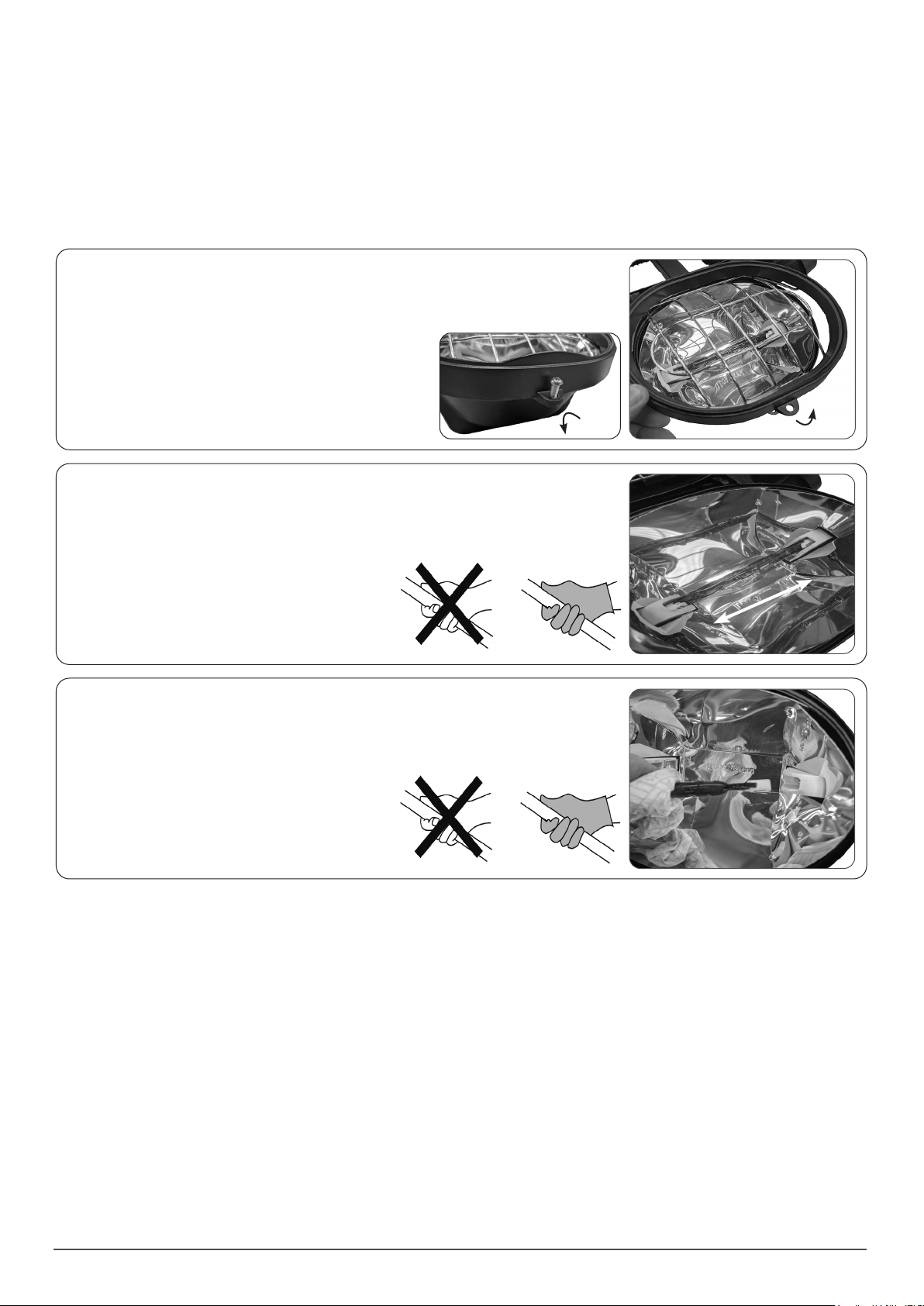

Step 1:

When the lamp is cool and unplugged unscrew the wing nut holding on the tilt handle and the using a

cross head screwdriver remove the screw from the front hinging frame hinge open the grill cover on

the heater head (keep the screw, wing nut and tilt handle in a safe

place ready for reassembly).

Step 2:

When you have clear access to the old element gently hold and push the lamp towards one of the

lamp holders (these are sprung and allow the other end of the element to come away) tilting it away

and remove from the housing.

DO NOT handle the elements without gloves or a lint free

cloth as it could compromise the component.

Step 3:

With gloves or holding the new element with a clean lint free cloth reverse the process you have just

undertaken to install a new element into your parasol lamp.

The new heating element must be installed within 4° of

horizontal along it’s length, make sure the element is well

seated in the lamp holder and you have a good contact.

Ensure the safety grill is fully installed before switching the

lamp back on.

Maintenance

• WARNING! Disconnect from the mains power supply before undertaking any cleaning or maintenance.

• DO NOT touch your lamp until it has fully cooled down.

• Regular and careful cleaning helps your infrared heater operate efciently. To clean your heater follow steps below. Unplug from the mains for

your safety before cleaning the appliance.

• Make sure the heater is cool before continuing.

• To keep the heater clean, the outer shell maybe cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry

the unit with a soft cloth.

• WARNING! DO NOT let liquids enter the heater.

• DO NOT use alcohol, gasoline, abrasive powders, furniture polish or rough brushes to clean the heater. This may cause damage or deterioration to

the surface of the heater.

• DO NOT immerse the heater in water.

• Wait until the heater is completely dry before use.

Troubleshooting

• If heater will not turn on. Check the cable is plugged into an electrical outlet, if not, plug in.

• Check if electricity to the building is working.

• Bulb is lit, but no heat: Bulb is damaged. Contact your supplier to source a replacement.

Dellonda Limited

Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757575 [email protected] www.dellonda.co.uk

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior

notice.

Important: No Liability is accepted for incorrect use of this product.
