Dell AC511 Manuel utilisateur
Dell USB Soundbar
AC511
User’s Guide
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells
you how to avoid the problem
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual
property laws. Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other
marks and names mentioned herein may be trademarks of their respective companies.
2016 - 02
Rev. A01
Contents
Setup................................................................................................................................................................................4
System Requirements..............................................................................................................................................4
Contents of the Box.................................................................................................................................................4
Features.......................................................................................................................................................................5
Setting Up Your Dell USB Soundbar.....................................................................................................................6
Troubleshooting.......................................................................................................................................................9
Specifications..........................................................................................................................................................14
Statutory information.................................................................................................................................................15
Warranty...................................................................................................................................................................15
Setup
System Requirements
One USB port (for the USB cable)
Microsoft Windows 7/Microsoft Windows 8/Microsoft Windows 10
Contents of the Box
1 Dell USB soundbar
2
documents
NOTE: The documents that shipped with the soundbar may vary based
on your region.
Features
2
3 4 5 6
1
7
1 USB cable 2
aux-in port
3 headphone port 4
left T-Hook for soundbar mounting
5 right T-Hook for soundbar mounting 6
power LED
7 volume knob

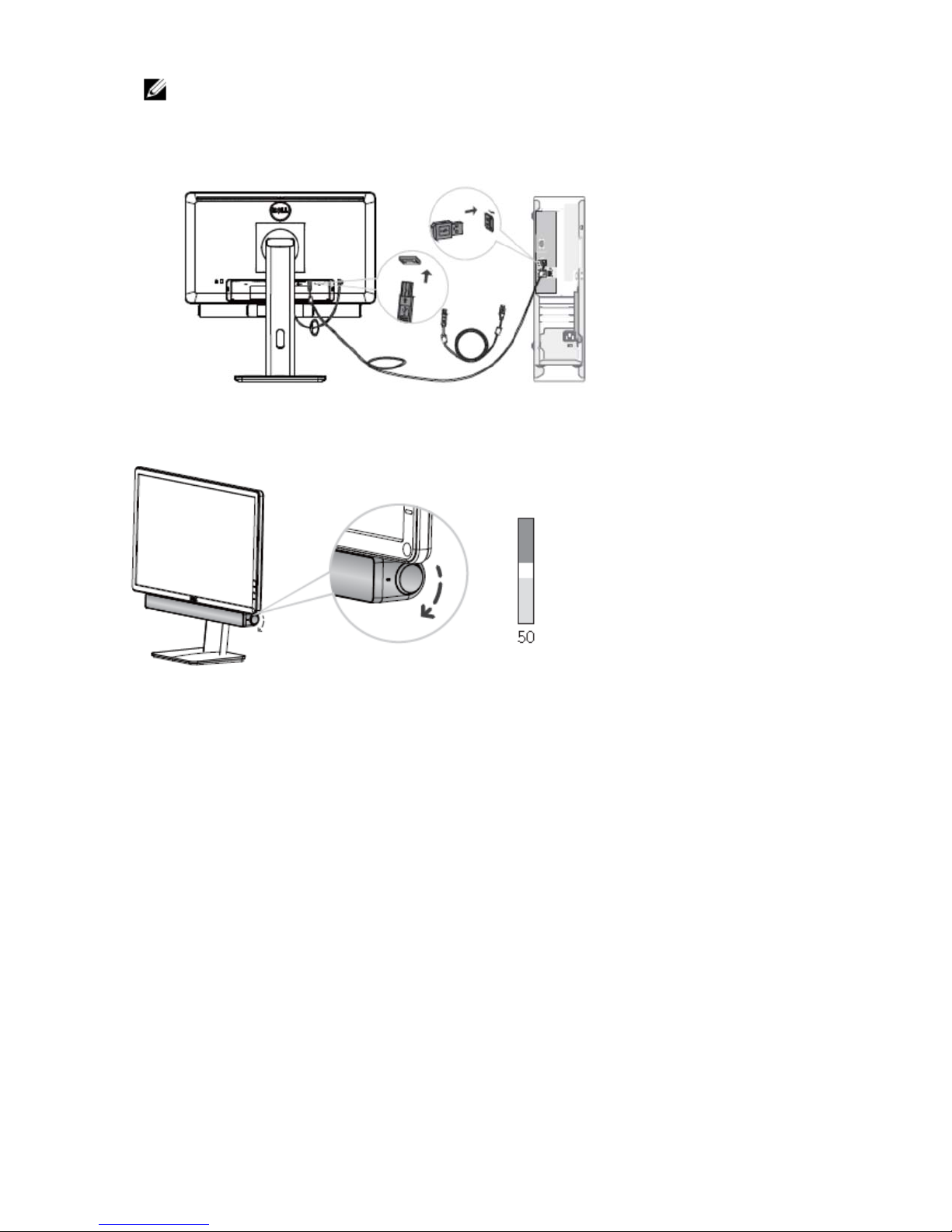

Setting Up Your Dell USB Soundbar
1. After unpacking the unit, check the contents of the box.
2. Remove the slot covers at the bottom of the Dell monitor.
3. Connect the soundbar to the Dell monitor.
4. Connect the USB cable to the Dell monitor.
NOTE: If the soundbar is not detected, connect the uplink cable that
came with your Dell monitor. Connect one end of the uplink cable to
the USB port on the Dell monitor and to the USB port on your Dell
computer.
5. Direct the control volume level of the computer.
Troubleshooting
Problems Possible Causes Possible solutions
Soundbar is not
functioning properly
Soundbar is not
detected or
synchronized
1. If required for your Dell monitor, connect
one end of the uplink cable to the USB port
on the Dell monitor and to the USB port on
your Dell computer.
2. Once the USB cable is plugged into the
USB power source, observe if the white
LED on the right of the soundbar lights up.
3. If the LED is not lit, check if the USB is
properly inserted to the USB port.
4. If LED is lit and the soundbar does not
function, remove or unplug the soundbar
from the system and restart the computer.
5. Plug in the soundbar again and check if the
LED lights up.
6. If the soundbar still fails to connect, check
if the soundbar is present in Device
Manager.
7. Swap the USB soundbar to another USB
port.
8. If the other USB port works, the first USB
port maybe faulty.
If the other USB port does not work, follow the
steps below.
1. Swap with a known-good USB speaker or
device (e.g. keyboard) or connect the
soundbar to another system.
2. If there is no other mouse or system
available to test with, use a known good
USB keyboard (or any other USB device) to
see if it works on the same USB port.
3. If the known good USB device is not
working on the same port, or the original
soundbar works properly on another
system, the former system's USB I/O may
be defective.
4. If the known good USB device works, or
the soundbar does not work properly on
another system, replace the soundbar.
No Sound Soundbar has power –
power LED indicator is
on
1. If playing through USB streaming, ensure
that a music file is playing from the
platform and the volume level is not 0%.
2. If playing through external music devices
such as MP3 player, iPod/iPad/iPhone or
any other Android phone, ensure that the
aux-in cable is properly connected.
3. Ensure that the external music device
volume is not 0%.
4. If playing through USB streaming, set all
Windows volume controls to their
maximum.
5. Play some audio content on the computer
(for example, an audio CD or MP3 player).
6. Turn the volume to a higher level by
rotating the soundbar volume knob
clockwise.
7. Clean or reseat all cables.
8. Test the soundbar with a different music
source (for example, a portable CD player
or an MP3 player).
9. Go to the control panel of the computer
and click on Sound.
10. Try different ports.
11. Reinstall the on-board drivers or the sound
card drivers. Restart the computer.
12. Try with a known-good speaker.
No sound No sound from USB
audio source.
1. Check if a 3.5 mm aux-in cable is inserted
in the soundbar aux-in jack.
2. Remove the 3.5 mm aux-in cable from the
aux-in jack.
Distorted Sound Computer's sound
card is used as the
audio source.
1. Clear any obstructions between the
soundbar and the user.
2. Confirm that the audio line-in plug is
completely inserted into the jack of the
sound card.
3. Set all volume controls to their midpoints.
4. Decrease the volume of the audio
application.
5. Turn the volume level to lower setting by
rotating the soundbar knob
counterclockwise.
6. Clean and reseat all cables.
7. Troubleshoot the computer's sound card.
8. Test the soundbar using another audio
source (for example, a portable CD player
or an MP3 player).
9. Ensure no loose objects are touching the
soundbar.
