Dell SB521A Manuel utilisateur
Soundbar Model: SB521A
Regulatory Model: SB521A
Dell Slim Soundbar
SB521A
User’s Guide
Copyright © 2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks
are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective
owners.
2020 – 08
Rev. A00
NOTE: A NOTE indicates important information that helps you make
better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss
of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
Note, Caution, and warnings
Contents
What’s in the box
Features
Setting up your Dell Slim Soundbar
Specications
Troubleshooting
Statutory information
│ 3
.......................... 4
........................... 9
.......................13
................................. 5
............ 6
............................. 8
. . . . . . . . . . . . . . . . . . . . . . . . . . 13 Warranty
4 │
What’s in the box
1 Dell Slim Soundbar 2 Security chain 3 Documents
NOTE: The documents shipped with the soundbar may vary based
on your region.
1
2
3
Features
3 34
1
2
1 USB cable 2 Security loop
3 Magnetic tabs (2) 4 Power indicator
│ 5
6 │
NOTE: The power indicator on the soundbar turns on indicating that
the soundbar is turned on.
Setting up your Dell Slim Soundbar
1. Align the magnetic tabs on the soundbar with the slots on the Dell monitor
to secure the soundbar to the monitor's base.
2. Connect the USB cable of the soundbar to the USB port of the Dell monitor.
In cases where you connect your monitor using HDMI or DP cable, ensure to
connect the upstream USB cable that comes with your monitor to your
computer for the soundbar to work.
│ 7
3. Install the security chain and security lock, if required.
8 │
Specications
General
Model number
Connection type
SB521A
USB
Supported operating systems
Electrical
Operating voltage 5 V
Audio input USB Digital Audio Input
Output power
Physical
24.20±0.5 mm (0.95±0.02 in.)
Height (including magnetic tabs)
298.21±0.5 mm (11.74±0.02 in.)
Length
Width
Weight
17.50±0.5 mm (0.69±0.02 in.)
0.114±0.005 kg (0.25±0.01 lb)
Environmental
Operating temperature
Storage temperature
0°C to 40°C (0°F to 104°F)
-40°C to 65°C (-40°F to 149°F)
Operating humidity 90% maximum relative humidity,
non-condensing
Storage humidity 90% maximum relative humidity,
non-condensing
Windows 7
Windows 8
Windows 10
Chrome
Mac
Linux
ThinOS
USB 2.0: ≥ 1 W x 2 at THD ≤ 1%
USB 3.0: ≥ 1.8 W x 2 at THD ≤ 1%
where THD refers to Total Harmonic Distortion
│ 9
Troubleshooting
Problems Possible causes Possible solutions
Soundbar is not
detected or
synchronized
Soundbar is
not
functioning
properly
Ensure that the USB upstream
cable is connected between your
computer and monitor to activate
the USB ports of the Dell monitor.
This additional USB upstream
cable connection is required if your
Dell monitor and computer are
connected through an HDMI or
DisplayPort cable.
Once the USB cable is connected
to the USB port, observe if white
light appears in the power indicator
located at the bottom of the
soundbar.
If the power indicator is not turned
on, check if the USB cable is
connected properly to the USB
port.
If power indicator is turned on and
the soundbar does not function,
remove or disconnect the sound-
bar from the USB port and restart
the computer.
Connect the soundbar again and
check if the power indicator turns
on.
Test the USB port by connecting a
working USB device.
If the USB port is still not working,
swap the soundbar with another
working USB speaker or USB
device such as keyboard, or
If the soundbar still fails to connect,
check if the soundbar is present in
the Device Manager.
Volume might
be low or Dell
Slim Soundbar
SB521A might
not be set as
the default
playback device.
No sound
even though
the power
indicator is
on
Problems Possible causes Possible solutions
connect the soundbar to another
monitor. If the USB device is not
working on the same port, or the
original soundbar works properly
on another monitor, the USB port
on the former monitor might be
defective.
Ensure that the soundbar is the
default playback device of the
monitor.
Try connecting the soundbar USB
cable to dierent USB ports.
Ensure that a music le is playing
and the volume level is not 0%.
Set all Windows volume controls to
their maximum.
Play some audio on the computer.
For example, an audio CD or MP3
player.
Clean or reconnect all cables again.
Test the soundbar with a dierent
music source, such as from anoth-
er computer.
Go to the Control Panel in your
computer and click Sound. Check
if the Dell Slim Soundbar SB521A
is displayed in the list of playback
devices under the Playback tab of
the Sound dialog box. If Dell Slim
Soundbar SB521A is not the
default device (indicated by a
green tick beside the icon),
right-click the Dell Slim Soundbar
SB521A and select Set Default >
Default Device.
10 │
Table des matières
Autres manuels Dell Système de haut-parleurs
Dell
Dell EqualLogic PS4210 Manuel utilisateur
Dell
Dell PowerVault 720N Mode d’emploi
Dell
Dell PowerVault MD3000i Manuel utilisateur
Dell
Dell SB522A Manuel utilisateur
Dell
Dell PowerVault MD3200i Series Manuel utilisateur
Dell
Dell AC511 Manuel utilisateur
Dell
Dell PowerVault MD3200 Series Manuel utilisateur
Dell
Dell EqualLogic PS4210 Manuel utilisateur
Dell
Dell AE515 Manuel utilisateur
Dell

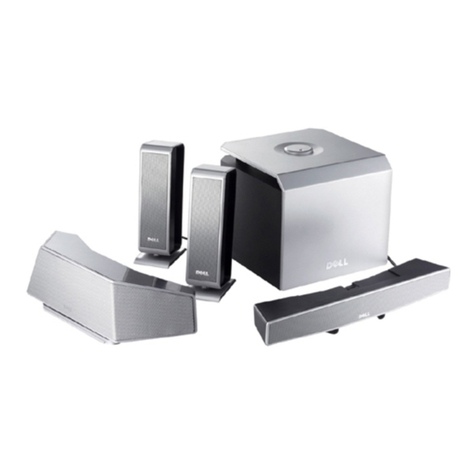

Dell WL6000 Manuel utilisateur
