Dell XC6320 Web-Scale

Hyperconverged Appliance

Getting

Started

With Your

System

Scan to see how-to videos, documentation, and

troubleshooting information.

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better

use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or

loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

United States and/or other jurisdictions. All other marks and names mentioned herein may be

trademarks of their respective companies.

Printed in Poland

Regulatory Model: B08S RegulatoryType: B08S003

2016-03 P/N 4G7G3 Rev. A01

Getting Started With Your System

CAUTION: Restricted Access Location

This system is intended for installation only in restricted access locations as defined in

Cl. 1.2.7.3 of IEC 60950-1: 2001 where both these conditions apply:

•

Access can only be gained by service persons or by users who have been

instructed about the reasons for the restrictions applied to the location and about

any precautions that shall be taken.

•

Access is through the use of a tool or lock and key, or other means of security,

and is controlled by the authority responsible for the location.

Installation and Configuration

WARNING: Before performing the following procedure, review and follow

the safety instructions that came with the system.

Installing the Tool-less Rail Solution

WARNING: Whenever you need to lift the system, get others to assist

you. To avoid injury, do not attempt to lift the system by yourself.

WARNING: The system is not fixed to the rack or mounted on the

rails. To avoid personal injury or damage to the system, you must

adequately support the system during installation and removal.

WARNING: To avoid a potential electrical shock hazard, a third wire

safety grounding conductor is necessary for the rack installation.

The rack equipment must provide sufficient airflow to the system to

maintain proper cooling.

CAUTION: When installing rails in a square-hole rack it is important

to ensure that the square peg slides through the square holes.

Getting Started With Your System

1Push the latch release buttons on the midpoints of the end piece to open the

rail latches (see Figure 1).

2Align the end pieces of the rails on the vertical rack flanges to seat the pegs

in the bottom hole of the first U and the top hole of the second U.

NOTE: The rails can be used in both square-hole and round-hole

racks (see Figure 1).

Figure 1. Pushing the Latch Release Buttons

NOTE: To remove the rails, push the latch release button on the

midpoints of the end piece and unseat each rail.

3Engage the end of the rails and release the latch release button to have the

latches locked in place.

4On each vertical rack flange on the back, put two screw bases into the two

square holes right above the rail (see Figure 2).

5Install the chassis stabilizer shipping brackets (optional) on the back

rack flanges.

6Install and tighten the screws.

NOTE: To transport systems already installed in the rack, ensure

that the two chassis stabilizer shipping brackets (optional) are

in place.

Getting Started With Your System

Figure 2. Installing the Chassis Stabilizer Shipping Brackets

7Slide the system into the rack (see Figure 3).

8Tighten the thumbscrews to secure the ears of the system to the front of the

rack flanges.

Figure 3. Installing the Chassis into the Rack

Getting Started With Your System

Connectingthe Keyboard, Mouse, and Monitor (Optional)

Figure 4. Optional—Connecting the Keyboard, Mouse and Monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable to plug

into each connector. Ensure that you tighten the screws (if any) on the monitor’s

cable connector.

NOTE: The system supports only one USB port and a micro USB port. If

you require more than one USB outlet at a time, use USB hub or an

adapter cable.

Getting Started With Your System

Connecting the Power Cable(s)

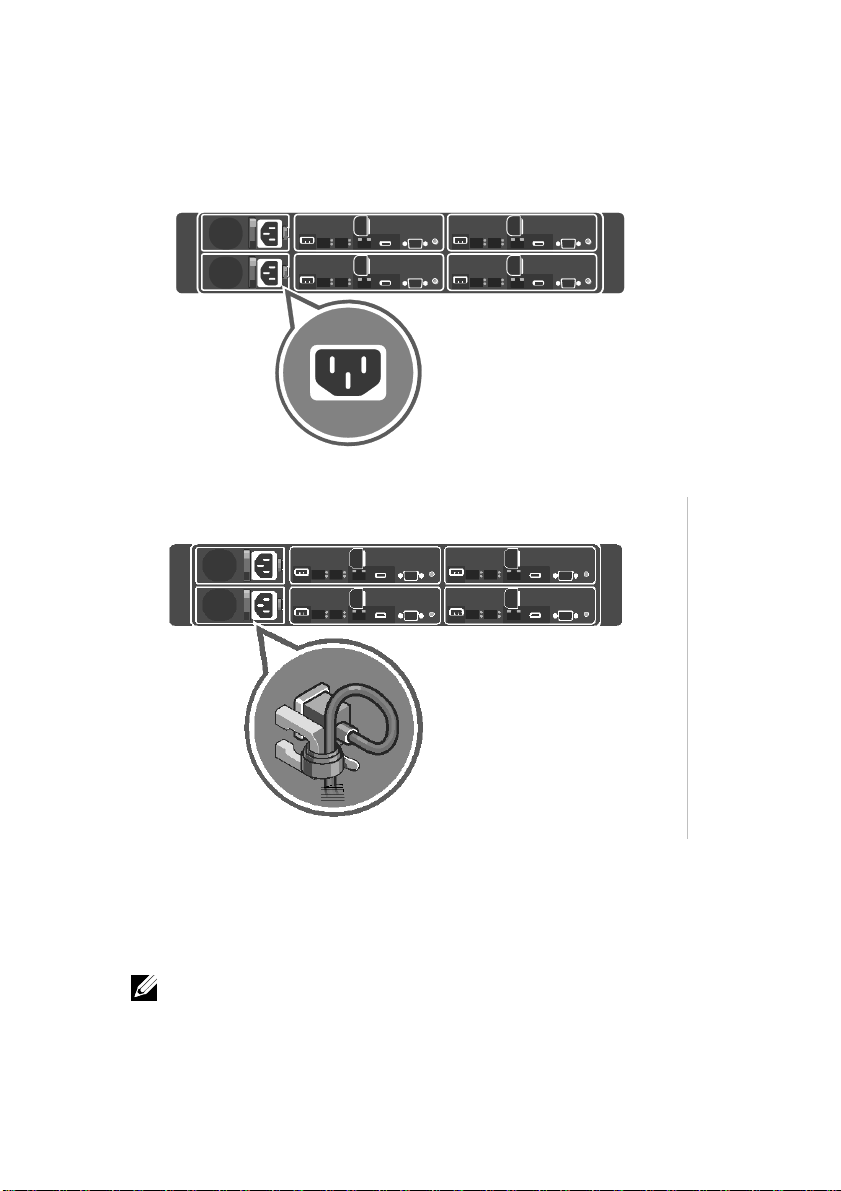

Figure 5. Connecting the Power cable

Figure 6. Routing the cables

Connect the system’s power cable(s) to the system and, if a monitor is used, connect the

monitor’s power cable to the monitor. Plug the other end of the power cable(s) into a

grounded electrical outlet or a separate power source such as an uninterrupted power

supply (UPS) or a power distribution unit.

NOTE: The system supports both AC and HVDC power inputs. Your

system can support up to two 1600 W power supply units (PSUs)

(200−240 VAC nominal input voltage).

Getting Started With Your System

Turning on the System

Figure 7. Pressing the Power Button in Front of the System

Press the power button(s) either in front or back of the system. The power indicators

glow in green color.

Installing Operating System

To install an operating system for the first time, see the installation and

configuration documentation for your operating system. Ensure that the

operating system is installed before installing hardware or software not

purchased with the system. For more information about the Dell XC6320

system, refer to the Dell XC6320 Owner’s Manual available at

Dell.com/xcseriesmanuals.

NOTE: For more information about supported operating systems, see

Dell.com/ossupport.
