Dell PowerEdge R610 Manuel utilisateur

Dell™ PowerEdge™ R610

Systems

Getting Started With

Your System

Guide de mise en route

Primeiros passos com o sistema

Procedimientos iniciales con el sistema

Dell™ PowerEdge™

R610 Systems

Getting Started With

Your System

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Dell, the DELL logo, and PowerEdge are trademarks of Dell Inc.; Citrix and XenServer are trademarks

of Citrix Systems, Inc. and/or more of its subsidiaries, and may be registered in the United States

Patent and Trademark Office and in other countries. Intel and Xeon are registered trademarks of Intel

Corporation in the U.S. and other countries; Microsoft, Hyper-V, Windows,and Windows Server are

either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other

countries. Red Hat and Enterprise Linux are registered trademarks of Red Hat, Inc. in the United States

and other countries; SUSE is a registered trademark of Novell, Inc., in the United States and other

countries. VMware is a registered trademark of VMware, Inc. in the United States and/or other

jurisdictions.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Model E01S

December 2008 P/N R465D Rev. A01

Getting Started With Your System 3

Installation and Configuration

WARNING: Before performing the following procedure, review the safety

instructions that came with the system.

Unpacking the System

Unpack your system and identify each item.

Installing the Rails and System in a Rack

Assemble the rails and install the system in the rack following the safety

instructions and the rack installation instructions provided with your system.

4Getting Started With Your System

Optional – Connecting the Keyboard, Mouse, and Monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable

to plug into each connector. Be sure to tighten the screws (if any) on the

monitor's cable connector.

Connecting the Power Cables

Connect the system’s power cable(s) to the system and, if a monitor is used,

connect the monitor’s power cable to the monitor.

Getting Started With Your System 5

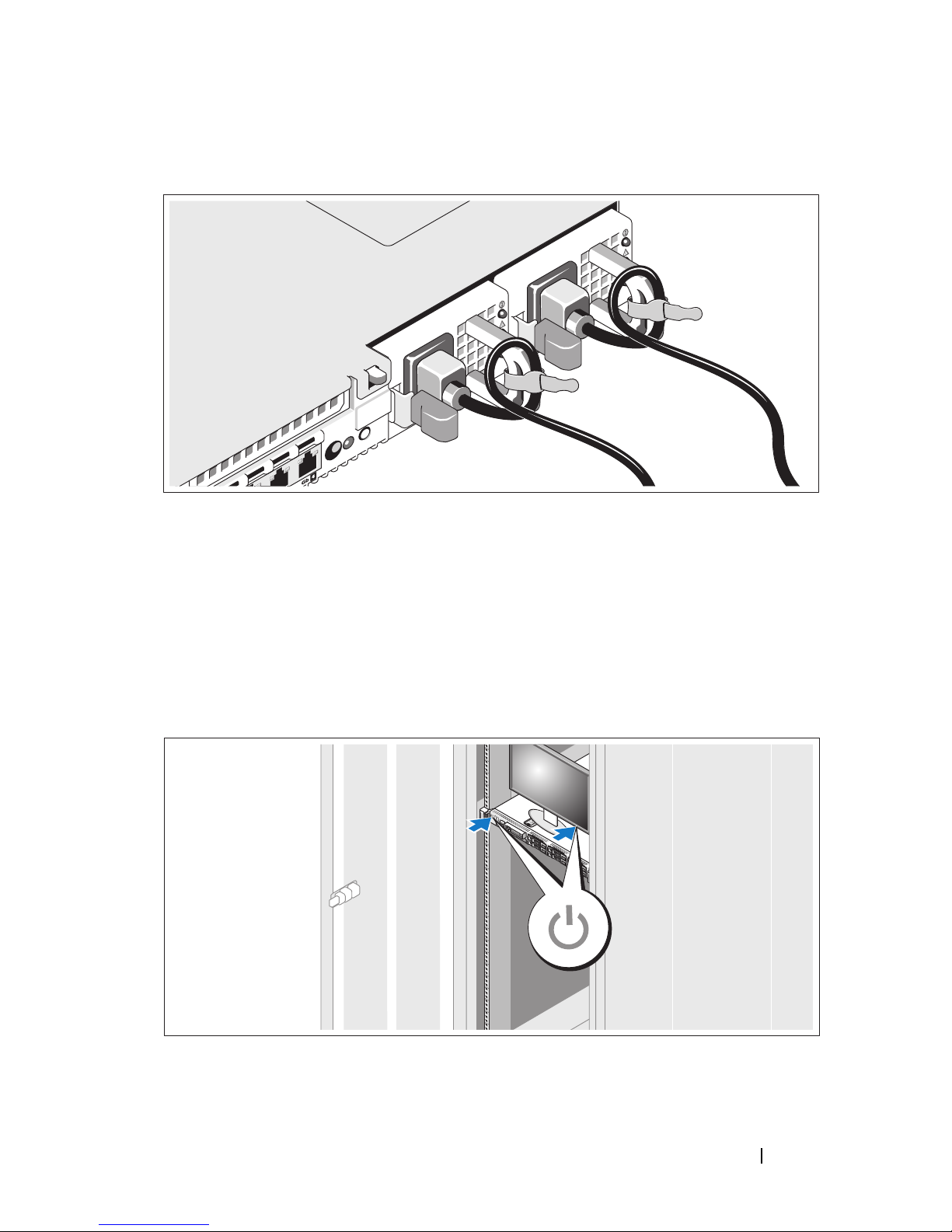

Securing the Power Cord

Bend the system power cable into a loop as shown in the illustration and

secure the cable with the provided strap.

Plug the other end of the power cables into a grounded electrical outlet or a

separate power source such as an uninterruptible power supply (UPS) or a

power distribution unit (PDU).

Turning on the System

Press the power button on the system and the monitor. The power indicators

should light.

6Getting Started With Your System

Installing the Optional Bezel

Install the bezel (optional).

Complete the 0perating System Setup

If you purchased a preinstalled operating system, see the operating system

documentation that ships with your system. To install an operating system for

the first time, see the installation and configuration documentation for your

operating system. Be sure the operating system is installed before installing

hardware or software not purchased with the system.

• Citrix

XenServer™ 5.0 with hotfix 1 or later

• Microsoft

Windows Server

2008 Hyper-V™

• Microsoft Windows Server 2008 Web, Standard, and Enterprise

(32-bit x86) Gold editions

• Microsoft Windows Server 2008 Web, Standard, Enterprise, and

Datacenter (x64) Gold editions

• Microsoft Window Small Business Server 2008, Standard and Premium

(x64) editions.

• Microsoft Windows Server 2003 Web, Standard, and Enterprise

(32-bit x86) editions with SP2

• Microsoft Windows Server 2003 Standard and Enterprise (x64) editions

with SP2

Getting Started With Your System 7

• Microsoft Windows Server 2003 R2 Standard and Enterprise (32-bit x86)

editions with SP2

• Microsoft Windows Server 2003 R2 Standard, Enterprise, and Datacenter

(x64) editions with SP2

• Microsoft Windows Small Business Server 2003 R2 Standard and Premium

editions with SP2

•RedHat

Enterprise Linux

ES and AS 4.7 (x86)

• Red Hat Enterprise Linux ES and AS 4.7 (x86_64)

• Red Hat Enterprise Linux 5.2 Server (x86_32)

• Red Hat Enterprise Linux 5.2 Server (x86_64)

• SUSE Linux Enterprise Server 10 SP2 (x86_64)

•VMware

ESX Version 4.0 and 3.5, Update 4 (when available)

• VMware ESXi Version 4.0 and 3.5, Update 4 (when available)

NOTE: For the latest information on supported operating systems, see

www.dell.com.

Other Information You May Need

WARNING: See the safety and regulatory information that shipped with your

system. Warranty information may be included within this document or as a

separate document.

• The rack documentation included with your rack solution describes how

to install your system into a rack.

• The

Hardware Owner’s Manual

provides information about system

features and describes how to troubleshoot the system and install or

replace system components. This document is available online at

support.dell.com.

• Any media that ships with your system that provides documentation and

tools for configuring and managing your system, including those

pertaining to the operating system, system management software, system

updates, and system components that you purchased with your system.

NOTE: Always check for updates on support.dell.com and read the updates

first because they often supersede information in other documents.

8Getting Started With Your System

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system

does not perform as expected, see your Hardware Owner’s Manual.

Dell

™

offers comprehensive hardware training and certification. See

www.dell.com/training for more information. This service may not be offered

in all locations.

Technical Specifications

Processor

Processor type One or two quad- or dual-core Intel

Xeon

processors

Expansion Bus

Bus type PCI Express Generation 2

Expansion slots via riser card:

Riser 1 (Center Riser)

Riser 2 (Left Riser)

(Slot 1) One full-height, half-length x8 link

(Slot 2) One full-height, half-length x8 link

NOTE: Both slots support up to 25 W, but only

one 25-W card can be installed in the system at

a time. With two cards installed, one 25-W card

can be installed while the other card must be

15 W or under.

Memory

Architecture 800, 1066 or 1333 MHz DDR3 registered

or unbuffered Error Correcting Code

(ECC) DIMMs. Support for Advanced

ECC or memory-optimized operation.

Memory module sockets Twelve 240-pin

Memory module capacities 1 GB or 2 GB UDIMMs;

2 GB, 4 GB, or 8 GB RDIMMs, single-, dual-,

or quad-ranked
