Notes, Cautions, and Warnings

NOTE:

A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of

data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

______________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission

of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of

Dell Inc. AMD® is a registered trademark and AMD Opteron™ is a trademark of

Advanced Micro Devices, Inc. Red Hat Enterprise Linux® and Enterprise Linux® are

registered trademarks of Red Hat, Inc. in the United States and/or other countries.

Novell® is a registered trademark and SUSE™ is a trademark of Novell Inc. in the United

States and other countries. Citrix® and XenServer® are either registered trademarks or

trademarks of Citrix Systems, Inc. in the United States and/or other countries. VMware®

is a registered trademarks or trademarks of VMWare, Inc. in the United States or other

countries.

Other trademarks and trade names may be used in this publication to refer to either the

entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Regulatory Model B05S

September 2013 P/N 6HNH8 Rev. A04

Getting Started With Your System | 3

CAUTION: Restricted Access Location

This server is intended for installation only in restricted access locations as

defined in Cl. 1.2.7.3 of IEC 60950-1: 2001 where both these conditions apply:

•

Access can only be gained by service persons or by users

who have been

instructed about the reasons for the restrictions applied to the location and

about any precautions that shall be taken.

•

Access is through the use of a tool or lock and key, or other means of

security, and is controlled by the authority responsible for the location.

Installation and Configuration

WARNING: Before performing the following procedure, review and follow the

safety instructions that came with the system.

Unpacking the System

Unpack your system and identify each item.

Installing the Tool-Less Rail Solution

WARNING: Whenever you need to lift the system, get others to assist you.

To avoid injury, do not attempt to lift the system by yourself.

WARNING: The system is not fixed to the rack or mounted on the rails. To

avoid personal injury or damage to the system, you must adequately

support the system during installation and removal.

WARNING: To avoid a potential electrical shock hazard, a third wire safety

grounding conductor is necessary for the rack installation. The rack

equipment must provide sufficient airflow to the system to maintain proper

cooling.

CAUTION: When installing rails in a square-hole rack it is important to

ensure that the square peg slides through the square holes.

Getting Started With Your System | 4

Pull on the latch release buttons on the midpoints of the end piece to

open the rail latches.

Align the end pieces of the rails on the vertical rack flanges to seat

the pegs in the bottom hole of the first U and the top hole of the

second U. Engage the back end of the rails until the latches lock in

place.

NOTE:

The rails can be used in both square-hole (item 1 in the following figure)

and round-hole racks (item 2 in the following figure).

Figure 1. Pushing the Latch Release Buttons

Repeat Step 1 and Step 2 to position and seat the front end pieces on

the vertical flanges.

NOTE:

To remove the rails, pull on the latch release button on the midpoints of

the end piece and unseat each rail.

On each vertical rack flange on the back, put two screw bases into

the two square holes right above the rail.

Install the chassis stabilizer shipping brackets (optional) on the back

rack flanges and simultaneously tighten the screws.

NOTE:

To transport systems already installed in the rack, ensure that the two

chassis stabilizer shipping brackets (optional) are in place.

Getting Started With Your System | 5

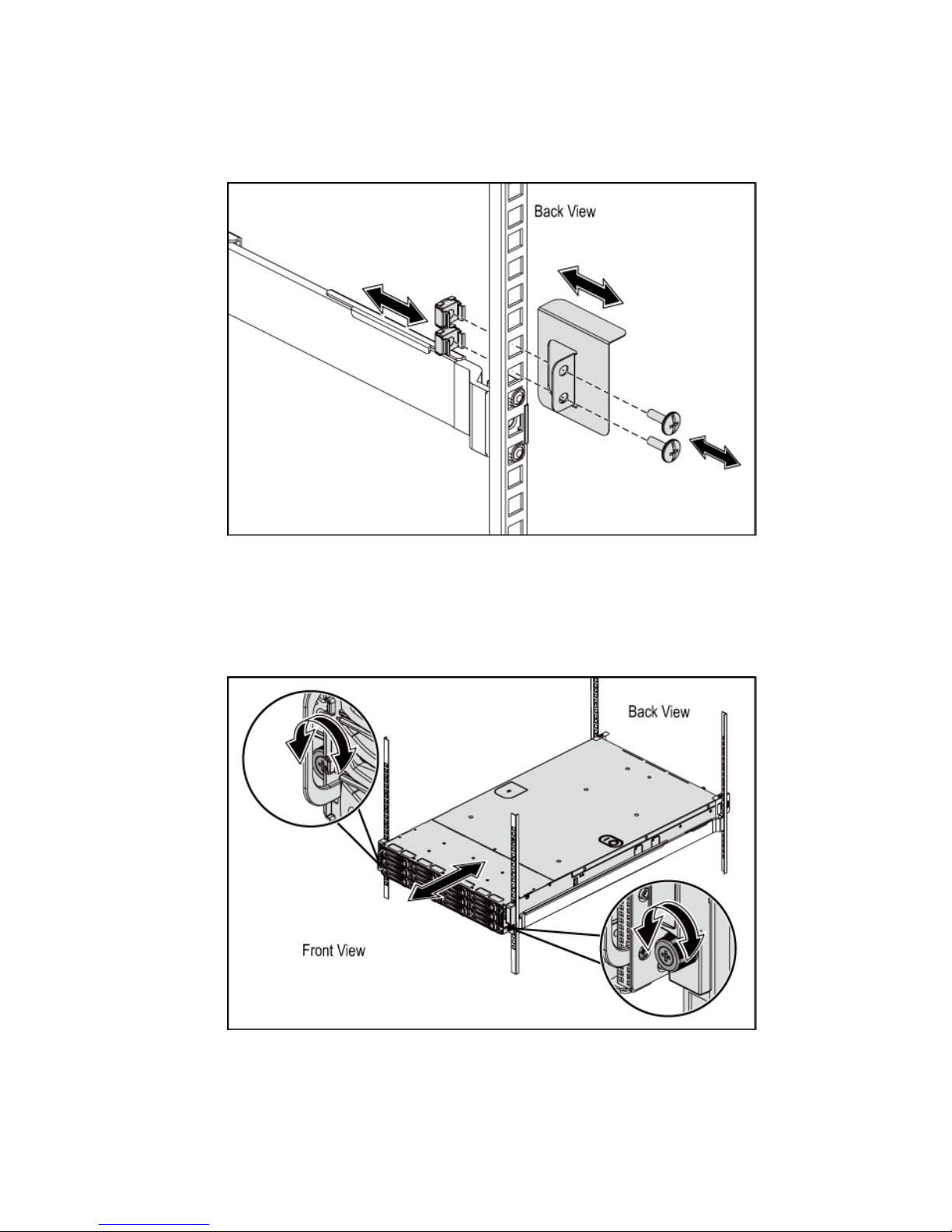

Figure 2. Installing the Chassis Stabilizer Shipping Brackets

Slide the system into the rack.

Tighten the thumbscrews to secure the ears of the system to the front

of the rack flanges.

Figure 3. Installing the Chassis onto the Rack.

Getting Started With Your System | 6

Optional—Connecting the Keyboard, Mouse, and Monitor

Figure 4. Optional—Connecting the Keyboard, Mouse and Monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable to

plug into each connector. Be sure to tighten the screws (if any) on the monitor’s

cable connector.

Getting Started With Your System | 7

Connecting the Power Cable(s)

Figure 5. Connecting the Power Cable

Connect the system’s power cable(s) to the system and, if a monitor is used,

connect the monitor’s power cable to the monitor. Plug the other end of the

power cables into a grounded electrical outlet or a separate power source such as

an uninterrupted power supply or a power distribution unit.

Getting Started With Your System | 8

Turning on the System

Figure 6. Pressing the Power Button on the Front of the System and the Monitor

Figure 7. Pressing the Power Button on the Back of the System

Press the power button(s) either on the front or back of the system and on the

monitor. The power indicators on the front should light.
