Dell E2416HM Manuel utilisateur

Regulatory model: E1916Hf / E1916Hef / E2016Hb / E2216Hf /

E2316Hf / E2416Hb

User‘s Guide

Dell E1916H

Dell E1916He

Dell E2016H

Dell E2216H

Dell E2316H

Dell E2316Hr

Dell E2416H

Dell E2416HM

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

Information in this document is subject to change without notice. Reproduction of these materials

in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™ and the DELL logo are trademarks of Dell Inc.; Microsoft®,

Windows®, and the Windows start button logo are either trademarks or registered trademarks of

Microsoft Corporation in the United States and/orother countries.

Other trademarksand trade names may be used in this document to refer to eitherthe entities

claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.

2019 – 9Rev. A08

Contents

About Your Monitor ..................................... 5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Identifying Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . 7

Monitor Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Plug and Play Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

LCD Monitor Quality & Pixel Policy . . . . . . . . . . . . . . . . . . . . . 21

Maintenance Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Setting Up the Monitor.................................. 22

Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Connecting Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Organizing Your Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Removing the Monitor Stand . . . . . . . . . . . . . . . . . . . . . . . . 24

Wall Mounting (Optional). . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Operating the Monitor .................................. 26

Power On the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Using the Front-Panel Controls . . . . . . . . . . . . . . . . . . . . . . . 26

Using the On-Screen Display (OSD) Menu. . . . . . . . . . . . . . . . . 27

Setting the Maximum Resolution . . . . . . . . . . . . . . . . . . . . . . 54

Using the Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Troubleshooting ....................................... 57

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Product-Specific Problems. . . . . . . . . . . . . . . . . . . . . . . . . . 62

Dell Soundbar Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Appendix .............................................. 65

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

FCC Notices (U.S. Only) and Other Regulatory Information. . . . . . 65

Contact Dell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

About Your Monitor 5

About Your Monitor

Package Contents

Your monitor ships with all the components shown below. Ensure that you have

received all the components and Contact Dell if anything is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some

features or media may not be available in certain countries.

• Monitor

• Stand Riser

• Stand Base

• VESA™ Screw Cover

• Power Cable (varies with countries)

• DisplayPort Cable (for E1916H

/ E1916He / E2016H / E2216H /

E2316H / E2416H)

• VGA Cable (for E2316Hr / E2416HM)

Product Features

The Dell E1916H / E1916He / E2016H / E2216H / E2316H / E2316Hr / E2416H / E2416HM

flat-panel display has an active matrix, Thin-Film transistor, Liquid Ceystal Display an

LED backlight. The monitor’s festures include:

•E1916H / E1916He / E1916HX: 47.01 cm (18.51 in.) diagonal viewable image

size, 1366 x 768 resolution, plus full-screen support for lower resolutions.

•E2016H: 49.41 cm (19.5 in.) diagonal viewable image size,

1600 x 900 resolution, plus full-screen support for lower resolutions.

•E2216H: 54.61 cm (21.5 in.) diagonal viewable image size,

1920 x 1080 resolution, plus full-screen support for lower resolutions.

•E2316H E 2316Hr: 58.42 cm (23.0 in.) diagonal viewable image size,

1920 x 1080 resolution, plus full-screen support for lower resolutions.

•E2416H / E2416HM: 60.97 cm (24.0 in.) diagonal viewable image size,

1920 x 1080 resolution, plus full-screen support for lower resolutions.

•Tilt adustment capability.

•Removable pedestal and Video Elect ronics Standards Association (VESA) 100 mm

•mounting holes for flesible mounting solugions

•Plug and play capability if supported by your system.

•On-Screen Display (OSD) adjustments for ease of set-up and screen optimination.

•Security lock slot.

•Asset Management Capaility.

•CEC (for China).

•RoHS compliant.

• E1916He / E2016H / E2216H / E2316H / E2316Hr / E2416H / E2416HM: TCO

Certified Displays

•Energy Gauge show the energy level being consumed by the monitor in real time.

•Analog backlight dimming control for flicker free display.

• Quick Setup Guide

• Safety and Regulatory Information

6About Your Monitor

About Your Monitor 7

Identifying Parts and Controls

Front View

1. Function buttons (For more information, see Operating the Monitor)

2 Power On/Off button (with LED indicator)

Back View

E1916H / E1916He / E2016H:

Back View with Monitor Stand

8 About Your Monitor

E2216H / E2316H / E2316Hr / E2416H / E2416HM:

Back View with Monitor Stand

Label Description Use

1 VESA mounting holes (100

mm)

To mount the monitor.

2 Regulatory rating label Lists the regulatory approvals.

3 Security lock slot Secures monitor with security lock

(security lock not included).

4 Barcode serial number label Refer to this label if you need to contact

Dell for technical support.

5 Cable management slot Use to organize cables by placing them

through the slot.

Side View

Right Side

About Your Monitor 9

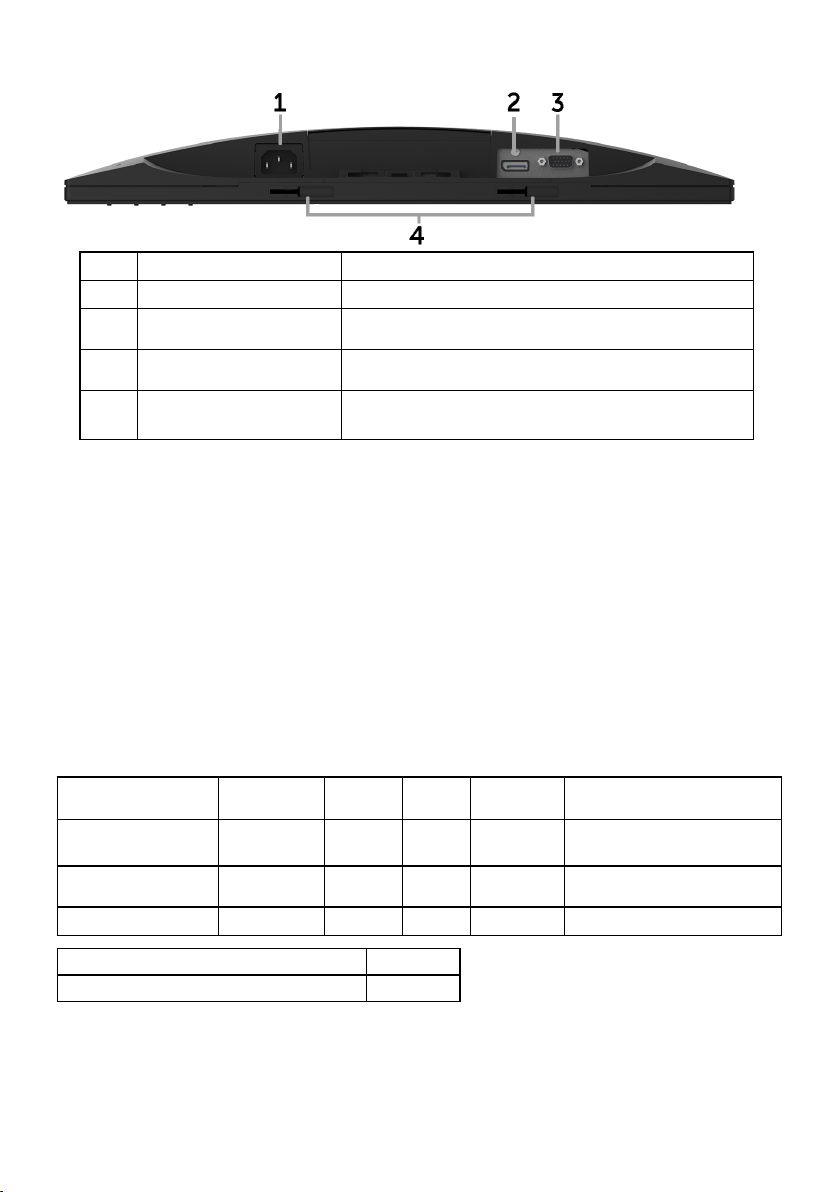

Bottom View

Label Description Use

1 AC power connector To connect the monitor power cable.

2 Displayport connector To connect your computer to the monitor using

a DP cable.

3 VGA connector To connect your computer to the monitor using

a VGA cable.

4 Dell soundbar

mounting slots

To attach the optional Dell Soundbar.

Monitor Specifications

The following sections give you information about the various power management

modes and pin assignments for the various connectors of your monitor.

Power Management Modes

E1916H / E1916He:

VESA Modes Horizontal

Sync

Vertical

Sync Video Power

Indicator Power Consumption

Normal operation Active Active Active White 17 W (Maximum)**

14 W (Typical)

Active-off mode Inactive Inactive Blanked Glowing

white

Less than 0.3 W

Switch off - - Off Less than 0.3 W

If you have VESA’s DPM

TM compliance display card or software installed in your PC,

the monitor can automatically reduce its power consumption when not in use. This

is referred to as Power Save Mode*. If the computer detects input from the

keyboard, mouse, or other input devices, the monitor automatically resumes

functioning. The following table shows the power consumption and signaling of

this automatic power saving feature.

Power Consumption

Pon 10.4W

Total Energy Consumption(TEC) 34.3 kWh

10 About Your Monitor

E2016H:

VESA Modes Horizontal

Sync

Vertical

Sync Video Power

Indicator Power Consumption

Normal operation Active Active Active White 19 W (Maximum)**

15 W (Typical)

Active-off mode Inactive Inactive Blanked Glowing

white

Less than 0.3 W

Switch off - - Off Less than 0.3 W

11.2 W

35 kWh

E2216H:

VESA Modes Horizontal

Sync

Vertical

Sync Video Power

Indicator Power Consumption

Normal operation Active Active Active White 24 W (Maximum)**

18 W (Typical)

Active-off mode Inactive Inactive Blanked Glowing

white

Less than 0.3 W

Switch off - - Off Less than 0.3 W

15.4 W

49.6 kWh

E2316H / E2316Hr:

VESA Modes Horizontal

Sync

Vertical

Sync Video Power

Indicator Power Consumption

Normal operation Active Active Active White 25 W (Maximum)**

20 W (Typical)

Active-off mode Inactive Inactive Blanked Glowing

white

Less than 0.3 W

Switch off - - Off Less than 0.3 W

15.8 W

50.1 kWh

E2416H / E2416HM:

VESA Modes Horizontal

Sync

Vertical

Sync Video Power

Indicator Power Consumption

Normal operation Active Active Active White 27 W (Maximum)**

22 W (Typical)

Active-off mode Inactive Inactive Blanked Glowing

white

Less than 0.3 W

Switch off - - Off Less than 0.3 W

Power Consumption

Total Energy Consumption(TEC)

Power Consumption

Total Energy Consumption(TEC)

Power Consumption

Total Energy Consumption(TEC)
