Dell C7016H Manuel utilisateur

Regulatory model: C7016Hf

User‘s Guide

Dell C7016H

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

Information in this document is subject to change without notice. Reproduction of these materials

in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™ and the DELL logo are trademarks of Dell Inc.; Microsoft®,

Windows®, and the Windows start button logo are either trademarks or registered trademarks of

Microsoft Corporation in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities

claiming the marks and names or their products. DellInc. disclaims any proprietary interest in

trademarks and trade names other than its own.

2016 –02 Rev. A00

Contents

About Your Monitor ..................................... 5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Identifying Parts and Controls. . . . . . . . . . . . . . . . . . . . . . . . 10

Monitor Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Plug and Play Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

LCD Monitor Quality & Pixel Policy . . . . . . . . . . . . . . . . . . . . . 24

Maintenance Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Setting Up the Monitor.................................. 25

Connecting Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Operating the Monitor .................................. 29

Power On the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Using the Front-Panel Controls . . . . . . . . . . . . . . . . . . . . . . . 29

Using the On-Screen Display (OSD) Menu. . . . . . . . . . . . . . . . . 30

Setting the Maximum Resolution . . . . . . . . . . . . . . . . . . . . . . 46

Troubleshooting .......................................48

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Product-Specific Problems. . . . . . . . . . . . . . . . . . . . . . . . . . 53

Universal Serial Bus (USB) Specific Problems . . . . . . . . . . . . . . . 54

Mobile High-Definition Link (MHL) Specific Problems . . . . . . . . . 55

Appendix .............................................. 56

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

FCC Notices (U.S. Only) and Other Regulatory Information. . . . . . 56

Contact Dell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

About Your Monitor 5

About Your Monitor

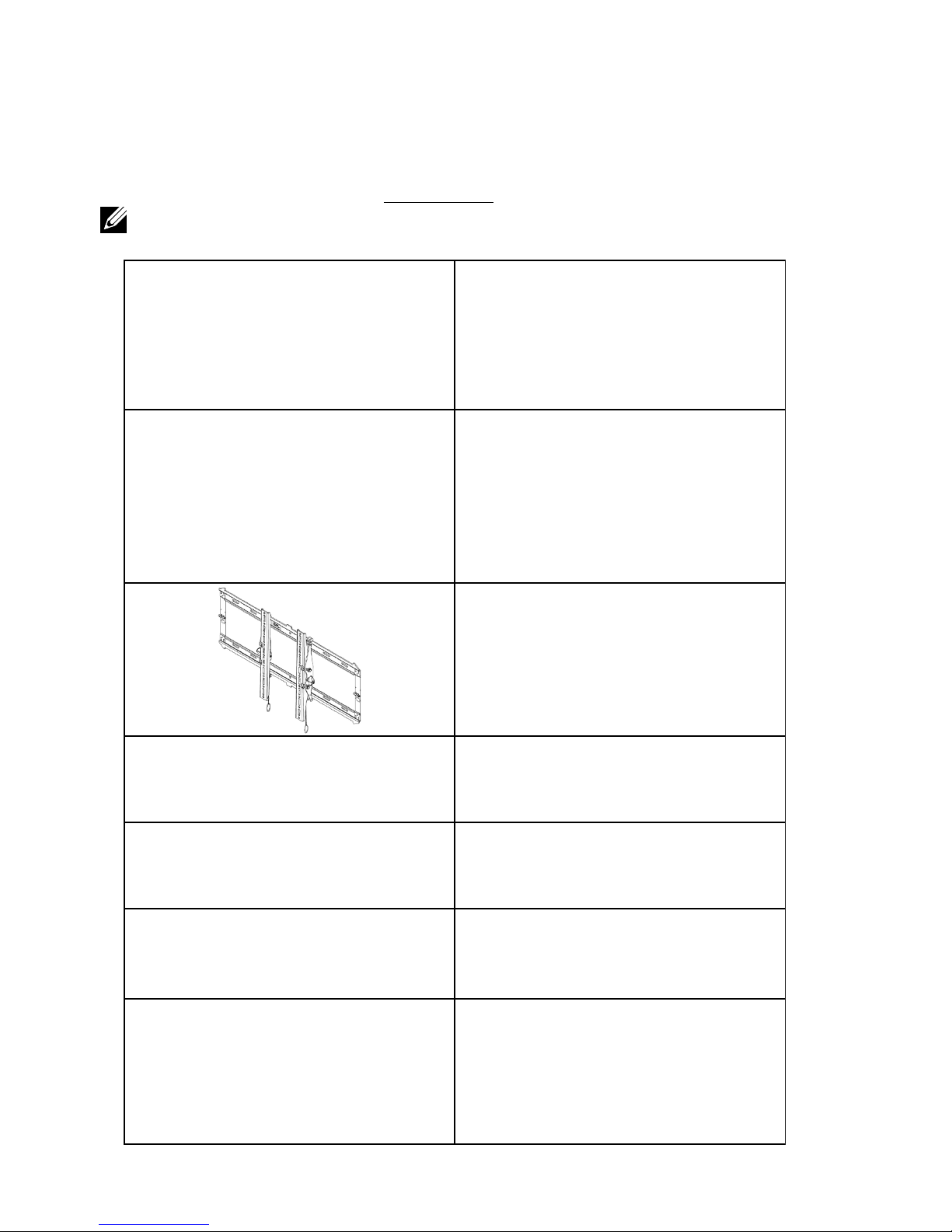

Package Contents

Your monitor ships with all the components shown below. Ensure that you have

received all the components and Contact Dell if anything is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some

features or media may not be available in certain countries.

•Monitor

•Remote Control & Batteries (AAA x 2)

•RLT2 Wall Mount Kit

•Wire Saddle

•Power Cable (varies with countries)

•VGA Cable

•HDMI Cable

6About Your Monitor

•USB upstream cable (enables the

USB ports on the monitor)

•Drivers and Documentation media

•Quick Setup Guide

•Safety and Regulatory Information

Product Features

The Dell C7016H flat-panel display has an active matrix, Thin-Film Transistor, Liquid

Crystal Display and LED backlight. The monitor’s features include:

• C7016H: 176.563 cm (69.513 inches) diagonal viewable image size, 1920 x 1080

resolution, plus full-screen support for lower resolutions.

• Video Electronics Standards Association (VESA) 400 mm mounting holes.

• Plug and play capability if supported by your system.

• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

• Software and documentation media which includes an information file (INF), Image

Color Matching File (ICM), and product documentation.

• Dell Display Manager Software.

• ENERGY STAR-compliant.

• Asset Management Capability.

• CECP (for China).

• RoHS compliant.

• Energy Gauge shows the energy level being consumed by the monitor in real time.

• Analog backlight dimming control for flicker free display.

About Your Monitor 7

Remote Control

3. Up

Press to move the selection up

in OSD menu.

4. Left

Press to move the selection left

in OSD menu.

5. Down

Press to move the selection

down in OSD menu.

6. Menu

Press to turn on the OSD menu.

7. Brightness -

Press to decrease the Brightness.

8. Volume -

Press to decrease the Volume.

9. MUTE

Press to turn the mute function

on/off.

10.Preset Modes

Display information about Preset

Modes.

11. Right

Press to move the selection

right in OSD menu.

12. OK

Confirm an entry or selection.

13. Exit

Press to exit the Menu.

1. Power On/Off

Switch this monitor on or off.

14. Brightness +

Press to increase the Brightness.

2. Input Source

Select input source. Press or

button to select from VGA or DP or

HDMI 1 or HDMI 2 . Press



button to

confirm and exit.

15. Volume +

Press to increase the Volume.

8About Your Monitor

Inserting the batteries in the remote control

The remote control is powered by two 1.5V AAA batteries.

To install or replace batteries:

1. Press and then slide the cover to open it.

2. Align the batteries according to the (+) and (–) indications inside the

battery compartment.

3. Replace the cover.

CAUTION: The incorrect use of batteries can result in leaks or bursting. Be

sure to follow these instructions:

• Place “AAA” batteries matching the (+) and (–) signs on each battery to the (+) and

(–) signs of the battery compartment.

• Do not mix battery types.

• Do not combine new batteries with used ones. It causes shorter life or leakage of

batteries.

• Remove the dead batteries immediately to prevent them from liquid leaking in the

battery compartment. Don’t touch exposed battery acid, as it can damage your

skin.

NOTE: If you do not intend to use the remote control for a long period, remove the

batteries.

Handling the remote control

• Do not subject to strong shock.

• Do not allow water or other liquid to splash the remote control. If the remote

control gets wet, wipe it dry immediately.

• Avoid exposure to heat and steam.

• Other than to install the batteries, do not open the remote control.

About Your Monitor 9

Operating range of the remote control

Point the top of the remote control toward the LCD monitor’s remote sensor

during button operation.

Use the remote control within a distance of about 8 m from remote control

sensor or at a horizontal and vertical angle of within 15° within a distance of

about 5.6 m.

NOTE: The remote control may not function properly when the remote control

sensor on the display is under direct sunlight or strong illumination, or when there is

an obstacle in the path of signal transmission.

10 About Your Monitor

Identifying Parts and Controls

Front View

1 IR Lens (with LED indicator)

2Function buttons (For more information, see Operating the Monitor)

3 Power On/Off button (with LED indicator)

Back View
