System Setup

Dell™Vostro™1220ServiceManual

Entering System Setup

<F12> Boot Menu

Entering System Setup

Press <F2> to enter System Setup and change the user-definable settings. If you have difficulty entering System Setup using this key, press <F2> when the

keyboard LEDs first flash.

Navigation

Use the following keystrokes to navigate the BIOS screens.



<F12> Boot Menu

Press <F12>, when the Dell logo appears, to initiate a one-time boot menu with a list of the valid boot devices for the computer. Diagnostics and Enter Setup

options are also included in this menu. The devices listed on the boot menu depend on the bootable devices in the system. This menu is useful when you are

attempting to boot to a particular device or to bring up the diagnostics for the system. Using the boot menu does not make any changes to the boot order

stored in the BIOS.

Back to Contents Page

Navigation Keystrokes

Action

Keystroke

Expand and collapse field

<Enter>, left-or right-arrow key

Exit BIOS

<Esc> or <Alt + F4> —Remain in Setup, Save/Exit, Discard/Exit

Change a setting

Arrow key And <Enter>, or Arrow key and <Space>

Select field to change

<Tab>

Reset defaults

Load Defaults menu option

Back to Contents Page

Diagnostics

Dell™Vostro™1220ServiceManual

Device Status

Battery Status

Keyboard Status

LED Error Codes

Device Status LEDs

Device status LEDs are a good source for diagnosing common problems that may occur on your computer.

Battery Status

If the computer is connected to an electrical outlet, the battery light operates as follows:

lAlternately blinking amber light and blue light —An unauthenticated or unsupported, non-Dell AC adapter is attached to your computer.

lAlternately blinking amber light with steady blue light —Temporary battery failure with AC adapter present.

lConstantly blinking amber light —Fatal battery failure with AC adapter present.

lLight off —Battery in full charge mode with AC adapter present.

lBlue light on —Battery in charge mode with AC adapter present.

Battery Charge and Health

To check the battery charge, press and release the status button on the battery charge gauge to illuminate the charge-level lights. Each light represents

approximately 20 percent of the total battery charge. For example, if four lights are on, the battery has 80 percent of its charge remaining. If no lights appear,

the battery has no charge.

To check the battery health using the charge gauge, press and hold the status button on the battery charge gauge for at least three seconds. If no lights

appear, the battery is in good condition and more than 80 percent of its original charge capacity remains. Each light represents incremental degradation. If five

lights appear, less than 60 percent of the charge capacity remains, and you should consider replacing the battery.

Keyboard Status LEDs

The green lights located above the keyboard indicate the following:

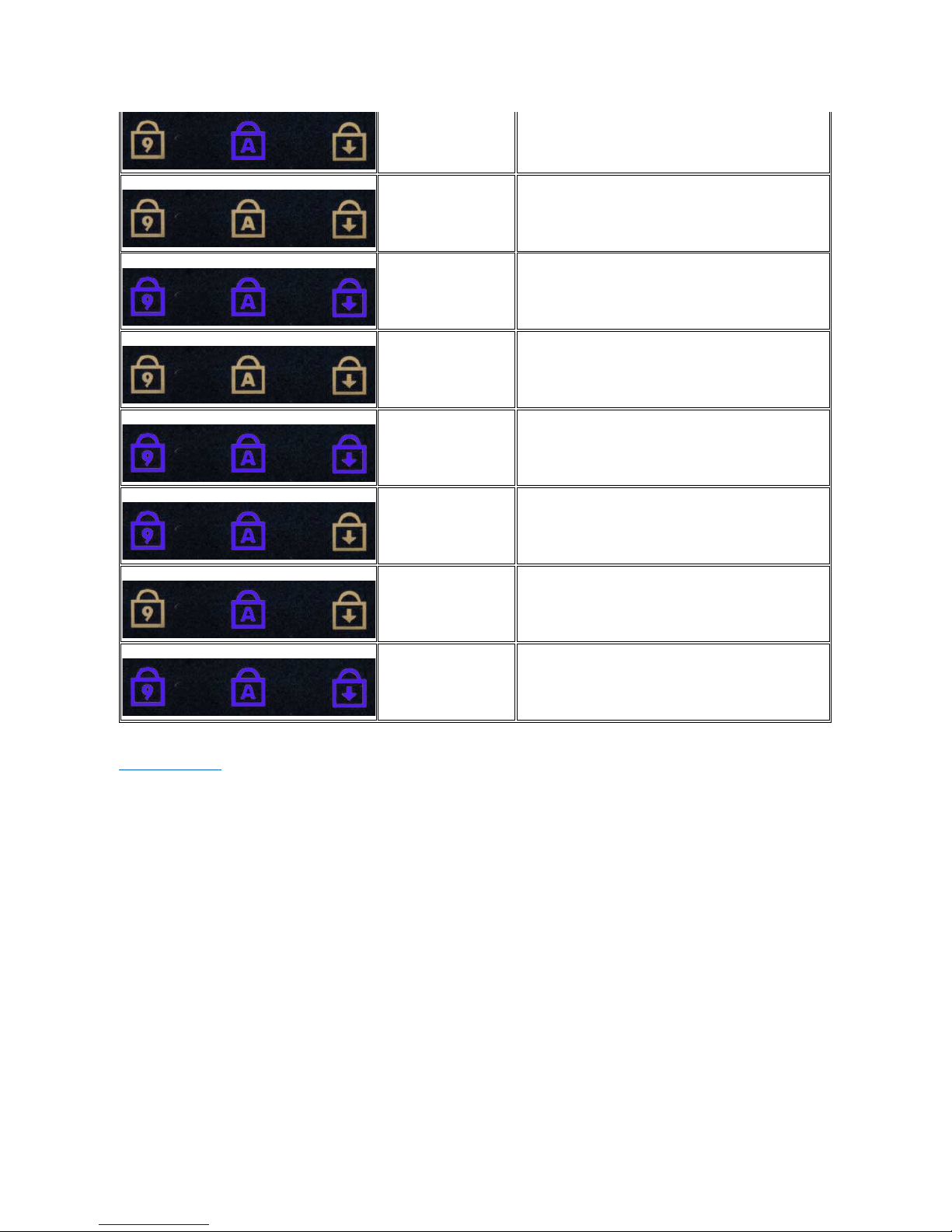

LED Error Codes

Turns on when you turn on the computer and blinks when the computer is in a power management mode.

Turns on when the computer reads or writes data.

Turns on steadily or blinks to indicate battery charge status.

Turns on when wireless networking is enabled.

Turns on when a card with Bluetooth®wireless technology is enabled. To turn off only the Bluetooth

wireless technology function, right-click the icon in the system tray and select Disable Bluetooth Radio.

Turns on when the numeric keypad is enabled.

Turns on when the Caps Lock function is enabled.

Turns on when the Scroll Lock function is enabled.

Appearance

Description

Next Step

ON-FLASH-FLASH

No SODIMMs Installed

1. Install supported memory modules.

2. If memory is already present, reseat the module(s) one at

time in each slot.

Try known good memory from another computer or replace the

memory.

4. Replace the system board.

FLASH-ON-ON

System Board Error

1. Reseat the processor.

2. Replace the system board.

3. Replace the processor.

FLASH-ON-FLASH



Back to Contents Page

LCD Panel Error

1. Reseat the LCD cable.

2. Replace the LCD panel.

3. Replace the video card/system board.

OFF-FLASH-OFF

Memory Compatibility Error

1. Install compatible memory modules.

2. If two modules are installed, remove one and test.

3. Try the second module in the same slot and test.

4. Test the other slot with both modules.

5. Replace the memory.

6. Replace the system board.

ON-FLASH-ON

Memory Detected But Has

Errors

1. Reseat the memory.

2. If two modules are installed, remove one and test.

3. Try the second module in the same slot and test.

4. Test the other slot with both modules.

5. Replace the memory

6. Replace the system board.

OFF-FLASH-FLASH

Modem Error

1. Reseat the modem.

2. Replace the modem.

3. Replace the system board.

FLASH-FLASH-FLASH

System Board Error

1. Replace the system board.

FLASH-FLASH-OFF

Option ROM Error

1. Reseat the device.

2. Replace the device.

3. Replace the system board.

OFF-ON-OFF

Storage Device Error

1. Reseat the hard drive and optical drive.

2. Test the computer with just the hard drive and just the optical

drive.

3. Replace the device that is causing the failure.

4. Replace the system board.

FLASH-FLASH-ON

Video Card Error

1. Replace the system board.

Back to Contents Page

Adding and Replacing Parts

Dell™Vostro™1220ServiceManual



Back to Contents Page

Battery

Memory

Coin-Cell Battery

Keyboard

LCD Assembly

Bluetooth Module

Hard Drive

Fan

Heat Sink and Processor

Speaker

LCD Inverter

LCD Panel

LCD Hinges



Access Panel

WLAN Card

Hinge Cover

Media Bay Device

Palm Rest

TPM Module

I/O Panel

System Board

Modem

LCD Bezel

LCD Camera

LCD Rails

Back to Contents Page

Specifications

Dell™Vostro™1220ServiceManual



Processors

ExpressCard

Memory

Connectors

Graphics

Display

Touch Pad

AC Adapter

Physical



System Information

SD Card

Communications

Audio

Keyboard

Battery

Fingerprint Reader

Environmental

Video



NOTE: Offerings may vary by region. For more information regarding the configuration of

your computer, click Start (or Start in Windows®XP)®Help and Support, and then

select the option to view information about your computer.

Processors

Processor type

Intel®Celeron®, Intel Celeron Dual Core, or Intel

Core™2Duo

SystemInformation

Chipset

Intel GM45

ExpressCard™ The ExpressCard slot is designed only for ExpressCards. It does NOT support PC Cards.

ExpressCard connector

ExpressCard slot (supports both USB and PCIe based

interfaces)

Cards supported

34 mm ExpressCards

Secure Digital (SD) Memory Card Reader

Cards supported

34 mm ExpressCards

Memory

Memory module connector

2 DIMM slots

Memory module capacity

1 GB, 2 GB, or 4 GB

Memory type

DDR2 800 MHz

Minimum memory

1 GB

Maximum memory

8 GB

Communications

Network adapter

10/100/1000 Ethernet LAN on system board

Wireless

WLAN half Mini-Card, Bluetooth®wireless technology

Connectors

Audio

Microphone connector, mono headphones/speakers

connector

Mini-Card

One dedicated half Mini-Card slot for WLAN

Network adapter

RJ-45 connector

USB

two 4-pin USB 2.0-compliant connectors



Video

15-hole VGA connector

Audio

Audio type

Two-channel high-definition audio codec

Audio controller

CONEXANT CX20583

Stereo conversion

24-bit (analog-to-digital and digital-to-analog)

Interfaces:



Internal

Internal high definition audio

External

Microphone-in connector, stereo headphones/speakers

mini-connector

Speakers

2 two-watt, 4-ohm speakers

Internal speaker amplifier

2-W channel, 4 ohms

Internal microphone

Single digital microphone

Volume controls

Volume control buttons

Graphics

Integrated

Videocontroller

Mobile Intel GMA X4500 Graphics Controller

Databus

Integrated video

Video memory

Up to 256 MB of shared memory

Video output

Video connector and multimode DisplayPort

Keyboard

Number of keys

84 (U.S. and U.K.); 84 (Europe); 87 (Japan)

Layout

QWERTY/AZERTY/Kanji

Display

Type (active-matrix TFT)

WXGA

Active area X/Y

261.12 x 163.2

Dimensions

Height

178.8 mm (7.039 inches)

Width

289.7 mm (11.41 inches)

Diagonal

337.8 mm (13.3 inches)

Maximum Resolution

1280 x 800 at 262 K colors

Operating angle

0°(closed)to160°

Refresh rate

60 Hz (40 Hz in All Day Battery Life (ADBL) mode)

Viewing angles

Horizontal

40/40°

Vertical

15/30°

Pixel pitch

0.2235 mm (0.008799 inch)

Power Consumption

(panel with backlight, typical)

4.3 W (max)

Battery

Type

4-cell and 6-cell

Dimensions:

Depth

4-cell

46.50 mm (1.83 inches)

6-cell

46.50 mm (1.83 inches)

Height

4-cell

35.85 mm (1.41 inches)

6-cell

40.64 mm (1.60 inches)

Voltage



4-cell

12 V (minimum), 17.7 V (maximum)

6-cell

9 V (minimum), 13.3 V (maximum)

Temperature range:

Operating

0°to50°C(32°to122°F)

Storage

–20°to65°C(14°to149°F)

Coin-cell battery

CR2032

Touch Pad

X/Y position resolution

(graphics table mode)

240 CPI

Size

Width

68-mm (2.677-inch) sensor-active area

Height

37.63-mm (1.481-inch) rectangle

FingerprintReader(optional)

Type

Authentec

AC Adapter

Type

65 Watt

Input voltage

100–240 VAC

Input current (maximum)

1.5 A

Input Frequency

50–60 Hz

Output Current:

65W

43.34 A (maximum at 4 seconds pulse),

3.34 A (continuous)

Rated Output Voltage

19.5 VDC

Temperature range:

Operating

0°to40°C(32°to104°F)

Storage

–40°to70°C(–40°to158°F)

Physical

Height:

withaCCFLpanel

23.5–37.6 mm (0.93–1.48 inches)

withaWLEDpanel

23.5–36.6 mm (0.93–1.44 inches)

Width

294.0 mm (11.57 inches)

Depth

228.7 mm (9.00 inches)

Weight:

with a 4-cell battery,

128 GB SSD, WLED

panel, and no optical

drive

152 kg (3.36 lbs)

Environmental

Temperature range:

Operating

0°to35°C(32°to95°F)

Storage

-40°to65°C(-40°to149°F)

Relative humidity (maximum):

Operating

10% to 90% (noncondensing)

Storage

5% to 95% (noncondensing)

Video

Video type

integrated on system board

Data bus

integrated video



Back to Contents Page

Video controller

Intel Extreme Graphics

Video memory

up to 256 MB (shared)

Back to Contents Page

Battery

Dell™Vostro™1220ServiceManual

Removing the Battery

1. Follow the procedures in Before Working Inside Your Computer.

2. During installation or removal of ANY hardware, always ensure that all data is backed up properly.

3. Slide the battery release latches into the unlock position.

4. Remove the battery from the computer.

Back to Contents Page

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.

Autres manuels pour Vostro 1220

Table des matières

Autres manuels Dell Ordinateur portable

Dell

Dell Dimension 4100 Manuel utilisateur

Dell

Dell Inspiron 7500 2n1 Silver Manuel d'exploitation et d'entretien

Dell

Dell Inspiron 15 5000 Series Manuel utilisateur

Dell

Dell Inspiron 6000 Manuel utilisateur

Dell

Dell Vostro 2420 Manuel du propriétaire

Dell

Dell Dimension 4100 Manuel utilisateur

Dell

Dell Studio 0K027RA00 Manuel utilisateur

Dell

Dell XPS M2010 Manuel utilisateur

Dell

Dell Latitude 5424 Rugged Manuel d'exploitation et d'entretien

Dell

Dell Inspiron 15 3000 Series Manuel utilisateur

Dell

Dell Latitude 5300 2-in-1 Chrome Manuel d'exploitation et d'entretien

Dell

Dell Inspiron N5110 Manuel utilisateur

Dell

Dell Latitude D631 Manuel utilisateur

Dell

Dell Inspiron 5493 Manuel d'exploitation et d'entretien

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron Inspiron 17R Manuel utilisateur

Dell

Dell Chromebook 11 3380 Manuel utilisateur

Dell

Dell Latitude 9330 Manuel d'exploitation et d'entretien

Dell

Dell Inspiron 14 5000 Series Manuel utilisateur

Dell

Dell Inspiron 3584 Manuel d'exploitation et d'entretien

Dell

Dell G5 15 Manuel utilisateur

Dell

Dell Vostro 3450 Manuel utilisateur

Dell

Dell Vostro 15 7510 Manuel d'exploitation et d'entretien

Dell

Dell Latitude 7410 Manuel utilisateur

Manuels Ordinateur portable populaires d'autres marques

HP ze2401xt - Pavilion Notebook PC Manuel utilisateur

Velocity

Velocity NoteMagix M10 Manuel utilisateur

Toshiba

Toshiba A105-S2236 Manuel utilisateur

HP ENVY 17 Manuel

Winbook

Winbook LM Manuel utilisateur

HP PROBOOK 4520S Manuel

Sony

Sony VAIO PCG-FX270 Manuel utilisateur

Sony

Sony VAIO PCG-R505JLK Manuel utilisateur

Lenovo

Lenovo THINKPAD X32 Manuel utilisateur

HP Compaq tc4200 Guide de démarrage rapide

Toshiba

Toshiba mini NB300 Manuel utilisateur

Lenovo

Lenovo ThinkPad X201 Tablet Manuel

Lenovo

Lenovo THINKPAD X31 Manuel

Sony

Sony VGN-T240P VAIO Manuel utilisateur

Compaq

Compaq Armada E700 Series Manuel utilisateur

Fujitsu

Fujitsu Lifebook A6230 Manuel utilisateur

Acer

Acer Aspire ONE 722 Manuel utilisateur

Toshiba

Toshiba L300-EZ1524 Manuel utilisateur
