Dell™ Vostro™ 1014/1015
Setup and Features Information Tech Sheet

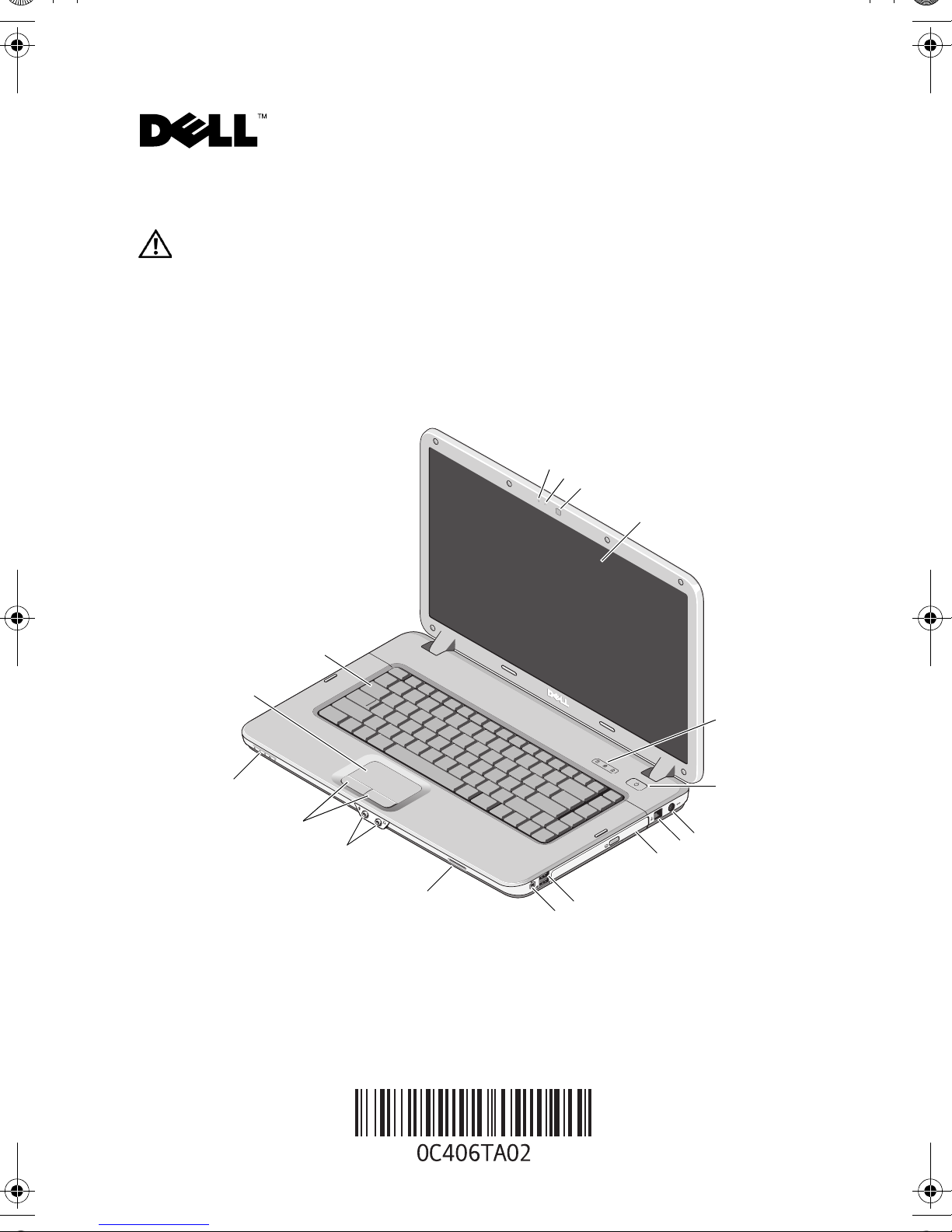

Front View
1microphone (optional) 2camera light (optional)
3camera (optional) 4display
5keyboard status lights 6power button
4
123
7
8
9
10
11
15
13
17
5
6
14
16
12
November 2010 Models: PP38L and PP37L
C406Tcc2.fm Page 1 Friday, October 29, 2010 1:15 PM

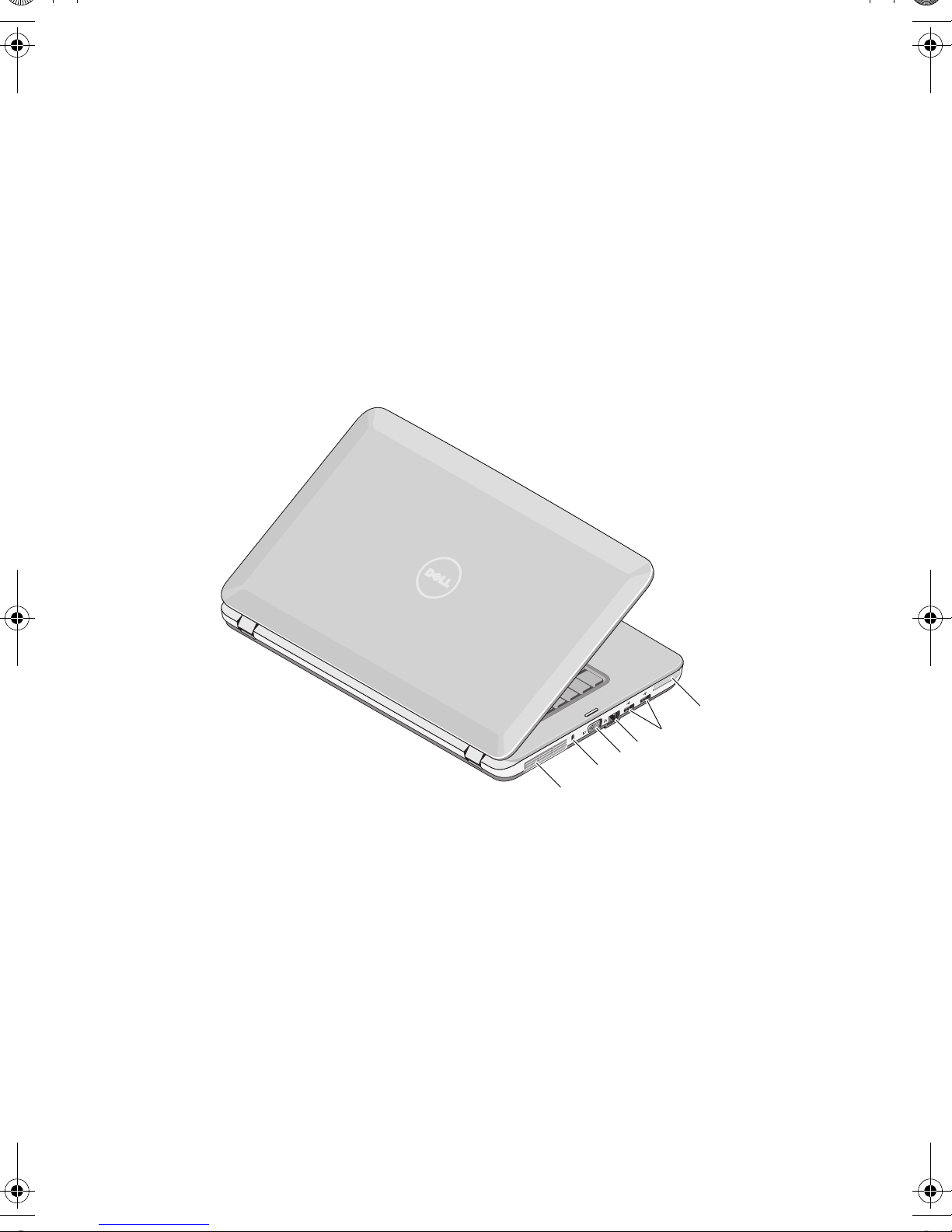

Back View
7AC adapter connector 8phone connector
9optical drive 10 USB connectors (2)
11 IEEE 1394 connector 12 memory card slot
13 audio connectors (2) 14 touchpad buttons (2)
15 indicator lens 16 touchpad
17 keyboard
1cooling vent 2security slot
3VGA connector 4network connector
5USB connectors (2) 6ExpressCard slot
1
2345
6
C406Tcc2.fm Page 2 Friday, October 29, 2010 1:15 PM
Quick Setup
WARNING: Before you begin any of the procedures in this section, read the safety
information that shipped with your computer. For additional best practices information,
see www.dell.com/regulatory_compliance.
WARNING: The AC adapter works with electrical outlets worldwide. However,
power connectors and power strips vary among countries. Using an incompatible cable
or improperly connecting the cable to the power strip or electrical outlet may cause fire or
equipment damage.
CAUTION: When you disconnect the AC adapter cable from the computer, grasp the connector,
not the cable itself, and pull firmly but gently to avoid damaging the cable. When you wrap the
AC adapter cable, ensure that you follow the angle of the connector on the AC adapter to avoid
damaging the cable.
NOTE: Some devices may not be included if you did not order them.
1
Connect the AC adapter to the AC adapter
connector on the computer and to the
electrical outlet.
2
Connect the network cable (optional).
3
Connect USB devices, such as a mouse or
keyboard (optional).
4
Connect IEEE 1394 devices, such as a
DVD player (optional).
C406Tcc2.fm Page 3 Friday, October 29, 2010 1:15 PM
NOTE: It is recommended that you turn on and shut down your computer at least once before
you install any cards or connect the computer to a docking device or other external device,
such as a printer.
Specifications
NOTE: Offerings may vary by region. The following specifications are only those required by law
to ship with your computer. For more information regarding the configuration of your computer,
click StartHelp and Support and select the option to view information about your computer.
5

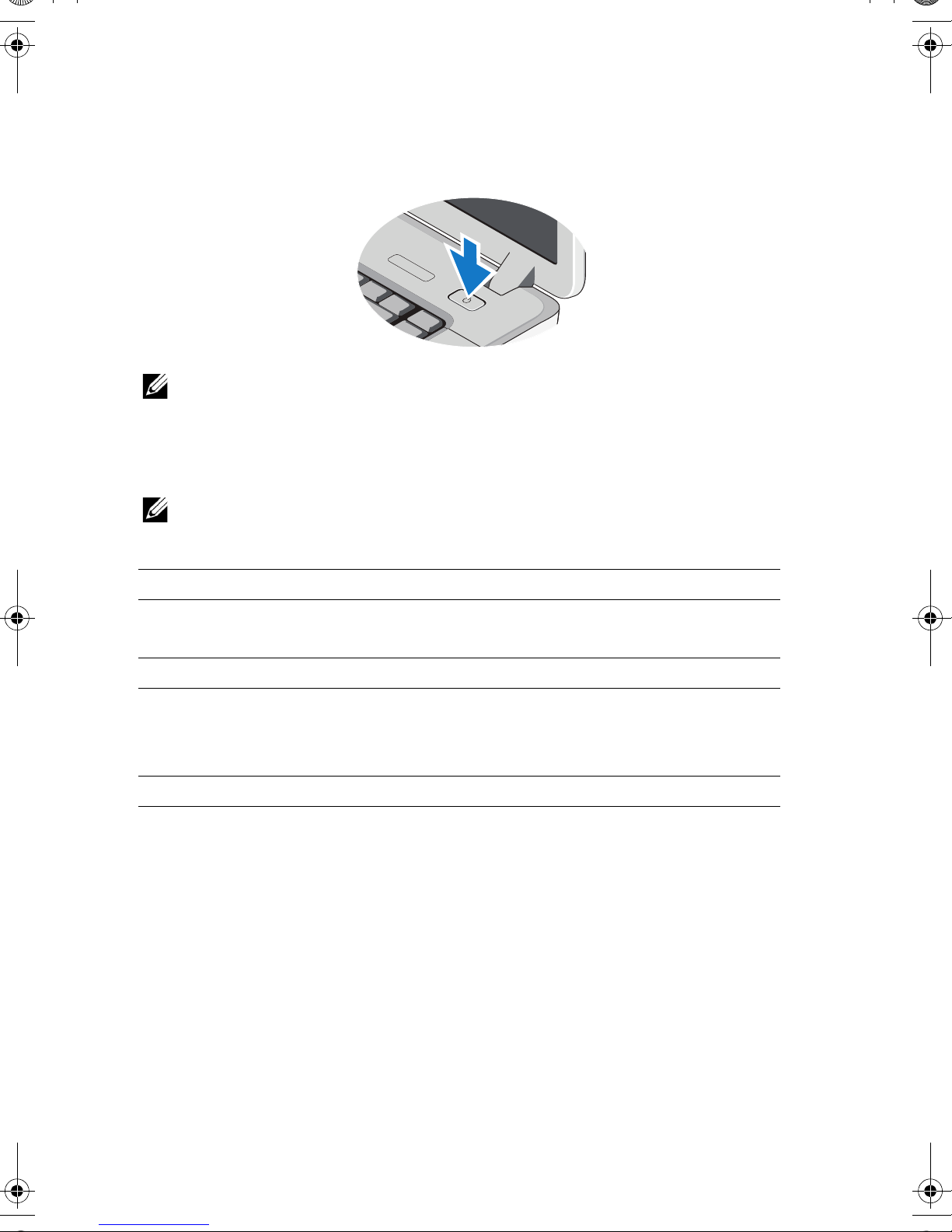

Open the computer display and press the power button to turn on the computer.
System Information
Chipset Intel®GM45
Processor
Processor
•IntelCore™2Duo
•IntelCeleron
®
(Socket P)
Video
Video type integrated on system board, hardware accelerated
Data bus integrated video
Video controller Intel GM45
Video memory integrated graphics
System memory
1 GB –
2 GB –
3 GB –
4 GB –
Dynamic Video Memory Technology (DVMT)
512 MB
782 MB
1294 MB
1550 MB
NOTE: DVMT dynamically responds to system requirements and application's demands by
allocating the optimum amount of memory for balanced graphics and system performance.
C406Tcc2.fm Page 4 Friday, October 29, 2010 1:15 PM
Memory
Memory module connector 2 DIMM slots
Memory module capacity 1 GB or 2 GB
Memory type: DDR2/DDR3 800 MHz
Minimum memory 1 GB
Maximum memory 4 GB
Battery
Type "smart" lithium-ion
4 cell or 6 cell
Dimensions:
Depth
53.39 mm (2.10 inches)
Height
20.44 mm (0.80 inch)
Width
206.44 mm (8.12 inches)
Voltage:
4-cell
14.8 V
6-cell
11.1 V
Temperature range:
Operating
5 °Cto 35 °C (41 °F to 95 °F)
Storage
20 °Cto 65 °C (4 °F to 149 °F)
Coin-cell battery CR2032
AC Adapter
Type 65 W
Input voltage 100–240 VAC
Input current (maximum) 1.50 A
Input frequency 50–60 Hz
Output current:
65 W
3.34 A (continuous)
Rated output voltage 19.50 VDC (+/1.0 VDC)
C406Tcc2.fm Page 5 Friday, October 29, 2010 1:15 PM
Temperature range:
Operating
5 °C to 35 °C (41 °F to 95 °F)
Storage
40 °Cto 65 °C (40 °F to 149 °F)
Dimensions:
Height
28.20 mm (1.11 inches)
Width
57.90 mm (2.28 inches)
Depth
137.2 mm (5.40 inches)
Physical
Height:
Vostro 1014
25.00 mm – 35.60 mm (0.98 inches – 1.40 inches)
Vostro 1015
26.50 mm – 36.80 mm (1.04 inches – 1.45 inches)
Width:
Vostro 1014
340 mm (13.38 inches)
Vostro 1015
376 mm (14.80 inches)
Depth:
Vostro 1014
242.5 mm (9.54 inches)
Vostro 1015
247.9 mm (9.75 inches)
Weight
minimum 2.30 kg (5.07 lb) with a 6-cell battery
maximum 2.50 kg (5.51 lb) with a 6-cell battery
Environmental
Temperature range
Operating
5 °C to 35 °C (41 °F to 95 °F)
Storage
40 °C to 65 °C (40 °F to 149 °F)
Relative humidity (maximum)
Operating
10% to 90% (noncondensing)
Storage
5% to 95% (noncondensing)
AC Adapter
(continued)
C406Tcc2.fm Page 6 Friday, October 29, 2010 1:15 PM
Finding More Information and Resources
See the safety and regulatory documents that shipped with your computer and the regulatory
compliance website at www.dell.com/regulatory_compliance for more information on:
• Safety best practices
• Warranty
• Terms and Conditions
• Regulatory certification
• Ergonomics
• End User License Agreement
__________________
Information in this document is subject to change without notice.
© 2009–2010 Dell Inc. All rights reserved. Printed in China. Printed on recycled paper.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell,the DELL logo, and Vo s t ro are trademarks of Dell Inc.; Intel and Celeron
are registered trademarks and Core is a trademark of Intel Corporation in the U.S. and other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the
marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade
names other than its own.
C406Tcc2.fm Page 7 Friday, October 29, 2010 1:15 PM
C406Tcc2.fm Page 8 Friday, October 29, 2010 1:15 PM
