Dell Precision M4800/M6800

Setup And Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

M4800 — Front, Back, and Base View

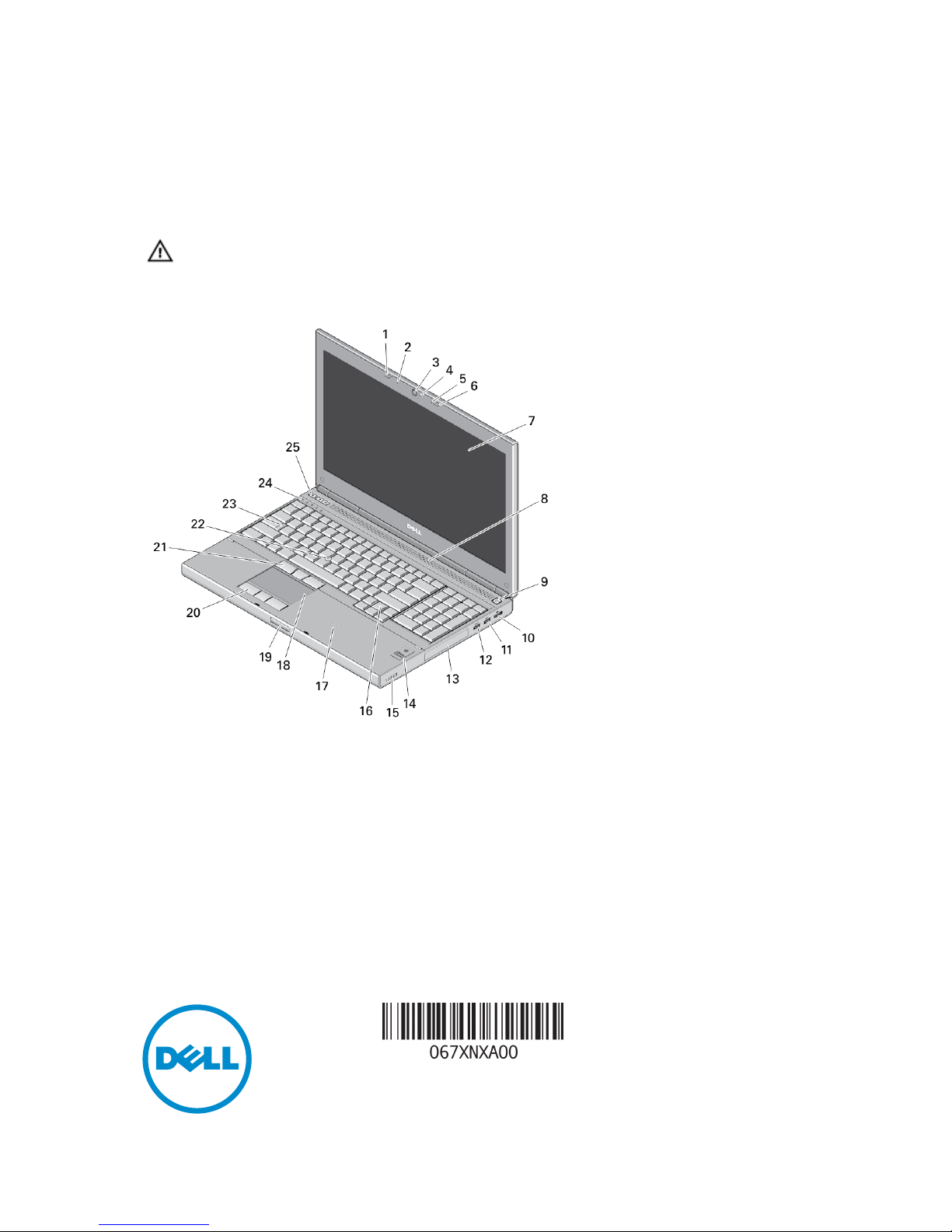

Figure 1. Front View

1. display latch

2. microphone

3. camera (optional)

4. camera LED

5. microphone

6. display latch

7. display

8. speakers (2)

9. power button

10. DisplayPort connector

11. USB 3.0 connector

12. USB 3.0 connector with PowerShare

13. hard drive

14. fingerprint reader (optional)

15. wireless switch

16. keyboard

17. contactless card reader (optional)

18. touchpad

19. display-latch release button

20. touchpad buttons (3)

Regulatory Model: P30F, P20E

Regulatory Type: P20E001, P30F001

2013 - 07

21. track stick buttons (3)

22. track stick

23. caps lock LED

24. device status lights

25. volume control buttons

Figure 2. Back View

1. cooling vent

2. network connector

3. VGA connector

4. eSATA/USB 2.0 connector

5. HDMI connector

6. cooling vent

7. power connector

8. security cable slot

9. USB 3.0 connectors (2)

10. microphone connector

11. headset connector

12. hard-drive status light

13. battery status light

14. power light

15. memory card slot

16. optical-drive status light

17. optical-drive eject button

18. optical-drive eject hole

19. optical drive

20. smart card reader slot (optional)

21. ExpressCard slot

Figure 3. Base View

1. battery bay

2. hard-drive eject latch

3. hard-drive security screw

4. SIM card slot

5. battery release latch

6. docking connector

M6800 — Front, Back, and Base View

Figure 4. Front View

1. display latch

2. microphone

3. camera (optional)

4. camera LED

5. microphone

6. display latch

7. display

8. speakers (2)

9. power button

10. DisplayPort connector

11. USB 3.0 connector

12. USB 3.0 connector with PowerShare

13. hard drive

14. fingerprint reader (optional)

15. wireless switch

16. keyboard

17. contactless card reader (optional)

18. touchpad

19. display-latch release button

20. touchpad buttons (3)

21. track stick buttons (3)

22. track stick

23. caps lock LED

24. device status lights

25. volume control buttons

Figure 5. Back View

1. cooling vent

2. VGA connector

3. network connector

4. HDMI connector

5. eSATA/USB 2.0 connector

6. cooling vent

7. power connector

8. security cable slot

9. USB 3.0 connectors (2)

10. microphone connector

11. headset connector

12. hard-drive status light

13. battery status light

14. power light

15. memory reader slot

16. optical-drive status light

17. optical-drive eject button

18. optical-drive eject hole

19. optical drive

20. smart card reader slot (optional)

21. ExpressCard slot

Figure 6. Base View

1. battery bay

2. hard-drive eject latch

3. hard-drive security screw

4. SIM card slot

5. battery release latch

6. docking connector

WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell

computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow can

damage the computer or cause a fire. The computer turns on the fan when the computer gets hot. Fan noise is

normal and does not indicate a problem with the fan or the computer.

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety information that shipped with

your computer. For additional best practices information, see www.dell.com/regulatory_compliance

WARNING: The AC adapter works with electrical outlets worldwide. However, power connectors and power strips

vary among countries. Using an incompatible cable or improperly connecting the cable to the power strip or

electrical outlet may cause fire or equipment damage.

CAUTION: When you disconnect the AC adapter cable from the computer, grasp the connector, not the cable itself,

and pull firmly but gently to avoid damaging the cable. When you wrap the AC adapter cable, ensure that you

follow the angle of the connector on the AC adapter to avoid damaging the cable.

NOTE: Some devices may not be included if you did not order them.

1. Connect the AC adapter to the AC adapter connector on the computer and to the electrical outlet.

Figure 7. AC Adapter

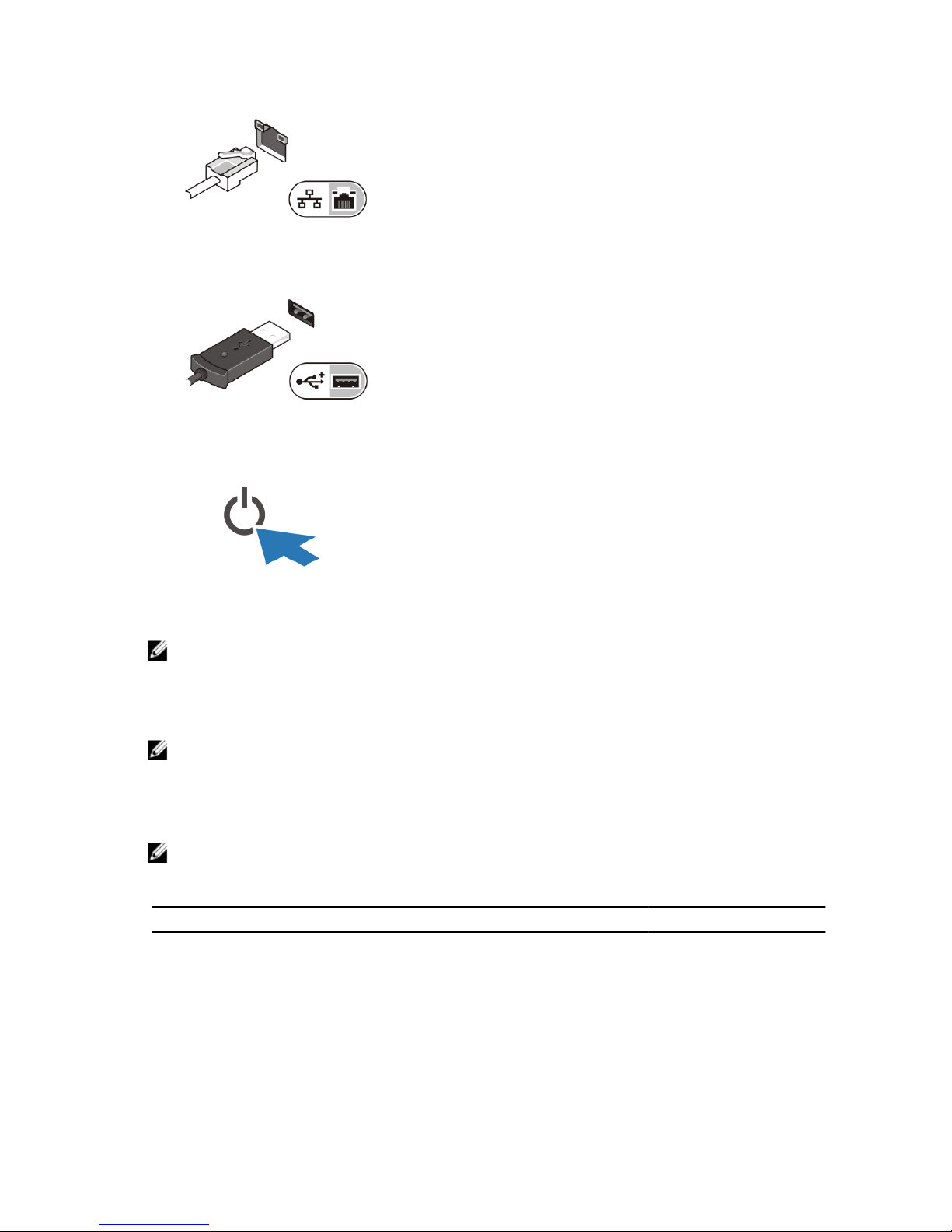

2. Connect the network cable (optional).

Figure 8. Network Connector

3. Connect USB devices, such as a mouse or keyboard (optional).

Figure 9. USB Connector

4. Open the computer display and press the power button to turn on the computer.

Figure 10. Power Button

NOTE: It is recommended that you turn on and shut down your computer at least once before you install any cards

or connect the computer to a docking device or other external device, such as a printer.

Specifications

NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your

computer. For comprehensive specification of your computer go to Specifications’ section in your Owner’s Manual

available on the support site at dell.com/support. For more information about the configuration of your computer,

go to Help and Support in your Windows operating system and select the option to view information about your

computer.

NOTE: A 64-bit operating system is required to support systems with 2 GB or greater graphics and system memory.

Significant system memory may be used to support graphics, depending on system memory size, operating system,

and other factors. A 64-bit discrete graphics driver may be downloaded from dell.com/support.

Power

AC Adapter

M4800 180 W

M6800 240 W

Output 19.5 V

Input voltage 100 VAC - 240 VAC

Power

Coin-cell battery 3 V / 210 mA

Physical

M4800 M6800

Non-Touch Touch Non-Touch Touch

Height

Front 32.9 mm (1.29

inches)

33.1 mm (1.30

inches)

36.1 mm (1.42 inches

Back 36.7 mm (1.44

inches)

37.2 mm (1.46

inches)

40.2 mm (1.58

inches)

Width

376 mm (14.80 inches) 416.7 mm (16.40 inches)

Depth

256 mm (10.07 inches) 270.6 mm (10.65 inches)

Weight (Minimum)

2.89 kg (6.38 lb) 3.58 kg (7.89 lb)

Environmental

Operating Temperature 0 °C to 35 °C (32 °F to 95 °F)

Information para NOM (únicamente para México)

The following information is provided on the device described in this document in compliance with the requirements of

the official Mexican standards (NOM).

Voltaje de alimentación 100 VAC – 240 VAC

Frecuencia 50 Hz – 60 Hz

Consumo eléctrico M4800: 2.34 A / 2.5 A

M6800: 3.5 A

Voltaje de salida 19.50 V de CC

Intensidad de salida 9.23 A / 12.3 A

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the regulatory compliance website at

www.dell.com/regulatory_compliance for more information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at www.dell.com/support/manuals

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,ExpressCharge™, Latitude™, Latitude ON™,

OptiPlex™, Vostro™, and Wi-Fi Catcher™are trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron®

are registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®is a registered trademark and

AMD Opteron™, AMD Phenom™, AMD Sempron™, AMD Athlon™, ATI Radeon™, and ATI FirePro™are trademarks of Advanced Micro

Devices, Inc. Microsoft®, Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and Office Outlook®are either

trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Blu-ray Disc™is a trademark

owned by the Blu-ray Disc Association (BDA) and licensed for use on discs and players. The Bluetooth®word mark is a registered

trademark and owned by the Bluetooth®SIG, Inc. and any use of such mark by Dell Inc. is under license. Wi-Fi®is a registered

trademark of Wireless Ethernet Compatibility Alliance, Inc.

2013 - 07

Rev. A00
