Dell Lattitude D600 Manuel utilisateur
Dell Latitude D600 Service Manual
Dell™ Latitude™ D600 Service Manual
Before You Begin
System Components
Memory Module, Mini PCI Card, and Modules
Reserve Battery
Hard Drive
Keyboard
Display Assembly and Display Latch
Palm Rest
Docking Doors
Fan
Bluetooth™ Card
Microprocessor Thermal-Cooling Assembly
Microprocessor Module
Flashing the BIOS
Speakers
Base Latch
Modem
System Board
Pin Assignments for I/O Connectors
Mini Recommended Spares List
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use
of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of
data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage,
personal injury, or death.
file:///F|/Service%20Manuals/Dell/Latitude/d600/index.htm (1 of 2) [2/28/2004 8:15:34 AM]
Before You Begin: Dell Latitude D600 Service Manual
Back to Contents Page
Before You Begin
Dell™ Latitude™ D600 Service Manual
Preparing to Work Inside the Computer
Recommended Tools
Computer Orientation
Screw Identification
Preparing to Work Inside the Computer
CAUTION: Only a certified service technician should perform repairs on
your computer. Damage due to servicing that is not authorized by Dell
is not covered by your warranty. Read and follow applicable
instructions in the safety instructions in the System Information Guide
that came with the computer.
CAUTION: To prevent static damage to components inside your
computer, discharge static electricity from your body before you touch
any of your computer's electronic components. You can do so by
touching an unpainted metal surface.
CAUTION: Handle components and cards with care. Do not touch the
components or contacts on a card. Hold a card by its edges or by its
metal mounting bracket. Hold a component such as a microprocessor by
its edges, not by its pins.
NOTICE: To avoid damaging the computer, perform the following steps before
you begin working inside the computer.
1. Ensure that the work surface is flat and clean to prevent scratching the
computer cover.
2. Save any work in progress and exit all open programs.
3. Turn off the computer and all attached devices.
file:///F|/Service%20Manuals/Dell/Latitude/d600/begin.htm (1 of 7) [2/28/2004 8:15:41 AM]
Before You Begin: Dell Latitude D600 Service Manual
NOTE: Ensure that the computer is off and not in a power management mode.
If you cannot shut down the computer using the computer operating system,
press and hold the power button for 4 seconds.
4. If the computer is connected to a docking station, undock it.
5. Disconnect the computer from the electrical outlet.
6. To avoid possible damage to the system board, wait 10 to 20 seconds and then
disconnect any attached devices.
7. Disconnect all other external cables from the computer.
8. Remove any installed PC Cards from the PC Card slot.
9. Close the display and turn the computer upside down on a flat work surface.
NOTICE: To avoid damaging the system board, you must remove the main
battery before you service the computer.

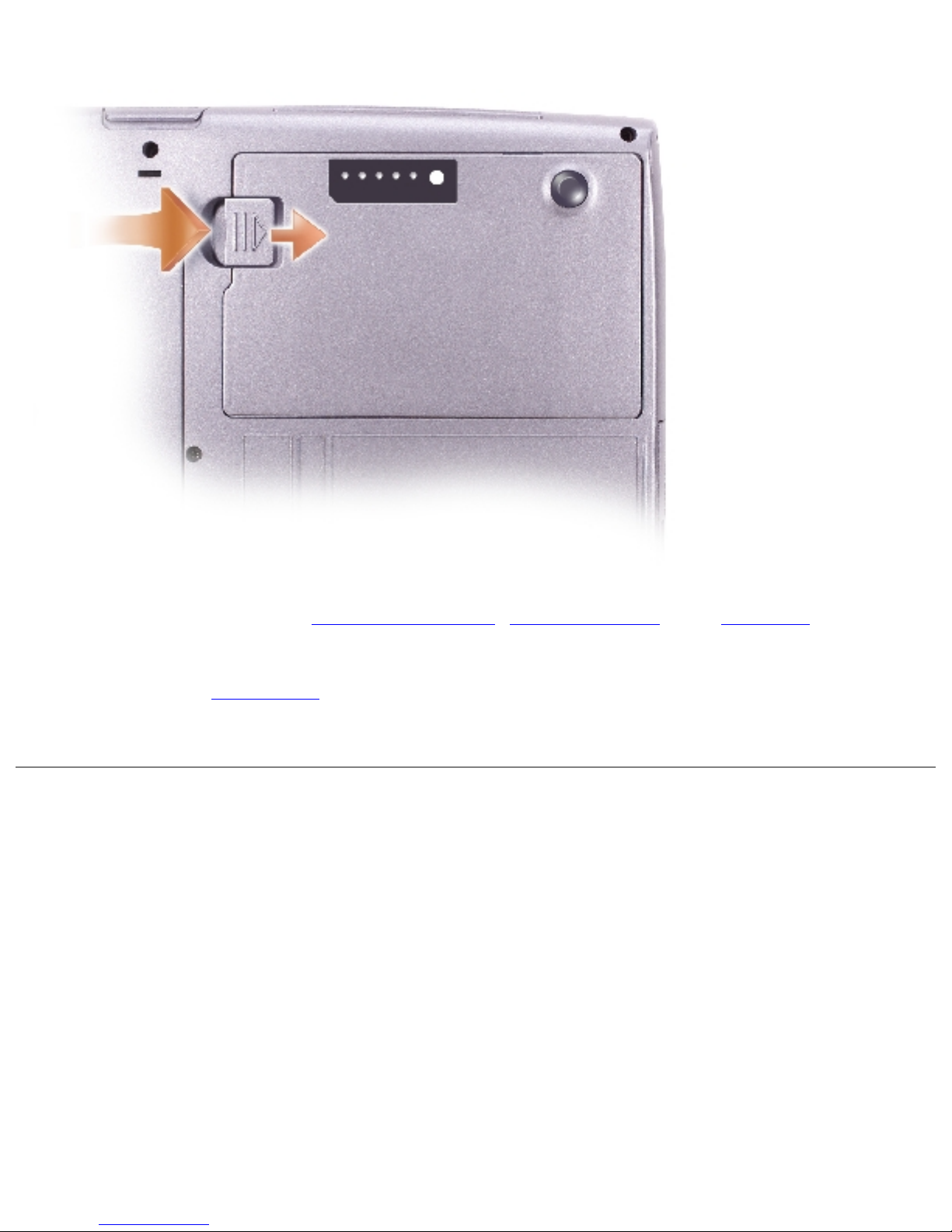

10. Slide and hold the battery-bay latch release on the bottom of the computer, and
then remove the battery from the bay.
file:///F|/Service%20Manuals/Dell/Latitude/d600/begin.htm (2 of 7) [2/28/2004 8:15:41 AM]
Before You Begin: Dell Latitude D600 Service Manual
11. Remove any installed memory modules, Mini PCI cards, and modules, including
a second battery if one is installed.
12. Remove the hard drive.
Recommended Tools
The procedures in this manual require the following tools:
●#1 Phillips screwdriver
●¼-inch flat-blade screwdriver
●Small plastic scribe
●Flash BIOS update program floppy disk or CD
file:///F|/Service%20Manuals/Dell/Latitude/d600/begin.htm (3 of 7) [2/28/2004 8:15:41 AM]
Before You Begin: Dell Latitude D600 Service Manual

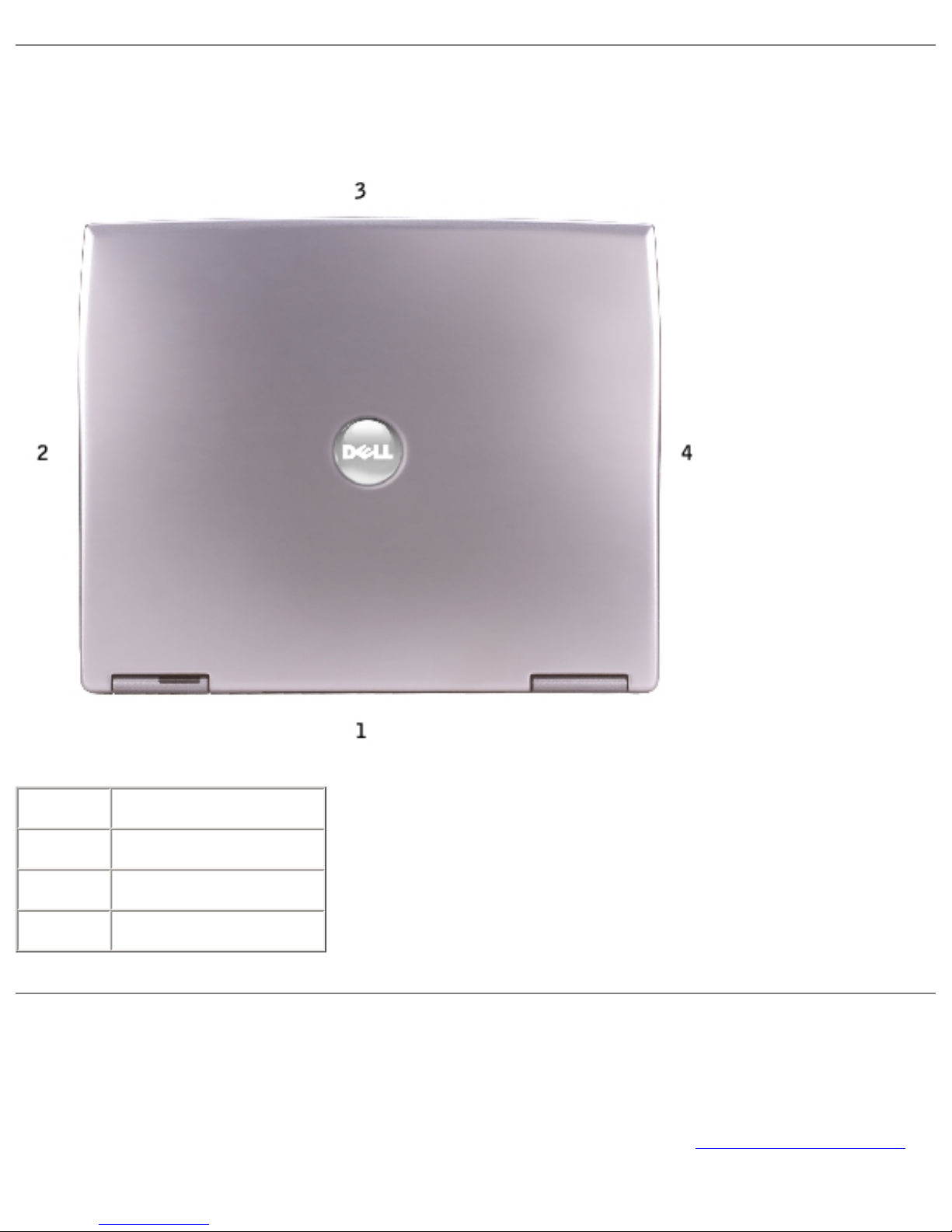

Computer Orientation
1 back
2 right
3 front
4 left

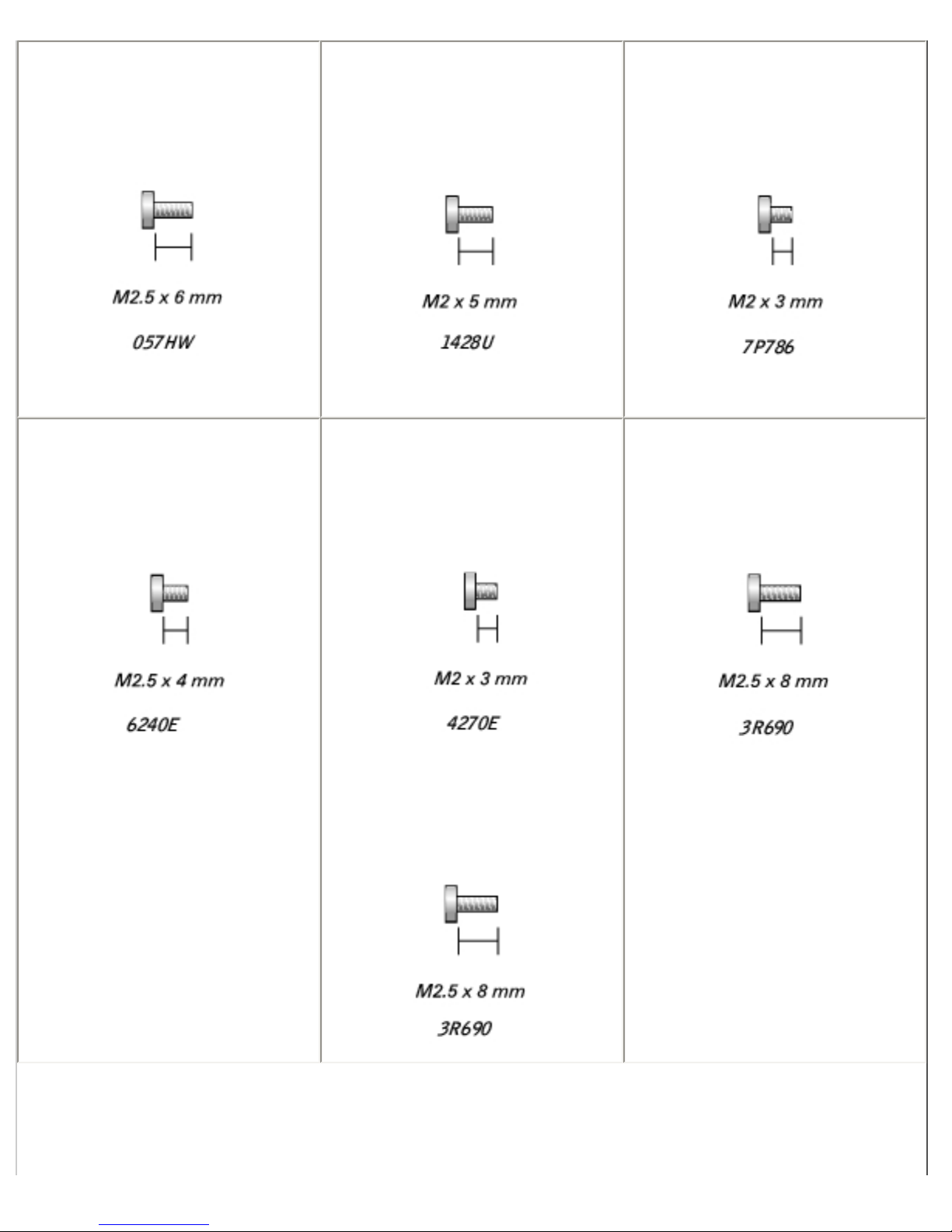

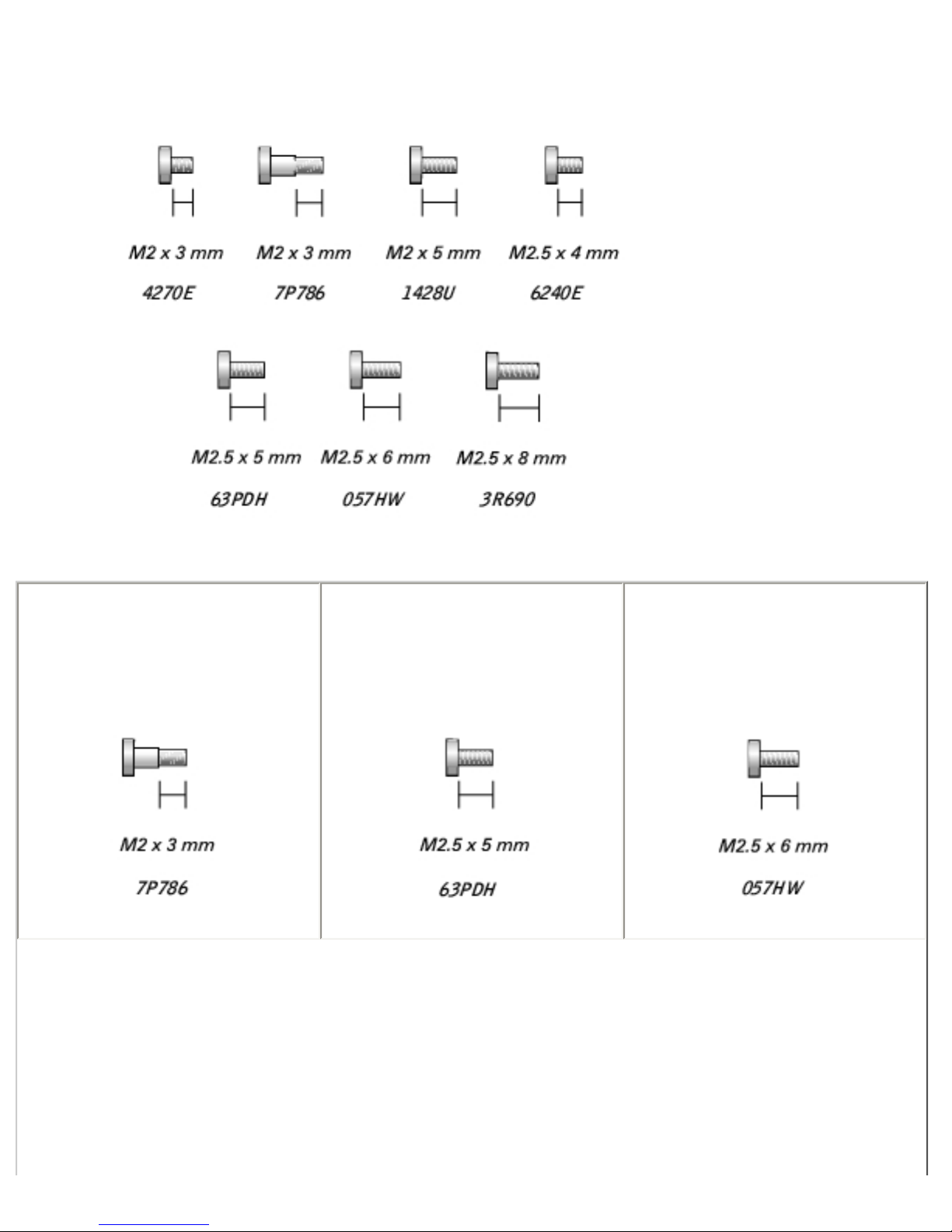

Screw Identification
When you are removing and replacing components, photocopy "Screw Identification"
file:///F|/Service%20Manuals/Dell/Latitude/d600/begin.htm (4 of 7) [2/28/2004 8:15:41 AM]
Before You Begin: Dell Latitude D600 Service Manual
as a tool to lay out and keep track of the screws. The placemat provides the number
of screws and their sizes.
Optional Module:
(1 each)
Hard Drive:
(1 each)
Keyboard:
(2 each)
file:///F|/Service%20Manuals/Dell/Latitude/d600/begin.htm (5 of 7) [2/28/2004 8:15:41 AM]
Before You Begin: Dell Latitude D600 Service Manual

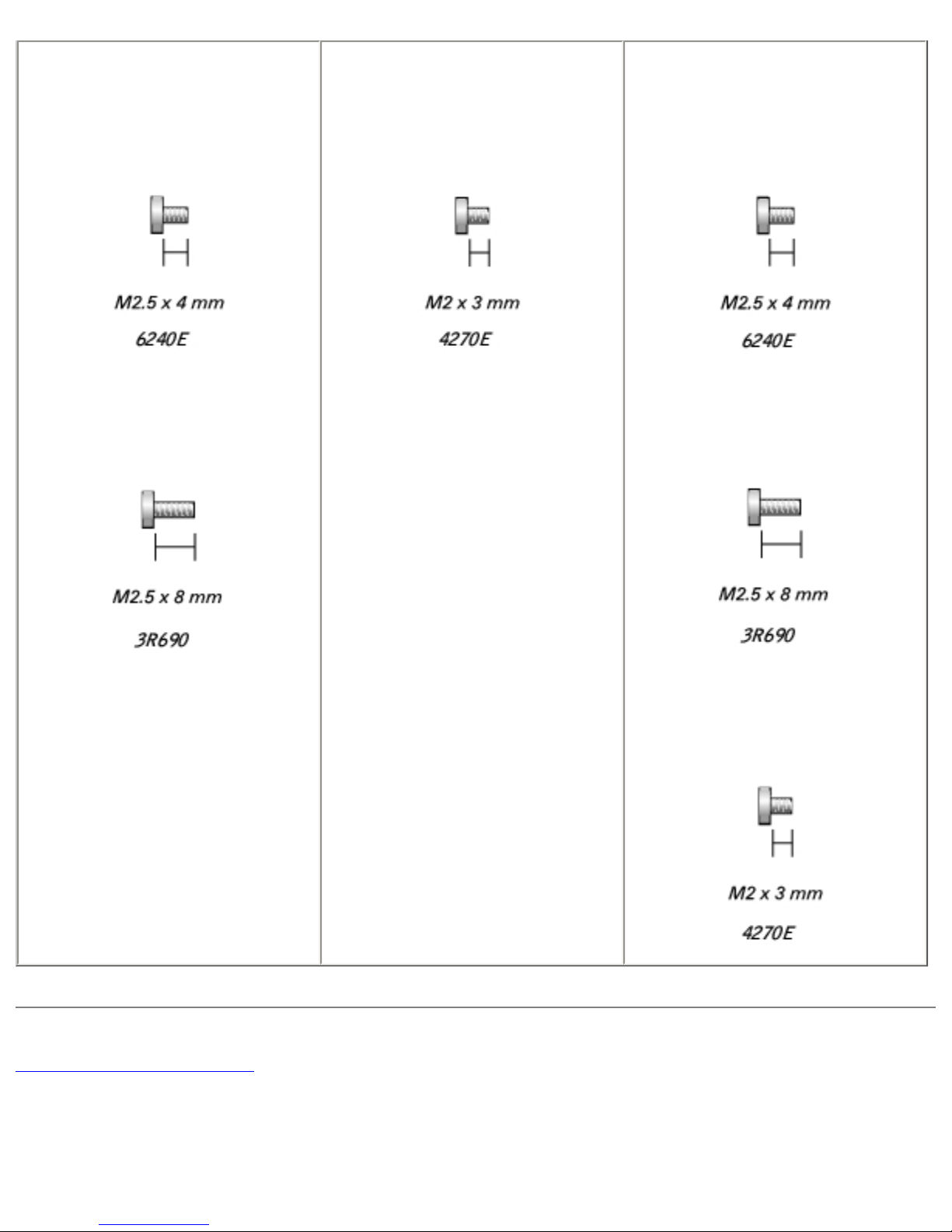

Display Assembly:
(3 each)
Display Bezel:
(6 each)
Display Panel:
(4 each)
Display Latch:
(2 each)
Palm Rest:
(3 each)
(9 each)
Fan:
(2 each)
file:///F|/Service%20Manuals/Dell/Latitude/d600/begin.htm (6 of 7) [2/28/2004 8:15:41 AM]
Before You Begin: Dell Latitude D600 Service Manual
Speakers:
(1 each)
(1 each)
Modem:
(1 each)
System Board:
(1 each)
(1 each)
(4 each)
Back to Contents Page
file:///F|/Service%20Manuals/Dell/Latitude/d600/begin.htm (7 of 7) [2/28/2004 8:15:41 AM]
System Components: Dell Latitude D600 Service Manual
Back to Contents Page

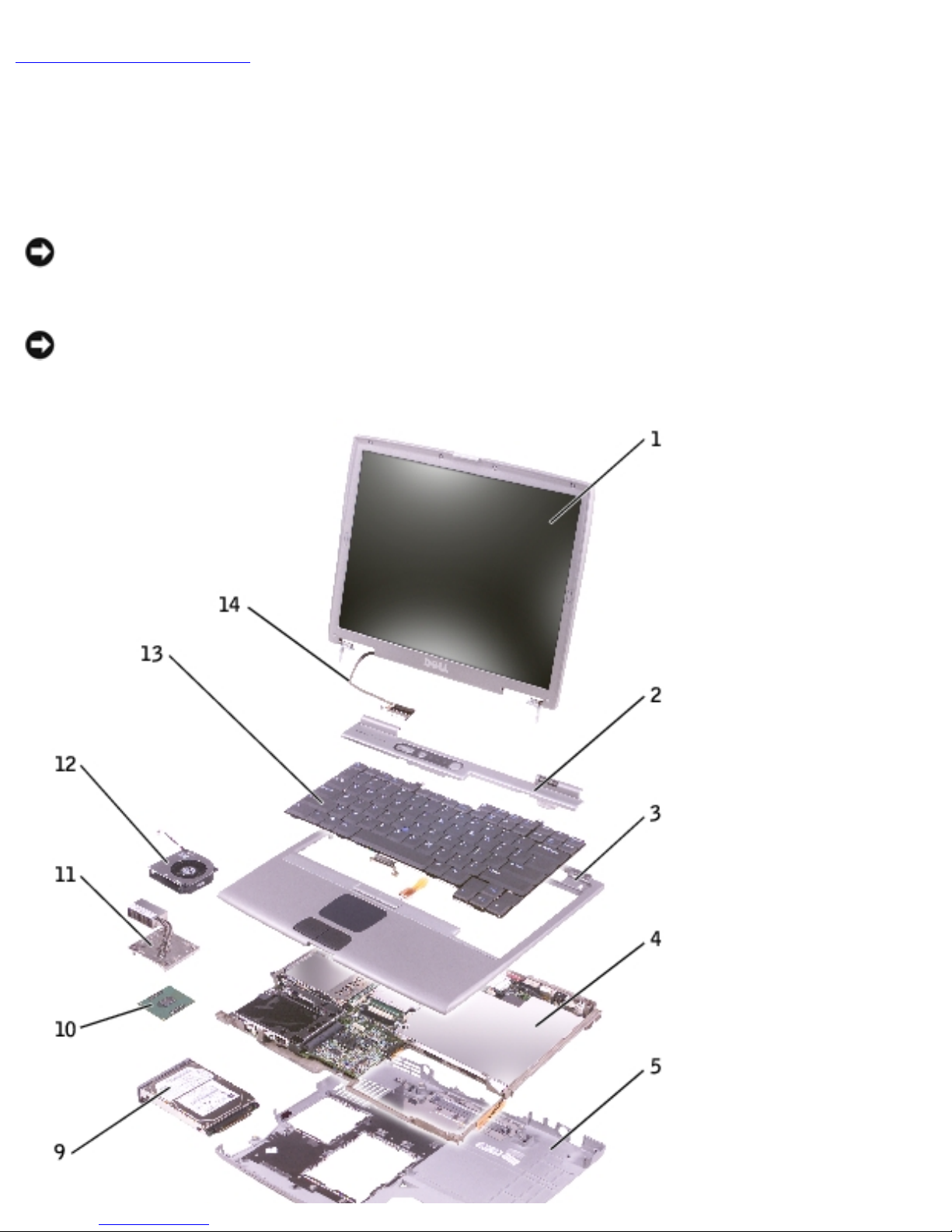

System Components
Dell™ Latitude™ D600 Service Manual
NOTICE: Only a certified service technician should perform repairs on your
computer. Damage due to servicing that is not authorized by Dell is not covered
by your warranty.
NOTICE: Unless otherwise noted, each procedure in this document assumes that
a part can be replaced by performing the removal procedure in reverse order.
file:///F|/Service%20Manuals/Dell/Latitude/d600/system.htm (1 of 2) [2/28/2004 8:15:42 AM]
System Components: Dell Latitude D600 Service Manual

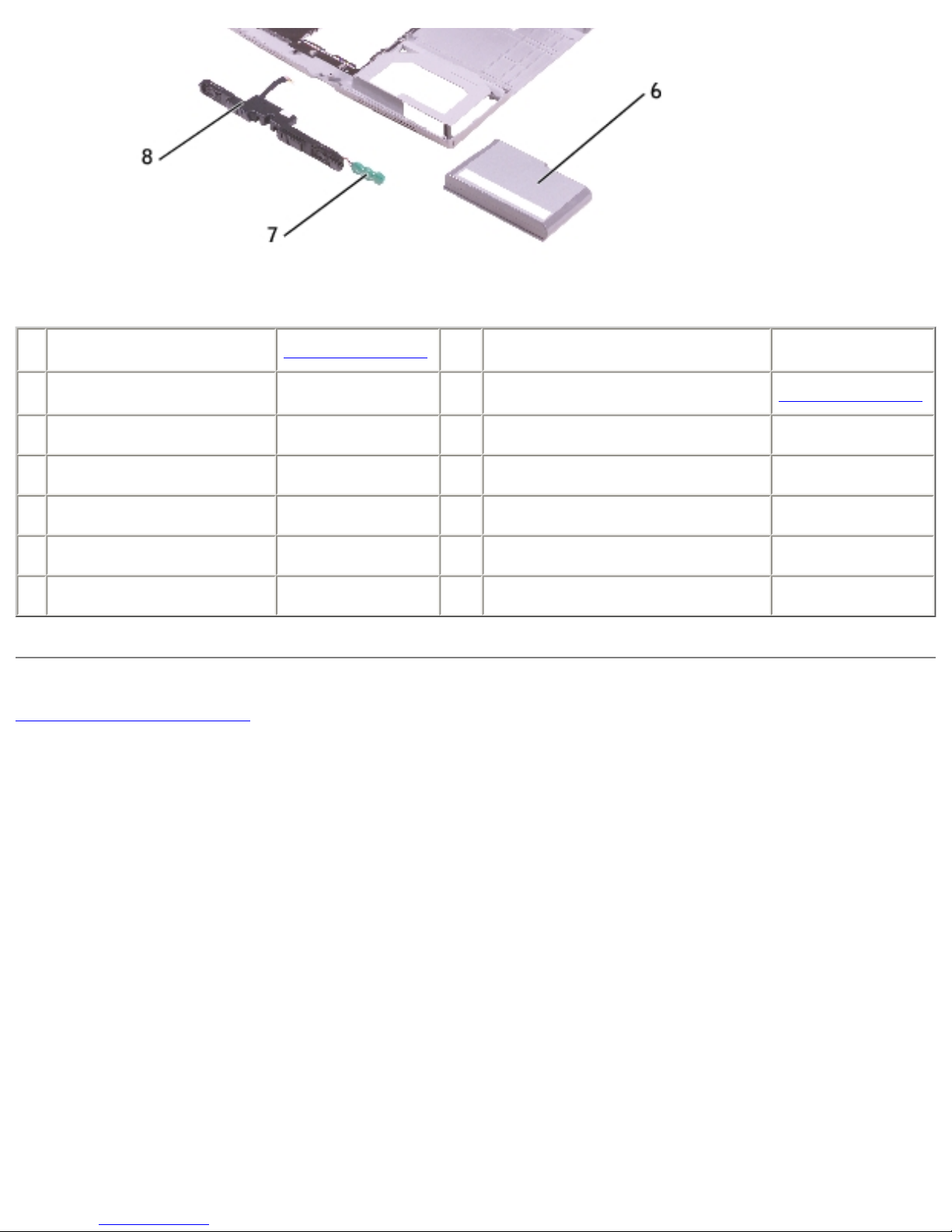

1 display assembly See MINI RSL 8 speakers 2N406
2 center control cover 8M659 9 hard drive See MINI RSL
3 palm rest 6M859 10 modem Y0231
4 system board U0996 11 thermal cooling assembly 2N403
5 computer base F1727 12 fan 4R197
6 battery 0R160 13 keyboard D1005
7 reserve battery D1004 14 display cable 6M871
Back to Contents Page
file:///F|/Service%20Manuals/Dell/Latitude/d600/system.htm (2 of 2) [2/28/2004 8:15:42 AM]
