Dell Latitude E6320

Setup and Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Front and Back View

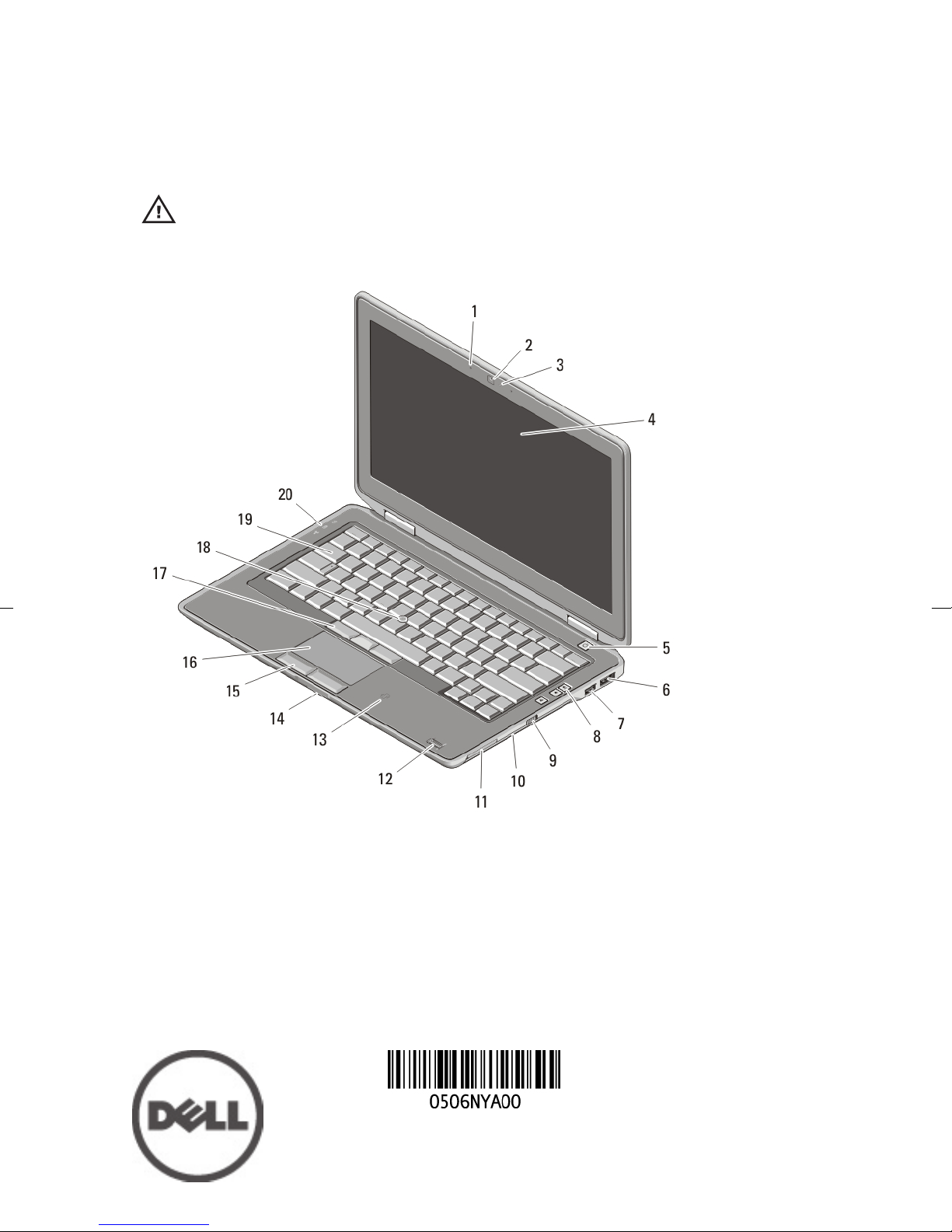

Figure 1. Front view

1. microphone

2. camera

3. camera status light

4. display

5. power button

6. eSata/USB connector

7. USB 2.0 connector

8. volume control buttons

9. wireless switch

10. optical drive

11. ExpressCard slot

12. fingerprint reader

Regulatory Model: P12S

Regulatory Type: P12S001

February 2011

13. contactless smart card reader

14. Secure Digital (SD) memory-card

reader

15. touchpad buttons (2)

16. touchpad

17. trackstick buttons (3)

18. trackstick

19. keyboard

20. device status lights

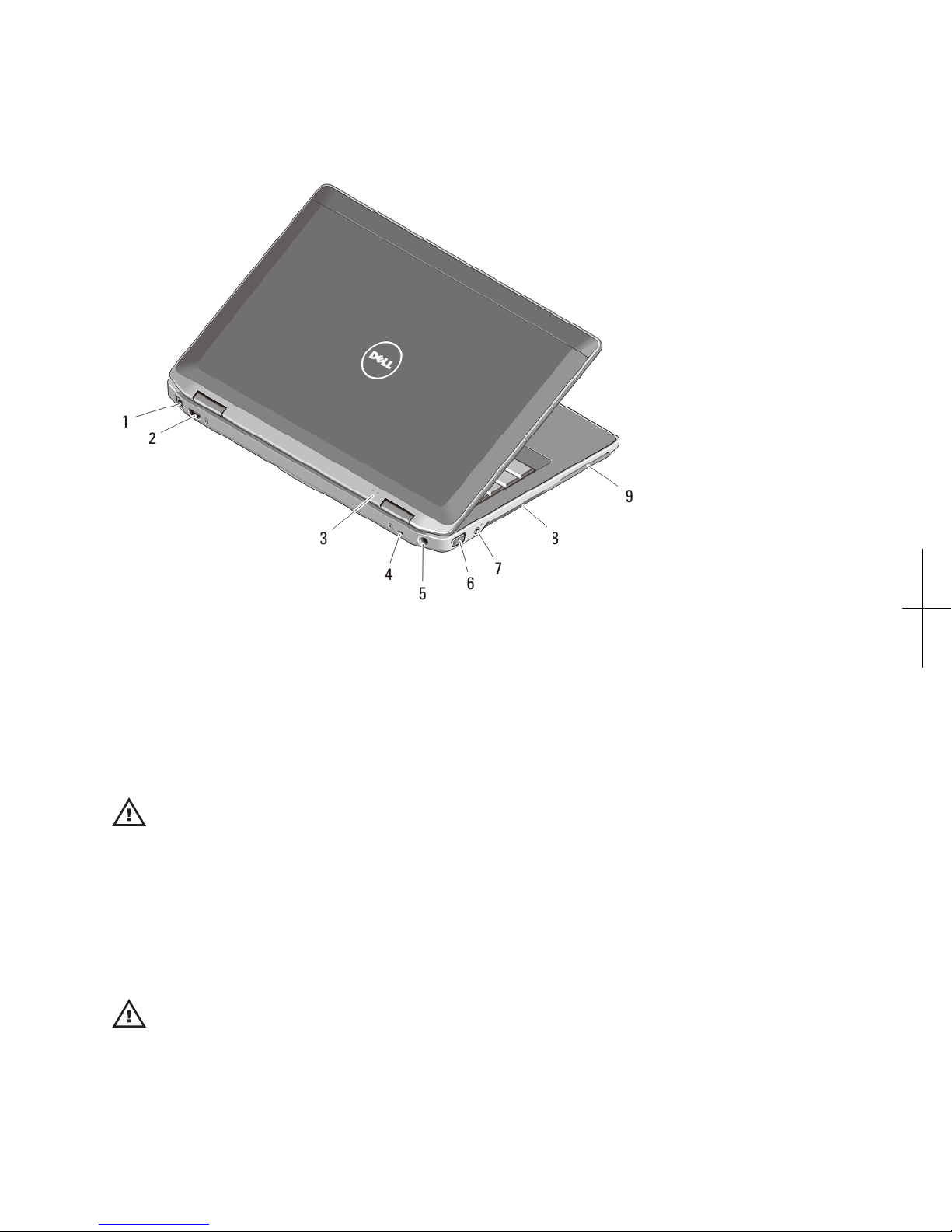

Figure 2. Back view

1. network connector

2. mini HDMI connector

3. power and battery status lights

4. security cable slot

5. power connector

6. VGA connector

7. audio connector

8. cooling vents

9. smart card slot

WARNING: Do not block, push objects into, or allow dust to accumulate in the air

vents. Do not store your Dell computer in a low-airflow environment, such as a

closed briefcase, while it is running. Restricting the airflow can damage the

computer or cause a fire. The computer turns on the fan when the computer gets

hot. Fan noise is normal and does not indicate a problem with the fan or the

computer.

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance.

WARNING: The AC adapter works with electrical outlets worldwide. However,

power connectors and power strips vary among countries. Using an incompatible

cable or improperly connecting the cable to the power strip or electrical outlet may

cause fire or equipment damage.

CAUTION: When you disconnect the AC adapter cable from the computer, grasp

the connector, not the cable itself, and pull firmly but gently to avoid damaging the

cable. When you wrap the AC adapter cable, ensure that you follow the angle of the

connector on the AC adapter to avoid damaging the cable.

NOTE: Some devices may not be included if you did not order them.

1. Connect the AC adapter to the AC adapter connector on the computer

and to the electrical outlet.

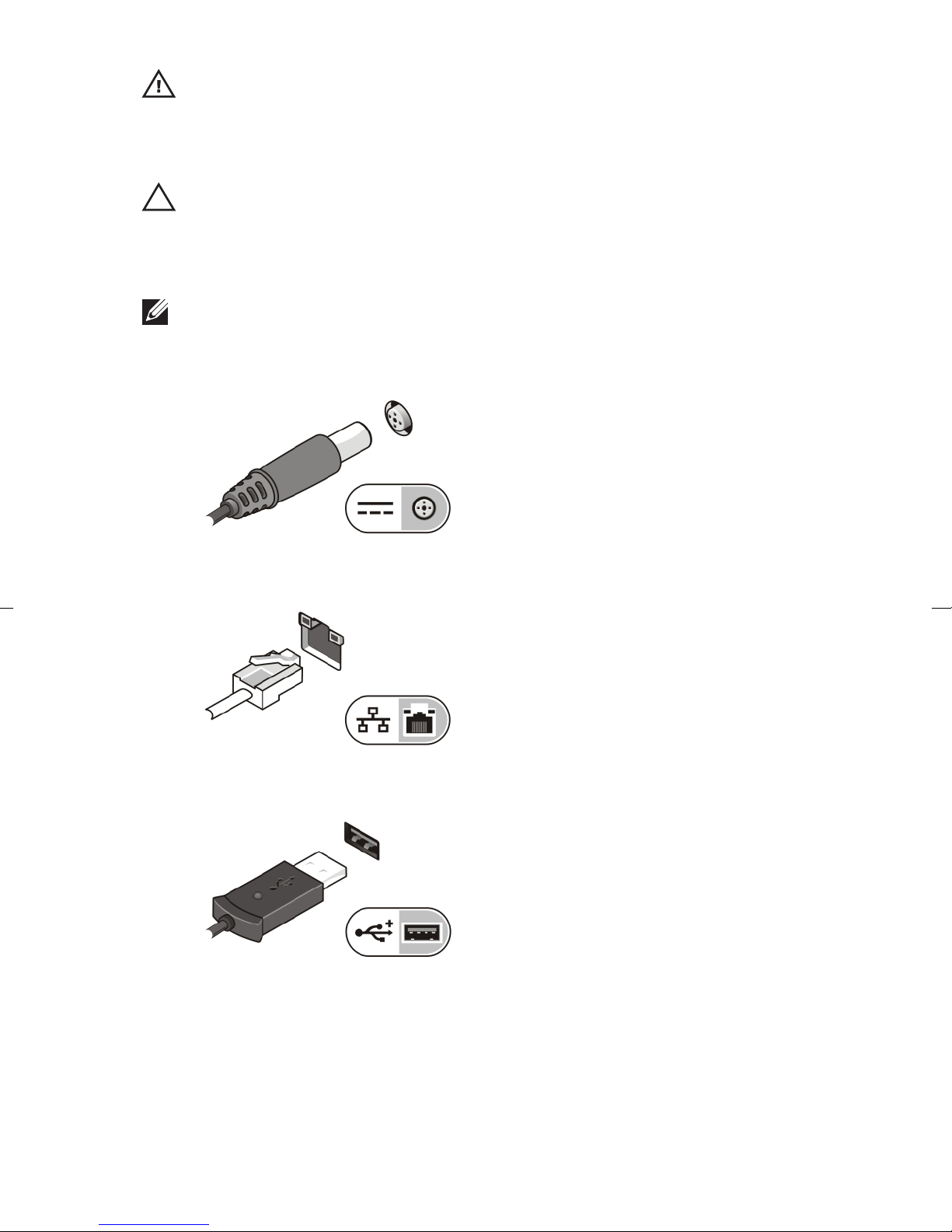

Figure 3. AC Adapter

2. Connect the network cable (optional).

Figure 4. Network Connector

3. Connect USB devices, such as a mouse or keyboard (optional).

Figure 5. USB Connector

4. Open the computer display and press the power button to turn on the

computer.

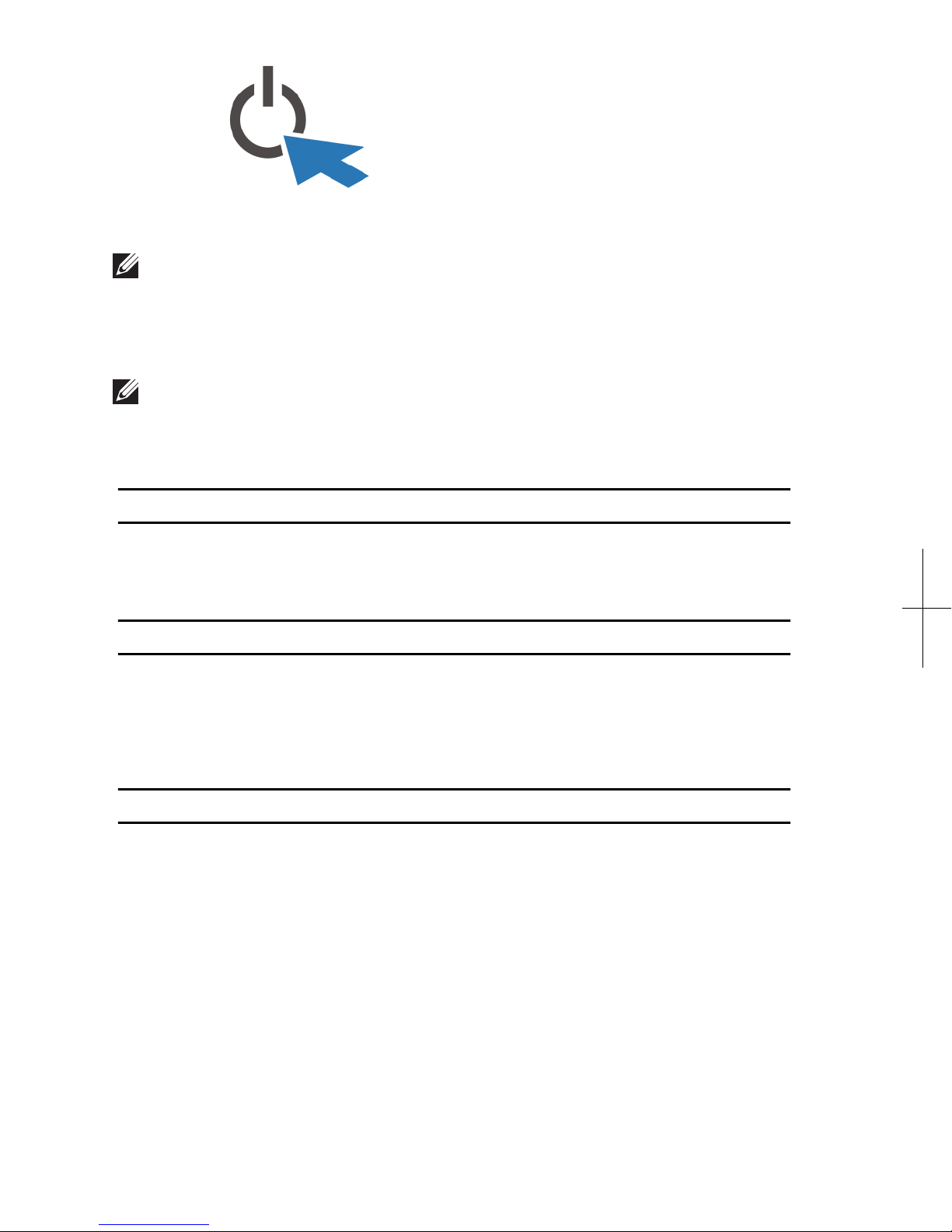

Figure 6. Power Button

NOTE: It is recommended that you turn on and shut down your computer at least

once before you install any cards or connect the computer to a docking device or

other external device, such as a printer.

Specifications

NOTE: Offerings may vary by region. The following specifications are only those

required by law to ship with your computer. For more information regarding the

configuration of your computer, click Start → Help and Support and select the

option to view information about your computer.

System Information

Chipset Mobile Intel QM67 Express Chipset

Processor Intel Core i3/i5/i7 series (2nd generation)

Video

Video type integrated on system board

Data bus integrated video

Video controller memory 512 MB

Memory

Memory connector two SODIMM slots

Memory capacity 1 GB, 2 GB, or 4 GB

Memory type DDR3 SDRAM (1333 MHz)

Minimum memory 1 GB

Maximum memory 8 GB

Battery

Type • 3-cell (30WHr) Lithium ion battery with

ExpressCharge

• 6-cell (60WHr) Lithium ion battery with

ExpressCharge

• 6-cell (58WHr) Lithium ion battery

Dimensions:

3-cell

Depth 29.97 mm (1.18 inches)

Height 19.80 mm (0.78 inch)

Width 208.00 mm (8.19 inches)

6-cell

Depth 54.10 mm (2.13 inches)

Height 20.85 mm (0.82 inch)

Width 214.00 mm (8.43 inches)

Weight:

3-cell 172.37 g (0.38 lb)

6-cell 335.66 g (0.74 lb)

Voltage 11.10 VDC

Temperature range:

Operating 0 °C to 35 °C (32 °F to 95 °F)

Non-Operating –40 °C to 65 °C (–40 °F to 149 °F)

Coin-cell battery 3 V CR2032 lithium coin cell

AC Adapter

Type 65 W and 90 W

Input voltage 100 VAC to 240 VAC

Input current (maximum) 1.50 A/1.60 A/1.70 A

Input frequency 50 Hz to 60 Hz

AC Adapter

Output power 65 W and 90 W

Output current 3.34 A and 4.62 A (continuous)

Rated output voltage 19.5 +/– 1.0 VDC

Temperature range:

Operating 0 °C to 40 °C (32 °F to 104 °F)

Non-Operating –40 °C to 70 °C (–40 °F to 158 °F)

Physical

Height 25.40 mm to 30.10 mm (1.00 inch to 1.18 inches)

Width 335.00 mm (13.19 inches)

Depth 223.30 mm (8.79 inches)

Weight (with 3-cell battery) 1.65 kg (3.64 lb)

Environmental

Temperature:

Operating 0 °C to 35 °C (32 °F to 95 °F)

Storage –40 °C to 65 °C (–40 °F to 149 °F)

Relative humidity (maximum):

Operating 10 % to 90 % (noncondensing)

Storage 5 % to 95 % (noncondensing)

Altitude (maximum):

Operating –15.2 m to 3048 m (–50 ft to 10,000 ft)

Non-Operating –15.2 m to 10,668 m (–50 ft to 35,000 ft)

Airborne contaminant level G2 or lower as defined by ISA S71.04–1985

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer

and the regulatory compliance website at www.dell.com/

regulatory_compliance for more information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of

Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,

ExpressCharge™, Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™ are

trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron® are

registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®

is a registered trademark and AMD Opteron™, AMD Phenom™, AMD Sempron™,

AMD Athlon™, ATI Radeon™, and ATI FirePro™ are trademarks of Advanced Micro Devices,

Inc. Microsoft®, Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and

Office Outlook® are either trademarks or registered trademarks of Microsoft Corporation in the

United States and/or other countries. Blu-ray Disc™ is a trademark owned by the Blu-ray Disc

Association (BDA) and licensed for use on discs and players. The Bluetooth® word mark is a

registered trademark and owned by the Bluetooth® SIG, Inc. and any use of such mark by Dell

Inc. is under license. Wi-Fi® is a registered trademark of Wireless Ethernet Compatibility

Alliance, Inc.

Other trademarks and trade names may be used in this publication to refer to either the entities

claiming the marks and names or their products, Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.
