Dell™Latitude™D530ServiceManual

Model PP17L

November2007Rev.A00

Model PP17L

Notes, Notices, and Cautions

Information in this document is subject to change without notice.

©2007DellInc.Allrightsreserved.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, Latitude, and Dell OpenManage are trademarks of Dell Inc.; Intel, Pentium, and Celeron are registered trademarks of Intel

Corporation; Microsoft, Windows,Windows Server, Windows XP,MS-DOS and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United

States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Before You Begin

Palm Rest

Internal Card With Bluetooth ®Wireless Technology

System Fan

Hard Drive

Processor Thermal-Cooling Assembly

Memory Module

Processor Module

Modem

Speaker Assembly

Coin-Cell Battery

Base Latch

Hinge Cover

System Board Assembly

Keyboard

Flashing the BIOS

Mini-Card

Pin Assignments for I/O Connectors

Display Assembly

Glossary

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page

Before You Begin

Dell™Latitude™D530ServiceManual

Recommended Tools

Turning Off Your Computer

Before Working Inside Your Computer

This chapter provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the

following conditions exist:

lYou have performed the steps in Turning Off Your Computer and Before Working Inside Your Computer.

lYouhavereadthesafetyinformationintheDell™Product Information Guide.

lA component can be replaced or—if purchased separately—installed by performing the removal procedure in reverse order.

Recommended Tools

The procedures in this document may require the following tools:

lSmall flat-blade screwdriver

lSmall Phillips screwdriver

lSmall plastic scribe

lFlash BIOS update program CD

Turning Off Your Computer



1. Shut down the operating system:

For the Microsoft®Windows®XP operating system:

a. Save and close all open files and exit all open programs.

b. Click Start®Shut Down®Shut down.

The computer turns off after the operating system shutdown process is complete.

c. Continue to Step 2.

For the Microsoft Windows Vista®operating system:

a. Save and close all open files and exit all open programs.

b. Click the Windows Vista Start button .

c. Click the arrow in the lower-right corner of the Start menu as shown below, and then click Shut Down.

The computer turns off after the operating system shutdown process is complete.



2. Ensure that the computer and all attached devices are turned off. If your computer and attached devices did not automatically turn off when you shut

down your operating system, press and hold the power button for about four seconds until the computer is completely turned off.

Before Working Inside Your Computer

Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own personal safety.



NOTICE: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

NOTICE: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal

mounting bracket. Hold a component such as a processor by its edges, not by its pins.



1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.



2. Turn off your computer (see Turning Off Your Computer).



3. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.



4. Disconnect all telephone or network cables from the computer.



5. Disconnect your computer and all attached devices from their electrical outlets.



6. Close the display and turn the computer upside-down on a flat work surface.



7. Remove the main battery:

a. Slide the battery-bay latch release on the bottom of the computer.

b. Remove the battery from the battery bay.



8. Open the display.



9. Press the power button to ground the system board.



10. Remove any installed PC Cards from the PC Card slot.



11. Remove any installed modules, including a second battery, if installed.



12. Remove the hard drive (Removing the Hard Drive).

Back to Contents Page



NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not

covered by your warranty.

NOTICE: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking tabs; if

you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep them evenly

aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and aligned.

NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.

NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.

NOTICE: To avoid damaging the system board, you must remove the main battery before you service the computer.

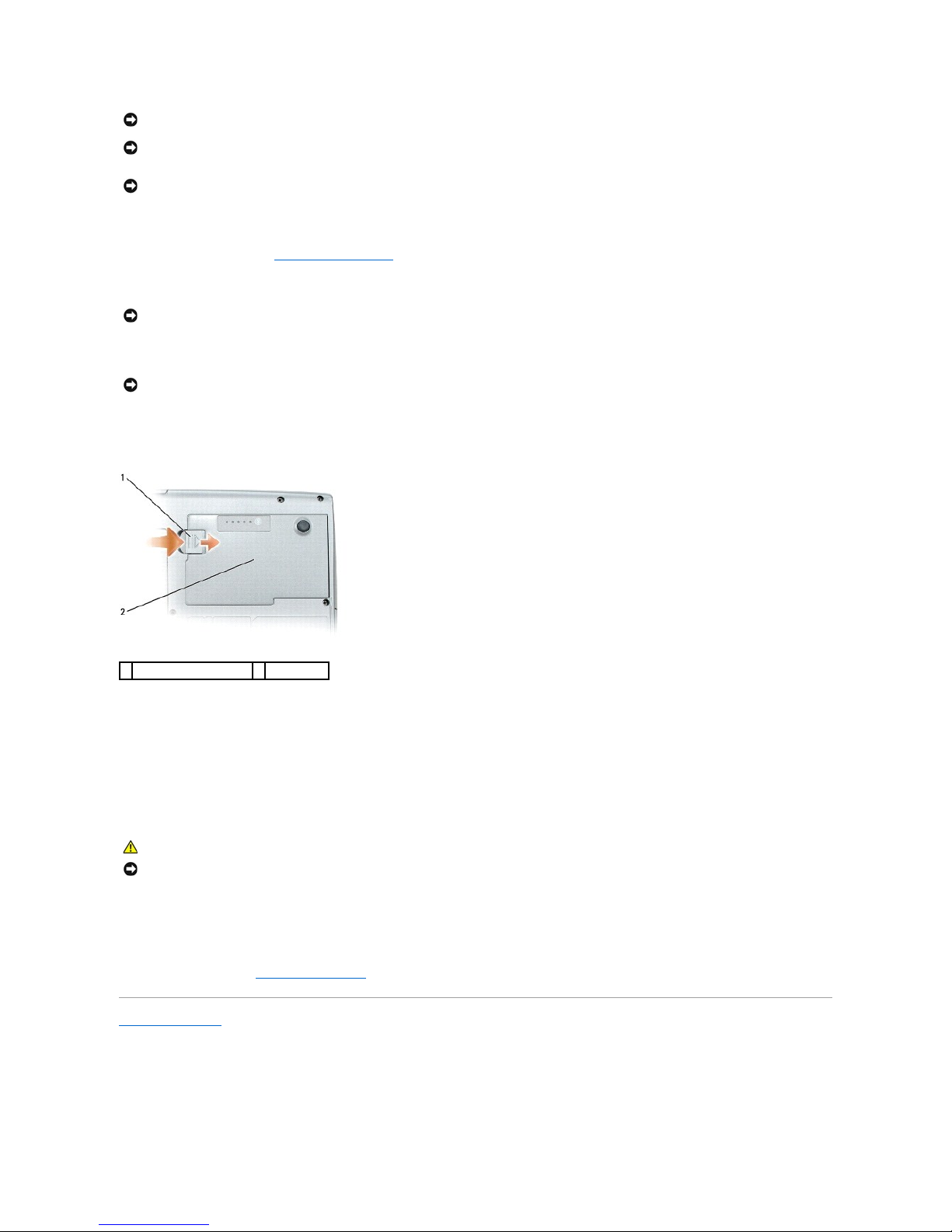

battery-bay latch release

main battery

CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the display.

NOTICE: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back of the

computer. While you work, periodically touch an unpainted metal surface to dissipate static electricity, which could harm internal components.

Back to Contents Page

Flashing the BIOS

Dell™Latitude™D530ServiceManual



1. Download the BIOS utility from the Dell Support website at support.dell.com and save it to your desktop.



2. After the download completes, double-click the BIOS utility file.



3. In the Dell BIOS Flash window, click Continue.



4. When the reboot message appears, click OK and wait for the computer to restart.

Back to Contents Page



Back to Contents Page

Internal Card With Bluetooth®Wireless Technology

Dell™Latitude™D530ServiceManual

Adding the Card

Removing the Card

Adding the Card



1. Follow the procedures in Before You Begin.



2. Remove the hard drive (see Hard Drive).



3. Attach the card cable to the wireless card.



4. Slide the card into the computer.



5. Attach the card cable connector to the system board as shown in the figure above.

Removing the Card



If you ordered an internal card with Bluetooth wireless technology with your computer, it is already installed.



1. Follow the procedures in Before You Begin.



2. Remove the hard drive (see Hard Drive).



3. Pull the card cable connector out of the system board connector.



4. Pull the cable to remove the card from the computer.

CAUTION: Before performing the following procedures, read the safety instructions in your Product Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by touching a connector on the back panel of the

computer.

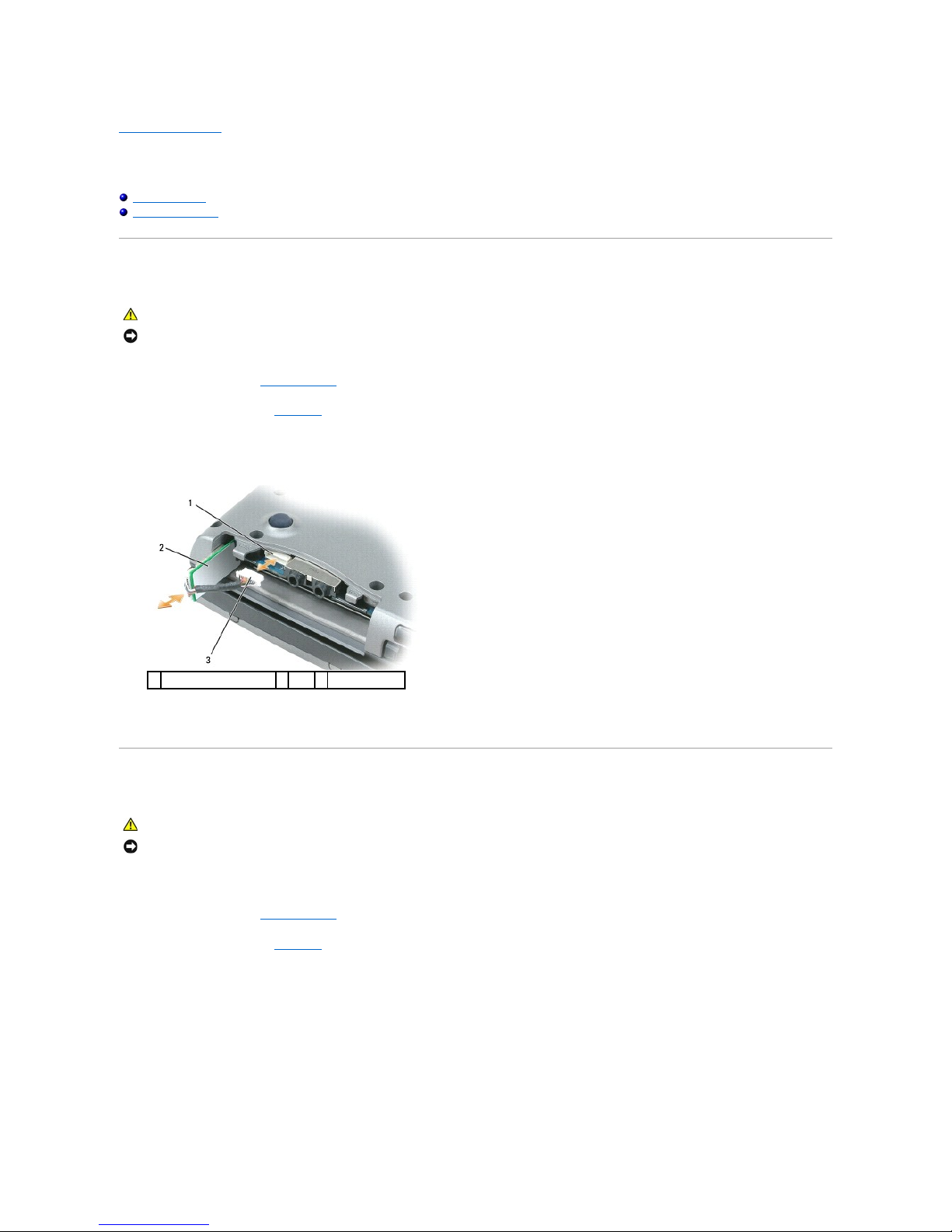

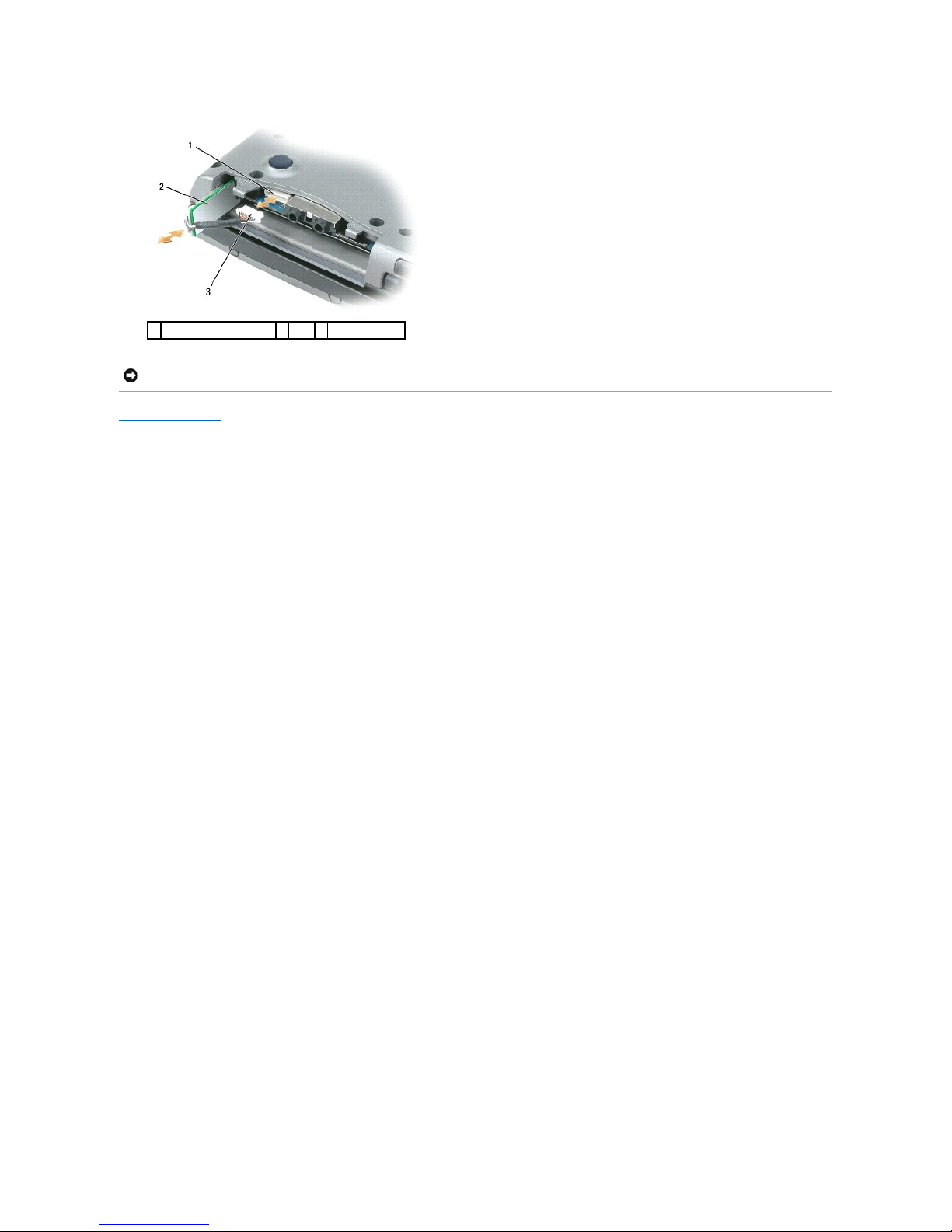

system board connector

card

cable connector

CAUTION: Before performing the following procedures, read the safety instructions in your Product Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching a connector on the back panel of

the computer.

Back to Contents Page



system board connector

card

cable connector

NOTICE: Be careful when removing the card to avoid damaging the card, card cable, or surrounding components.

Back to Contents Page

Coin-Cell Battery

Dell™Latitude™D530ServiceManual



1. Follow the procedures in Before Working Inside Your Computer.



2. Turn the computer upside-down, loosen the captive screw on the component cover, and then remove the component cover.



3. Use a plastic scribe to slide into the guide on the side of the coin-cell battery bay and lift the battery out.

When you replace the battery:



1. Insert the battery at a 30-degree angle under the clip with the positive (identified by a plus [+] symbol) side up.



2. Push the battery into place.

Captive Screw

Back to Contents Page



CAUTION: Before performing the following procedures, follow the safety instructions in your Product Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching a connector on the back panel of

the computer.

NOTICE: To prevent damage to the system board, remove the main battery before you service the computer.

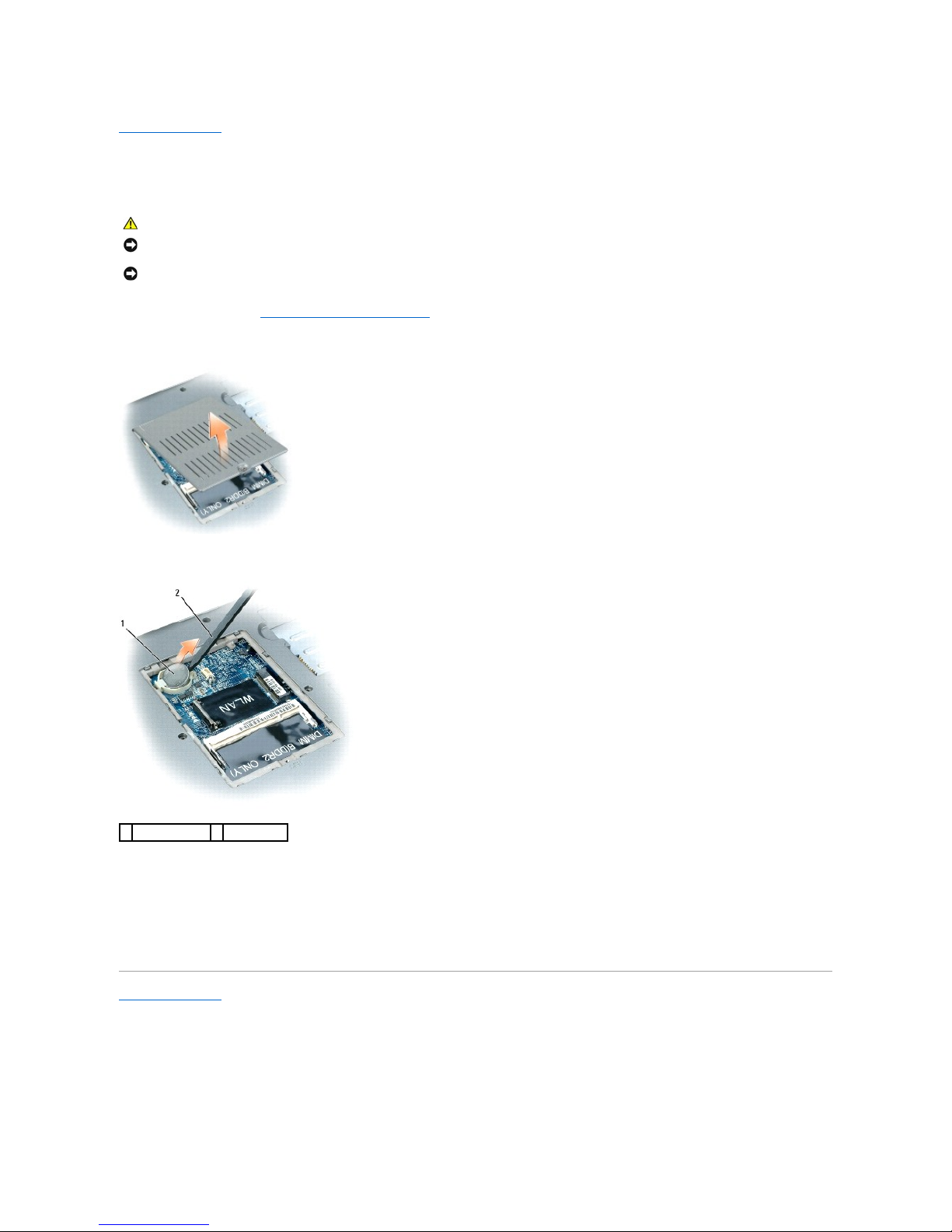

coin-cell battery

plastic scribe

Back to Contents Page

Processor Module

Dell™Latitude™D530ServiceManual

Removing the Processor Module

Replacing the Processor Module

Removing the Processor Module



1. Follow the instructions in Before You Begin.



2. Remove the hinge cover (see Hinge Cover).



3. Remove the keyboard (see Keyboard).



4. Remove the processor thermal-cooling assembly (see Removing the Processor Thermal-Cooling Assembly).



5. To loosen the ZIF socket, use a small, flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until it comes to the cam stop.



6. Lift the processor module from the ZIF socket.

Replacing the Processor Module

CAUTION: Before you begin the following procedure, follow the safety instructions in the Product Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

NOTICE: Do not touch the processor die. Press and hold the processor down on the substrate on which the die is mounted while turning the cam screw

to prevent intermittent contact between the cam screw and processor.

NOTICE: To avoid damage to the processor, hold the screwdriver so that it is perpendicular to the processor when turning the cam screw.

NOTICE: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the

computer.

NOTICE: To ensure maximum cooling for the processor, do not touch the heat transfer areas on the processor thermal-cooling assembly. The oils in

your skin reduce the heat transfer capability of the thermal pads.

NOTICE: When removing the processor module, pull the module straight up. Be careful not to bend the pins on the processor module.

pin-1 corner of microprocessor

processor module

ZIF-socket cam screw

NOTE: The ZIF-socket cam screw secures the processor to the system board. Take note of the arrow on the ZIF-socket cam screw, which indicates the

direction to turn the cam screw.

¡a new thermal-cooling assembly which will include an affixed thermal pad or

¡you will receive a new thermal pad along with a tech sheet to illustrate proper installation.



lAlign the pin-1 corner of the processor module with the pin-1 corner of the ZIF socket, and insert the processor module.

When the processor module is correctly seated, all four corners are aligned at the same height. If one or more corners of the module are higher than the

others, the module is not seated correctly.



2. Tighten the ZIF socket by turning the cam screw clockwise to secure the processor module to the system board.



3. Perform the steps in Removing the Processor Module in reverse order, beginning with step4.

Back to Contents Page



NOTICE: Ensure that the cam lock is in the fully open position before seating the processor module. Seating the processor module properly in the ZIF

socket does not require force.

NOTICE: A processor module that is not properly seated can result in an intermittent connection or permanent damage to the processor and ZIF

socket.

NOTE: If a new microprocessor is installed, you will receive one of the following:

NOTE: The pin-1 corner of the processor module has a triangle that aligns with the triangle on the pin-1 corner of the ZIF socket.

NOTICE: You must position the processor module correctly in the ZIF socket to avoid permanent damage to the module and the socket.

Back to Contents Page

Processor Thermal-Cooling Assembly

Dell™Latitude™D530ServiceManual

Removing the Processor Thermal-Cooling Assembly

Replacing the Processor Thermal-Cooling Assembly

Removing the Processor Thermal-Cooling Assembly



1. Follow the instructions in Before You Begin.



2. Remove the hinge cover (see Hinge Cover).



3. Remove the keyboard (see Keyboard).



4. Remove the captive screw that attaches the display cable to the system board.



5. Disconnect the display cable from the display cable connector on the system board.



6. Release the three antenna cables from the three antenna-securing clips.



7. Disconnect the three Mini-Card antenna cables (see Mini-Card).



8. In consecutive order, loosen the six captive screws labeled "1" through "6," that secure the processor thermal-cooling assembly to the system board

and remove the processor thermal-cooling assembly away from the computer.

Replacing the Processor Thermal-Cooling Assembly



1. Place the processor thermal-cooling assembly over the processor.

CAUTION: Before you begin the following procedure, follow the safety instructions in the Product Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

NOTICE: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the

computer.

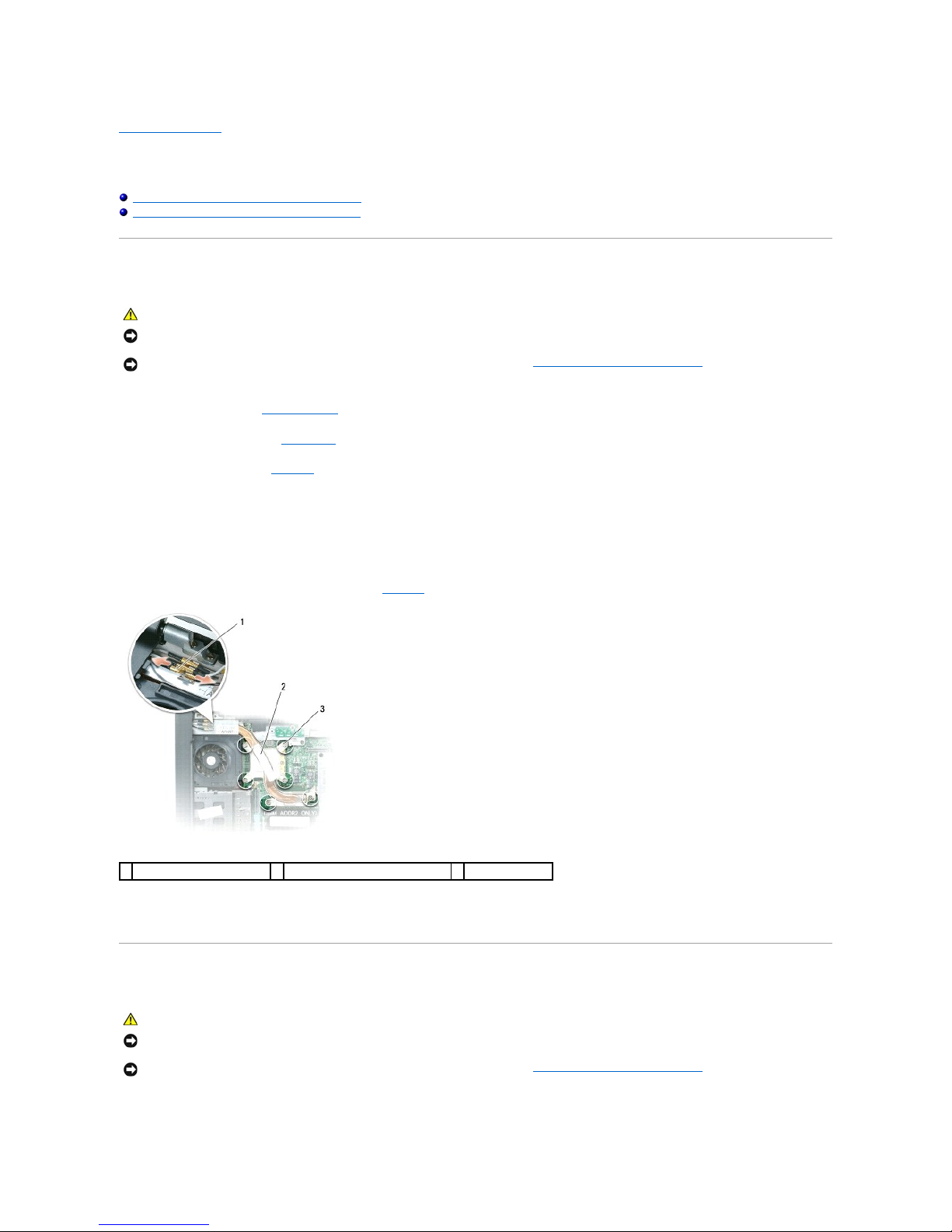

antenna cable connectors (3)

processor thermal-cooling assembly

captive screws (6)

CAUTION: Before you begin the following procedure, follow the safety instructions in the Product Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

NOTICE: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the

computer.

Autres manuels pour Latitude D530

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dell Ordinateur portable

Dell

Dell Latitude 5401 Guide de l'utilisateur

Dell

Dell XPS 13 7390 2-in-1 Manuel d'exploitation et d'entretien

Dell

Dell D630 - LATITUDE ATG NOTEBOOK Manuel utilisateur

Dell

Dell Precision 7730 Manuel utilisateur

Dell

Dell Inspiron 5421 Manuel utilisateur

Dell

Dell Inspiron XPS Manuel d'exploitation et d'entretien

Dell

Dell Vostro 5581 Manuel utilisateur

Dell

Dell Precision HM328 Manuel utilisateur

Dell

Dell P78F Manuel utilisateur

Dell

Dell Inspiron 7306 2-in-1 Manuel d'exploitation et d'entretien

Dell

Dell Latitude 7390 2-in-1 Manuel utilisateur

Dell

Dell Inspiron 14-5457 Manuel utilisateur

Dell

Dell D800 - Latitude 15.4" Notebook Manuel utilisateur

Dell

Dell Inspiron 14 5420 Manuel d'exploitation et d'entretien

Dell

Dell Vostro 5390 Guide de l'utilisateur

Dell

Dell Inspiron 14 3480 Manuel d'exploitation et d'entretien

Dell

Dell Precision M3800 Manuel utilisateur

Dell

Dell Inspiron 1090 Manuel utilisateur

Dell

Dell Latitude 14 Rugged Extreme Manuel utilisateur

Dell

Dell Latitude 7280 Manuel utilisateur

Dell

Dell C600 - Latitude Intel P-4 1.4GHz Manuel utilisateur

Dell

Dell Precision GU806 Manuel utilisateur

Dell

Dell Adamo XPS Manuel utilisateur

Dell

Dell Precision 7740 Manuel utilisateur

Manuels Ordinateur portable populaires d'autres marques

HP ze2401xt - Pavilion Notebook PC Manuel utilisateur

Velocity

Velocity NoteMagix M10 Manuel utilisateur

Toshiba

Toshiba A105-S2236 Manuel utilisateur

HP ENVY 17 Manuel

Winbook

Winbook LM Manuel utilisateur

HP PROBOOK 4520S Manuel

Sony

Sony VAIO PCG-FX270 Manuel utilisateur

Sony

Sony VAIO PCG-R505JLK Manuel utilisateur

Lenovo

Lenovo THINKPAD X32 Manuel utilisateur

HP Compaq tc4200 Guide de démarrage rapide

Toshiba

Toshiba mini NB300 Manuel utilisateur

Lenovo

Lenovo ThinkPad X201 Tablet Manuel

Lenovo

Lenovo THINKPAD X31 Manuel

Sony

Sony VGN-T240P VAIO Manuel utilisateur

Compaq

Compaq Armada E700 Series Manuel utilisateur

Fujitsu

Fujitsu Lifebook A6230 Manuel utilisateur

Acer

Acer Aspire ONE 722 Manuel utilisateur

Toshiba

Toshiba L300-EZ1524 Manuel utilisateur
