Dell Latitude X200 Service Manual
Dell™ Latitude™ X200 Service Manual
Before You Begin
Preparing to Work Inside the Computer
Recommended Tools
Computer Orientation
Screw Identification
System Components
Battery
Memory Module and Mini PCI Card
Memory Module
Mini PCI Card
Keyboard
Palm Rest
Hard Drive
Hinge Covers and Display Assembly
Hinge Covers
Display Assembly
Keyboard Tray
Reserve Battery
Speakers
Cooling Fan
System Board
Modem Daughter Card
Battery Latches
Flashing the BIOS
Pin Assignments for I/O Connectors
Pin Assignments for the Computer
Pin Assignments for the Media Base
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your
computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you
how to avoid the problem.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/index.htm (1 of 2)6/21/2004 3:03:07 AM

Dell Latitude X200 Service Manual

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or

death.

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Computer Corporation is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, AccessDirect, and Latitude are trademarks of Dell Computer Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and

names or their products. Dell Computer Corporation disclaims any proprietary interest in trademarks and trade names other

than its own.

April 2002 Rev. A00

file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/index.htm (2 of 2)6/21/2004 3:03:07 AM

Before You Begin: Dell Latitude X200 Service Manual

Back to Contents Page

Before You Begin

Dell™ Latitude™ X200 Service Manual

Preparing to Work Inside the Computer

Recommended Tools

Computer Orientation

Screw Identification

Preparing to Work Inside the Computer

CAUTION: Before working inside your computer, read "Safety and EMC Instructions:

Portable Computers" in your System Information Guide.

NOTICE: Only a certified service technician should perform repairs on your computer. Damage

due to servicing that is not authorized by Dell is not covered by your warranty.

NOTICE: To avoid damaging the computer, perform the following steps before you begin

working inside the computer.

1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.

2. Save any work in progress and exit all open programs.

3. Turn off the computer and all attached devices.

NOTE: Ensure that the computer is turned off and not in suspend or hibernate mode. If you

cannot shut down the computer using the computer operating system, press and hold the power

button for 4 seconds.

4. Ensure that the computer is undocked.

5. Disconnect the computer from the electrical outlet.

6. To avoid possible damage to the system board, wait 10 to 20 seconds and then disconnect any

attached devices.

7. Disconnect all other external cables from the computer.

8. Remove any installed PC Cards or plastic blanks from the PC Card slot.

file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/begin.htm (1 of 6)6/21/2004 3:03:08 AM

Before You Begin: Dell Latitude X200 Service Manual

9. Close the display and turn the computer upside down on a flat work surface.

NOTICE: To avoid damaging the system board, you must remove the battery before you

service the computer.

10. Remove the battery from the battery bay.

11. To dissipate any static electricity while you work, use a wrist grounding strap or periodically

touch an unpainted metal surface.

12. Handle components and cards with care. Do not touch the components or contacts on a card.

Hold a card by it edges or by its metal mounting bracket. Hold a component such as a

microprocessor by its edges, not by its pins.

Recommended Tools

The procedures in this manual require the following tools:

●#1 magnetized Phillips screwdriver

●¼-inch flat-blade screwdriver

●Small plastic scribe

Computer Orientation

file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/begin.htm (2 of 6)6/21/2004 3:03:08 AM

Before You Begin: Dell Latitude X200 Service Manual

1 back

2 right

3 front

4 left

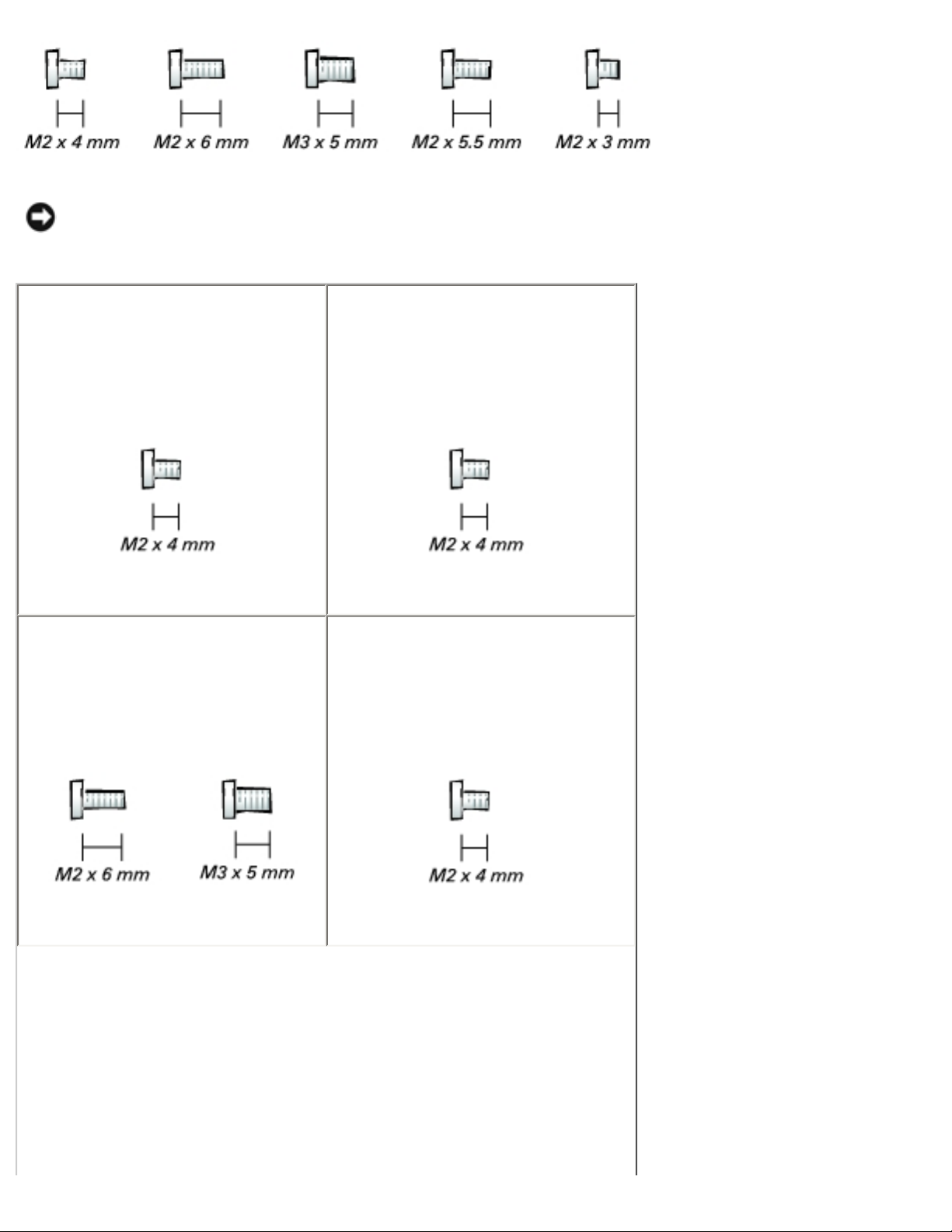

Screw Identification

When you are removing and replacing components, photocopy the placemat as a tool to lay out and

keep track of the screws. The placemat provides the number of screws and their sizes.

file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/begin.htm (3 of 6)6/21/2004 3:03:08 AM

Before You Begin: Dell Latitude X200 Service Manual

NOTICE: When reinstalling a screw, you must use a screw of the correct diameter and length.

Ensure that the screw is properly aligned with its corresponding hole, and avoid overtightening.

Keyboard:

(6 each)

Palm Rest:

(4 each)

Display Assembly:

(2 each)

Keyboard Tray:

(7 each)

file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/begin.htm (4 of 6)6/21/2004 3:03:08 AM

Before You Begin: Dell Latitude X200 Service Manual

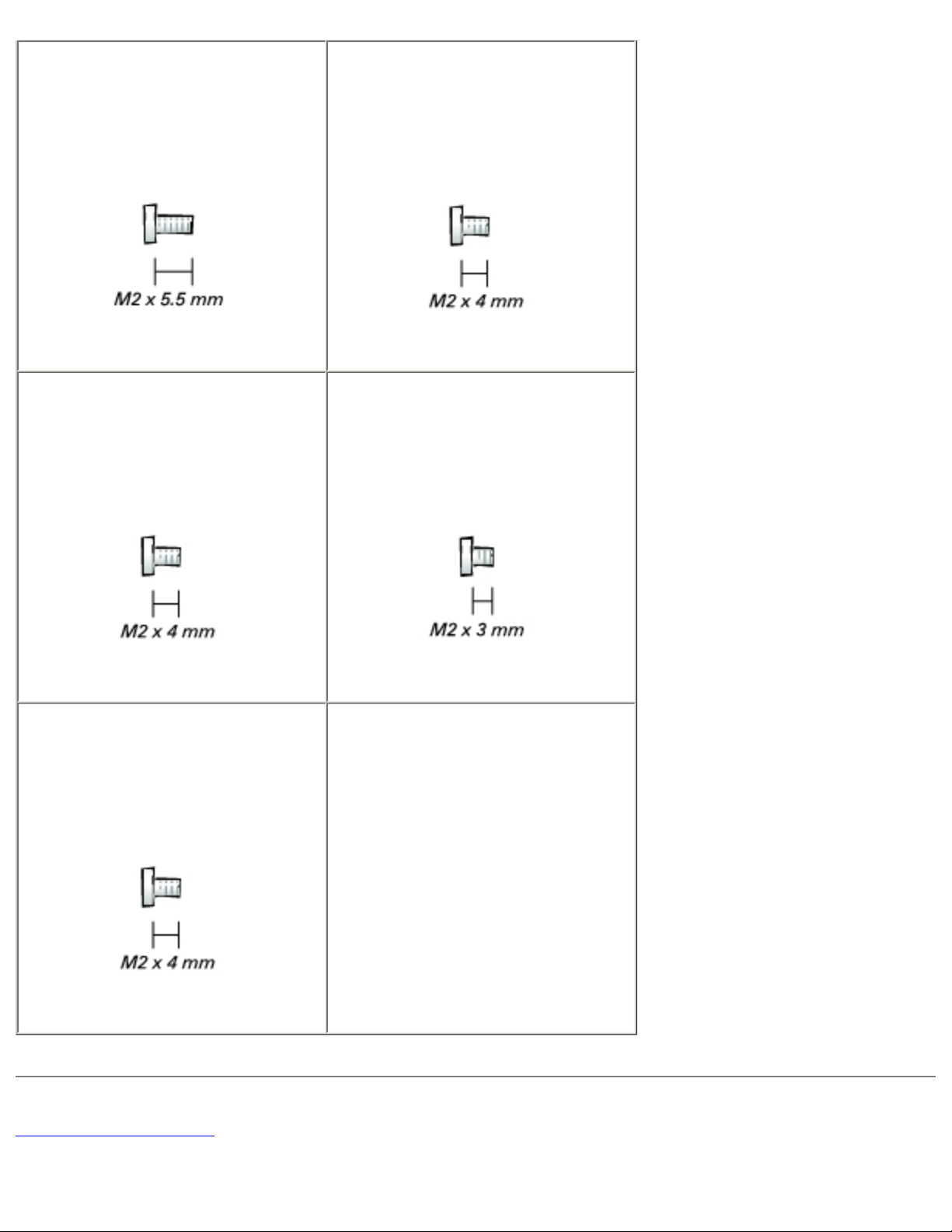

Hard Drive:

(3 each)

System Board:

(4 each)

Modem Daughter Card:

(1 each)

Cooling Fan:

(4 each)

Speaker:

(1 each)

Back to Contents Page

file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/begin.htm (5 of 6)6/21/2004 3:03:08 AM

Before You Begin: Dell Latitude X200 Service Manual

file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/begin.htm (6 of 6)6/21/2004 3:03:08 AM

System Components: Dell Latitude X200 Service Manual

Back to Contents Page

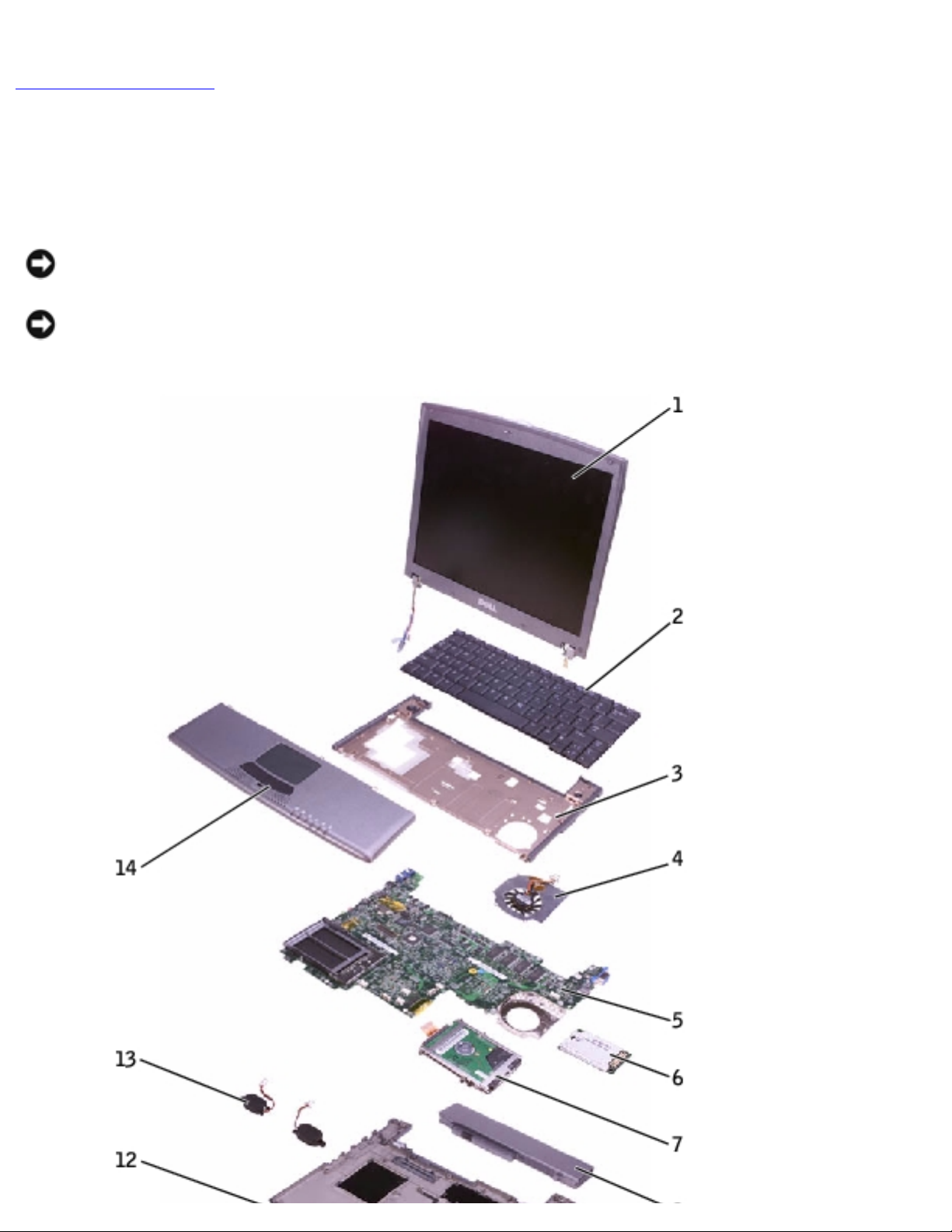

System Components

Dell™ Latitude™ X200 Service Manual

NOTICE: Only a certified service technician should perform repairs on your computer. Damage

due to servicing that is not authorized by Dell is not covered by your warranty.

NOTICE: Unless otherwise noted, each procedure in this manual assumes that a part can be

replaced by performing the removal procedure in reverse order.

file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...k/Latitude/X200/X200_SERVICE_MANUAL/system.htm (1 of 2)6/21/2004 3:03:09 AM
