Dell DA310z Manuel utilisateur
Dell USB-C Mobile Adapter
DA310
User’s Guide
Regulatory Model: DA310z / DA310u
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better
use of your PC.
CAUTION: A CAUTION indicates either potential damage to hardware
or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
© 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and
other trademarks are trademarks of Dell Inc. or its subsidiaries. Other
trademarks may be trademarks of their respective owners.
2021-01
Rev. A00
Contents
What’s in the box ..................................................................4
Features...............................................................................5
Front view .........................................................................5
Back view..........................................................................5
Using your DA310 mobile adapter............................................6
Troubleshooting ................................................................... 11
Specications......................................................................13
Statutory information ...........................................................14
Warranty..........................................................................14
4
What’s in the box
1 Dell USB-C Mobile Adapter: DA310
1
2 Documents
2
Dell USB-C Mobile Adapter
DA310
Quick Start Gu ide
5

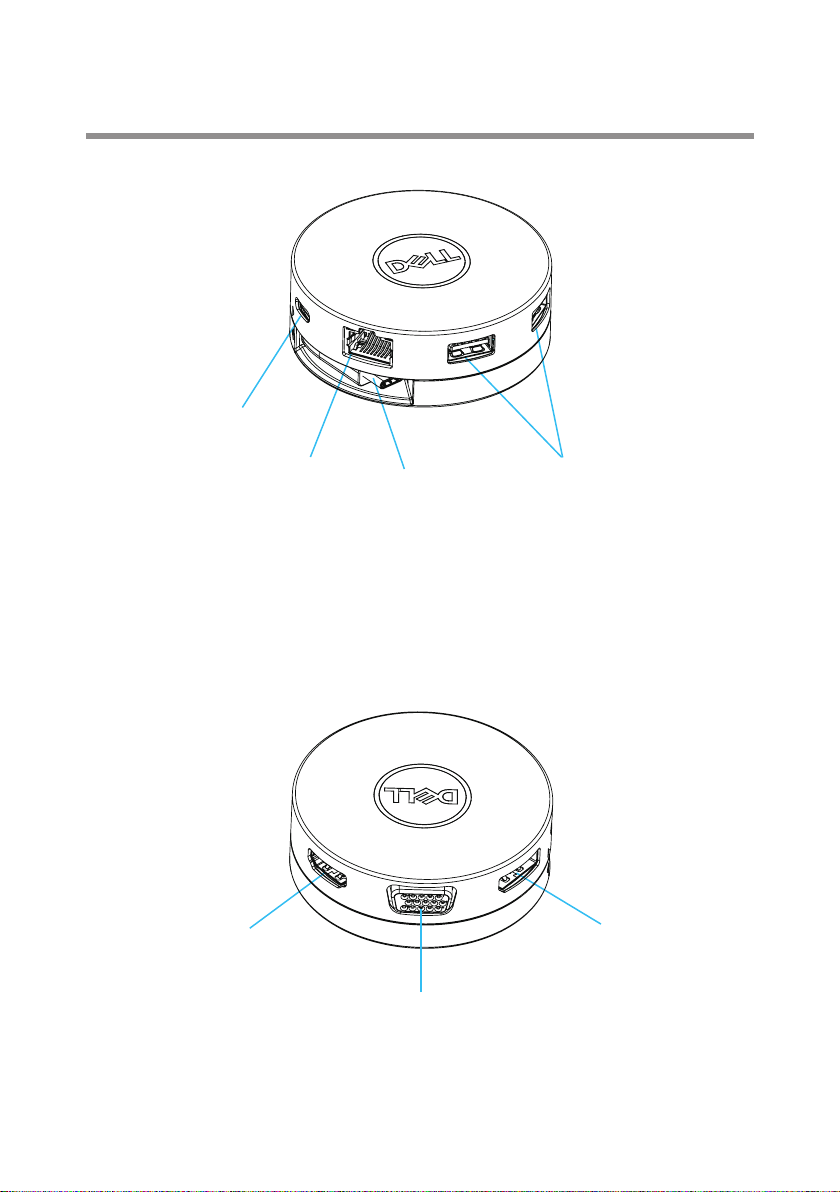

Features
1 USB 3.2 Gen 2 (10 Gbps)
USB-C port
3 USB-C cable
Front view
Back view
1
2 Ethernet port
5 HDMI port
7 DisplayPort
6 VGA port
4 USB 3.2 Gen 2 (10 Gbps)
USB-A ports
234
5
6
7
6
Using your DA310 mobile adapter
1. Using your ngertips, hold the bottom section of the DA310.
2. With the USB-C cable facing you, turn the top section to release the
USB-C cable.
7
3. Connect the USB-C cable of your DA310 to the Thunderbolt port (15W)
or USB-C (DisplayPort Alt Mode, 15W or 7.5W) port on your PC.
The image below shows the DA310 connected to several peripherals without
an external power source.
NOTE: DA310 can support only one display at any given time.
Without Power Delivery Pass-Through
4 Display out (Choose 1)
USB-C
Dual USB-A
USB-C / Dual USB-A
15 W
15 W
15 W / 7.5 W
7.5W
8
4. The DA310 supports power delivery pass-through up to 90W when connected
to the Thunderbolt or USB-C (Display Port Alt Mode) port of your PC. Power
can be supplied by the USB-C power adapter or USB-C monitor with power
delivery capability that supports charging feature. The following two images
show DA310 connected to an external power source via USB-C power adapter
or USB-C monitor.
NOTE: DA310 can support only one display at any given time.
With Power Delivery Pass-Through Via USB-C Power Adapter
With Power Delivery Pass-Through Via USB-C Monitor
3 Display out (Choose 1)
USB-C
USB-C
Dual USB-A
Dual USB-A
Dual USB-A
Dual USB-A
USB-C Power Adapter
9
5. The DA310 display ports and ethernet port support power FRS (Fast Role Swap).
(a) If DA310 is connected to a PC and a USB-C power adapter, and the user
chooses to disconnect the USB-C power adapter from the DA310, it will
switch the power source from the USB-C power adapter to the PC instantly
without affecting the functionality of the display ports and ethernet port.
(b) If DA310 is connected to a PC and a USB-C monitor with power delivery,
and the user chooses to disconnect the USB-C monitor from the DA310, it
will switch the power source from the USB-C monitor to the PC instantly
without aecting the functionality of ethernet port.
NOTE: Display and ethernet ports on the DA310 support FRS (Fast role
swap). The USB ports do not support FRS.
NOTE: FRS is functional on the DA310 only if the PC connected to it
supports FRS.
NOTE: USB-C plug must connect the PC with UL, IEC certication.
With Power Delivery Pass-Through Via USB-C Power Adapter
With Power Delivery Pass-Through Via USB-C Monitor
3 Display Out (Choose 1)
Supports FRS
Dual USB-A
Does Not Support FRS
Dual USB-A
Does Not Support FRS
Dual USB-A
Dual USB-A
USB-C
USB-C
USB-C Power Adapter Ethernet Port Supports FRS
Ethernet Port Supports FRS
10
6. The DA310 display
NOTE: The DA310 supports only one display at a time
Video port Connect an external display or a projector.
Ethernet port
Connect an Ethernet (RJ45) cable from a
router or a broadband modem for network
or internet access.
Connect peripherals such as keyboards,
mice and external storage devices.
USB-C and
USB-A ports
MFDP USB-C
Dual USB-A
10 Gbps
USB-C
10 Gbps
4K 4KFHD 4K
