Dell EMC VxRail 60 Series Manuel utilisateur

Dell EMC VxRail™60 Appliance

Version 4.5

Owner's Manual

REV 02

Published September 2017

Dell believes the information in this publication is accurate as of its publication date. The information is subject to change without notice.

THE INFORMATION IN THIS PUBLICATION IS PROVIDED “AS-IS.“ DELL MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND

WITH RESPECT TO THE INFORMATION IN THIS PUBLICATION, AND SPECIFICALLY DISCLAIMS IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. USE, COPYING, AND DISTRIBUTION OF ANY DELL SOFTWARE DESCRIBED

IN THIS PUBLICATION REQUIRES AN APPLICABLE SOFTWARE LICENSE.

Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be the property of their respective owners.

Published in the USA.

Dell EMC

Hopkinton, Massachusetts 01748-9103

1-508-435-1000 In North America 1-866-464-7381

www.DellEMC.com

2Dell EMC VxRail 60 Appliance 4.5 Owner's Manual

Introduction 5

Introduction..................................................................................................6

Support........................................................................................................ 6

Registering for online support......................................................... 6

Where to go for support resources.................................................. 7

Using the SolVe Desktop application for VxRail Series procedures....

About the VxRail 60 Appliance 9

Handling the appliance................................................................................ 10

Appliance components and controls............................................................10

Technical Specifications 13

Appliance power and cooling information.................................................... 14

Appliance dimensions and weight................................................................ 14

Operating and storage environment............................................................ 14

Installation 17

Pre-installation Site Checklist..................................................................... 18

10GbE or 1GbE switch networking...............................................................18

Network requirements................................................................................ 18

Replacing and adding hardware 21

Chapter 1

Chapter 2

Chapter 3

Chapter 4

Chapter 5

CONTENTS

Dell EMC VxRail 60 Appliance 4.5 Owner's Manual 3

CONTENTS

4Dell EMC VxRail 60 Appliance 4.5 Owner's Manual

CHAPTER 1

Introduction

lIntroduction......................................................................................................... 6

lSupport................................................................................................................6

Introduction 5

Introduction

This document describes the VxRail™60 Appliance, including its physical features and

technical specifications.

The target audience for this document includes customers, field personnel, and

partners who want to operate a VxRail™Appliance, including the following models:

lVxRail 60 Appliance

lVxRail 60F Appliance

This document is designed for people familiar with:

lDell EMC systems and software

lVMware virtualization products

lData center appliances and infrastructure

The VCE Glossary provides terms, definitions, and acronyms that are related to VCE

Systems.

To suggest documentation changes and provide feedback on this book, send an email

to [email protected]. Include the name of the topic to which your feedback

applies.

Support

Create an Online Support account to get access to support and product resources for

your VxRail Appliance.

If you already have an account, register your VxRail Appliance to access the available

resources.

For convenience, you can link your Online Support account with VxRail Manager and

access support resources without having to log in separately.

Note

If you plan to set up ESRS, your Online Support account must be linked to VxRail

Manager under the same party ID or the deployment will fail. Your appliance must also

be in an installed state in the Install Base.

Registering for online support

Create an Online Support account to access support resources.

After you register, you can:

lRegister your system

lObtain product license files and software updates

lDownload VxRail Series product documentation

lDownload the SolVe Desktop application for hardware replacement and upgrade

procedures

lBrowse the VxRail Series community and support information

lLink your support account for access to resources from within VxRail Manager

Introduction

6Dell EMC VxRail 60 Appliance 4.5 Owner's Manual

Procedure

1. Point your Web browser to emc.com/vxrailsupport (or support.emc.com).

2. Click Register here.

3. Fill in the required information.

Support will send you a confirmation email, typically within 48 hours.

Where to go for support resources

Access support resources for your VxRail Appliance by doing any of the following:

lClick the VxRail Manager Support tab.

lPoint your Web browser to emc.com/vxrailsupport (or support.emc.com).

Using the SolVe Desktop application for VxRail Series procedures

Step-by-step instructions for procedures such as replacing hardware or performing

system administrative tasks are available through the SolVe Desktop application.

CAUTION

To avoid potential data loss, refer to the VxRail Series procedures in the SolVe

Desktop application before performing any hardware replacement or upgrade

activity.

To download the SolVe Desktop application, go to https://support.emc.com and click

SolVe on the main page. Download and install the SolVe Desktop application on your

computer.

You must have an online support account to use the SolVe Desktop application.

Introduction

Where to go for support resources 7

Introduction

8Dell EMC VxRail 60 Appliance 4.5 Owner's Manual

CHAPTER 2

About the VxRail 60 Appliance

lHandling the appliance........................................................................................10

lAppliance components and controls................................................................... 10

About the VxRail 60 Appliance 9

Handling the appliance

046-005-109_A01

CL5561

The appliance is heavy and should be handled by two

people. To avoid personal injury and/or damage to the

appliance, do not attempt to lift the appliance without a

mechanical lift and help from another person.

Appliance components and controls

The VxRail 60 and VxRail 60F are single-node, general purpose, rack-mount

appliances. The product serial number tag (PSNT) is on a blue tabbed, pull-out tag

located in the upper center of the enclosure, above disk drive 4.

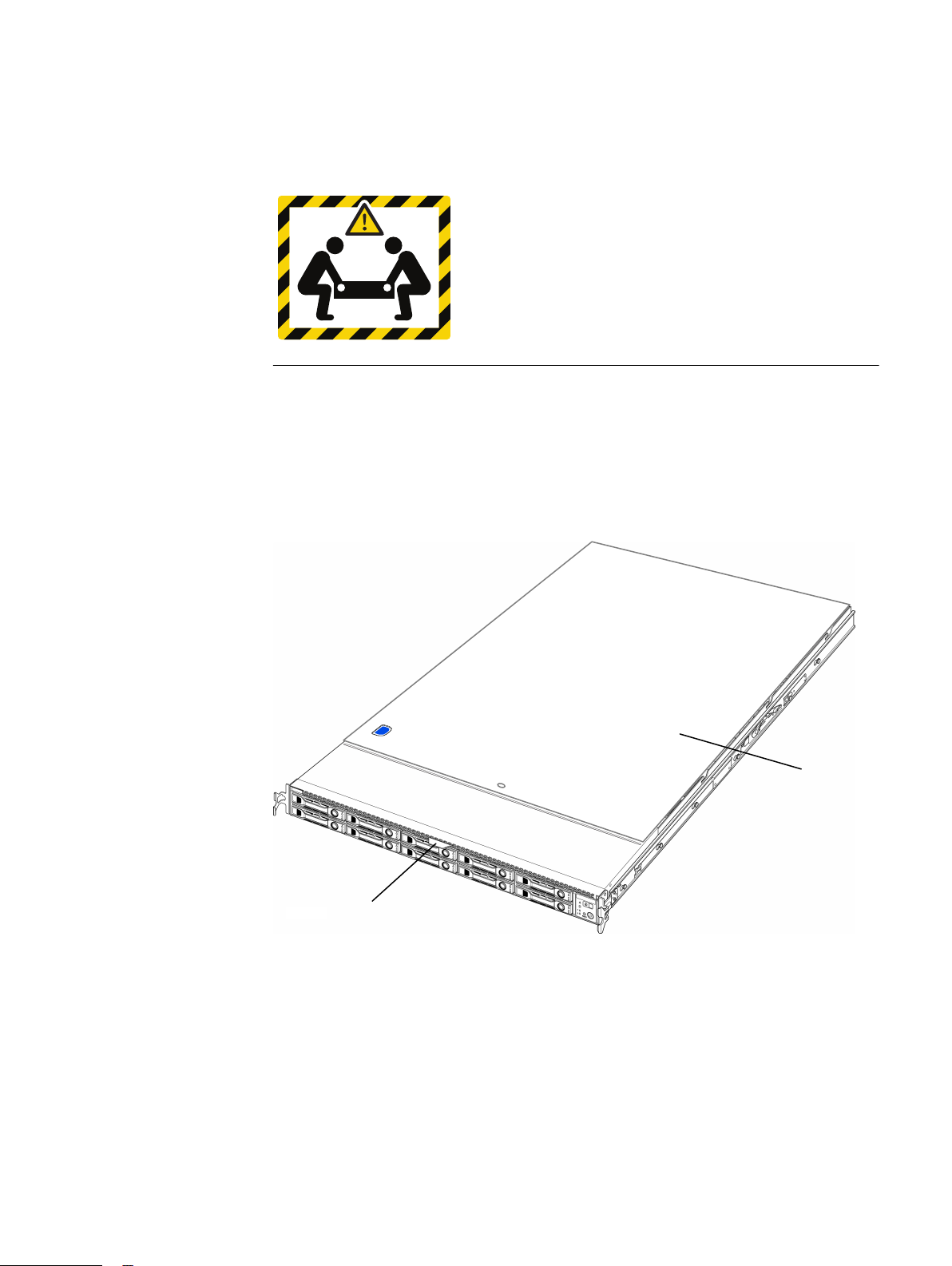

Figure 1 VxRail 60 and VxRail 60F appliances

1. VxRail 60 Appliance

2. Product serial number tag

The VxRail 60 Appliance provides capacity for 10, 2.5-inch front-access, hot-

swappable disk drives. The disk drives and the front control panel are accessible at the

front of the appliance.

Drives can be all SSD (Caching), all HDD (Capacity), or a Hybrid of both SSD and

HDD. The drives are numbered 0 - 9. Drive 0 is in the upper left and drive 1 is in the

lower left. This number/position sequence continues across the front of the server.

About the VxRail 60 Appliance

10 Dell EMC VxRail 60 Appliance 4.5 Owner's Manual
