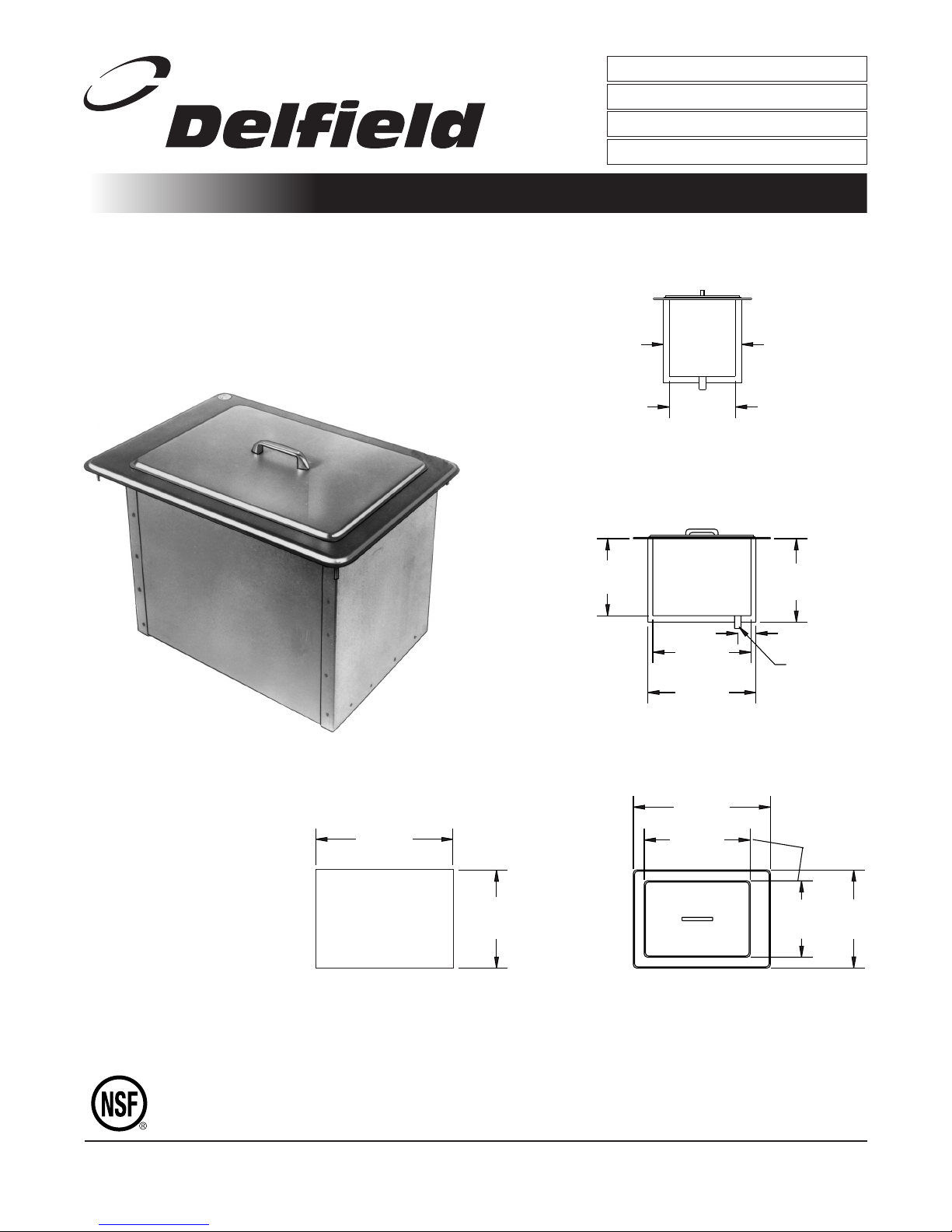

PROJECT

ITEM #

QUANTITY DATE

APPROVAL

The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

11.87"

(30.2 cm)

15.25"

(38.7 cm)

21.25"

(54 cm)

16.43"

(41.7 cm)

16.75"

(42.5 cm)

1" I.P.S.

(2.54 cm)

DRAIN

CONNECTION

13.00"

(33 cm)

12.00"

(30.5 cm)

2.81"

(7.14 cm)

15.25"

(38.7 cm)

12.12"

(30.8 cm)

10.26"

(26 cm)

17.75"

(45.1 cm)

13.25"

(33.7 cm)

COVER

DIMENSION

Top is 20-gauge stainless steel with .19” (.48 cm) raised edge on die-

stamped 15.13” x 10.5” (38.4 x 26.7 cm) opening. Opening fitted with one-

piece cover in 20-gauge stainless steel.

Ice compartment measures 14.75” x 10.25” x 12” (37.5 x 26.0 x 30.5 cm)

deep, has liner of ABS plastic with coved corners and has 1" (2.54cm)

diameter drain. Sides and bottom insulated with high-density closed-cell

polyurethane. Bin holds 45 pounds of ice.

Exterior housing is 24-gauge galvanized steel.

END VIEW

PLAN VIEW

ELEVATION

VIEW

CUTOUT DIMENSIONS

305

Ice Chest

18.18"

(46.2 cm)

15.81"

(40.2 cm)

5.25"

(13.3 cm)

20.43"

(51.9 cm)

16.42"

(41.7 cm)

11.87"

(30.2 cm)

3.25"

(8.26 cm)

15.81"

(40.2 cm)

1" I.P.S.

(2.54 cm)

20.43"

(51.9 cm)

16.43"

(41.7 cm)

11.87"

(30.2 cm)

20.43"

(51.9 cm)

23.25"

(59 cm)

21.68"

(55 cm)

19.25"

(48.9 cm)

19.13"

(48.6 cm)

Top is 20-gauge stainless steel with .19” (.48 cm) raised edge on die-

stamped 10.43” (26.5 cm) x 15.18” (38.6 cm) opening. Opening is fitted with

one-piece lift-off cover in 20-gauge stainless steel.

Ice compartment liner is 22-gauge stainless steel, has coved corners and

has a 1” (2.54 cm) diameter drain. Insulation is high-density closed-cell

polyurethane. Ice capacity is 90 pounds.

Exterior is 24-gauge galvanized steel.

Model 203

SIDE VIEW

PLAN VIEW

ELEVATION VIEW

CUTOUT DIMENSIONS

203

Ice Chest Drop-In

PROJECT

ITEM #

QUANTITY DATE

APPROVAL

The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

DS305/203 03/02
