OZONE GENERATOR
FOR SPAS
INSTALLATION & OPERATIONS MANUAL
For Models:
Platinum
MANUFACTURED BY
San Luis Obispo, CA 93401
4-0025 Rev. B.- 071105
DEL Ozone · ONE YEAR LIMITED WARRANTY
The limited warranty set forth below applies to products manufactured by DEL Ozone, 3428 Bullock
Lane, San Luis Obispo, California 93401, and sold by DEL Ozone and its authorized dealers.
This limited warranty is given only to the rst retail purchaser of such products and is not transfer-
able to any subsequent owners or purchasers of such products. DEL Ozone warrants that it or
its authorized dealers will repair or replace, at its option, any part of such products proven to be
defective in materials or workmanship within one (1) year of the date of retail purchase of such
products ANY REPAIR OR REPLACEMENT WILL BE WARRANTED ONLY FOR THE BALANCE
OF THE ORIGINAL WARRANTY PERIOD. NOTE: USE ONLY DEL AUTHORIZED REPLACE-
MENT PARTS. USE OF ANY OTHER PART(S) WILL AUTOMATICALLY VOID THIS WARRANTY.
THIS LIMITED WARRANTY DOES NOT INCLUDE ANY OF THE FOLLOWING: (a) any labor
charges for trouble-shooting, removal, or installation of such parts; (b) any repair or replacement of
such parts necessitated by faulty installation, improper maintenance, improper operation, misuse,
abuse, negligence, accident, re, repair materials, and/or unauthorized accessories; (c) any such
products installed without regard to required local codes and accepted trade practices; (d) ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR
PARTICULAR PURPOSE, AND SUCH WARRANTIES ARE HEREBY DISCLAIMED; AND (e)
DEL Ozone SHALL NOT BE LIABLE UNDER ANY CIRCUMSTANCES FOR LOSS OF USE OF
SUCH PRODUCTS, LOST PROFITS, DIRECT DAMAGES, INDIRECT DAMAGES, CONSE-
QUENTIAL DAMAGES AND/OR INCIDENTAL DAMAGES. This warranty gives you specic legal
rights. You may also have other rights which vary from state to state.
TO OBTAIN WARRANTY SERVICE:
Contact DEL Ozone, 3428 Bullock Lane, San Luis Obispo, CA 93401 Customer Service Number:
(800) 676-1335 x248. When ling a claim, you must provide: 1) your name, mailing address
and telephone number; 2) the selling dealer’s name; 3) proof of date of purchase; 4) the date
of failure; and 5) a description of the failure.
After this information is provided, DEL Ozone will issue a RETURN GOODS AUTHORIZATION
(RGA) NUMBER. After receiving this number, the part in question must be returned to DEL
Ozone, freight prepaid, with the RGA number clearly marked on the outside of the package. All
pre-authorized defective parts must be returned to DEL Ozone within thirty (30) days. Under no
circumstances may any product be returned to DEL Ozone without prior authorization. You must
call or write rst or your returned goods shipment will be refused. Upon receipt of pre-authorized
returned. goods, DEL Ozone will repair or replace, at DEL’s option, the defective product(s) and
return them freight collect. To validate your warranty, ll in the enclosed warranty registration
card and return it to DEL Ozone within ten (10) days of your purchase. Buyer’s acceptance of
the product and use thereof constitutes acceptance of these terms.
IMPORTANT SAFETY INSTRUCTIONS
Proper installation and safe use of your DEL spa ozonator is your responsibil-
ity. Read and follow this Owner’s Manual carefully for important installations,
operation and safety information. Basic safety precautions should always be
followed, including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS
2. All electrical connections should be made by a qualied electrician.
3. Follow all applicable electrical codes.
4. Be sure all the electrical power is shut off at the main circuit breaker
before installing the ozonator.
5. Connect to a grounded grounding-type receptacle only.
6. If the ozonator electrical connections will be attached directly to the
spa controls, be sure the spa controls are protected by a Ground Fault
Circuit Interrupter (G.F.C.I.). If the DEL spa ozonator is connected to an
independent electrical supply, then a G.F.C.I. must be installed between
he ozonator and the electrical supply.
7. Do not bury the cord.
8. WARNING: To reduce the risk of electric shock, replace a damaged cord
immediately.
9. Per U.L. requirements, the ozonator must be mounted indoors, or under
a cover, sheltered from the natural elements (e.g.: rain, sun, sprinkler).
10. For ozonators equipped with a standard “three-prong” plug (NEMA 5-
15P), the ozonator must be mounted above the water line, at least ve
(5) feet away from the spa and at least one (1) foot above the water
level.
11. Mount the ozonator so that it is inaccessible to anyone in the spa. Never
attempt any servicing while wet.
12. To reduce the risk of injury, this unit should be mounted where it is inac-
cessible to children.
13. Plastic ozone supply tubing is supplied with the ozonator. Never replace
this tubing with metal tubing, as ozone will damage it.
14. Do not operate the ozonator unless sufcient air ow (~2 scfh) is being
drawn through the unit.
15. WARNING: Short term inhalation of high concentrations of ozone and
long term inhalations of low concentrations of ozone can cause serious
harmful physiological effects. Do not directly inhale ozone gas produced
by this device (i.e. do not inhale directly from tubing or ozonator).
SAVE THESE INSTRUCTIONS.
1
TABLE OF CONTENTS
Important Safety Instructions............................................................... 1
Table of Contents ................................................................................ 2
How The DEL Spa Ozonator Works ................................................... 3
Installation Parts.................................................................................. 3
Tools and Materials ............................................................................. 3
Unit Assembly...................................................................................... 3
Installation
Mounting ....................................................................................... 4
Ozone Supply Tubing Connection ................................................ 4
“Ozone Ready” Spas .................................................................... 5
Installation for location A&B.................................................... 5
Plastic Hose Connector ................................................................ 7
Saddle Clamp Assembly ............................................................... 7
Installation for location C ........................................................ 8
Installation for location D ........................................................ 8
Installation for location E ........................................................ 10
Electrical Connection .................................................................... 10
DEL Suction Test........................................................................... 10
Failed DEL Suction Test................................................................ 11
Hartford Loop Installation.............................................................. 11
Final Check ......................................................................................... 11
Maintenance........................................................................................ 12
Trouble Shooting ................................................................................. 13
2
HOW THE DEL SPA OZONATOR WORKS
The Spa Eclipse Platinum ozonator that you have just purchased is a high-
output ozonator capable of sanitizing spas up to 1200 gallons. When used
in conjunction with a small residual of chlorine (.5-1 PPM), the Platinum will
simply provide you with the healthiest, clearest and purest water available.
Ozone is created and introduced into your spa through the use of a suction
creating venturi injector or simply an ozone jet. Many spas manufactured
today are “ozone ready” and will plumb easily to your Spa Eclipse Platinum
ozonator. The spa kit includes parts necessary to connect the Platinum
to your existing spa if your spa is ozone ready. If your spa is not ozone
ready, you may need additional parts. Contact the retail store where you
purchased this unit or call DEL Ozone customer support for further help.
Ozone is introduced to the spa when your circulation/ltration pump is running.
Please note that the ozone check valve is correctly plumbed so that water
does not back up into the ozonator. In addition, the use of a Hartford Loop
may be required to prevent water from potentially backing up into the ozonator.
Please refer to pages 8 and 11 for information on creating a Hartford Loop.
INSTALLATION PARTS
(1) manual, (5’) ozone supply tubing, (4) screws (1) ozone supply check
valve, (4) gold hose clamps
TOOLS AND MATERIALS NEEDED FOR INSTALLATION
PVC Cement PVC Tee (w/threaded end) Tape Measure
Electrical Drill Hacksaw or PVC Hose Cutter Screwdriver
Teon Tape
UNIT ASSEMBLY

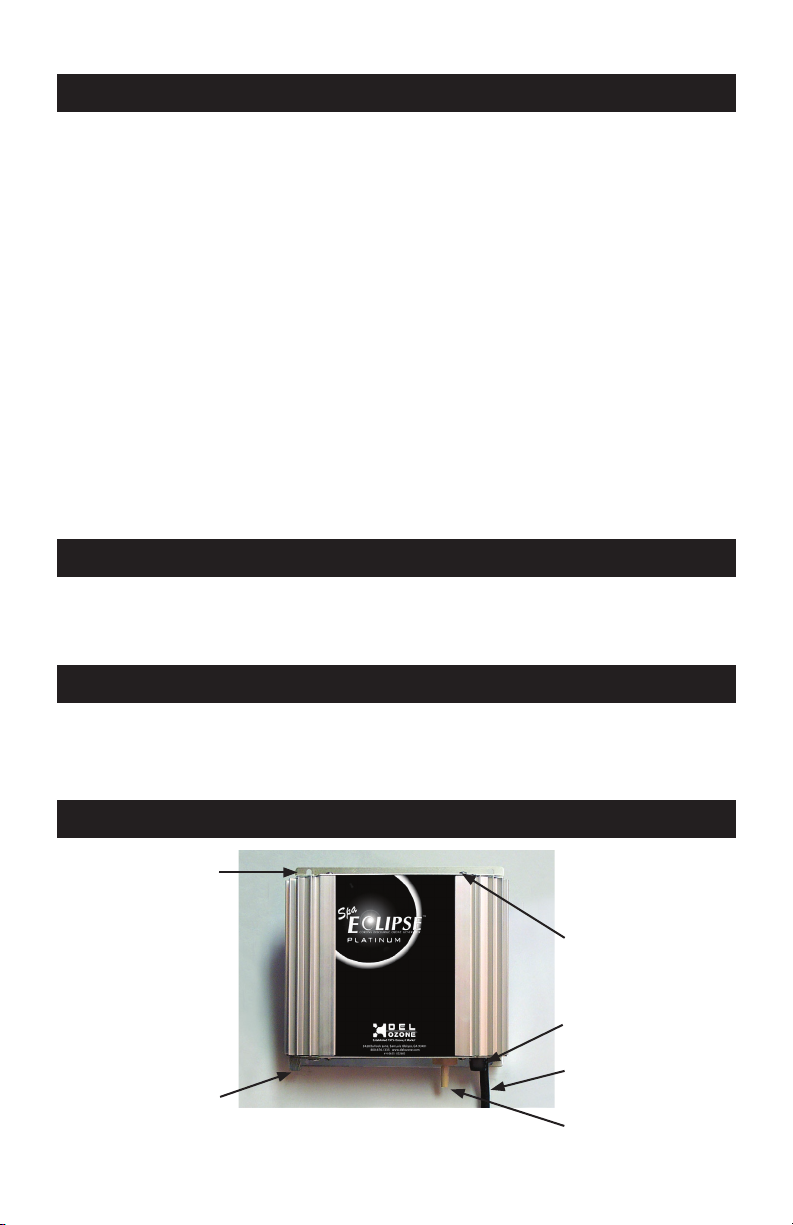

Figure 1: Platinum Ozonator
3
Ground Lug
Fuse
Ozone Outlet
1/4” Outlet
Power Cord
Mounting Bracket
Power LED
4
INSTALLATION
MOUNTING
Note: For ozonators equipped with a standard “three-prong” plug (NEMA 5-
15P), the ozonator must be mounted above the water line, at least ve (5) feet
away from the spa and at least one (1) foot above the water level.
Find a suitable location underneath the skirt of the spa to mount the ozonator.
To prevent water from backing up into the ozonator (in case of check valve
failure) mount the unit close to the water surface and include a Hartford
Loop (see page 11) that rises above the water level. Locate the unit so
that electrical and ozone supply tubing connections can be made easily.
The ozonator must be mounted indoors or under a cover, protected from
natural elements. NOTE: If the ozonator is used on an indoor spa, the unit
needs the optional Mixing Degas Valve (MDV) or have adequate ventilation.
Attach the Platinum Spa Eclipse to a solid surface using screws (included).
OZONE SUPPLY TUBING
Your ozonator includes 5’ of tubing. Connect one end to the ozonator and cut
the tubing 4’ foot from the ozonator. Insert the check valve (with the arrow
pointing away from the ozonator) and reconnect the pieces. The check valve
permits ozone to ow through the tubing in one direction while preventing water
from backing up into the ozonator.
There are various locations where the other end of the ozone supply tubing
can be connected. Review the following sections to determine which location
is most applicable to your spa.
Figure 1A: DEL Check Valve
Gold Hose Clamps
(2 Places)
From Platinum
Ozone Ozonator
5
OZONE SUPPLY TUBING CONNECTION LOCATIONS:
OZONE-READY SPAS
If your spa is factory equipped with an ozone injection point, follow the manu-
facturer’s installation instructions or check with your dealer. After installation,
you will need to test the suction at the injection point. Refer to the section titled
“DEL Suction Test” for instructions on performing this test.
NON OZONE-READY SPAS:
LOCATION “A” & “B” (see Figures 2 & 3): This location can be used if the
air control valves on your spa completely close.
LOCATION “C” (see Figure 2): This location is used if the air control valve
does not have a completely closed position.
LOCATION “D” (see Figure 5): This connection procedure is used on spas
which have a two-speed pump and where the venturi air line is inaccessible
or will not provide sufcient suction to operate the ozonator properly. A DEL
RIGID INJECTOR MANIFOLD (DEL Part Number IU-201) is required and can
be ordered from your local dealer. This connection is also used if an air blower
is provided to “supercharge” the jets.
LOCATION “E” (see Figure 5): Use this location on spas with a single-speed
pump. A DEL ADJUSTABLE INJECTOR MANIFOLD (DEL Part Number IU-
206) is required and can be ordered from your local dealer.
NOTE: Locations “D” and “E” provide the most efcient method for dispersing
ozone into the spa’s water.
OZONE SUPPLY TUBING CONNECTION:
Once a suitable location has been chosen, follow the appropriate connection
instructions below.
LOCATIONS “A”, “B”, “C”:
NOTE: In the case where there are two air control valves, it may be helpful to
determine which one has the best air suction. To do this, operate the pump
on low speed with both air control valves open. Observe the action of the jets.
The lowest jet with the most bubbles will suggest the best location in the air
venturi line for the ozone supply tubing connection.
6
INSTALLATION FOR LOCATIONS “A” & “B”:
Turn off the electrical power and drain the spa at least 12 inches below the
selected “A” (Figure 2) or “B” (Figure 3) location. The installation instruction for
locations “A” & “B” are identical except that location “A” utilizes a vertical air
venturi line and location “B” utilizes a horizontal air venturi line. Use the spa’s
venturi air line which provides the best suction and is connected to the lowest
jet. (See NOTE on page 5).
Figure 2: Vertical Air Venturi Line (Location “A”)
Figure 3: Horizontal Air Venturi Line (Location “B”)
Ozone Flow
Air Control Cap
Cut Tubing to
install TEE
Horizontal Air
Venturi Line
Existing Spa
Vertical Air
Venturi Line
Hose Connector
Ozone Supply
Check Valve
Ozone
Generator Gold Hose Clamp
(4-places)
Hartford Loop
Ozone Supply
Tubing
Ozone Supply
Check Valve
Ozone Supply
Tubing
Ozone Flow
Hose Connector
Existing
Horizontal Air
Venturi Line
Gold Hose Clamp
(3-places)
Cut Tubing to
Install TEE
To Ozone
Generator
7
PLASTIC HOSE CONNECTOR INSTALLATION:
A plastic hose connector installed onto the air venturi line may be used when
the spa is not “ozone ready”. If the spa is plumbed with exible PVC pipe, an
appropriately sized PVC tee tting, with the center having 1/2” female threads
(not included) must be installed (see Figure 3). The plastic hose connector
threads into the tee tting. The plastic hose connector can be purchased from
your dealer using DEL part number 7-0127 (see Figure 7). Select a conve-
nient location, that provides enough room to work, to install the PVC tee tting
with 1/2” female threads (not included). Cut the existing air venturi line at the
selected “A” or “B” location (see Figures 2 & 3). Glue the tting into place. Be
sure to use “FLEX-TO-RIGID” PVC Cement. Wrap Te on tape on the plastic
hose connector threads and install into the tee tting.
SADDLE CLAMP ASSEMBLY INSTALLATION:
If the spa is plumbed with rigid PVC pipe or if there are any rigid locations on
the air venturi line such as a tee or elbow tting, a saddle clamp assembly can
be utilized. Please contact your local dealer to order DEL part number 9-0001.
To use the saddle clamp assembly, nd a suitable location to secure it. Possible
locations are shown in Figure 4. Be sure the chosen location is part of the air
venturi system and that there is enough clearance to tightly secure the saddle
clamp. Drill a 3/8” diameter hole at the chosen location. BE CAREFUL not to
drill through the back of the pipe or tting. Push the nipple into the hole and
secure by tightening down the saddle clamp.
Fully close the air control valve to provide maximum suction. If the spa is
equipped with adjustable jets be sure that they are all completely open. When
nal electrical connections have been made, ll the spa to its normal operating
level and turn the power back on. Proceed to the DEL SUCTION TEST section
before nal connection of ozone supply tubing is made.
Figure 4: Possible Saddle Clamp Locations
8
INSTALLATION FOR LOCATION “C”:
Turn off the electrical power and drain the spa at least 12 inches below the air
venturi line which provides the best suction and is connected to the lowest jet.
Cut the PVC ex tube approximately 3” to 4” from the air control valve. Install
an appropriately sized PVC reducer tting (not included), with 1/2” female
threads on one end. Be sure to use FLEX-TO-RIGID- PVC Cement whenever
working with PVC ex tubing. Wrap Teon tape on the plastic hose connector
threads and install into the reducer tting, securing ozone supply tubing. This
entire assembly should be secured as close to the top of the spa waterline as
possible. NOTE: This installation will cause ozone to be drawn only through
the jet(s) dedicated to this venturi air line no matter what position the air control
valve is in.
See ELECTRICAL CONNECTION to complete installation. When nal electri-
cal connections have been made, ll the spa to its normal operating level and
turn the power back on. Proceed to the DEL SUCTION TEST section before
nal connection of ozone supply tubing is made.
INSTALLATION FOR LOCATION “D” (TWO-SPEED PUMPS):
For the location “D” connection, a DEL RIGID INJECTOR MANIFOLD (DEL
Part Number IU-201) is required - contact your local dealer (See Figure 5).
Figure 5: DEL Injector Manifold Installation Diagram
Hartford Loop
Ozone
Generator
Gold Hose Clamp
(4-places)
Ozone Supply
Check Valve
Ozone Flow
Plastic Hose
Connector
Return Line
From Air Blower
To Pump
Cut Return Line
Install DEL Injector Manifold
Table des matières
Autres manuels Del ozone Accessoires de spa
