Rooster™Sensor100 USER MANUAL

Rooster TM Sensor100 USER MANUAL 62320MN000-A04 1

This is proprietary information of Degree Controls Inc., contents are protected under US copyright laws © Degree Controls, Inc. 2021

High Performance Air Velocity and

Temperature Sensor

with Full-Color Touch Screen Display

Complete Kit includes:

oSensor Display Panel

oSensor Probe and Mounting Clamp

oPower Supply

1.06

Rooster™Sensor100 USER MANUAL


Rooster TM Sensor100 USER MANUAL 62320MN000-A04 2
Contents
Product Overview .................................................................................................................................................................................3
Hard Button Overview....................................................................................................................................................................3
Soft Buttons and Home Screen....................................................................................................................................................4
Feature Overview .............................................................................................................................................................................4
Rear Panel Layout for Advanced Connections.......................................................................................................................6
Technical Specifications.....................................................................................................................................................................7
Connection and Wiring Information.............................................................................................................................................7
Night Setback Input.........................................................................................................................................................................8
Alarm Output.....................................................................................................................................................................................8
Installation...............................................................................................................................................................................................8
Back Plate Mounting Options - Alarm Module .....................................................................................................................8
Installation Procedure.....................................................................................................................................................................9
Probe Sensor ................................................................................................................................................................................... 10
Boot Up Procedure ........................................................................................................................................................................... 12
Access Tier Privileges: USER, EH&S & CERTIFIER ................................................................................................................ 12
Set/Change Passwords.................................................................................................................................................................... 13
Alarm Threshold Configuration ................................................................................................................................................... 13
Alarm Troubleshooting ............................................................................................................................................................... 14
Alarm Controls.................................................................................................................................................................................... 14
Night Setback ................................................................................................................................................................................. 15
Alarm Ringback ............................................................................................................................................................................. 15
Alarm Delay .................................................................................................................................................................................... 16
Startup Delay.................................................................................................................................................................................. 16
Latch Alarm..................................................................................................................................................................................... 16
Alarm Tone Settings..................................................................................................................................................................... 17
Backlight Dimming............................................................................................................................................................................ 17
Airflow Settings .................................................................................................................................................................................. 18
Airflow Sensitivity.......................................................................................................................................................................... 18
Airflow Resolution......................................................................................................................................................................... 18
Volumetric Flow Settings............................................................................................................................................................ 18
Analog Output.................................................................................................................................................................................... 19
I/O Polarity........................................................................................................................................................................................... 20
Import/Export ..................................................................................................................................................................................... 20
EEPROM............................................................................................................................................................................................ 20
Event Log.......................................................................................................................................................................................... 20
USB Field Upgrade Procedure...................................................................................................................................................... 21
Soft Reboot from Info Screen .................................................................................................................................................... 22
Power Cycle Procedure................................................................................................................................................................ 22
Factory Reset Procedure................................................................................................................................................................. 23
GUI Map ................................................................................................................................................................................................ 24
Warranty................................................................................................................................................................................................ 25




Rooster™Sensor100 USER MANUAL

Rooster TM Sensor100 USER MANUAL 62320MN000-A04 3

Product Overview

Congratulations on your purchase of the RoosterTM Sensor100, the next-generation air velocity

and temperature sensor, a monitoring and alarm system for critical HVAC and process control

applications where airflow is required to be viewed, monitored, alarmed, and even

communicated to building and laboratory systems.

Degree Controls Inc. designed the RoosterTM Sensor100 to meet the demand for high

performance air velocity and temperature sensing applications and uses an intuitive, glove-

friendly, color touchscreen interface, and best-in-class air velocity sensing. This product is design

with a probe style sensor to reach into ducted flows in building, process, datacenter and HVAC

applications. An instrumentation class sensor is used to eliminate trouble alarms and provide

best accuracy across wide temperature ranges. The RoosterTM Sensor100 comes calibrated with

NIST certificate, from 0.15 –20.0 m/s [30 –4000 fpm]. Different calibration ranges can be

ordered, for more information, contact Degree Controls, Inc.

The RoosterTM Sensor100 uses a bright, backlit display and contains many simple-to-use

features, and configuration capabilities, built into an intuitive user interface that requires little to

no training to learn. Password-protected access tiers ensure greater safety in a range of

environments by limiting access to critical functions and system settings for specific, authorized

users. The RoosterTM Sensor100 is the first airflow sensor with USB-based plug and play firmware

upgrades, to keep your product current and operating to the latest standards.

This manual will guide you through installation, firmware upgrades, alarm control settings, and

the full range of features for the RoosterTM Sensor100.

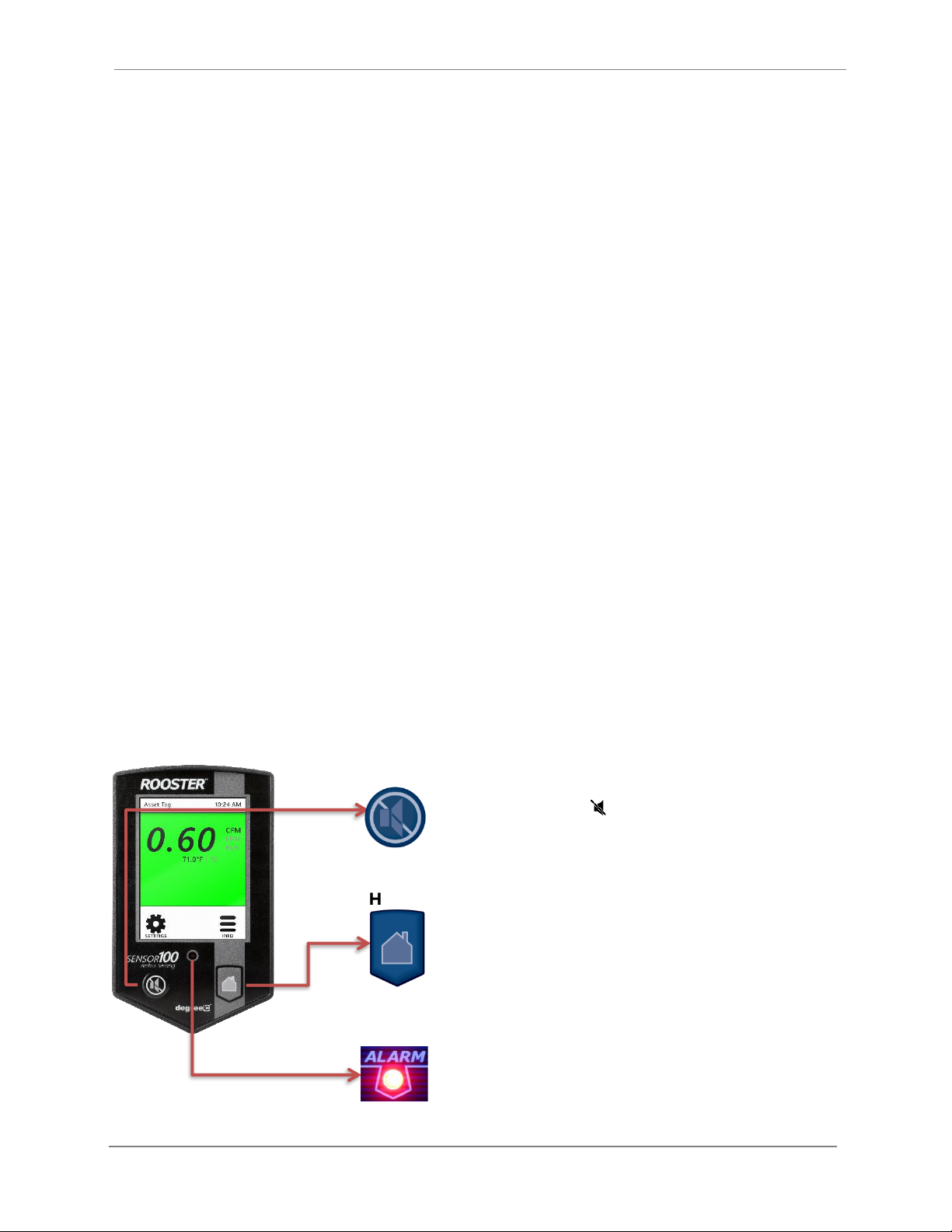

Hard Button Overview

MUTE

Mutes the audible alarm, any time it is sounding. When the alarm has

been muted, a mute icon [ ] will appear in the top center portion of

the home screen. Just like a snooze button, the audible alarm will re-

sound, when the configurable time-out is reached if ringback has been

enabled.

HOME

Returns the user to the home screen when pushed from any menu or

info screen. *Cannot be used to abort some critical system functions.*

LED

This red LED will flash while an airflow alarm is active. The red LED will

also flash if Night Setback alarm is active. In all other cases, this LED will

remain off.

Rooster™Sensor100 USER MANUAL

Rooster TM Sensor100 USER MANUAL 62320MN000-A04 4

Soft Buttons and Home Screen

Feature Overview

CUSTOM ASSET TAG

Users logged in as EH&S can change default “Asset Tag” to a custom tag. This is useful for

naming the sensor in larger distributed systems, or to denote a company asset number. The user

may set a 12-digit numeric asset tag with the provided on-screen keypad OR plug in a USB

interface keyboard to enter a 12-character alphanumeric tag.

Home>Settings>System>Advanced>Configure Asset Tag

CLOCK

Users logged in as EH&S or Certifier can set time, date and change clock to display in 12 or 24

hour format.

Home>Settings>System>Time>Date and Time Settings

KEYPAD SOUNDS

Users may toggle keypad beep sounds on and off.

Home>Settings>System>Alarms/Sound>Key Beep

ALARM VOLUME

Users can toggle through low, medium, or high alarm volumes. If logged in as an EH&S or

Certifier, a global minimum volume threshold can be set. This restricts a standard user from

setting an alarm volume too low for particular facility safety requirements.

Home>Settings>System>Alarms/Sound>Device Volume

Asset Tag

Air Velocity

(touch to toggle units)

Air Temperature

(touch to toggle units)

Settings Menu

USB input for keyboard

and firmware upgrades

Time of Day

Alert Banner

Quick access to current

configuration settings including

alarm thresholds, calibration date,

and firmware version

Status Color (Green, Yellow or Red)

Startup Delay Indicator,

Night Setback/Mute Indicator

Rooster™Sensor100 USER MANUAL

Rooster TM Sensor100 USER MANUAL 62320MN000-A04 5

ON-SCREEN ALERT BANNERS

A yellow banner will appear beneath on-screen velocity readings to alert users of the following

scenarios: 1) Uncalibrated Sensor 2) Sensor Failure 3) Low Airflow. Alarm latched status will also

display here.

Home

TOGGLE VELOCITY UNIT TYPE

Instantly toggle displayed velocity units between m/s, fpm, or cfm by pressing on the displayed

velocity reading on the home screen.

Home

TOGGLE TEMPERATURE TYPE

Instantly toggle displayed temperature units from Fahrenheit to Celsius or vice versa by pressing

on the displayed temperature reading on the home screen.

Home

PASSWORD-PROTECTED ACCESS TIERS: CERTIFIER & EH&S

Password protected access tiers enable advanced configuration options and features.

Home>Settings>System>Advanced>Change Passwords

USB INTERFACE FOR FIELD UPGRADE PROCEDURE AND DATA IMPORT/EXPORT

Firmware upgrades can be installed on-site via USB flash drive. See the USB Field Upgrade

section for more information. Users may also import/export Rooster™ settings and export the

event log through the USB interface.

CUSTOMIZABLE BOOT SCREEN

Our engineers can configure your unit with a custom image or logo file (240x320) in portable

network graphic (.png) format to display on bootup. Contact our sales team to get started:

sales@degreec.com

NIGHT SETBACK

EH&S or Certifier users can configure three convenient modes (Audible, Muted, or Off) of

operation. The RoosterTM Sensor100 is a normally open (NO) device, to trigger audible or muted

night setback, the dry contact relay must be closed. See the “Alarm Threshold Configuration”

section for instructions on how to setup night setback alarm thresholds.

Home>Settings>System>Alarms/Sound>Alarm Controls>Night Setback

ALARM LATCHING

EH&S or Certifier users can setup latched alarms to indicate that a low airflow state has occurred

in the “Alarm Controls” menu. The user must then enter EH&S or Certifier passcode to unlatch

Rooster™Sensor100 USER MANUAL

Rooster TM Sensor100 USER MANUAL 62320MN000-A04 6

an alarm.

Home>Settings>System>Alarms/Sound>Alarm Controls>Latch Alarm

ALARM RINGBACK

EH&S or Certifier users can configure the amount of snooze time before an alarm rings again

after being muted in the “Alarm Controls” menu.

Home>Settings>System>Alarms/Sound>Alarm Controls>Ringback

BACKLIGHT DIMMING

Users can toggle the brightness setting, as well as the brightness of the screen when set to

“dim”. A “time before dim” option is available that sets the screen to dim after a predetermined

amount of time has expired.

Home>Settings>System>Brightness

AIRFLOW RESOLUTION

EH&S or Certifier users can select the resolution of air velocity units displayed in m/s, fpm, or

cfm.

Note: Cfm can only be displayed once duct diameter information has been entered; see the

Volumetric Flow Settings section of this manual for more information.

Home>Settings>System>Advanced>Airflow Resolution

Rear Panel Layout for Advanced Connections

Rear Panel View of RoosterTM Sensor100

Connection

Description

Connector Type

Mating Connector

Power Entry

2-Pin, polarized,

Phoenix Contact

Included and attached to AC/DC power

supply.

Sensor Connection

RJ-11

Included as part of sensor assembly.

Output Connection

8-pin, polarized,

Phoenix Contact

*2-position

connectors will fit

Not included.

8-position orderable Part Number:

Phoenix Contact 1803633

2-position orderable Part Number:

Phoenix Contact 1803578

Input Connections

10-pin, polarized,

Phoenix Contact

*2-position

connectors will fit

Not included.

10-position orderable Part Number:

Phoenix Contact 1803659

2-position orderable Part Number:

Phoenix Contact 1803578

Degree Controls recommends 18-24 AWG wires to be used with screw terminal connections.

Rooster™Sensor100 USER MANUAL

Rooster TM Sensor100 USER MANUAL 62320MN000-A04 7

Technical Specifications

Connection and Wiring Information

Use the backplate label as a reference to prepare the wiring harness for the RoosterTM. Once the

wire harnesses are pulled through the opening and attached to Rooster™, then the front touch

panel assembly can be snapped into place.

Degree Controls recommends 18-24 AWG for all wiring connections to the input and output

connectors. Both the sensor and power supply connections have been prepared for you, and

merely need to be pulled through the cutout and connected to Rooster™as pictured above. The

RoosterTM Sensor100 has additional input and output capabilities for night setback and alarm

output relay.

The I/O connectors present on the RoosterTM have some pins deactivated as these are reserved

for future Rooster TM models designed for more advanced control functionality:

oOutput Connectors, Pins 5-6

oInput Connectors, Pins 7-10

These pins should be non-connected.

Alarm Module Size

82mm x 135mm x 19mm (3.2” x 5.3” x 0.7”) (without back plate)

LCD Display Area

57mm x 70mm (2.3” x 2.7”)

Airflow Velocity Range

30-4,000 fpm (0.15- 20.0 m/s) *custom velocity ranges available upon request

Air Velocity Accuracy

The greater of ±5% of reading or ± 0.05 m/s [10 fpm]

Response Time

< 1 second

Supply Voltage

24VAC/VDC & Wall Adapter

Night-Set Back Input

Dry Contact Closure (0V)

Pins 5-6

Relay Outputs

Qty. (2), 1A, 24VDC

Pins 1-2 Air Alarm

Pins 3-4 Sash Alarm

Power Adapter

90-250V

Red LED Indicator

160° viewing angle

Alarm Volume

0 - 85dB (adjustable)

Relative Humidity

(non-condensing) 5 - 95%

Operating Temperature

5°C - 60°C (40°F - 140°F)

Storage Temperature

-40°C - 85°C (-40°F - 185°F)

Weight

<170g (<6oz)

Compliance Standards

CE, RoHS

Rooster™Sensor100 USER MANUAL

Rooster TM Sensor100 USER MANUAL 62320MN000-A04 8

Night Setback Input

The Rooster™Sensor100 allows the user to connect to the digital input (0V, dry contact) on the

input connector, positions 5 & 6, for night setback. The purpose of the Night Setback input is to

allow the user the ability to send a remote signal to all Rooster™Sensor100s, simultaneously,

which changes their behavior during low flow conditions. This signal is normally initiated by a

Laboratory or Building Management System (BMS).

Once the wiring connections are made, the user can assert and remove the night setback signal

from the BMS, and three Sensor100 states can be selected.

oOn: This state can be enabled to trigger NSB mode of operation when no NSB trip

threshold is configured.

oAudible: In this state, when the night setback signal is asserted, the Sensor100 will still

audibly alarm when airflow drops below the NSB trip threshold.

oMuted: In this state, when the night setback signal is asserted, the Sensor100 will alarm

when airflow drops below the NSB trip threshold, but the alarm will be muted.

oOff (default): In this state, when the night setback signal is asserted, the Sensor100 will

ignore it.

Alarm Output

The RoosterTM alarms for airflow. The alarm output is a relay outputs available on the output

connection of the display module. I/O polarity logic of outputs may be reversed as well. See the

I/O Polarity menu of the Rooster™ Sensor100.

Installation

Installation of the RoosterTM involves selecting and preparing appropriate locations for the alarm

module and sensor, wiring, and connecting the unit, and then mounting both the alarm module

and sensor securely.

Back Plate Mounting Options - Alarm Module

The RoosterTM is mountable to a cabinet or wall panel by first securing the back plate. Once this is

complete, the RoosterTM is easily aligned to the back plate and secured with bottom captive screw.

Two back plate versions are available:

1. Wall Mount: This back plate sits directly on the wall or cabinet surface, and is secured by

self-tapping screws, or industrial Velcro. Sensor and control wiring access is at the back,

while access for power in from the wall mount power supply is at the bottom of the back

plate.

Rooster™Sensor100 USER MANUAL

Rooster TM Sensor100 USER MANUAL 62320MN000-A04 9

2. Semi-Flush: This back plate sits partially inside a standard electrical gang box, allowing the

RoosterTM to be recessed and sit approximately 15mm [0.6”] proud of the mounting surface.

Self-tapping screws secure it, and there is open back access to accept building power.

Figure 1 Wall Mount (left), Semi-Flush Mount (right) - for Alarm Module

Installation Procedure

1. Determine mounting locations for the RoosterTM alarm module and sensor.

2. Choose alarm module mounting method: Wall Mount or Semi-Flush.

3. Mark the surface where the RoosterTM alarm module will be located, and make the

necessary drills/cutout.

4. Secure back plate.

5. Mount the sensor. See below for sensor installation.

6. Feed power and sensor wire harnesses through the opening(s) and make connections to

the RoosterTM alarm module. Make any other optional connections to the alarm module.

7. Align top of alarm module with tabs on back plate, and secure in place with captive

screw at bottom of alarm module.

Rooster™Sensor100 USER MANUAL

Rooster TM Sensor100 USER MANUAL 62320MN000-A04 10

Figure 2 Wall Mount Back Plate Mounting

Figure 3 Semi-Flush Back Plate Mounting

Probe Sensor

The probe sensor should be located in your duct system in the best laminar (stable) flow

possible. Good sensor placement and ASHRAE best practices should be followed. The sensor

should be placed at least two duct diameters away from duct elbows and constrictions. Please

see below for °C Clamp specifications and installation instructions.

°C Clamp and Sensor Installation:

1. Mark the sensor hole, and screw positions, per Step 1 of °C Clamp installation figure,

below.

2. Drill a 17/32” (14mm) hole through the surface you wish to install the sensor.

3. Drill two pilot holes for the °C Clamp fastening screws. (°C Clamp, Degree Controls P/N:

64500AS011)

4. Secure the °C Clamp with two screws (not provided).

5. Insert the sensor into the °C Clamp and adjust the sensor’s insertion depth (use the

printed ruler on the sensor’s body for reference), ensuring that the airflow indicators

(arrows on the blue or orange head; see Airflow Direction below) are facing in the

intended direction.

Table des matières

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
