Thank you for purchasing this Definitive Technology product.

To ensure proper operation, please read this owner’s manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

What you can do with this unit

This sound bar and wireless subwoofer speaker system supports immersive surround sound and enables you to connect this unit to

your TV to enjoy high-quality sound.

In addition to Dolby Atmos and DTS:X playback, traditional audio signals can also be enjoyed in virtual 3D audio.

This unit is equipped with an HDMI input/output connector that supports 4K and enables passthrough of 4K video signals to your TV,

such as signals for Blu-ray disc players and video game consoles.

Contents Connections Playback Settings Tips Appendix

oPlaying TV audio

[Related information]

0“Enjoying TV, movies and music” (v p. 28)

oConnecting to a playback device such as a

Blu-ray disc player to perform playback

[Related information]

0“Connecting a TV” (v p. 22)

0“Connecting an HDMI device” (v p. 26)

0“Enjoying TV, movies and music” (v p. 28)

Contents Connections Playback Settings Tips Appendix

oUsing the app for smartphones/tablets

(HEOS App) for easy operation

HEOS

[Related information]

0“Getting the HEOS App” (v p. 32)

oPlaying streaming audio with Wi-Fi

Streaming music service /

Internet radio

Internet

NAS

[Related information]

0“Playing from streaming music services” (v p. 36)

0“Listening to Internet Radio” (v p. 43)

0“Playing music stored on your mobile” (v p. 44)

0“Playing back files stored on a PC or NAS” (v p. 45)

0“AirPlay function” (v p. 47)

0“Spotify Connect function” (v p. 50)

Contents Connections Playback Settings Tips Appendix

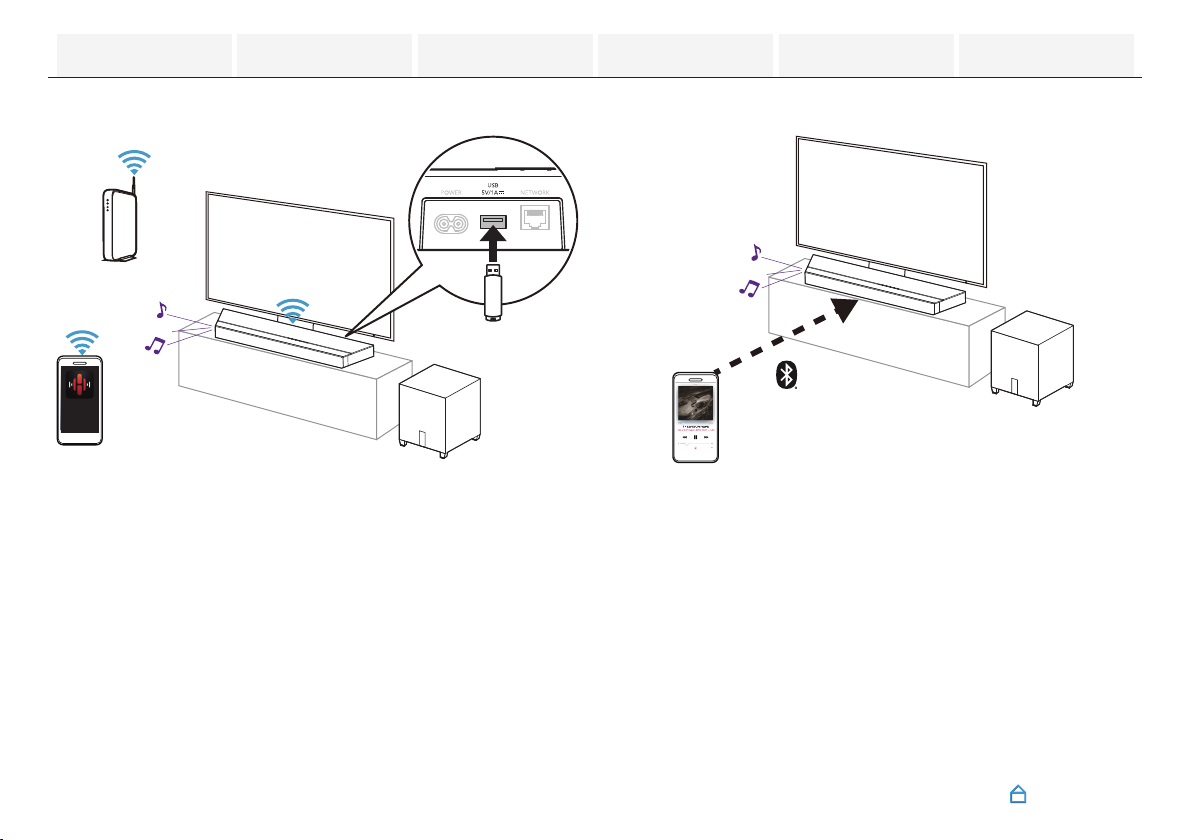

oPlaying a USB flash drive

HEOS

[Related information]

0“Playing music from a USB flash drive” (v p. 46)

oPlaying a Bluetooth device

[Related information]

0“Listening to music on a Bluetooth device” (v p. 30)

Contents Connections Playback Settings Tips Appendix

Accessories

Check that the following parts are supplied with the product.

Setup Guide Safety Instructions Wall mount template

Remote control unitWall mount spacersOptical cable

HDMI cable (4K)Power cords

R03/AAA batteries

Contents Connections Playback Settings Tips Appendix

Inserting the battery

1Slide the rear lid off the remote control unit in the

arrow direction.

2Insert two batteries correctly into the battery

compartment as indicated.

Batteries

3Put the rear lid back on.

NOTE

0Remove the battery from the remote control unit if it will not be in use

for long periods.

0If the battery fluid should leak, carefully wipe the fluid off the inside of

the battery compartment and insert new battery.

Operating range of the remote

control unit

Point the remote control unit at the remote sensor when

operating it.

30°

Approx. 23 ft/7 m

Contents Connections Playback Settings Tips Appendix
