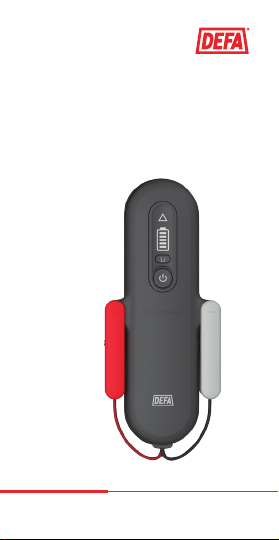

DEFA SmartCharge 6A Manuel utilisateur

SmartCharge

Technical Manual

This appliance can be used by children aged from

8 years and above and persons with reduced

physical, sensory or mental capabilities or lack

of experience and knowledge if they have been

given supervision or instruction concerning use of

the appliance in a safe way and understand the

hazards involved.

Dette apparatet kan brukes av barn fra 8 år og

oppover og personer med reduserte fysiske,

sensoriske eller mentale evner eller manglende

erfaring og kunnskap om de er gitt innføring eller

instruksjon om bruken av apparatet på en sikker

måte og forstår farene involvert.

Denna apparat kan användas av barn från 8 år

och uppåt och personer med nedsatt fysisk eller

mental förmåga eller brist på erfarenhet och

kunskap om de övervakas eller får instruktioner

angående användning av apparaten på ett säkert

sätt och förstår riskerna inblandade.

Dette apparat kan bruges af børn i alderen fra 8

år og derover og personer med nedsatte fysiske,

sensoriske eller mentale evner eller manglende

erfaring og viden, hvis de har fået den nødvendige

instruktion i brug af apparatet på en sikker måde

og forstår farerne involveret.

Tätä laitetta voidaan käyttää vuotiaille lapsille

8 vuotta tai enemmän ja henkilöt, joilla on

alentunut fyysinen tai henkinen toimintakyky

tai joilta puuttuu kokemusta ja tietoa, jos ne

on annettu ohjeet ja neuvot käyttää laitetta

turvallisesti ja ymmärtää vaarat mukana.

Этот прибор может быть использован для

детей в возрасте от 8 лет и старше и лиц с

ограниченными физическими, сенсорными

или умственными способностями или

нехваткой опыта и знаний, если они

находятся под контролем или инструкции

относительно использования прибора

безопасным способом и понимать опасности

участвует.

To urządzenie może być używane przez dzieci w

wieku od 8 lat i powyżej oraz osób o ograniczonej

zdolności ﬁzycznej, czuciowej lub psychicznej

lub braku doświadczenia i wiedzy, jeżeli zostały

one nadzorowane lub zostaną poinstruowane

na temat korzystania z urządzenia w sposób

bezpieczny i rozumie zagrożenia zaangażowany.

Šis prietaisas gali būti naudojamas vaikams

nuo 8 metų vaikams ir aukščiau ir riboto

ﬁzinių, sensorinių ar psichinių gebėjimų ar

patirties ir žinių trūkumo, jei jie buvo prižiūrimi

ar nurodymo, kaip naudoti prietaisą saugiai ir

suprasti pavojų dalyvauti.

Dieses Gerät kann von Kindern ab einem Alter

von 8 Jahren und Personen mit eingeschränkter

körperlicher, sensorischer oder geistiger

Leistungsfähigkeit oder fehlender Erfahrung

und Kenntnis verwendet werden, wenn ihnen

die Überwachung oder Anweisung über die

Verwendung des Geräts auf sichere Art und Weise

bekannt ist und die Gefahren verstanden werden

beteiligt.

See seade võib kasutada lastel vanuses 8

aastat ja vanemad ja isikud, kellel on vähenenud

füüsilised, sensoorsed või vaimsed võimed või

kogemuste puudumine ja teadmisi, kui nad

on antud järelevalve või juhendamise seadme

ohutult ja mõista ohud kaasatud.

Šī ierīce var izmantot bērni vecumā no 8 gadiem

un virs un personām ar ierobežotām ﬁziskām,

sensorām vai garīgām spējām vai trūkst pieredzes

un zināšanu, ja tie ir dota uzraudzību vai

apmācījusi izmantot ierīces drošā veidā un izprast

apdraudējumus iesaistīti.

Dit apparaat kan worden gebruikt door kinderen

van 8 jaar en ouder en personen met beperkte

lichamelĳke, zintuiglĳke of verstandelĳke

vermogens of gebrek aan ervaring en kennis als

zĳ toezicht of instructie over het gebruik van het

apparaat is gegeven op een veilige manier en

begrĳpen van de gevaren betrokken.

Cet appareil peut être utilisé par des enfants

âgés de 8 ans et plus et les personnes ayant

des capacités ou le manque d'expérience et

de connaissances physiques, sensorielles ou

mentales réduites si elles ont été supervisées ou

instructions concernant l'utilisation de l'appareil

d'une manière sûre et comprendre les dangers

impliqué.

Tento přístroj může být použit u dětí ve věku od

8 let a starší a osoby se sníženými fyzickými,

smyslovými nebo duševními schopnostmi, nebo

bez patřičných zkušeností a znalostí, pokud jim

nebyl poskytnut dohled nebo instrukce týkající se

použití spotřebiče bezpečným způsobem a rozumí

nebezpečí zapojit.

Tento prístroj môže byť použitý u detí vo veku od

8 rokov a staršie a osoby so zníženými fyzickými,

zmyslovými alebo duševnými schopnosťami alebo

bez potrebných skúseností a znalostí, pokiaľ

im nebol poskytnutý dohľad alebo inštrukcie

týkajúce sa použitia spotrebiča bezpečným

spôsobom a rozumejú nebezpečenstvo zapojiť.

Este aparelho pode ser utilizado por crianças

com idade igual ou superior a 8 anos. Também

pode ser usado por pessoas com capacidades

físicas, sensoriais ou mentais reduzidas ou ainda

com falta de experiência e conhecimento, desde

que tenham recebido supervisão ou instruções

sobre a utilização do aparelho de forma segura e

compreendam os perigos envolvidos.

English 7

Norsk 13

Svenska 19

Dansk 25

Suomi 31

Русский

Polski 45

Deutsch 51

Lietuviškai 57

Eesti 63

Latviešu 69

Dutch 75

Français 81

Čeština 87

Slovensky 93

Português 99

Italian 105

7English

Product warnings

1. This product is not intended for use

by children or people with reduced

physical, sensory or mental capabilities,

unless under the supervision of a

person responsible for their safety.

2. Children shall not play with the

appliance.

3. Children shall not clean or maintenance

the appliance without adult supervision,

the appliance shall be repaired by the

professionals.

4. The mains’ power supply cord cannot

be replaced. If the cord is damaged,

discontinue usage.

5. This charger is designed for use

with LEAD/ACID type (both open

and closed) batteries including

AGM, GEL and Calcuim types; and for

lithium batteries with integrated Battery

management system (BMS).

The charger should not be used for

other battery types. Recharging the

non-rechargable batteries is forbidden!

6. Batteries can emit explosive gases during

normal charging.Avoid sparks in the

immediate area and always provide

proper ventilation during charging.

7. Connect the chargers plus clamp to the

plus terminal on the battery. Connect

the minus clamp to the chassis of the

vehicle away from petrol pipes. Connect

then to the wall socket.

8 English

Charging phase details

Provide chargers for a variance of vehicles and

equipment such as motorbikes, snowmobiles,

lawnmowers and boats etc.

Battery Type

Lead acid battery (open and closed types),

AGM, EFB, GEL and lithium batteries with inte-

grated Battery management system (BMS).

Pre Analysis

The charger checks if the battery is correctly

connected. The battery’s charge level (V) and

total capacity (Ah) is measured to determine the

correct settings for charging.

Battery

voltage

>12.65V

12.55V–12.65V

12.45V–12.55V

12.35V–12.45V

2.0V–12.35V

Battery

status

95–100%

80%

60%

40%

0-20%

LED

indication

All segments on

4 segments on

3 segments on

2 segments on

1 segment on

8. After charging, power-off the charger

and disconnect from the mains’ power

supply. The minus and plus terminals

can then be disconnected.

Charging

The charger starts charging the battery with

constant current up to 14.4V (at 25°C). The

charge voltage is then held constant at 14.4V

9English

and the charging current is reduced until it is

below a dened level. The charge voltage then

drops to 13,8V/13,5V depending on the selected

charge program, before the long-term charging

phase starts.

During charging, battery charge is shown by the

number of LEDs illuminated. The blinking segment

above these LEDs indicates active charging. Once

full battery charge is reached, all 5 LED segments

remain illuminated.

If the measured battery voltage is below

2.0V, the charger will enter Error Mode. If Lithuim

charging program is selected the charger will start

from 0V.

Post Analysis

The charger analyses the battery again after the

charging phase. If the charger detects an error in

the battery, the warning triangle will ash. Post

analysis can detect batteries with a short circuit in

individual cells. This cannot be detected in the pre

analysis. If the battery voltage drops below 12.0V

within 2min, the charger will go into error mode.

The charging sequence will be stopped.

Long-term charging

240 hours after the battery is fully charged, the

charger will go in to Sleep Mode. This is indicated

by all battery LEDs slowly pulsating. This mode

has a very low power consumption.

After a week in Sleep Mode, the charger will

wake up and begin a new charging cycle.

The charger will also wake up and start a

charging cycle if battery voltage drops below 12.6V.

10 English

Additional charger functionality

Temperature based voltage compensation

If the lead/acid charge cycle is selected the

charger automatically adjusts the charging voltage

to the correct level according to the ambient

temperature. The default ambient temperature

is 25°C. Voltage is reduced for higher ambient

temperatures and increased for lower ambient

temperatures. The correct amount is ±0.03V/°C.

Max temperature compensate charging voltage

is 15.3 V.

LI BUTTON

Pushing this button will activate the charging curve

for Li-Ion batteries. The top charge voltage is 14,4V

and oat charge voltage is 13,5V. Temperature

compensation is deactivated in this mode. In

this mode the charger will output power even if a

battery is not connected.

Power Supply mode

Keep pressing the button until the LED shines one

by one in a regular buttom to the top cycle, the

charger will start power supply mode. In this mode,

the charger supply 13.6V.

If the output short circuit or connect with incorrect

polarity in this mode, the charger will go into error

mode. You should press the power button to turn

off the charger, then restart the charger (go to

charger or power supply mode).

Automatic restart after power interruption

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels DEFA Chargeur de batteries

DEFA

DEFA REDARC SBC1230-S Manuel utilisateur

DEFA

DEFA Solid Manuel utilisateur

DEFA

DEFA 1204R Flex Manuel utilisateur

DEFA

DEFA MultiCharger 1x12A Manuel utilisateur

DEFA

DEFA MultiCharger 1x35A Manuel utilisateur

DEFA

DEFA MultiCharger 1205R Flex Manuel utilisateur

DEFA

DEFA WorkShopCharger 2.0 35A Manuel utilisateur

DEFA

DEFA MultiCharger 1x7 Manuel utilisateur

DEFA

DEFA MultiCharger Manuel utilisateur

DEFA

DEFA MultiCharger 1x20A Manuel utilisateur

DEFA

DEFA WorkShopCharger 35A Manuel utilisateur

DEFA

DEFA ShowroomCharger 50A Manuel utilisateur

DEFA

DEFA CLU MK1 Manuel utilisateur

DEFA

DEFA WorkshopCharger DWSC125 Manuel utilisateur

DEFA

DEFA SmartCharge 701515 Manuel utilisateur

DEFA

DEFA MultiCharger 1x12 Manuel utilisateur

DEFA

DEFA MultiCharger 40A 24V Manuel utilisateur

DEFA

DEFA ShowroomCharger 32A Manuel utilisateur

DEFA

DEFA eRange ACC 710346 Manuel utilisateur

DEFA

DEFA MultiCharger 1210 Flex Manuel utilisateur

DEFA

DEFA MultiCharger 1203 Manuel

DEFA

DEFA WorkShopCharger 25A Manuel utilisateur

DEFA

DEFA PowerSystems 1x15 Manuel utilisateur

DEFA

DEFA Solid Manuel utilisateur

Manuels Chargeur de batteries populaires d'autres marques

AA Portable Power Corp

AA Portable Power Corp Universal Smart Charger Manuel utilisateur

Enelion

Enelion Vertica Manuel utilisateur

RCA

RCA CHU6 Manuel utilisateur

ANSMANN

ANSMANN ALCT 6/24-10 Manuel utilisateur

Hitachi

Hitachi UC 18YRSL Guide de dépannage

Olympus

Olympus B-20 LPC Manuel utilisateur

Exibel

Exibel ZH1708143 Manuel utilisateur

Lenmar

Lenmar Mach 1 Manuel utilisateur

CTEK

CTEK MXS 5.0 Manuel utilisateur

ABB

ABB HT842379 Manuel utilisateur

Nitecore

Nitecore Superb Charger SC4 Manuel utilisateur

Renogy

Renogy RBC2125DS-21W Manuel utilisateur

Braun

Braun BWC02M Manuel utilisateur

CTEK

CTEK MXS 3.6 Manuel utilisateur

Black & Decker

Black & Decker BDV090 Manuel utilisateur

Trinity

Trinity DPD Manuel utilisateur

Hulkman

Hulkman Sigma 1 Manuel utilisateur

IKEA

IKEA koppla Manuel utilisateur
