Dedicated Micros Dennard 2025 Manuel utilisateur
www.dedicatedmicros.com
INSTALLATION MANUAL
MANUEL D’INSTALLATION
MANUALE D'INSTALLAZIONE
INSTALLATIONSHANDBUCH
MANUAL DE INSTALACIÓN
2025
CE NOTICE (EUROPEAN UNION).
Marking by the symbol CE indicates compliance of this DM product (Dennard 2025 CCTV IR Lamp)
to the Electromagnetic Compatibility Directive 89/336/EEC, and the Low Voltage Directive
73/23/EEC of the European Union. Such marking is indicative that this system meets the following
technical standards.
• EN 61000-6-3 EMC Standard Residential, Commercial and Light Industry.
• EN 61000-3-3 Limitations of voltage changes, fluctuations and flicker in public low-voltage
supply systems for equipment with rated current up to 16A.
• EN 61000-3-2 Limits for harmonic current emissions for equipment with rated current up to 16A.
• EN 50130-4 Immunity requirements for components of fire, intruder and social alarm systems.
• EN 60950 Safety of IT and related equipment.
• EN 55022 Class B. Radiated Emissions Standard, suitable for Commercial or Residential use.
• EN 60825-1 Safety standard for LED’s and Lasers.
Further details about these applicable standards can be obtained from Dedicated Micros LTD. 11
Oak Street, Swinton, Manchester, M27 4FL.
A “Declaration of Conformity” with all relevant European Union Directives has been made, is on file
and is available from the Dedicated Micros address immediately above.
CE Mark
This product is marked with the CE symbol and indicates compliance with all
applicable directives.
Directive 89/336/EEC.
A “Declaration of Conformity” is held at Dedicated Micros Ltd.,
11 Oak Street, Swinton, Manchester M27 4FL.
Dennard 2025 Installation Manual Page. 1
1. Introduction
Congratulations on choosing the Dennard 2025 infra-red LED illuminator. The product range is
designed for high power and long life illumination for cameras with spectral responses extending
into the infra-red range. With correct use the product will provide over 5 years of maintenance free
operation.
The unit comes with a dedicated power supply which requires a mains input. It must only be used
with this supply.
The illuminator and PSU are rated to IP66.
This operation manual will provide all the information required to set-up, install and run the
Dennard 2025 Illuminator.
Dennard 2025 Installation Manual Page. 2
2. Index
Introduction 1
Index 2
Dennard 2025 Outline Drawing 3
Components Supplied 4
General Safety Information 5
Mounting the Illuminator 5
Mounting to a Dennard 2000 Pan and Tilt Unit 6
Mounting to a wall 6
Mounting the Control Unit 6
Wiring connections 9
Configuration 11
Power Settings 12
Control Settings 12
Using the Photocell 12
Remote Switch Inputs 12
Adjusting the Illuminator Angle 14
Maintenance 15
Spares Parts and Accessories 16
Troubleshooting 16
Specifications 17
Dennard 2025 Installation Manual Page. 3

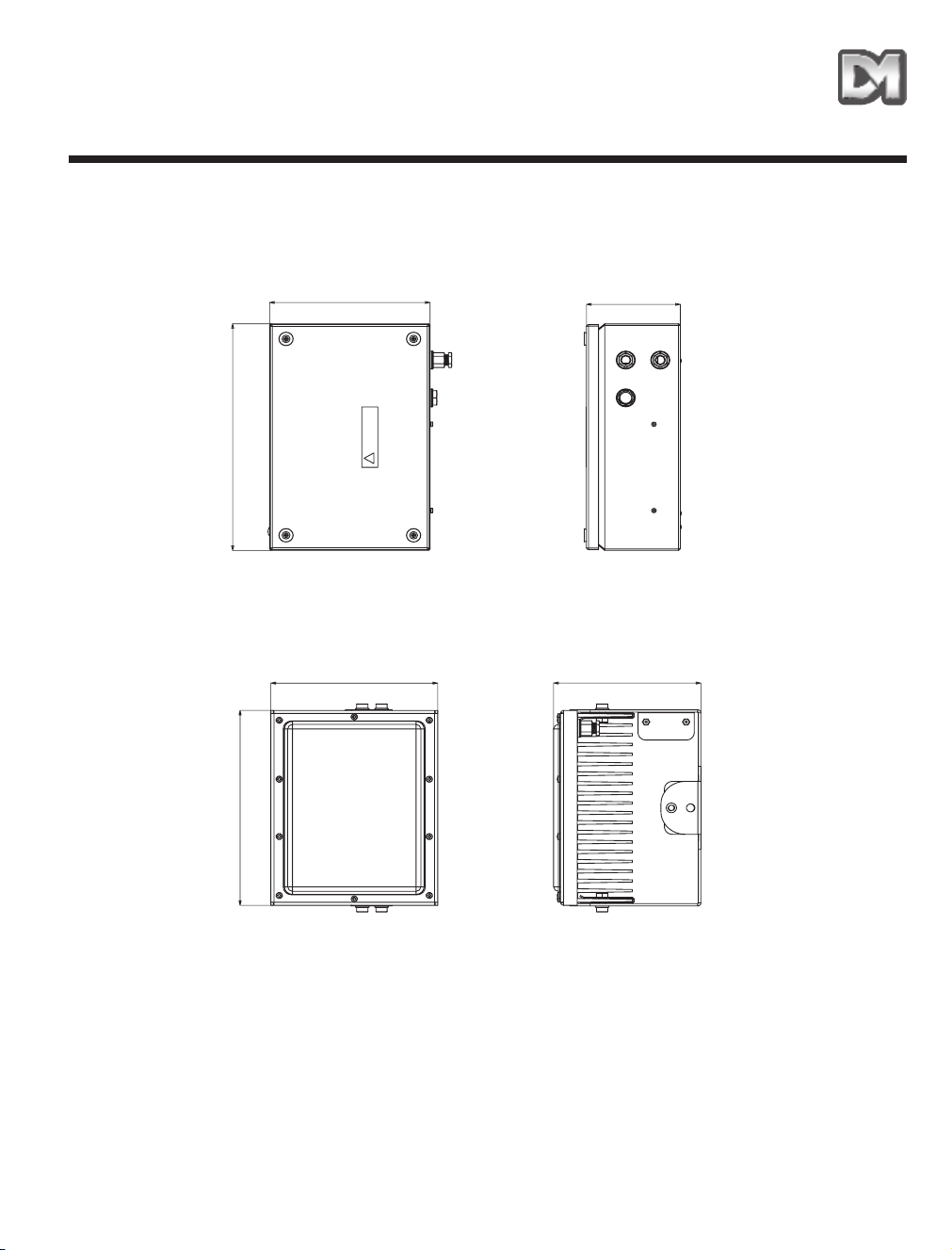

3. Dennard 2025 Outline Drawing
Fig. 1 – Outline Dimensions
117mm
200mm
184mm
208mm
258mm 300mm
PSU
LED illuminator
Dennard 2025 Installation Manual Page. 4
4. Components Supplied
Before installation please remove the unit from the packaging and check that all items below have
been supplied.
1 x Dennard 2025 Infra-red LED illuminator
1 x Dennard 2025 Dedicated Power supply
1 x Dennard 2025 Wall bracket
1 x Accessory kit containing
1 x 6mm A/F Hex Wrench
1 x M8 x 20 Socket Cap Head Bolt
1 x M10 x 140 Hex Head Bolt
1 x M10 Nut
2 x M10 Lock Washers
2 x M10 x 16 Hex Head Bolts
2 x M10 Plain Washers
2 x M10 Spring Washers
1 x M8 Plain Washer
1 x M8 Spring Washer
4 x 8mm Woodscrews
4 x Rawlplugs
4 x M8 Rubber Dowty Washers
6 x Cable Ties
Dennard 2025 Installation Manual Page. 5
5. General Safety Information
This Dennard 2025 equipment shall only be installed by qualified service personnel.
The final installation must adhere to all national wiring regulations.
The disconnect device must comply with IEC 60947.
WARNINGS
Read instructions before installing and power up.
Instructions should be kept for future reference.
If this unit shows signs of damage or malfunction, disconnect from mains immediately and contact
Dedicated Micros.
6. Mounting the Illuminator
Ensure the illuminator is mounted in a well ventilated area with over 100mm clearance around the
heatsink on all sides.
Avoid mounting the illuminator in direct sunlight or next to other heat sources.
Failure to provide this will shorten the life of the LEDs and decrease the lamp brightness.
WARNING: Ensure the illuminator is mounted a minimum of 2m away from eye level. Do not
look directly at the illuminator for prolonged periods during use.
7. Mounting to a Dennard 2000 Pan and
Tilt Unit
Figures 2 and 3 show typical positions for I.R. illuminators when mounted to a remotely controlled
Dennard 2000 pan and tilt head.
Mount the Dennard 2025 illuminator using the M10 fixings supplied with the unit.
Due to the weight of the Dennard 2025 it is not recommended that it is used with the optional side
mounting plate on the pan and tilt unit.
8. Mounting to a wall
The illuminator can be mounted directly to a wall to allow up and down adjustment only.
Alternatively it can be mounted using the wall mounting bracket provided which also allows left to
right adjustment. See Fig. 4.
WARNING: Ensure the wall fixings used are suitable for the type of wall and can support the
full weight of the unit.
9. Mounting the Control Unit
Remove the sealing plugs as shown in Fig. 5 and then use the rawlplugs, screws and rubber
washers provided to mount the control unit to the wall. Use silicon sealant between the wall and
unit to ensure a water tight seal is maintained.
Dennard 2025 Installation Manual Page. 6

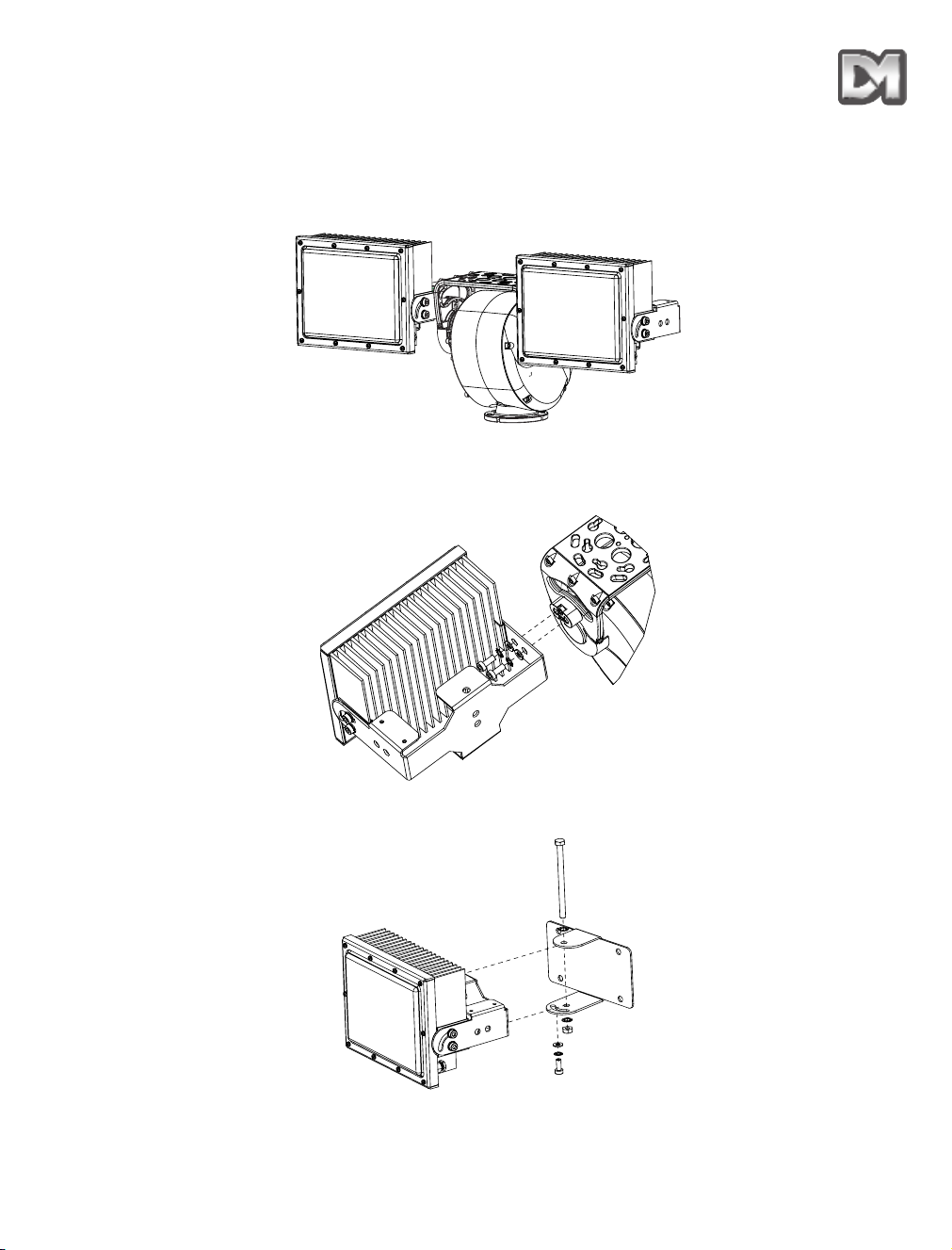

Fig. 2 – Two illuminator configuration with Dennard 2000 Pan and Tilt Unit
Fig. 3 – Fixing Detail
Fig. 4 – Mounting the Illuminator to a wall using the wall bracket
Dennard 2025 Installation Manual Page. 7

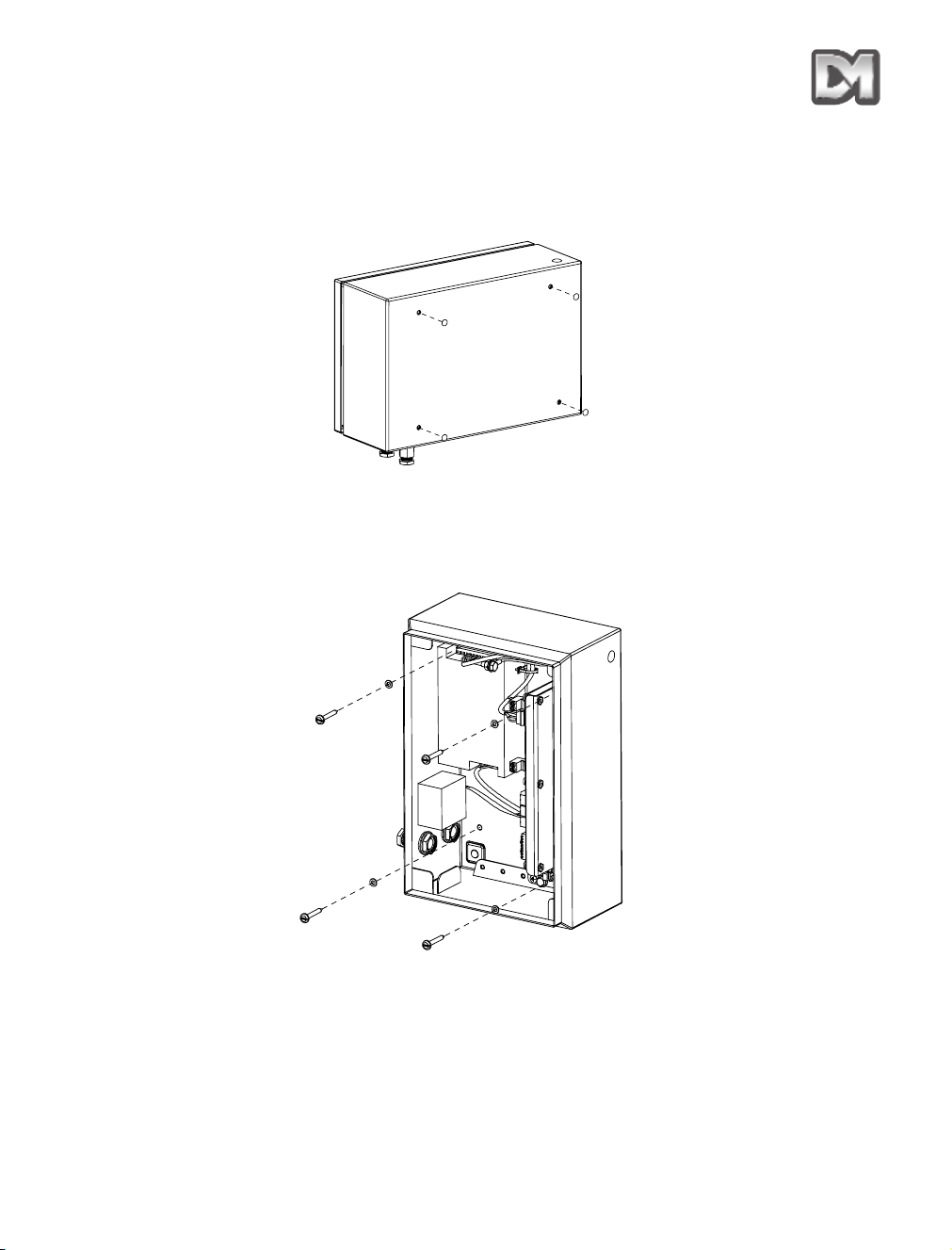

Fig. 5 – Removing the sealing plugs
Fig. 6 – Fitting the fixing screws and washers
Dennard 2025 Installation Manual Page. 8
