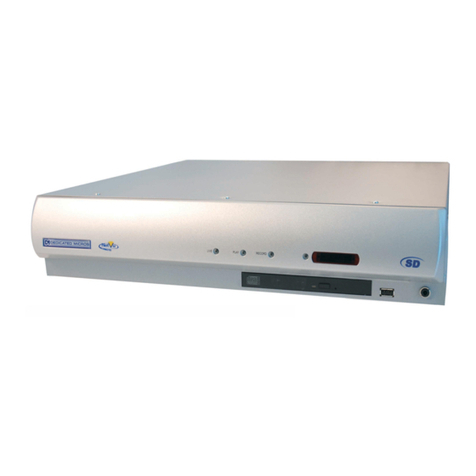

Dedicated Micros SD Range Manuel utilisateur

TOCONTROLPTZDOMECAMERAS

When a Dome or PTZ camera is selected, the Directional buttons will control the dome movements, putting the

unit in Telemetry mode. There are two speeds supported on the IR Remote control and these can be selected

via the Speed key.

Note: To zoom in with the camera, use the Zoom IN button.

Accessing the menus on a local monitor



Control.

Note: If the IR Remote Control does not open the menu, press the DVR button on the Remote to make sure it

is in DVR mode, then press the MENU button again.

SD Quick Start Guide

Guide de Démarrage Rapide du SD

Guida Di Avviamento Rapida del SD

Guía de Inicio Rápido Del SD

SD Kurzanleitung

Contents

SD Quick Start Guide.................................................................... 3

Guide de Démarrage Rapide du SD............................................. 11

Guida Di Avviamento Rapida del SD ............................................ 19

Guía de Inicio Rápido Del SD ....................................................... 27

SD Kurzanleitung .......................................................................... 35

Whilst every attempt is made to ensure these manuals are accurate and current, Dedicated Micros reserve the right to alter or









Product CD supplied with the unit and can also be found on the Dedicated Micros website.

KEYBOARD

USB

NETAUDIO

VID 1

MON

VID 2VID 3

SERIAL1

SATA1

SERIAL2PTZ

OUT

SATA2

VID 13

VID 8

VID 6

VID 4VID 5VID 7 VID 9 VID 10VID 12

VID 11 VID 14 VID 15VID 16

ALARMSRELAYS

POWER

Installing the SD Unit



connectors. Connect cameras to the video inputs:

starting from input 1.





The SD supports bi-directional audio, accessible

through NetVu ObserVer. Connect the audio





camera 1.

Note: The Audio ouptut can be congured as a

challenge output or as a replay output.

The SD supports a 10/100Mbps auto-detecting



the network.



unit is automatically allocated an IP address from the



DNS (Dynamic Name Servers) is supported and

therefore the unit can be assigned a name. This



address and makes it easier for a remote user to

locate.

The SD supports up to four 24V 200mA relays.

Pin Connection

1 Relay 1 signal

2 Relay 2 signal

3 Relay 3 signal

4 Relay 4 signal

9 Earth

The SD supports normally open/closed tamper

proof alarm inputs via the back panel, or one





tamper proof detection using 1k in line and 5K end

of line resistance. The SD detects short circuit, open

circuit and contact closure.

Pin Alarm Input Connection

1 - 17 1-17

18-25 Earth Common

The SD has an internal power supply unit. Connect

the mains lead to the unit and then to the wall

socket, or to a fused spur connection. To be

compliant with wiring regulations in some countries,

an Alarm/Security device should be connected to a

fused spur and not a wall outlet socket (check local

regulations before installation).RF

IR Remote Control

The unit can be operated via the enclosed IR Remote Control, via the optional keyboard or using a USB mouse.









To select cameras



key. For numeric entries that require two digit entry, ensure both digits are entered within the one second time

limit.

Electronic zoom





To control PTZ dome cameras

When a Dome or PTZ camera is selected, the Directional

buttons will control the dome movements, putting the unit

in Telemetry mode. There are two speeds supported on the

IR Remote control and these can be selected via the Speed

key.

Note: To zoom in with the camera, use the Zoom IN button.

Accessing the menus on a local monitor





Control.

Note: If the IR Remote Control does not open the menu,

press the DVR button on the Remote to make sure it is in

DVR mode, then press the MENU button again.

Accessing the menus on a PC web

browser

Locating the Unit IP address

The IP address of the unit is required to access these pages.







assigned IP address.





unit every time.

If a permanent IP address is not assigned to the unit, it will





to the unit, the encoder will use a default IP address. It is

recommended that DNS (Domain Name Server) be used as

assigning a name makes it easier for a remote user to locate

the unit.

Accessing the Conguration Web Pages



pages. To access these:





name).

3. The Main Menu page will be displayed.

How to navigate the web pages

Using the IR Remote Control





menu item.











without changing the setting.

Press any coloured Softkey to open the softkey menu.



option.



Using a USB Mouse

Navigate the pages by clicking on the tabs on the left of the main page.





Note: A selected item in the drop down list will appear highlighted.

Navigating away from a page (clicking on a different tab on the side panel) will automatically save any changed

settings.

Quick Overview Of Default SD Record Settings

SD units provide out of the box:

High performance recording on ALL cameras with minimal conguration.

Consistent recording duration and smooth motion video per camera regardless of the number of cameras.

The product range has Normal, Medium and Low record rate models.

Normal



Medium



Low



Complete Flexibility

The picture quality can be increased if less than 30 or 60 days standard recording is required.





or 60 day storage options, and the Normal, Medium and Low record rates selected.

With Global record rates of up to 100pps (PAL) and 120pps (NTSC), the SD Range offers recording of up to



depending on variant).

Note: It is the Installer/Owner’s responsibilty to ensure that the record duration is set to the necessary

requirements of the application.

Event List

Alarms and activity detection are tagged and stored in the Event list for easy retrieval along with System events

such as system start data and camera fails. Each event is labelled with an event type (alarm, activity or system)

and its time and date.

To view an event from the Event list:

1.Press the Event button on the Keyboard/RC Interface.



preview window.



pages.





Event Search Filter









Softkey:

Alarm - Red

Activity - Green



Play an event back full screen



Copy Events To The Archive List





Start a new search



Event Search Filter menu

Copy Menu

Copy Images to CD or USB device

Using the Copy Menu

Images and events can be copied to CD or USB Media for reviewing remote from the unit for evidential or

monitoring purposes.

Images can be sent to the Copy List in two ways:

1.Manually review the recorded video, marking the start and end points of each segment of video to be copied.

Please note that numerous segments can be added via the addition of start and end points before navigating to

view them in the Copy List.

2.Open the Event list and select which events will be added to the Copy List.

Using the Copy option during Playback

It is possible to add playback images to the Copy List while reviewing the images. This provides the user with a

simple process of selecting images that are of interest to be automatically sent to the Copy List.



copied.



segment of the screen. Continue playing, using Fast Forward if required.



segment end.

4. Repeat the above step to add all required segments.





Within the Event list it is possible to highlight an event and send to the Copy List.

1.Press the EVENT button to display the Event list screen.





3.204



To Copy Events/Images to CD

1.Insert a blank CDR into the CD drive of the unit.



3.Select the Copy option (Red) to start archive.



displayed on screen. Whilst data is writing to CD, the following status information will be displayed on screen:

Please Wait

Watermarking

LeadIn

Writing

Verifying



To Copy Events/Images to a USB Device





3 Select the Copy option (Red) to start archive.

.



Selecting/Deselecting Copy items

1.To clear the copy list, press the Clear button

2. To delete individual items from the copy list, select items to be deleted by highlighting them and pressing OK.

Check all items to be removed and choose Delete (blue softkey).
