Decor Star TPC13-TC Manuel utilisateur
1DS Rev. 6 05/2018
Features:
- Brass and Zinc Alloy Construction
- Single Hole Installation
- Drip Free Ceramic Cartridge
- Maximum ow rate 1.8 gpm at 60 psi
- 2 Stage Sprayer Head
- Complies with:
NSF 61-9
ANSI / ASME A112.18.1
cUPC
IAPMO / UPC
CA AB-1953

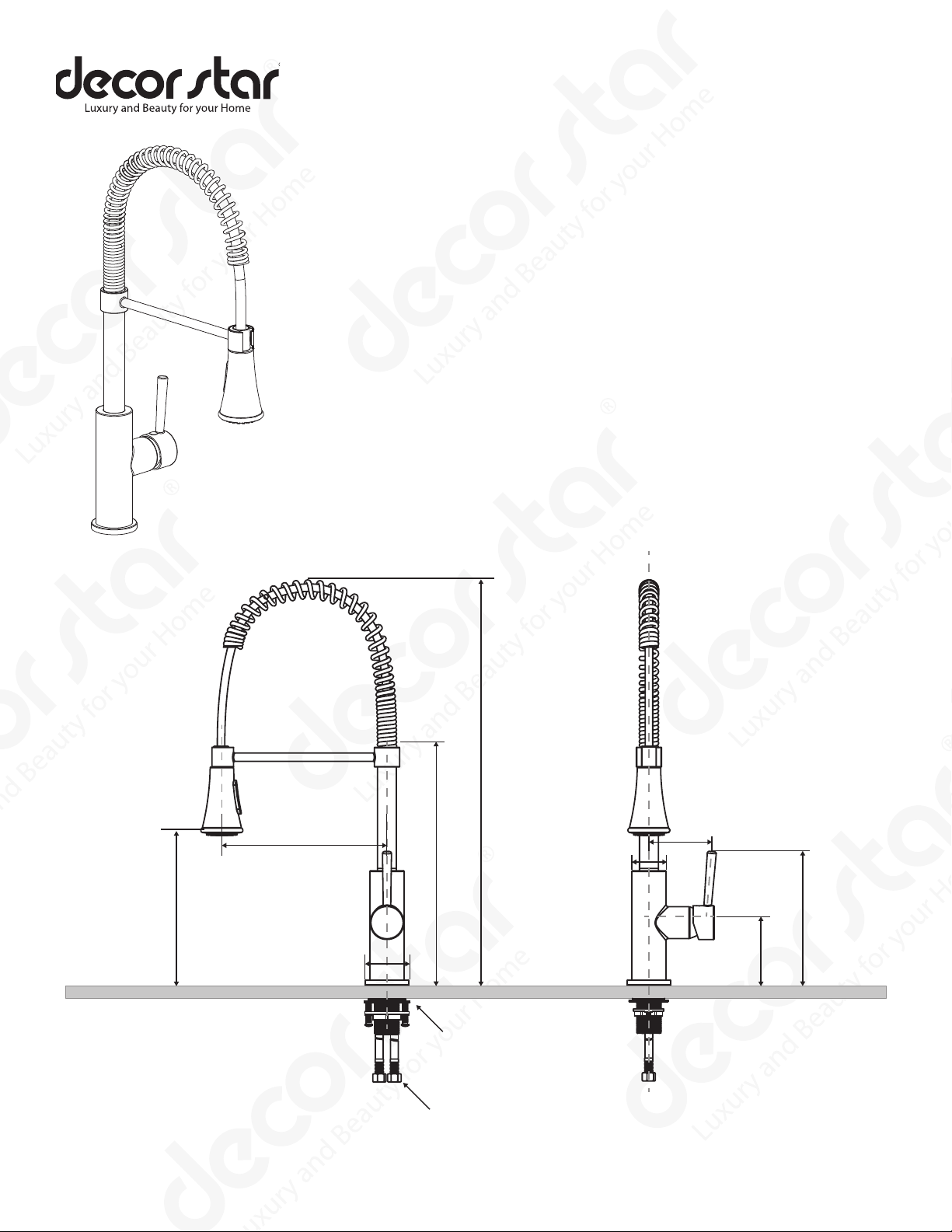

Single Handle Kitchen Faucet with Sprayer
Model Number:
TPC13-TB
TPC13-TC
TPC13-TO
12.4”
3.3”
1.8”
7.3”
3.6”
2.2”
8.6”
8.1”
20.5”
Max. Deck Thickness 2”
* Drawing not to scale. All measurements are approximate.
3/8” Compression Fitting
Hose Length Approx. 25”
1 1/2” Hole Size
2DS Rev. 6 05/2018
Thank you for purchasing Decor Star products. Please read the information below and keep this installation
guide for future reference. If you require assistance, please contact our customer service department at
1-800-879-1197, Monday - Friday 9AM - 5PM Pacifi c Time or by email at [email protected].
Limited Lifetime Warranty (For USA Only)
The manufacturer warrants this product to be leak and drip free during daily normal household use for as long
as it is owned by the original purchaser of this product. Please keep a copy of the original invoice as proof of
purchase.
Should a malfunction occur within the warranty period, Decor Star USA will, as its option, (1) repair or replace
the defective part(s) or product at no charge; (2) issue a refund of the purchase price paid for the product
(Valid within 30 days from the date of purchase); or (3) issue a credit to be applied against the purchase of a
new Decor Star product. Shipping/delivery charges may apply and are in Decor Star USA’s sole discretion.
This limited warranty shall not apply to goods which have been subject to accident, negligence, improper
installation, product abuse, product misuse, or use of cleaners containing abrasives, alcohol or other organic
solvents, whether performed by a contractor, service company, or yourself, are excluded from this warranty.
Our responsibility under this warranty is limited to only to replacement parts and no other costs. Decor Star
USA will not be responsible for labor charges and/or damage incurred by installation, repair or replacement,
nor for any indirect incidental or consequential damages, losses, injury or costs of any nature relating to this
faucet. Except as provided by law, this warranty is in lieu of and excludes all other warranties, conditions,
and guarantees, whether expressed or implied, statutory or otherwise, including without restriction those
merchantability of fi tness for use.
This limited warranty is non-transferable. This limited warranty only applies to products purchased and
installed in the United States. This limited warranty covers the original consumer purchase only and does not
include business, commercial or industrial use of this product. To obtain service under the Limited Warranty,
please contact Decor Star USA at [email protected]. The Decor Star USA Customer Care Department
will determine whether to repair or replace your product, issue a refund, or issue a credit.
3DS Rev. 6 05/2018
Important Points
• This installation guide is subject to change without notice, please contact us to request the most
updated version of this installation guide.
• This is a general installation guideline, actual installation may vary. Consult a professional installer
if necessary.
• Read and understand this instructions completely before installation.
• Please follow all local building and plumbing codes.
• Product drawings in this installation guide is for illustration purpose only. Actual product may vary
depends on model.
• Always take extra precautions and wear appropriate safety equipment when installing this
product.
• Wrap all threaded connections, except the aerator in the spout, with Te on (TPFE) tape. Always
wrap in a counterclockwise direction.
• When installing your new faucet, fi rst hand tighten the water supply hoses then use a wrench to
give the compression nuts an additional (1/4) turn. Do not over tighten the compression nuts as it
will reduce the integrity of the sealed connection.
Maintenance Guide
Please follow the cleaning material manufacturer’s instructions. Damage caused by improper
treatment will not be covered by product warranty. In addition, pay attention to the following points:
• Regular cleaning can prevent mineral build up on faucet spout.
• Carefully read the cleaner product label to ensure the cleaner is safe for use on the material.
• Test the cleaner on a small area before using on the entire surface.
• Use a mild detergent such as liquid dishwashing soap and warm water for cleaning.
• Do not use abrasive / harsh chemical when cleaning the fi xture as they will damage and dull the
fi nish.
• When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the
faucet as droplets can enter openings and gaps and cause damage.
• After cleaning, rinse thoroughly with clean water to remove any cleaner residue.
You may also need the following tools
1. Safety Glasses 5. Adjustable Wrench
2. Teon (TPFE) Tape 6. Screwdriver
3. Plumber’s Putty and Caulking
4. 1 3/8” Basin Wrench or
1 11/32” Shower Valve Socket Wrench
4DS Rev. 6 05/2018

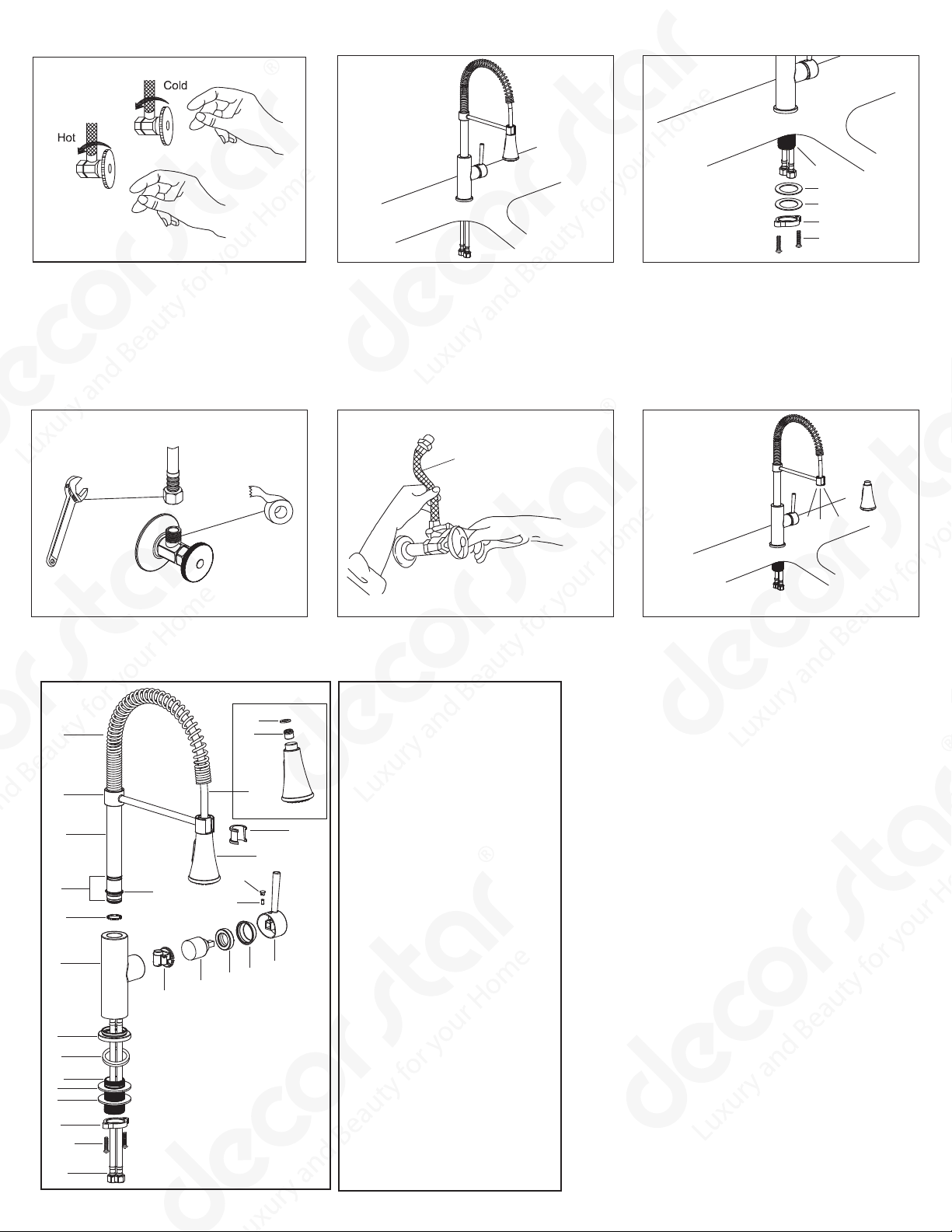

Installation
B
20
21
23
22
24
C
A. Shut o water supply at the valves.
Remove old faucet and clean the
mounting surface for installation of new
faucet.
E. Turn on water supply to check for
leaks at all connection. Remove spray
head from the pull out hose and let the
water run for about 1 minute and check
for leaks. Reattach the spray head.
D1. Apply Teon (TPFE) tape on the
shut o valves. Thread the tape in
counter-clockwise direction.
D2. Use an adjustable wrench to tighten
the water supply hoses, please do not
overtighten the connections.
B. Insert the hoses and shank through
the hole. The faucet hole on the mount-
ing surface should be 1 1/2” in diameter.
D1
Flexible water supply line
D2 E
01. Temperature Indicator
02. Screw
03. Handle
04. Cap
05. Bonnet
06. Cartridge
07. Seat
08. Sprayer
09. Sprayer Holder
10. Hose
11. Spring
12. Swing Arm
13. Neck
14. O-ring
15. Clip
16. Locking Ring
17. Body
18. Flange
19. EVA Washer
20. Shank
21. Rubber Washer
22. Steel Washer
23. Locking Nut
24. Screws (x2)
25. Supply Hoses
26. Check Valve
27. Rubber Gasket
A
01
08
09
10
24
27
26
25
11
12
13
14 15
16
17
18
19
20
21
22
23
02
03
04
05
06
07
C. Remove the 2 screws (24) from lock-
ing nut (23). From under the sink, install
the rubber washer (21), steel washer
(22) and locking nut (23) onto the
shank (20) Tighten the locking nut with
a basin wrench or the socket tool and
install the 2 screws (24) to secure the
faucet in place.
