B-HYPE MOBILE Code 420120272 REV. 1.2
English
TABLE OF CONTENTSTABLE OF CONTENTS
1. GENERAL INFORMATION AND MAIN SECTIONS ............................................................. 24
WELCOME! ....................................................................................................................... 24
PACKAGE CONTENTS ........................................................................................................ 24
USER REFERENCE .............................................................................................................. 24
MECHANICS ...................................................................................................................... 25
OVERVIEW OF THE EQUIPMENT ..................................................................................... 25
POWER SUPPLY UNIT SECTION ............................................................................................................... 26
SECTION FOR THE CONNECTIONS, CONTROL AND MONITORING OF THE BATTERY .......................... 26
MEDIA PLAYER INTERFACE ...................................................................................................................... 27
2. ANTENNAE, RECEIVER AND TRANSMITTERS ................................................................... 29
R-BHM ...................................................................................................................................................... 29
HT- B H M .................................................................................................................................................... 30
HOUSING WITH BATTERY CHARGER FOR HT-BHM ................................................................................ 30
BT-BHM ..................................................................................................................................................... 31
SYNCHRONISATION OF THE TRANSMITTER ........................................................................................... 32
SUMMARY TABLE OF CHANNELS AND FREQUENCIES ........................................................................... 33
CHANGE OF FREQUENCY BAND ............................................................................................................. 34
3. TROUBLESHOOTING ............................................................................................................ 35
4. ACCESSORIES/SPARE PARTS ............................................................................................... 36
5. SPECIFICATIONS ................................................................................................................... 37
GENERAL .................................................................................................................................................. 37
ACOUSTICAL SPECIFICATIONS ................................................................................................................. 37
INTERNAL BATTERY ................................................................................................................................. 37
AMPLIFIER ................................................................................................................................................ 37
USER INTERFACE ...................................................................................................................................... 38
INPUTS & OUTPUTS ................................................................................................................................. 38
RF SECTION .............................................................................................................................................. 38
POWER SUPPLY SPECIFICATIONS (ABSORPTION / INSTALLATION) ....................................................... 38
DIMENSIONS ............................................................................................................................................ 39
24
B-HYPE MOBILE Code 420120272 REV. 1.2
English
1. GENERAL INFORMATION AND MAIN SECTIONS
WELCOME!
USER REFERENCE
available in 2 versions:
• a bundle with wireless handheld transmitter (handheld radio microphone)
• a bundle with bodypack transmitter and headset with microphone
The wireless system is available in 3 frequency bands (also according to the Country of sale). It can work both
available.
To make the most of your B-HYPE MOBILE, we recommend that you:
• read the quick start user manual included in the package and this user manual thoroughly and keep
this manual during the whole life of the product.
• comply carefully with the rules for use and storage of the batteries (transmitters)
• Register your product at http://www.dbtechnologies.com under “SUPPORT”.
• keep proof of purchase and WARRANTY (User manual “section 2”).
PACKAGE CONTENTS
B-HYPE MOBILE POWER SUPPLY
CABLE
ANTENNAE DOCUMENTATION
PART IN
COMMON FOR
BOTH BUNDLES
PART DEPENDING ON
BUNDLE/ACCESSORIES
SOLD ALSO
SEPARATELY
25
B-HYPE MOBILE Code 420120272 REV. 1.2
English
MECHANICS
B-HYPE MOBILE is equipped with:
1. side handles
2. housing for the HT-BHM radio microphone
3. wheels for handling
4. upper handle (with central release button)
OVERVIEW OF THE EQUIPMENT
On the upper side and at the back of the speaker
there are:
5. media player interface
6. control and connection section
7. R-BHM receiver module
8. lithium-ion battery compartment
9. battery charger with LED for HT-BHM radio
microphone
10. power supply unit section
WARNING!
Avoid any direct contact with water or
environments that are too humid during
use.
Avoid any direct exposure to sunlight for
long periods.
Ensure good aeration around the
loudspeaker to facilitate heat dissipation.
Never attempt to open or access the
amplier panel or te lopeaer acotic
components.
Follow the instructions listed in this manual.
26
B-HYPE MOBILE Code 420120272 REV. 1.2
English

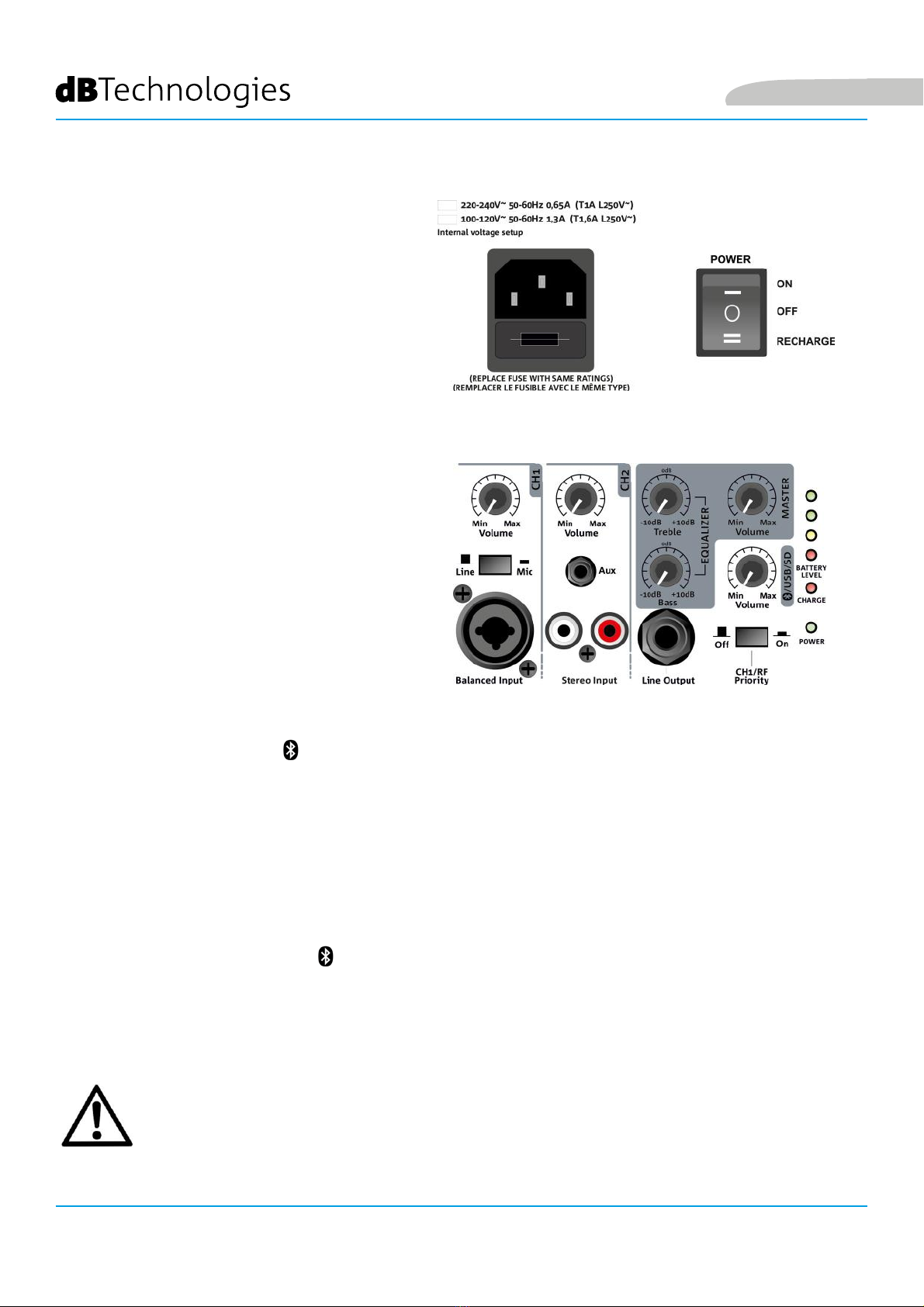

SECTION FOR THE CONNECTIONS, CONTROL AND MONITORING OF THE BATTERY
This section contains inputs/outputs and volume
mixer adjustments. All monitoring LEDs of the
system and of the internal battery are also present.
In particular, the following can be found:
• CH1: Combo connector (XLR/TRS) with relevant
input type switch and volume rotary switch. If
a microphone is connected, select the position
Mic.
• CH2: The connectors available are AUX (3.5 mm
mini-jack) and RCA stereo with relevant volume
rotary switch of the channel.
• MASTER SECTION (3 rotary switches): general
volume switch, TREBLE and BASS equalization
rotary switches.
• VOLUME ROTARY SWITCH /USB/SD:
it controls the volume of the playable media
(see section “MEDIA PLAYER INTERFACE” for
further information)
• Line Output: unbalanced connector to link
the B-HYPE MOBILE output to another active
loudspeaker (e.g. another B-HYPE MOBILE
system). For example, the Line Output of a
B-HYPE MOBILE can be connected to the CH1 of
a second one to obtain a distributed system.
• CH1/RF Priority. In “On” position the audio
level of the 2 channels CH2 and /USB/
SD is immediately reduced by the presence
of a signal on CH1 or on the radio frequency
microphone.
This section contains:
• connector for the supplied power supply cable
• three-state switch:
ON - full operation of all functions
and operation both with network cable and
with battery only in mobile mode.
OFF - no operation (device completely off)
RECHARGE - the system in stand-by,
connected to the network, recharges the
inner battery and the BT-BHM radio
microphone, if any.
POWER SUPPLY UNIT SECTION
The monitoring LEDs of the system and of the
internal battery provide immediate information to
the user.
The POWER LED indicates whether B-HYPE MOBILE
is on (green light) or off.
The internal battery will recharge with B-HYPE
MOBILE connected to the power mains (through
the cable supplied) and in RECHARGE position. The
also during the operation in ON position.
green when completely charged.
When B-HYPE MOBILE is used in mobile mode
(without power supply cable), in ON, the Battery
level LEDs turn on depending on the battery charge
status.
WARNING!
Whenever possible, charge the battery completely. Never store it completely empy or
half empty. If the device is inactive for a long period, disconnect the battery, covers the
terminals and store the battery in a dry place away from heat sources, and regularly
recharge the battery.
27
B-HYPE MOBILE Code 420120272 REV. 1.2
English
This section contains the controls and inputs to
• SD cards
• USB memory device
• device correctly paired
1. Turn B-HYPE MOBILE on after connecting the
power supply cable (switch in ON position). For
further information, see paragraph “POWER
SUPPLY UNIT SECTION”.
2. Insert the correct device in the relevant input
use only one device at a time.
3. Press the switch-on button of the player
for a few seconds. Once the display is on, push
the button shortly to select the source type.
4. Press the buttons
respectively to: play/pause the track, search
through the folders, automatically repeat the
track/access the equalization, rewind, fast
forward.
5. Adjust the 2 volumes of the mixer area (see
section “SECTION FOR CONNECTIONS AND
CONTROL”):
• MASTER volume
• Volume
device:
1. Turn B-HYPE MOBILE on after connecting the
power supply cable (switch in ON position). For
further information, see paragraph “POWER
SUPPLY UNIT SECTION”.
2. Press the switch-on button of the player
for a few seconds. Once the display is on, push
the button shortly to select the source type.
3. Enable the function on the player/
device containing the audio track, checking
that its visibility is enabled.
4. Once communication is established the name
of the device is shown on display.
5. Adjust the 2 volumes of the mixer area (see
section “SECTION FOR CONNECTIONS AND
CONTROL”):
• MASTER volume
• Volume
MEDIA PLAYER INTERFACE
28
B-HYPE MOBILE Code 420120272 REV. 1.2
English
The diagram below shows a summary of the input/output possibilities of B-HYPE MOBILE.
29
B-HYPE MOBILE Code 420120272 REV. 1.2
English
The B-HYPE MOBILE system is equipped, depending on
the purchased bundle, of a handheld radio microphone
or bodypack.
Based on the availability and on the Country of use, the
system is sold in one of the following three frequency
bands:
• 542-566 MHz
• 638-662 MHz
• 863-865 MHz
To enable the radio transmission/reception it is
necessary to install the supplied antennae on the upper
side.
The R-BHM receiver is on the back of the system.
It is equipped with a display and three buttons that
allow the synchronisation with the radio microphone
and provide real time information on the transmitter/
receiver communication.
• CHANNEL (it shows the number of the channel
being used among the ones available)
• FREQUENCY (frequency of the channel)
• BATTERY LEVEL (battery level of the transmitter)
• MIC MUTE (mute setting of the radio microphone)
• AF/RF (signal level of the radio microphone/squelch
of the radio signal)
Buttons:
X (symbol ): increases a value / allows the
synchronisation if pressed for a few seconds
Y (symbol ): allows accessing the AF and RF
adjustment page in sequence to set their levels
Z (symbol ): decreases a value
R-BHM
2. ANTENNAE, RECEIVER AND TRANSMITTERS
30
B-HYPE MOBILE Code 420120272 REV. 1.2
English
The handheld transmitter (handheld radio microphone) is
equipped with:
A - Status LEDs
B - ON/OFF/MUTE BUTTON (depending on whether it is
pressed for a few seconds or instantaneously, it turns on/
mutes/turns off the microphone)
C - IR lens useful during synchronisation of the device with
the R-BHM receiver
D - Rotary switch for gain adjustment
E - Micro screwdriver for gain adjustment [D]
F - Removable cover of the battery housing (placed on the
back)
HT-BHM
WARNING!
On HT-BHM, the use of RECHARGEABLE AA
batteries of the Ni-MH type (not supplied) is
required. The use of Lithium, Alkaline, Ni-Cd
or other types of batteries is not allowed.
Batteries are inserted by unscrewing the cover [F] and
inserting the batteries of the type indicated above,
following the correct polarity.
If the radio microphone is not used for a long period,
remove the batteries from the device and store them in a
suitable place.
To use HT-BHM with B-HYPE MOBILE see the
synchronisation procedure in the relevant paragraph.
HOUSING WITH BATTERY CHARGER FOR HT-BHM
With B-HYPE MOBILE in ON or RECHARGE mode, if HT-
BHM is correctly inserted in the housing on the back, an
appropriate circuit will recharge the batteries (Ni-MH
rechargeable batteries).
The LED of the housing can be:
• RED - the battery is charging
• GREEN - the battery has completed its recharge cycle
•
incorrect battery type in the radio microphone. Replace
them immediately with the appropriate type (Ni-MH)
31
B-HYPE MOBILE Code 420120272 REV. 1.2
English
The bodypack transmitter is equipped with:
G - Antenna
H - Status LEDs
I - ON/OFF/MUTE BUTTON (depending on whether it is
pressed for a few seconds or instantaneously, it turns on/
mutes/turns off the microphone)
M - Micro screwdriver for gain adjustment [N]
N - Rotary switch for gain adjustment
O - IR lens useful during synchronisation of the device with
the R-BHM receiver
P - Removable cover of the battery housing
BT-BHM
On BT-BHM it is possible to use any type of batteries.
Its use is not bound to the battery charger of B-HYPE
MOBILE.
Batteries are inserted by opening the cover [P] and
inserting the batteries following the correct polarity.
If the radio microphone is not used for a long period,
remove the batteries from the device and store them in a
suitable place.
To use BT-BHM with B-HYPE MOBILE see the
synchronisation procedure in the relevant paragraph.
Table des matières
Autres manuels dB Technologies Intervenants
dB Technologies
dB Technologies DVX P Series Manuel utilisateur
dB Technologies
dB Technologies B-HYPE 8 Manuel utilisateur
dB Technologies
dB Technologies DigiPro OPERA D Series Manuel utilisateur
dB Technologies
dB Technologies DIGIPRO DVX DM28 Manuel utilisateur
dB Technologies
dB Technologies B-HYPE 8 Manuel
dB Technologies
dB Technologies VIO X205 Manuel utilisateur
dB Technologies
dB Technologies OPERA REEVO 210 Manuel utilisateur
dB Technologies
dB Technologies LVX 8 Manuel utilisateur
dB Technologies
dB Technologies VIO X315 Manuel utilisateur
dB Technologies
dB Technologies OPERA 110 MOBILE SPORT Manuel utilisateur
dB Technologies
dB Technologies digipro DVA S10DP Manuel utilisateur
dB Technologies
dB Technologies VIO L210 Manuel utilisateur
dB Technologies
dB Technologies VIO X310 Manuel utilisateur
dB Technologies
dB Technologies LVX XM15 Manuel
dB Technologies
dB Technologies INGENIA IG1T Manuel utilisateur
dB Technologies
dB Technologies FlexSys FMX10 Manuel utilisateur
dB Technologies
dB Technologies B-Hype M Manuel utilisateur
dB Technologies
dB Technologies digipro K Series Manuel utilisateur
dB Technologies
dB Technologies IS 210T Manuel
dB Technologies
dB Technologies FIFTY Series Manuel utilisateur
Manuels Intervenants populaires d'autres marques
Bowers & Wilkins
Bowers & Wilkins 4 Manuel utilisateur
Sonance
Sonance SONOS OUTDOOR Series Manuel utilisateur
Electro-Voice
Electro-Voice EVID FM4.2 Manuel utilisateur
Pioneer
Pioneer XW-HTD630 Manuel utilisateur
Onn
Onn BWA16AA002 Manuel utilisateur
HP
HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
