DB Drive Euphoria EWX8D4 Manuel utilisateur
EWX8D4 : EWX10D4
EWX12D4 : EWX15D4
USER MANUAL
Installation Instructions | Owners Manual
Due to continuous improvement of the product, specifications are subject to change without notice.
DB Research L.L.P.
302 Hanmore Industrial Parkway Harlingen, TX 78550
Phone (877) 787-0101 : Fax (956) 421-4513 : www.DBDrive.net
TM
2
Introduction
Congratulations on your purchase of a DB Drive state-of-the-art subwoofer. Your selection of a
DB Drive car audio product indicates a true appreciation of fine musical reproduction. Whether
adding to an existing system or including your DB Drive subwoofer in a new system, you are
certain to notice immediate performance benefits.
Keep Your Sales Receipt
Take this time to attach your sales receipt to the manual and put in a safe place. In case of any
unforeseen reason this product may need warranty service, your receipt will be necessary to
establish purchase date.
Recommendation
A power subwoofer’s performance is only as good as its installation. Proper installation will max-
imize the system’s overall performance. It is recommended that you have our product installed
by an authorized DB Drive retailer. However, if you decide to install it yourself, please carefully
read through this manual and take your time to do a quality installation.
IMPORTANT!
Before making any connections, disconnect the car’s battery until the installation is
completed to avoid possible damage to the electrical system.
WARNING!
Exposure to high power sound system can cause hearling loss or damange. Listening
to your system at loud levels while driving will impair your ability to hear traffic sounds
and emergency vehicles. Use common sense when listening to your system.
S e r i a l # ____________________________________ _M o d e l # ___________________________________
PRODUCT SPECIFICATIONS
CALCULATING ENCLOSURES
It is recommended to build your enclosure from at least 3/ 4” thick MDF (medium density fiber-
board). Make sure the enclosure is sealed airtight.
Calculating External Volume
To calculate box volume, measure the outside Width x Height x Depth of
the enclosure. Example 12” x 14” x 9”=1512 ÷ 1728” Cubic feet
Next you must convert cubic inches into cubic feet. To do this, you must
divide the cubic inches total by 1728”. Example 1512 ÷ 1728=.875 Cubic feet
Calculating Internal Volume
To calculate the internal (net) volume of the above box you must first multiply
the thickness of the wood you are using by Two(2). Example 3/4” x 2= 1.5“
Next subtract 1.5 from each of the outside measurements of the box.
Width Height Depth
12 - 1.5 = 10.5 14 - 1.5 = 12.5 9 - 1.5 = 7.5
Multiple the new totals (H x W x D) Example: 10.5 x 12.5 x 7.5 = .5696
Next you must convert cubic inches into cubic feet. To do this, you must
divide the cubic inch total by 1728”. Example 984.375 ÷ 1728=.5696
cubic feet.
TS SPECS
Resonant Frequency (fs)
DC Resistance (Re)
Mechanical (Qms)
Electromagnetic (Qes)
Total Q (Qts)
Compliance Equivalent Volume (Vas)
Mechanical Compliance of Suspension (Cms)
BL Product (Bl)
Diaphragm Mass inc. Airload (Mms)
Sound Pressure Level (SPL)
X-Max
EWX8D4
47.2 Hz
6.4 Ω
6.30
0.72
64
6.0L
0.10mm/N
17.0 N/A
109.5 gr
81.3 dB
16.76 mm
EWX12D4
36.7 Hz
7.2 Ω
6.10
0.81
0.72
24.2L
0.06mm/N
24.7 N/A
297.3 gr
83.5 dB
17.78 mm
EWX10D4
41.9 Hz
7. 2 Ω
6.43
0.78
0.70
12.3L
0.06mm/N
23.6 N/A
229.1 g r
82.5 dB
16.76 mm
EWX15D4
35.8 Hz
7.2 Ω
7.11
0.95
0.84
53.6L
0.06mm/N
24.6 N/A
355.4 gr
86dB
17.78 mm
EWX10D4
Sealed 1.27 cuft.
Vented 1.49 cuft.
Round vent 4” long x 14” long
Or
12.57 square inches of surface area x 14” long
Tuned @ 38Hz
EWX15D4
Sealed 2.8 cuft.
Vented 3 .10 cu f t
Round vent 6” long x 20” long
Or
28.27 square inches of surface area x 20” long
Tuned @ 35Hz
PortedSealed

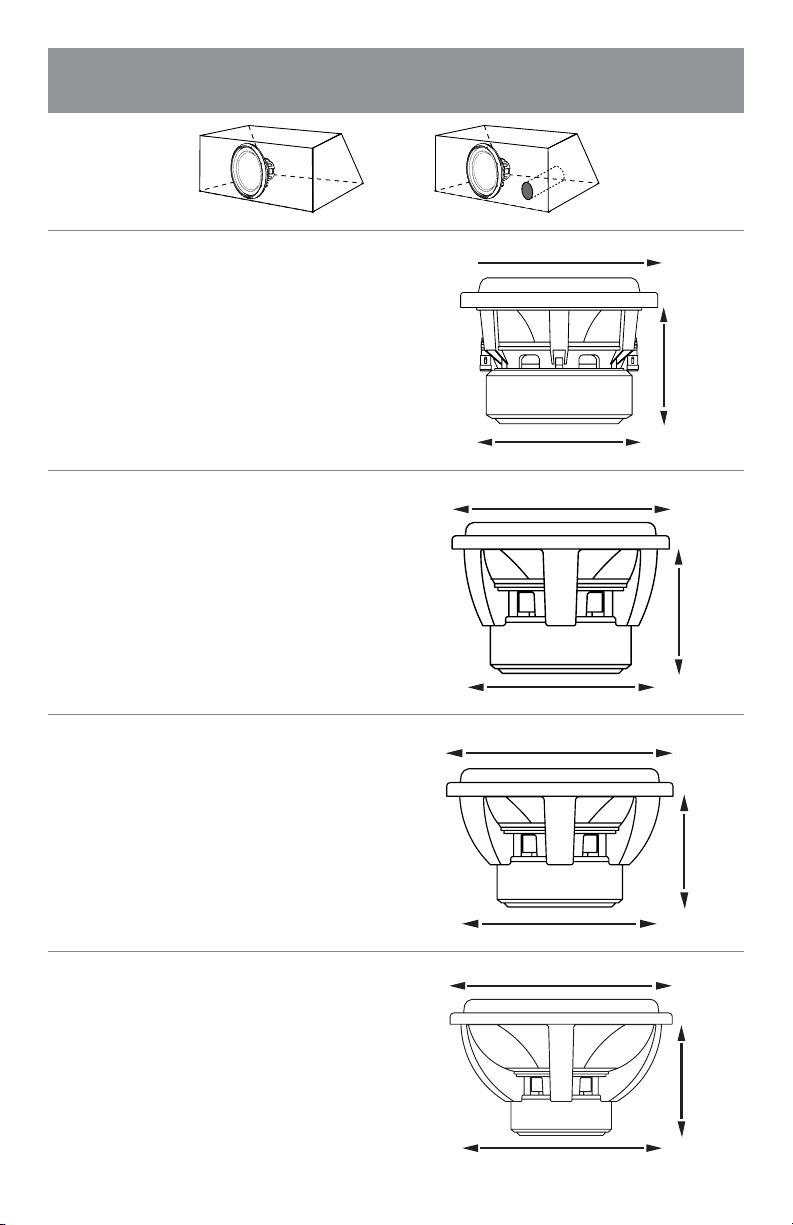

RECOMMENDED ENCLOSURES
EWX8D4
Sealed 0.5 cuft.
Vented 0.94 cuft
Round vent 3” long x 18” long
Or
8 square inches of surface area x 20” long
Tuned @ 38Hz
EWX12D4
Sealed 1.49 cuft.
Vented 1.8 cuft
Round vent 4” long x 10” long
Or
12.57 square inches of surface area x 10” long
Tuned @ 38Hz
7.56” / 192mm
15.55” / 395 mm
14.06” / 357mm
6.22” / 158mm
12.68” / 322 mm
11.26” / 286 mm
5.71” / 145mm
10.87” / 276 mm
9.41” / 239 mm
5.28” / 134 mm
8.66” / 220 mm
7.32” / 186 mm
Ce manuel convient aux modèles suivants
