FITTING THE WHEEL
6. INSERT AXLE THROUGH THE WHEEL HUB.
7. SLIDE AXLE SPACER OVER EACH END OF AXLE. ENSURE AXLE AND SPACER ARE POSITIONED CENTRAL IN THE HUB.

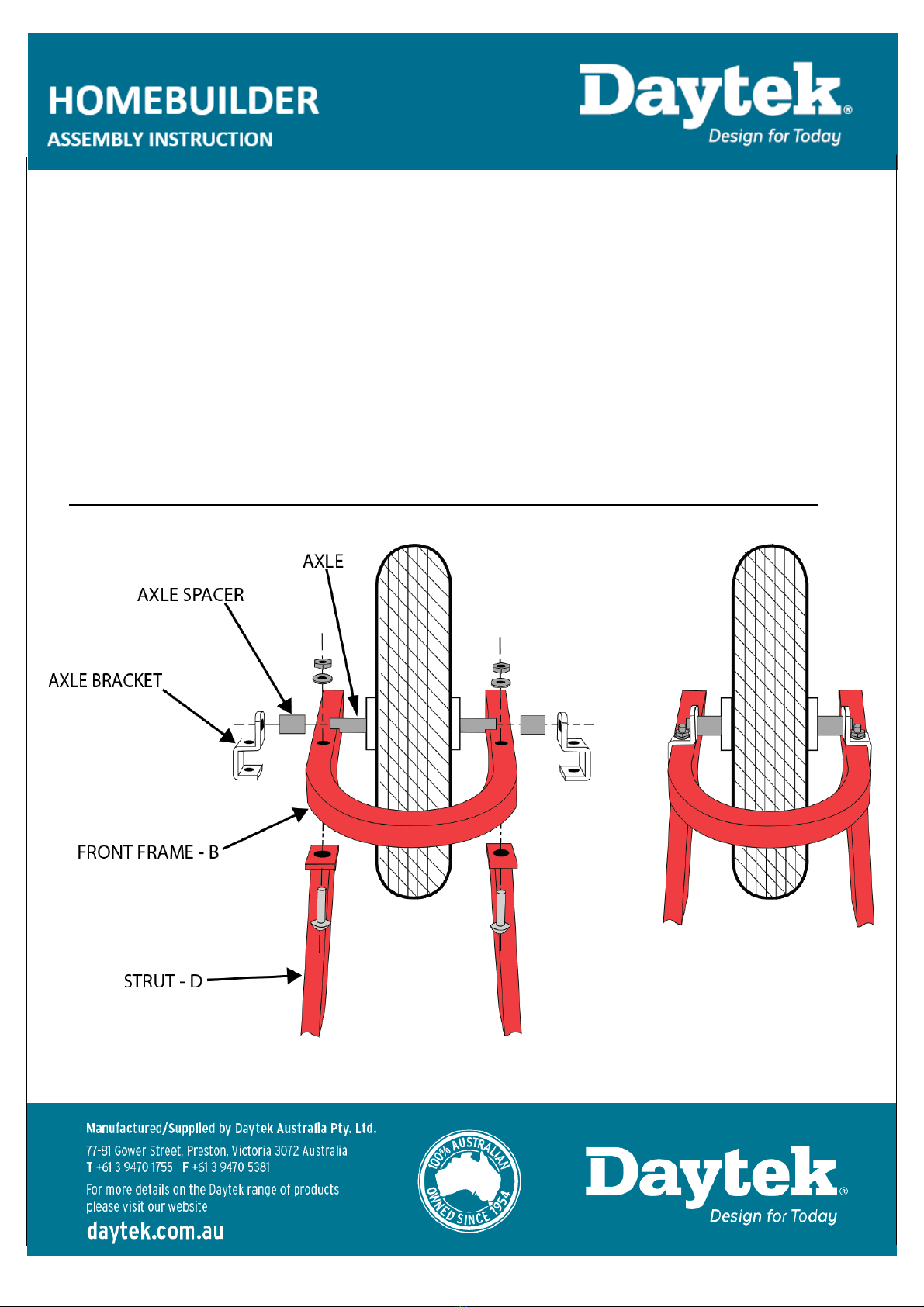

8. LOCATE ONE AXLE BRACKET AT POSITION 5 ON FRONT FRAME “B”. INSERT 1 x LONG BOLT THROUGH STRUT, AXLE
BRACKET AND FRAME. TIGHTEN WITH WASHER & NUT AS SHOWN IN DIAGRAM BELOW.
9. INSERT ONE END OF AXLE AND WHEEL ASSEMBLY INTO THE AXLE BRACKET. ENSURE THE FLAT EDGE ALIGNS WITH
THE FORM OF THE AXLE BRACKET.
10.SLIDE THE SECOND AXLE BRACKET INTO POSITION ON THE OTHER SIDE OF THE FRAME. ALIGN THE AXLE TO ENSURE
IT SLOTS INTO POSITION AT THE SAME TIME.
11. SECURE STRUT, AXLE BRACKET AND FRAME WITH 1 x LONG BOLT AND TIGHTEN WITH WASHER & NUT.
12. CHECK OVER ENTIRE ASSEMBLY, FULLY TIGHTEN ALL BOLTS AND ENSURE THAT THE WHEEL IS FREE TO SPIN.
