DAYLIFF DC80D Instructions d'installation

Engine Pumps

Installation &

Operating Manual

DC80D

DC80P

DCX150P

PUMP SPECIFICATIONS

SUCTION HOSE CONNECTIONS 3

PUMP OPERATIONS

ROUTINE MAINTENANCE

SAFETY WARNINGS

INDEX

Contents herein are not warranted

TROUBLE SHOOTING

WARRANTY

1. PUMP SPECIFICATIONS

Thank you for choosing Dayliff DC engine pump. Both pump and

engine have been manufactured to the highest standards and if

operated correctly should give many years of efficient and trouble

free service. Careful reading of this instruction manual is therefore

extremely important and if you have any queries please refer them to

your retailer.

FLOW (m /hr)

HEAD (m)

0 10 20 30

0 10 20 30 706040

PETROL DIESEL

DC 100D

DC 80P/D

DC 50P

DC 80K

DC 50K

FLOW (m /hr)

HEAD (m)

0 20 40 120

140

DCX

DCT

DCX2-50D

DCX1-80D

DCX1-50P

DCX2-50P

DCT80D DCT150D

60 80 100

FLOW (m /hr)

HEAD (m)

0 10 20 30 40

DCI

The DAYLIFF DC range of self priming engines pumps are of fully portable design

suitable for irrigation, dewatering and general pumping duties.

All pump bodies and impellers are manufactured from high grade cast

aluminium. Also included are quick-couple hose connectors and suction

strainers. Maximum suction is 8m at sea level, though this will be reduced at

altitudes.

All models feature open impellers suitable for pumping lightly silted water and a

sturdy carrying and protection frame.

DCX

High specification high pressure pump with option of single or twin impeller.

DCT

Robust diesel pumps for pumping polluted water and sewage.

DCI

Cast iron engine pumps for heavy duty dewatering.

DCI 80D

WARNING

Note that performance curves relate to the engine governor set

at maximum speed to achieve maximum rated power output.

To prolong engine life pumps should only be run under

maximum power conditions for short periods and for extended

duty the throttle setting should be reduced to approximately

three-quarters power. Pump performance will then be

reduced accordingly.

2. SUCTION HOSE CONNECTIONS

2” Petrol LT200P

LA186F

196 6.5

3.6 490

645

400

475

422

605

3” Diesel 406 5.5

920 560 800 180

DCX1 50P

DCX1 80D

DCT 150D 6” Electric LA290 954 28

1.8

2.0

2” LT200P 163 7.0 3.6 475 375 375 23

Tank

(ltr)

Dimensions (mm)

Model

Inlet

Outlet

Engine

Max.

Power

(HP)

Gross

weight

(kg)

480 395 384 23

W H

6.5

7.0

6.5

6.0

10.0

DC 50P

DC 80P

2”

3”

4”

Kohler

Sh265

LA178F

LT200P

196

163

196

296

406

3.6 1.96

3.6 2.1

3.6

3.5

5.5

1.96

1.5

2.5

520

540

590

385

440

450

422

510

530

Capacity

(cc)

Type

DC 80D

DC 100D

Fuel

Consumption

(lt/hr)

2.1

DC 80K

DC 50K

Kohler

Sh265

Fuel/

Star-

ter

Petrol

Diesel

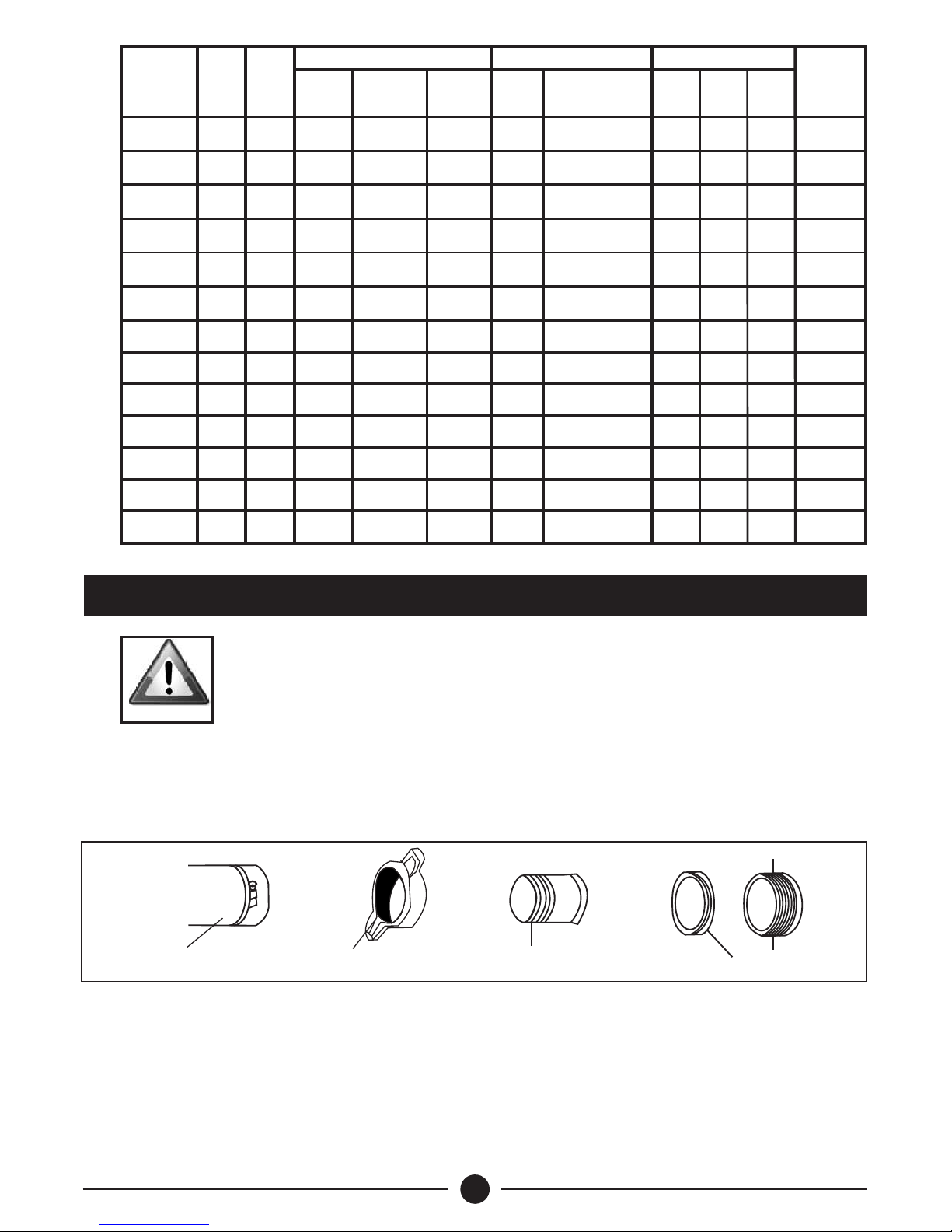

· Ensure the suction hose is of the rigid type and it should be of the same

diameter as the pump inlet and fitted with the correct connectors.

· Connect suction hose to the pump as indicated.

Hose band 1.) Coupling 2.) Hose nipple 3.) Coupling packing

WARNING

Airtight connection of the suction hose is essential or suction

prime will be lost and the pump won't operate.

DCX2 50P

DCX2 50D

LT200P 6.5 490 400 422

2” Petrol 196 3.6 281.7

LA178FP 5.4 540 400 540

2” Petrol 296 3.5 471.3

590 450 530 65

DCT 80D 3” Recoil LA178FP 406 3.5 1.5

545 475 605 73

DCI 80D 3” Diesel LA180 406 5.5 2.5

3. PUMP OPERATION

· CHECK ENGINE OIL. Operating without oil will

cause severe engine damage and invalidate the

warranty.

· Fill the pump chamber to overflowing with water

through the priming port. Insufficient water will

cause pump damage and limit suction

performance.

· Check that the suction hose strainer is immersed in

water and above the water source bed to avoid sucking mud, silt or sand.

The foot valve must be set not less than 300mm below the water surface.

· Ensure the delivery hose is unimpeded and laid without obstruction or kinks

to the delivery point .

· Start engine by pulling starter cord. Ensure ignition switch ‘on’, fuel valve ‘on’

and throttle at max speed. Close fuel valve whenever pump is not operating.

! Suction lift should be minimised to obtain maximum pump performance.

Maximum suction lift is 8m at sea level, though for acceptable pump

performance it should be limited below 4m.

· Ensure the delivery head is within the performance capacity of the pump (see

pump curve).

Priming port

4. ROUTINE MAINTENANCE

For Diesel pumps see separate engine manual. The below instructions apply to

petrol versions only.

ENGINE OIL

Check engine oil daily. If low refill with SAE30.

Change engine oil after first month or after 20hrs operation and thereafter every 3

months or 50 hours of operation, in both cases whichever is sooner.

AIR CLEANER

Check the air cleaner every 3 months or after 50 hours operations, whichever is

the sooner. Clean by blowing away accumulated dust and soaking in kerosene.

SPARK PLUG

A correctly set spark plug in good condition is essential for efficient engine

operation. Check the plug every 3 months or after 50 hours operation, clean with

a wire brush and set the electrode gap to 0.7-0.8mm. If general conduction is

unsatisfactory it should be changed with a NGK (BPR5ES) or similar.

PUMP HOUSING

Drain water from pump housing after use by releasing the drain plug.

5. SAFETY WARNINGS

Do not restrict the exhaust silencer.

There is a danger of overheating and fire.

Read and carefully understand the Instruction Manual before

before use.

Instruction

Manual

Ensure a competent trained person is used in case of overhaul.

Do not use pump on a slope.

Fuel spillage may occur and cause a fire.

Keep children away from pump when in operation.

Avoid proximity to fire when refueling.

Highly inflammable!

Gasoline

Do not operate pump inside a well or pit.

There will be an exhaust gas build up and the pump will overheat.

Ensure good ventilation around the pump and do not operate

indoors.

Exhaust gases are very poisonous.

Pump does not

prime water

Check suction piping

Add water

Tighten drain plug

Replace mechanical seal

Replace suction hose

Adjust engine speed

Insufficient priming water inside

pump casing

Drain plug is not tightened

Low engine speed

Damaged mechanical seal

Incorrect suction hose

Air in suction line

Oil leakage from

muffler or air

cleaner

Right engine & allow oil to drain

Engine has tipped over

Engine does not

start

Clean carburettor

Clean air cleaner

Oil sensor is activated. Add oil (oil sensor

prevents engine from running if

oil level is low)

Adjust engine oil to suitable level

Check fuel cock if open

Clean and adjust plug

Carburettor is blocked

Spark plug is wet / dirty

Air cleaner dirty

Too much engine oil

Insufficient engine oil

No fuel

6. TROUBLE SHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

Cannot pull or

hard to pull

Recoil starter

Overhaul Engine

Dismantle & clean the impeller

Rusting inside engine

Engine jammed

Jammed Impeller

Insufficient delivery

or no output

Check suction hose

Air leakage from suction side

Check and Repair engine

Output power down from engine

Reduce suction lift

Suction lift is high

Shorten suction pipe or enlarge

diameter

Suction pipe is too long or small in

diameter

Check delivery hose

Leakage of water from delivery hose or

pipe

Replace impeller Worn impeller

Dismantle & clean the impeller

Blocked Impeller

Reduce delivery head

Delivery head exceeds pump capacity

Specify different pump

7. TERMS OF WARRANTY

i) General Liability

! In lieu of any warranty, condition or liability implied by law, the liability of

Davis & Shirtliff (hereafter called the Company) in respect of any defect or

failure of equipment supplied is limited to making good by replacement

or repair (at the Company's discretion) defects which under proper use

appear therein and arise solely from faulty design, materials or workmanship

within a specified period. This period commences immediately after the

equipment has been delivered to the customer and at its termination all

liability ceases. Also the warranty period will be assessed on the basis of the

date that the Company is informed of the failure.

! This warranty applies solely to equipment supplied and no claim for

consequential damages, however arising, will be entertained. Also the

warranty specifically excludes defects caused by fair wear and tear, the

effects of careless handling, lack of maintenance, faulty installation,

incompetence on the part of the equipment user, Acts of God or any other

cause beyond the Company's reasonable control. Also, any repair or

attempt at repair carried out by any other party invalidates all warranties.

ii) Standard Warranty

If equipment failure occurs in the normal course of service having been

competently installed and when operating within its specified duty limits

warranty will be provided as follows:-

 Up to six months - The item will be replaced or repaired at no

charge.

 Over 6 month, less than a year - The item will be replaced or

repaired at a cost to the customer of 50% of the Davis & Shirtliff

market price.

The warranty on equipment supplied or installed by others is conditional

upon the defective unit being promptly returned free to a Davis &

Shirtliff office and collected thereafter when repaired. No element of site

repair is included in the warranty and any site attendance costs will be

payable in full at standard chargeout rates. Also proof of purchase including

the purchase invoice must be provided for a warranty claim to be considered.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels DAYLIFF Pompe à eau

DAYLIFF

DAYLIFF DDA Series Instructions d'installation

DAYLIFF

DAYLIFF AQUASTRONG CIRC 16 Instructions d'installation

DAYLIFF

DAYLIFF DSD Series Instructions d'installation

DAYLIFF

DAYLIFF DHF Instructions d'installation

DAYLIFF

DAYLIFF DDW 400S Instructions d'installation

DAYLIFF

DAYLIFF DDV 60 Instructions d'installation

DAYLIFF

DAYLIFF DS Instructions d'installation

DAYLIFF

DAYLIFF DD Instructions d'installation

DAYLIFF

DAYLIFF OSMOSIS Instructions d'installation

DAYLIFF

DAYLIFF SUNFLO-X Instructions d'installation

DAYLIFF

DAYLIFF DQ 15F Instructions d'installation

DAYLIFF

DAYLIFF DFP Instructions d'installation

DAYLIFF

DAYLIFF DB Instructions d'installation

DAYLIFF

DAYLIFF DMS Instructions d'installation

DAYLIFF

DAYLIFF AQUASTRONG SMART 45 Instructions d'installation

DAYLIFF

DAYLIFF DBE Instructions d'installation

DAYLIFF

DAYLIFF DDA Instructions d'installation

DAYLIFF

DAYLIFF DPL 550 Manuel utilisateur

DAYLIFF

DAYLIFF DDP Series Instructions d'installation

DAYLIFF

DAYLIFF DDF Series Instructions d'installation

DAYLIFF

DAYLIFF DWW Series Instructions d'installation

DAYLIFF

DAYLIFF DWY370 Instructions d'installation

DAYLIFF

DAYLIFF DDW 750V Instructions d'installation

DAYLIFF

DAYLIFF DZ Series Instructions d'installation

Manuels Pompe à eau populaires d'autres marques

Neptun

Neptun NPHW 5500 Manuel utilisateur

Sensidyne

Sensidyne Gilian BDX-II Instructions d'installation et d'utilisation

Draper

Draper 47808 Manuel utilisateur

Trolla

Trolla 12820 Manuel utilisateur

Sunfab

Sunfab SVH Series Manuel utilisateur

WilTec

WilTec 50740 Manuel utilisateur

Fieldmann

Fieldmann FVC 5015 EK Manuel utilisateur

Everbilt

Everbilt EFSUB5-122HD Manuel utilisateur

Graco

Graco Husky 3300e Manuel utilisateur

esotec

esotec 101018 Manuel utilisateur

moyno

moyno 2000 CC Manuel utilisateur

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuel utilisateur

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guide de dépannage

DUROMAX

DUROMAX XP WX Series Manuel utilisateur

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuel utilisateur

Franklin Electric

Franklin Electric IPS Manuel utilisateur

Xylem

Xylem e-1532 Series Manuel utilisateur

Milton Roy

Milton Roy PRIMEROYAL Manuel utilisateur
