Davey Maverick Manuel utilisateur
Wheeled Suction Pool Cleaner
Owner’s Manual
for the Installation and Service of the
Maverick Tune Up Kit
Replacement Wearable Parts
Should the installer or owner be unfamiliar with the correct installation
or operation of this type of equipment you should contact the
distributor/manufacturer for the correct advice before proceeding
with the installation or operation of this product. The pump
operator or owner must be provided with this owner’s manual.
The only tool required is a 5mm Allen Key or Screwdriver with a 5mm Hex Bit.
Instructions

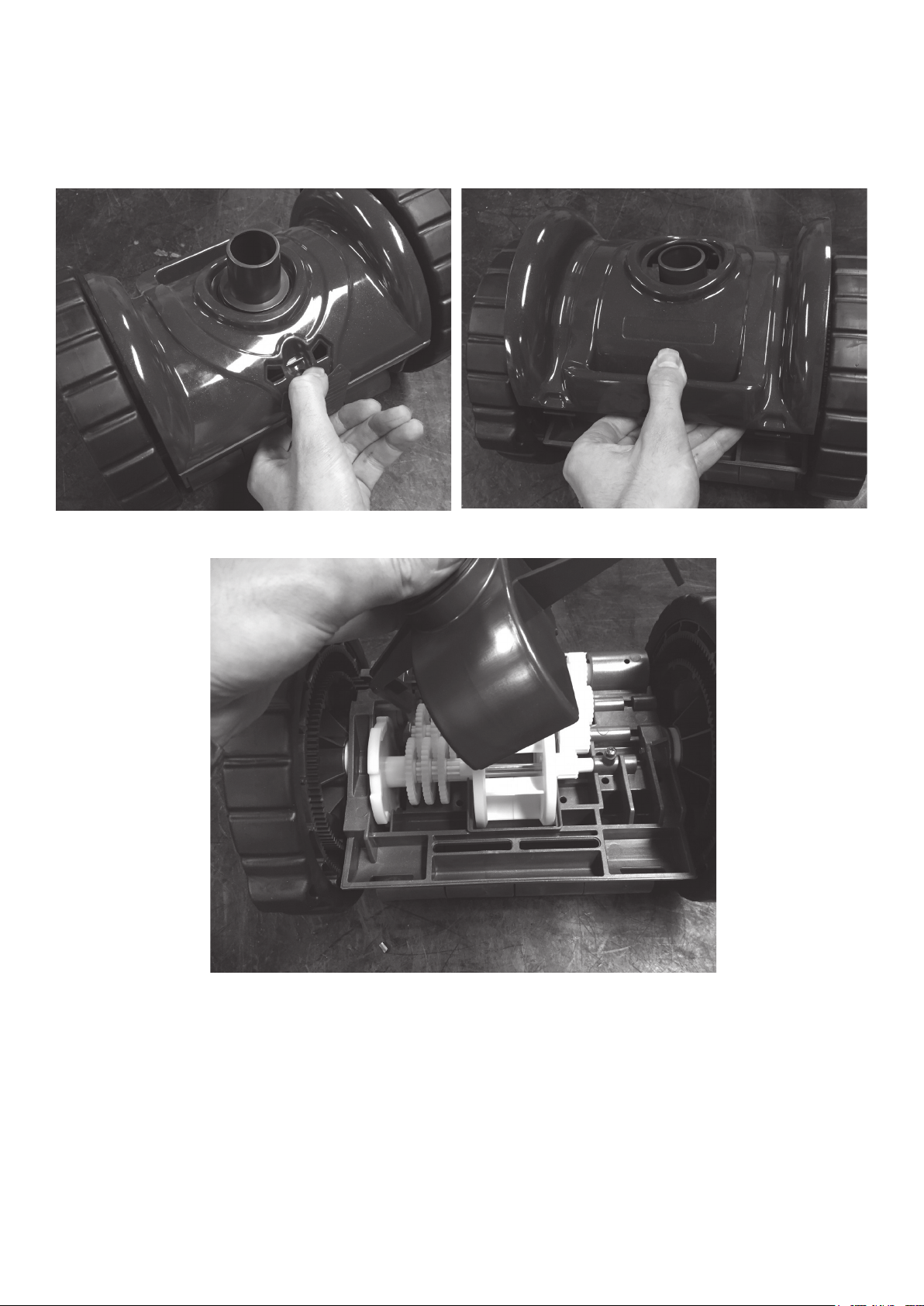

1. Undo the cover clip.
Tools Required
2. Detach the top cover to expose the cleaner internals.
3. Remove the turbine cover.

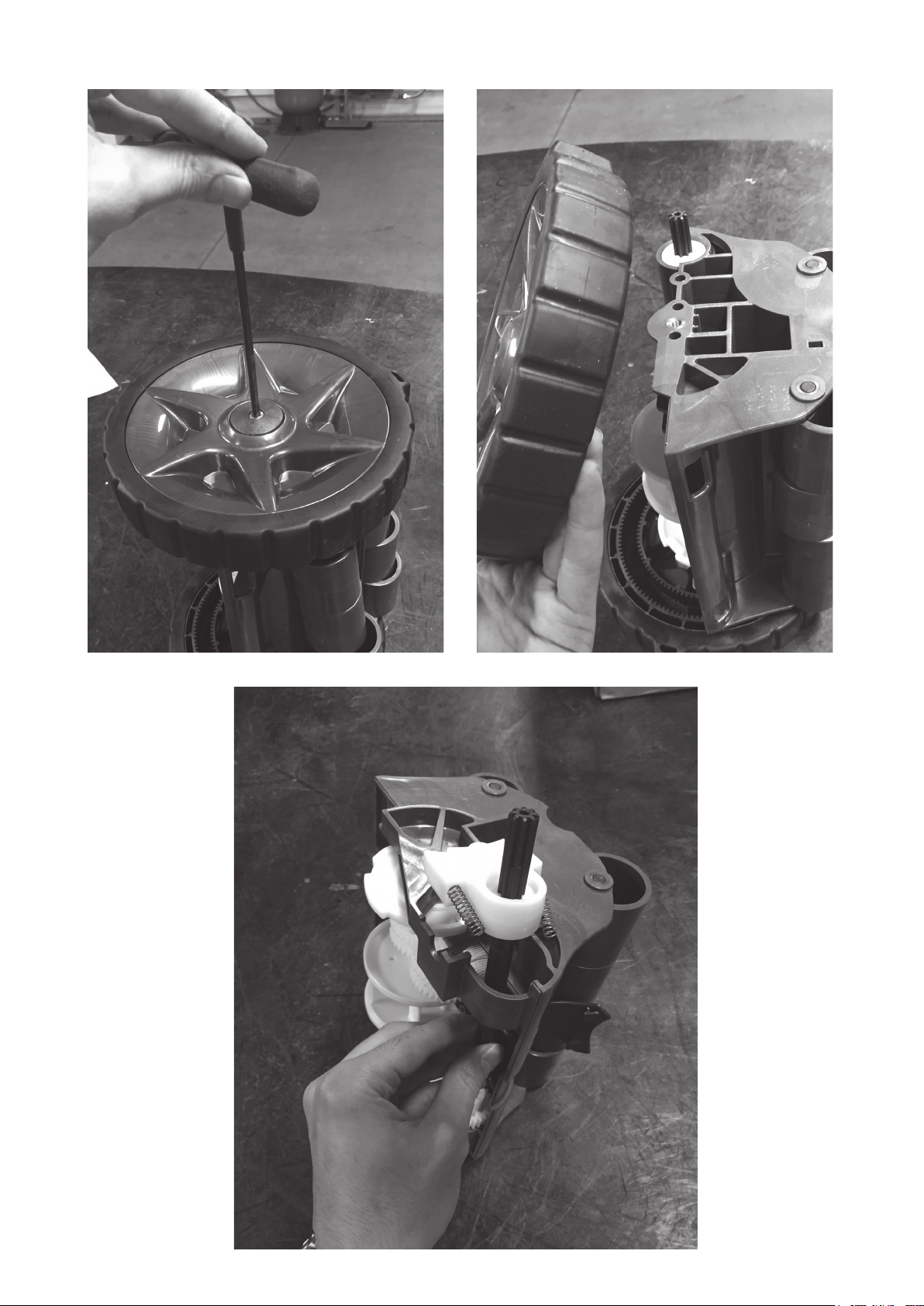

4. Insert allen-key into wheel screw and turn anti-clockwise. Remove both wheels.
5. Remove reversing drive assembly and drive shaft.
6. Remove forward drive gear.
7. Remove forward drive shaft and one of two bearings. 8. Remove second bearing.
9.Assemble forward drive kit, like so:
10. Insert forward drive kit.
11. Insert forward drive gear.
12. Insert reversing drive assembly and drive shaft.
13. Push reversing drive assembly in, so that wheel engages with cam.
14. Install turbine cover.
15. Replace cover and clip on.
