Datem Neptune 5000 Manuel utilisateur
Neptune 5000
© Copyright Datem Limited 2014
1
Neptune 5000
Technical Manual
Technical Manual
2
Revision History
Page
Number
Issue
Date Description Authority
All Sections 1 21/07/08 Issued to MS. MS
Multiple 2 16/03/10 Electronics Update. MS
All 3 22/07/11 Issued to MS MS
All 4 10/12/12 Client Release AB
All 5 19/03/13 Client Release MS
All 6 05/02/14 Client Release MS
All 7 22/10/14 Client Release AB
This document is the property of DATEM and should not be disclosed without prior written
consent.
Neptune 5000
© Copyright Datem Limited 2014
3
Contents
Re ision History ..................................................................................... 2
Introduction ........................................................................................... 8
System O er iew ................................................................................ 8
System Specification ............................................................................ 9
General System Maintenance ................................................................ 9
Software .............................................................................................. 10
Description ........................................................................................ 10
Specification ...................................................................................... 10
Operational Information ...................................................................... 10
Maintenance ...................................................................................... 10
Trouble Shooting ................................................................................ 11
Topside Control Box ............................................................................... 12
Description ........................................................................................ 12
Specification ...................................................................................... 13
Electrical Installation ........................................................................... 13
Topside Power Supply PCB ................................................................... 16
Topside Telemetry Board ..................................................................... 18
LCD Displays...................................................................................... 20
Maintenance ...................................................................................... 21
Frame Assembly .................................................................................... 22
Description ........................................................................................ 22
Specification ...................................................................................... 22
Assembly .......................................................................................... 22
Maintenance ...................................................................................... 23
Technical Manual
4
Compensator Assembly ......................................................................... 25
Description ....................................................................................... 25
Specification ..................................................................................... 26
Assembly .......................................................................................... 26
Operational Information ..................................................................... 28
Maintenance ..................................................................................... 28
Transformer Pod Assembly .................................................................... 31
Description ....................................................................................... 31
Specification ..................................................................................... 33
Assembly .......................................................................................... 33
Electrical Installation .......................................................................... 35
Operational Information ..................................................................... 37
Maintenance ..................................................................................... 37
Electronics Pod Assembly ....................................................................... 38
Description ....................................................................................... 38
Specification ..................................................................................... 40
Subsea Power Supply PCB .................................................................. 41
Subsea Connector PCB ....................................................................... 42
Subsea Microcontroller Board .............................................................. 45
Subsea Telemetry Board ..................................................................... 47
In erter Pod Assembly .......................................................................... 49
Description ....................................................................................... 49
Specification ..................................................................................... 50
Assembly .......................................................................................... 51
Motor / Gearbox Assembly ..................................................................... 59
Neptune 5000
© Copyright Datem Limited 2014
5
Description ........................................................................................ 59
Specification ...................................................................................... 59
Assembly .......................................................................................... 59
Maintenance ...................................................................................... 60
Thruster Assembly ................................................................................. 61
Description ........................................................................................ 61
Specification ...................................................................................... 61
Assembly .......................................................................................... 61
Maintenance ...................................................................................... 65
Chassis ............................................................................................. 65
Mechanism ........................................................................................ 65
Bearing Housing ................................................................................. 67
Assembly .......................................................................................... 67
Straightener ...................................................................................... 68
Slip-ring ............................................................................................ 73
Cone .................................................................................................... 75
Description ........................................................................................ 75
Specification ...................................................................................... 76
Assembly .......................................................................................... 76
Operational Information ...................................................................... 79
Maintenance ...................................................................................... 80
Cone Rod Assembly ............................................................................... 81
Description ........................................................................................ 81
Specification ...................................................................................... 81
Assembly .......................................................................................... 81
Technical Manual
6
Operational information ...................................................................... 82
Cone-rod Remo al ............................................................................. 82
Cone-Rod Fitting ............................................................................... 83
Maintenance ..................................................................................... 87
Encoder Assembly ................................................................................ 88
Description ....................................................................................... 88
Specification ..................................................................................... 89
Assembly .......................................................................................... 89
Operational information ...................................................................... 89
Maintenance ..................................................................................... 91
Cone-Up Sensor Assembly ..................................................................... 93
Description ....................................................................................... 93
Specification ..................................................................................... 93
Assembly .......................................................................................... 94
Operational Information ..................................................................... 96
Maintenance ..................................................................................... 96
Altimeter Assembly ............................................................................... 97
Description ....................................................................................... 97
Specification ..................................................................................... 97
Assembly .......................................................................................... 97
Operational information ...................................................................... 97
Maintenance ..................................................................................... 98
Fault Finding ........................................................................................ 99
Tools and Equipment ............................................................................ 100
Recommended Mechanical Tool Kit ..................................................... 100
Neptune 5000
© Copyright Datem Limited 2014
7
Recommended Electronics Tool Kit ..................................................... 100
Recommended Specialist Tools ........................................................... 100
Appendix A ......................................................................................... 101
Sample instructions for the wirelock® kit. ........................................... 101
Appendix B ......................................................................................... 103
Material safety data sheet for wirelock® kit. ........................................ 103
Appendix C ......................................................................................... 109
Material safety data sheets for loctite 242 threadlocker. ........................ 109
Appendix D ......................................................................................... 114
Material safety data sheets for HM10 hydraulic oil. ............................... 114
Technical Manual
8

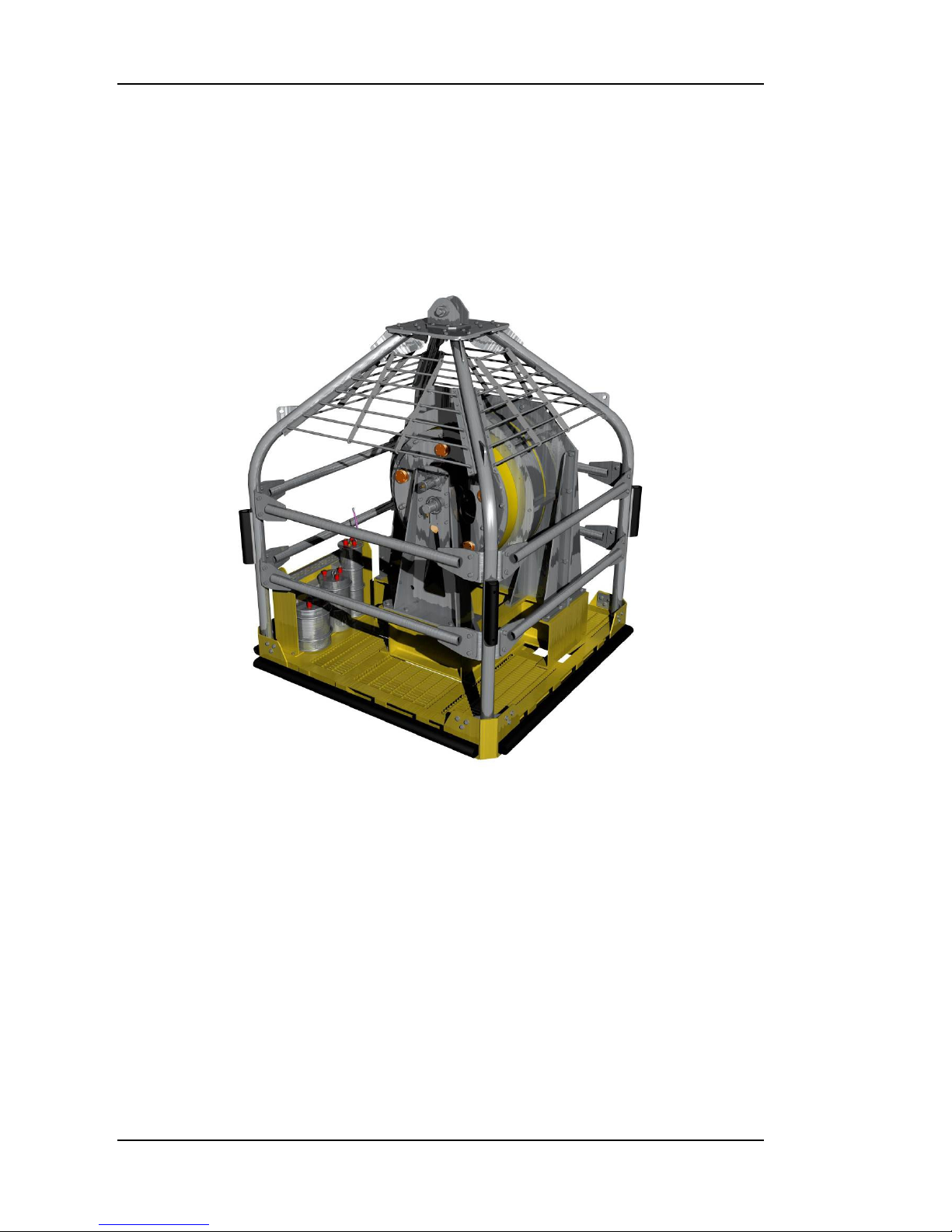

Figure 1: Neptune 5000 CPT System
This document and the content is ©Copyright Datem Limited 2014. No part of this
document may be copied in any way for commercial redistribution, republication, or
dissemination without the explicit written permission of Datem Limited.
Introduction
System Overview
Neptune 5000 Mk II is the Hea y Duty Cone Penetration system designed and
manufactured by Datem. The system uses the Datem Digital Cone to pro ide
accurate in-situ soil data from the transition zone to water depths up to 3000
metres, and will allow seabed penetration of up to 20 metres.
The system consists of the subsea thruster and frame, illustrated in figure 1, a
topside control box for powering the system and pro iding computer
connection, and Datem’s dedicated PC software for control and data
acquisition.
There are a ariety of optional extras that can be purchased from Datem for
use with this system, but this technical manual only co ers the basic features.
Additional technical manuals are a ailable for the optional features. This
Neptune 5000
© Copyright Datem Limited 2014
9
document is intended to gi e technical staff a basic understanding of the
o erall system, its assemblies, and rele ant information to enable routine
maintenance and repair.
System Specification
Dimensions 2.1m * 2.1m * 2.6m
Weight in Air 4000kg approx
Weight in Sea Water 3500 kg approx
Maximum Operating Pressure 300Bar
Thrust Capacity 35kN
Maximum Penetration 20 Metres
Water Depth 3000 Metres
Power requirement 240Vac 1ph 50/60 Hz, 16A
Penetration Speed
2cm/sec ±10%
Retraction Speed 5cm/sec approx.
Cone 5cm
2
/ 10cm
2
/ Custom
Cone Type Non Subtraction Piezo Digital Cone
Frame Inclination Resolution 1.0°
Acquisition RS 232 19,200 baud
Cone Data Rate Selectable up to 20Hz
Frame Sensor Data Rate 1 Hz
Topside Software Windows 7, Vista & XP Compatible
General System Maintenance
When the system is in operation, it should be washed down with clean, salt-
free water whene er it is returned to the deck of the ship. This will reduce
corrosion, and re eal any damage to the frame, pods, compensator, thruster,
or cables.
The electrical cables connected to the sensors, pods, and auxiliary equipment
should be isually inspected regularly to ensure there are no chafes or cuts in
the insulation. The connectors on both ends of the cables should be tightly
fitted with no face gap, and the lock-rings should be finger-tight.
All fastenings should be regularly checked to ensure they are present, tight,
and there is no damage to them or the items they are fitted to.
Reference should be made to the following sections of the manual to fulfil
detailed maintenance requirements, rele ant to each indi idual sub-system
during operation.
Technical Manual
10
Software
Description
The system operation is controlled directly from a Topside computer running
dedicated Neptune 5000 control and data acquisition software. Transmission
from the PC uses either standard RS232 protocol at 19,200 baud or Ethernet.
The data is transmitted to the telemetry system housed in the Topside Control
Box.
Specification
The Neptune 5000 control and acquisition computer software requires a
Personal Computer (PC) that meets the following minimum requirements.
Operational Information
Please refer to the Software manual for information on operating the Control
and Data Acquisition Software.
Maintenance
The only means of maintaining the software is to ensure that the hard dri e
has plenty of space and that running processes on the computer are kept to a
minimum, thus allowing the software to run at maximum speed with no delay.
Remo ing any unwanted applications can be achie ed by na igating to the
computers control panel and then selecting “Add/Remo e Programs”.
It is also good practice to regularly run the Scandisk software (recommended
once e ery month), to ensure that the hard disk is in good condition. Another
recommendation is to ensure that good housekeeping practices are adopted
with regards to file names and locations. This enables the data files from e ery
push job to be located easily and quickly.
Processor
2.0 GHz
Spare Hard Disk Space
80 GB
Memory
2.0 GB RAM
Graphics
128 MB
Resolution (Viewing Area)
1024 x 768 minimum
Ethernet Port
1 For Ethernet Communication
Operating System
Windows 7, Vista, XP
Table des matières
Manuels Électricité industrielle populaires d'autres marques
Murata
Murata GJM0335C1E4R4BB01 Series Manuel utilisateur
Stahl
Stahl 8575/12 Manuel utilisateur
SI
SI Pegasus Manuel utilisateur
Murata
Murata GRM1555C1H2R7CA01 Seies Manuel utilisateur
Murata
Murata GRM0225C1E6R4BA03 Series Manuel utilisateur
Cooper Power Systems
Cooper Power Systems VXE15 Manuel utilisateur
S&C
S&C Vista SD Manuel utilisateur
Murata
Murata GRM0335C2A7R3CA01 Series Manuel utilisateur
Siemens
Siemens 3VA9988-0BM10 Manuel utilisateur
Siemens
Siemens SITRANS LVS100 Manuel utilisateur
Murata
Murata GRM32ER60G227ME05 Series Manuel utilisateur
Siemens
Siemens SENTRON SUPERSWITCH 3KL82 Series Manuel utilisateur
