DATATON WATCHPAX 4 – USER’S GUIDE TABLE OF CONTENTS

1. INTRODUCTION 3

What’s WATCHOUT? 3

SYSTEM OVERVIEW 4

WATCHPAX 4 In Your Rig 4

Display Devices 4

TECHNICAL SPECIFICATION 5

Dimensions 5

Connectors 5

Environmental 5

DISPOSAL 6

2. INSTALLATION AND OPERATION 7

BEFORE USING YOUR WATCHPAX 4 7

Safety First 7

FCC Notice 8

VENTILATION 8

INSTALLATION 9

Standalone 9

In 19-inch rack 9

OPERATION 9

Power On 9

Power Off 9

Wake-On-Lan 9

GETTING STARTED 10

IP Number Assignment 10

Set Native Resolution 11

Auto Start 11

DELETE FILES 11

REBUILD SHOW CACHE 11

DATATON WATCHPAX 4 – USER’S GUIDE

Dataton, the Dataton logo, WATCHPAX,

WATCHOUT and WATCHMAX are registered

trademarks/trademarks of DATATON AB. All

other company and product names are trade-

marks or registered trademarks of their respec-

tive owners. Use of a term in this publication

should not be regarded as affecting the validity

of any trademark.

The information in this manual has been

checked and is believed to be accurate. How-

ever, Dataton assumes no responsibility for any

inaccuracies or errors in this manual or the

products described. In no event will Dataton be

liable for direct, indirect, special, incidental, or

consequential damages resulting from any

defect or omission in this manual, even if

advised of the possibility of such damages. The

technical information contained herein regard-

ing features and specications is subject to

change without notice.

Products or manufacturers mentioned do not

constitute a recommendation or endorsement

by Dataton.

Document number: 3785/1.2

Technical Support: [email protected]

INTRODUCTION 3

1. INTRODUCTION

WATCHPAX 4 is a dedicated display server with four video outputs and a built-in Dataton

WATCHOUT license. It features a high-performance specication designed solely with WATCHOUT

shows in mind. The four DisplayPort outputs support 4K (UHD) playback, making it a powerful and

portable alternative to display servers in a multi-display setup.

WATCHPAX 4 is a locked-down unit, precongured for playback of WATCHOUT shows and, there-

fore, ready to be used straight out-of-the-box. Multiple units can be installed together in a rig or mixed

with Dataton’s other display servers WATCHMAX or WATCHPAX 2.

WATCHPAX 4 is compact, sturdy and stackable. Each unit weighs just under 3 kg, making it easy to

transport. Other practical details include a strap handle, rubber bumpers and Kensington security slot.

Two units may also be mounted together and installed in a 19-inch rack.

WHAT’S WATCHOUT?

Dataton WATCHOUT is the leading multi-display production and presentation software. Use

WATCHOUT to orchestrate images, video, lighting, 3D and interactivity into a single impressive show.

The essential components of a WATCHOUT show are the software, display servers and display

devices, all running on a standard network. In an operational setup, WATCHOUT license keys are

required for each display server. This license key is built into WATCHPAX 4.

WATCHOUT shows can be presented with multiple projectors for large, seamless images or used with

monitors, LED walls or other creative screen arrangements. WATCHOUT also has a strong set of pro-

jection and pixel-mapping features for applying content to complex three-dimensional objects.

Download WATCHOUT for free from the Dataton website: www.dataton.com

INTRODUCTION 4

SYSTEM OVERVIEW

WATCHPAX 4 is used as part of a WATCHOUT multi-display system.

Production Computer

Network Switch

Video Signals

WATCHPAX 4

A small WATCHOUT system with WATCHPAX 4

In the illustration above, there is a laptop (production computer) running WATCHOUT software and

equipped with a WATCHOUT license key. This connects to a network switch which, in turn, connects

to a Dataton WATCHPAX 4 player (acting as the display computer). The WATCHPAX unit connects

and manages the display devices. In the example, these consist of four LED screens.

HINT: When connecting a single display computer to the production computer, a network switch may

not be required.

WATCHPAX 4 IN YOUR RIG

The WATCHPAX has four DisplayPort outputs. Used as is, it will manage four display devices in your

presentation. Splitters may also be used to increase the number of display devices managed.

As you increase the number of display devices in your show, add WATCHPAX units as needed.

Each WATCHPAX 4 has a built-in WATCHOUT license. That means that if you use Dataton’s dedicated

media players/servers (WATCHPAX, WATCHPAX 4 or WATCHMAX) the only additional license key

required is for your production computer. If you are not using a Dataton WATCHPAX 2, WATCHPAX 4

or WATCHMAX you would need a WATCHOUT license key for each display computer.

DISPLAY DEVICES

In the illustration above,four LED screens are used as the display devices. However, WATCHOUT can

be used with virtually any display device that can be connected to a computer (such as projectors,

LCD panels, LED walls etc).

INTRODUCTION 5

TECHNICAL SPECIFICATION

DIMENSIONS

Width 214 mm

Height 43 mm

Depth 276 mm

Weight 2950 g

CONNECTORS

The picture above shows the rear panel of the WATCHPAX 4 unit.

Power connector

IEC C14 power inlet

Input voltage 85 to 264 VAC, 50 to 60 Hz

Power consumption max 250 W (internal 3.14 A fuse)

Unit contains a 3 V coin-cell battery to power the RTC (real-time clock) circuitry

Ethernet port

RJ45 Gbit Ethernet

USB ports

Two USB 3.0 connectors

Audio

3.5 mm stereo audio out connector

Video outputs

Four full-size DisplayPort outputs, 4K (UHD) playback

ENVIRONMENTAL

Temperature range

Operating 0 to +40 °C.

Storage and transportation -20 to +50 °C.

Relative humidity

Operating, storage and transportation 10 to 90 % (non-condensing).

Altitude

Operating max 2000 m above sea level.

Storage and transportation max 12000 m above sea level.

Display outputs

Ethernet port Audio out

Power connector USB3 ports

INTRODUCTION 6

DISPOSAL

Only for European Union and EEA (Norway, Iceland and Liechtenstein)

This symbol indicates that this product is not to be disposed of with your household waste,

according to the WEEE Directive (2012/19/EU), the Battery Directive (2006/66/EC) and/or

national legislation implementing those Directives.

If a chemical symbol is printed beneath the symbol shown above, in accordance with the Battery

Directive, this indicates that a heavy metal (Hg = Mercury, Cd = Cadmium, Pb = Lead) is present in

this battery or accumulator at a concentration above an applicable threshold specied in the Battery

Directive.

This product should be handed over to a designated collection point, e.g., on an authorized one-for-

one basis when you buy a new similar product or to an authorized collection site for recycling waste

electrical and electronic equipment (EEE) and batteries and accumulators. Improper handling of this

type of waste could have a possible impact on the environment and human health due to potentially

hazardous substances that are generally associated with EEE. Your cooperation in the correct disposal

of this product will contribute to the effective usage of natural resources.

For more information about the recycling of this product, please contact your local city ofce, waste

authority, approved scheme or your household waste disposal.

INSTALLATION AND OPERATION 7

2. INSTALLATION AND OPERATION

BEFORE USING YOUR WATCHPAX 4

Please read the manual thoroughly before operation. WATCHPAX 4 is a plug-and-play unit – do not

open, modify or repair the unit yourself. This invalidates the warranty and presents a risk for the user.

SAFETY FIRST

Thisproductmustbegrounded.Ensureyouconnectthepowerplugtoagrounded power socket.

• To reduce risk of electrical shock, do not remove cover. Refer all servicing to Dataton. The unit shall

be connected to a grounded outlet.

• High voltage runs through the product. Do not attempt to disassemble, repair, or modify the product

on your own. Any attempt to do so will void the warranty.

• Do not use a damaged power cord or plug.

• Do not touch the power plug with wet hands.

• Insert the power plug all the way in, so it is not loose.

• Do not place the power cord or product near heat sources.

• Avoid installing the product in a narrow space with bad ventilation. Always keep front and back of

unit clear, minimum 200 mm.

• Always keep plastic packaging away from children.

• Do not install the product on an unstable or vibrating surface.

• Do not suspend the unit using the strap handle or use the strap as an anchor point.

• Do not install the product in a place where it is exposed to dust, moisture, oil or smoke.

• Take care not to drop the product when moving it.

• When installing the product on a shelf, ensure the bottom edge of the product does not protrude.

• Installing the product in an unusual place (e.g., where the product is exposed to a lot of dust, chemi-

cals, high temperatures, presence of moisture etc) may seriously affect its performance and lifetime.

• To move the product, rst disconnect all the cables from it.

• If the product emits a burning smell, or smoke, remove the power cord immediately and contact Dataton.

• If the product falls, or the exterior is damaged, remove the power cord and contact Dataton.

• If there is a risk of thunderstorm or lightning strike, turn off the power and disconnect all cables.

• Ensure the front and back of unit are not blocked in any way. These are necessary for proper ventila-

tion and require a clear space of minimum 200 mm.

• Do not insert a metallic object or inammable object into any opening of the product.

• Only use the supplied screws and brackets for mounting in 19” rack.

• Unplug this product from the AC power supply before cleaning with a dry or very slightly damp

cloth. Do not use liquid or aerosol cleaners on the product.

• After storage in cold conditions, let the product acclimatise to normal temperature for two hours

before powering on.

INSTALLATION AND OPERATION 8

FCC NOTICE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired

operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encour-

aged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio / TV technician for help.

Use of a shielded Ethernet cable is required to comply with class B limits in Subpart B of Part 15 of

FCC Rules.

Do not make any changes or modications to the equipment unless otherwise specied in the instruc-

tions. If such changes or modications should be made, you could be required to stop operation of the

equipment.

VENTILATION

IMPORTANT: Airow is critical for the correct operation of WATCHPAX 4. There are four built-in fans

which maintain airow and cooling during operation. Air ows from the front of the unit to the rear.

Keep therefore both front and rear panels clear of obstruction at all times. In an installation, there

should be a minimum of 200 mm clear space at front and 200 mm at back of the unit.

Air inlet: do not block.

Keep a minimum 200 mm clear space at front of unit

Air outlet: do not block.

Keep a minimum 200 mm clear space at rear of unit

INSTALLATION AND OPERATION 9

INSTALLATION

STANDALONE

Place the unit at. The base is the side of the unit showing the serial number and Dataton logo.

IN 19-INCH RACK

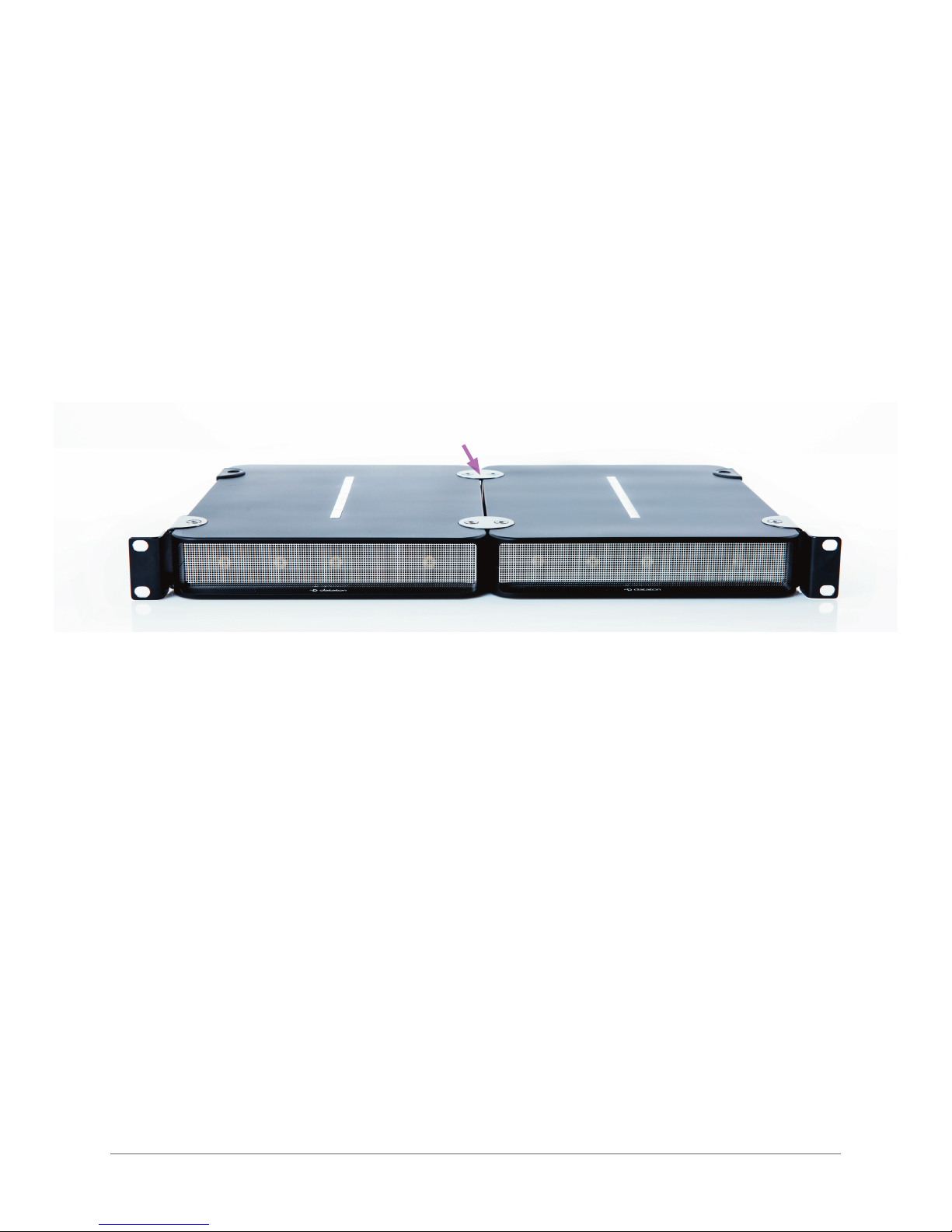

Two WATCHPAX 4 units may be joined together and inserted into a 19-inch rack.

IMPORTANT: The two units are attached with brackets at the front. The rack must therefore be

equipped with a shelf at the back to support the units.

• Using a hex key, remove the rubber bumpers on both units and retain the screws. Save the bumpers

in case you wish to re-mount them at a later date.

• Place the two units side-by-side and join them along the center line with the connection discs. Using

the screws from the bumpers, rst mount two discs on the top of the units. Carefully turn the unit over

and mount the remaining two discs along the center line on the underside of the units.

• IMPORTANT: Always mount all four discs to ensure the units are safely joined together.

• Mount the two rack brackets (or ears) on the front corners of the joined units. These can be tted

facing forward or backward, depending on the airow, and cabling.

OPERATION

POWER ON

There is no on/off switch on a WATCHPAX 4. The unit is turned on by inserting the power cord.

NOTE: The rst time you power up the unit, WATCHPAX 4 will initiate an installation routine which

typically takes about ve minutes to complete.

POWER OFF

Unplug the power cord to turn off the unit.

WAKE-ON-LAN

WATCHPAX 4 supports WakeOnLAN which enables users to remotely power on a computer or to

wake it up from sleep mode by a network message from WATCHOUT or WATCHNET. Please see

WATCHOUT and WATCHNET user guides for more information.

Connection discs,

four in total

INSTALLATION AND OPERATION 10

GETTING STARTED

• Connect the displays to the WATCHPAX 4.

NOTE: Both active and passive DisplayPort adapters to DVI/VGA/HDMI can be used with

WATCHPAX 4. Use a passive adapter if you can guarantee continuous power-on for the projector/

display or are certain it will already be powered up when you connect the WATCHPAX. Use an active

adaptor if there is a risk that the projector/display will shut down while connected to a powered

WATCHPAX.

• Connect the network to the WATCHPAX 4 using the Ethernet port.

• Insert the power cord to turn on the WATCHPAX 4. (Unit shall be connected to a grounded outlet.)

• Start WATCHOUT software on the production computer which is on the same network. Make sure

you are using version 6.1.3 or higher.

• The WATCHPAX and any WATCHOUT display computers on the local network will be listed in

Window > Network. Assign display and cluster names (if required) by double-clicking an item in the

list, see screenshot.

IP NUMBER ASSIGNMENT

WATCHPAX automatically retrieves an IP address via a DHCP server. If no DHCP server is available,

the WATCHPAX will get a self-assigned IP address in the range 169.254.x.y

If you are using a control system, you may want to use a xed IP address for WATCHPAX. Still in

WATCHOUT, assign a xed IP through the WATCHOUT protocol command “setIP” in the Startup

Script as shown below:

authenticate 2

setIP 192.168.0.32

Make sure you choose an IP address in the correct subnet range. To remove the xed IP number, use

the same command but with an empty string parameter, as below:

authenticate 2

setIP

WATCHPAX and display computers

on the network

Table des matières

Autres manuels Dataton Serveur

Dataton

Dataton WATCHPAX 60 Manuel utilisateur

Dataton

Dataton WATCHPAX 40 Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur
