Heron™

D130 READERS

QUICK REFERENCE

820001200

USING HERON



SERIES READERS

Heronguns automatically scan barcodes at a distance.

Simply aim and pull the trigger. Code scanning is performed

along the center of the light bar emitted from the reading

window. This bar must cover the entire code.

Successful scanning is obtained by tilting the scanner with

respect to the barcode to avoid direct reflections which impair

the reading performance, see the figure above.

Successful reading is signaled by an audible tone plus a

good-read green spot.

By correctly inserting the reader into the stand, it is immediately

ready to automatically read any code present in its reading area

without pressing the trigger. Furthermore, a green aiming light

is continuously emitted to facilitate the positioning of the

barcode to be read, see the figure above.

To guarantee single code reading, same code consecutive

reading requires the code to be removed from the reading area

(no decoding) before the reader will accept the same code.

CONNECTIONS

RS232

With the RS232 cable, this accessory device is intended to be

supplied by a UL Listed Direct Plug-in Power Unit marked

"Class 2", rated 5 V, minimum 180 mA.

PATENTS

This product is licensed under one or more of the following

U.S. patents:

4,282,425; 4,570,057; 4,766,300; 4,894,523; 5,021,642;

5,038,024; 5,081,343; 5,095,197; 5,144,119; 5,144,121;

5,182,441; 5,187,355; 5,187,356; 5,218,191; 5,233,172;

5,258,606 and /or 5,288,985

This product is covered by one or more of the following patents

and patent applications:

US 5,917,176; US 5,992,740; US 6,010,073;

US pat. Appl. 99US-320.643; US pat. Appl. 99US-362.988;

US pat. Appl. 98US-126.606; EP pat. Appl. 00EP-830.127;

EP pat. Appl. 00EP-830.122; EP pat. Appl. 98EP-830.336;

EP pat. Appl. 98EP-830.611; EP pat. Appl. 97EP-200.317;

EP pat. Appl. 97EP-830.408; EP pat. Appl. 96EP-830.473;

EP pat. Appl. 96EP-830.660; EP pat. Appl. 96EP-830.439

FCC COMPLIANCE

This device complies with PART 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any

interference received, including interference which

may cause undesired operation.

This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction

manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own

expense.

USB

With the USB cable, this accessory device is intended to be

supplied by a UL Listed Power Unit marked "Class 2", or an

LPS power source which supplies power directly to the reader.

IBM USB POS

With the USB cable, this accessory device is intended to be

connected to a UL Listed computer which supplies power

directly to the reader.

PEN

With the Pen Emulation cable, this accessory device is

intended to be supplied by a UL Listed Power Unit marked

"Class 2", or an LPS power source which supplies power

directly to the reader.

(if required)

WEDGE

With the Wedge or PC Notebook cables, this accessory device

is intended to be connected to either a UL Listed Computer

which supplies power directly to the reader or a UL Listed

Direct Plug-in Power Unit marked “Class 2”, rated 5 V,

minimum 180 mA.

DISCONNECTING THE CABLE

WARRANTY

Datalogic warranties this product against defects in

workmanship and materials, for a period of 5 years from the

date of shipment, provided that the product is operated under

normal and proper conditions.

Datalogic has the faculty to repair or replace the product, these

provisions do not prolong the original warranty term.

The warranty does not apply to any product that has been

subject to misuse, accidental damage, unauthorized repair or

tampering.

LED CLASS

Class 1 LED product.

This product conforms to EN60825-1:2001.

SERVICES AND SUPPORT

Datalogic provides several services as well as technical support

through its website. Log on to

www.datalogic.com/services/support and click on the links

indicated for further information including:

•

Services – Warranty Extensions and Maintenance

Agreements

•

Support – Software Driver Downloads

•

Quality Partners

•

Authorised Repair Centres

•

Products >Hand-Held Readers >Software Tools –

DL Sm@rtSet™

DL Sm@rtSet™ is a Windows-based utility program which

allows device configuration using a PC. It provides RS232

interface configuration as well as configuration barcode

printing.

READING DIAGRAM

0510 15 20 25 30 35

-15

-10

-5

D130 (STD) - Reading Zones (10° skew angle)

(cm)

CODE 39

0.13 mm

(5 mils)

EAN13 M=1

0.33 mm

(13 mils)

CODE 39

0.50 mm

(20 mils)

0.13 mm

(5 mils)

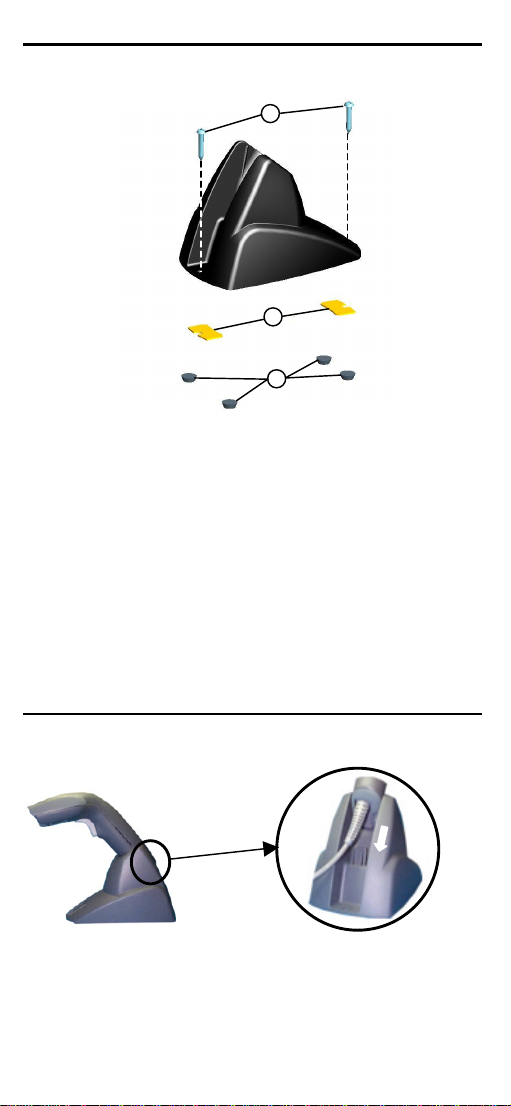

STAND INSTALLATION

The stand can be mounted by using self-tapping screws,

double sided adhesive strips or rubber feet:

A) mount the stand directly to the surface using the

self-tapping screws;

B) carefully clean the bottom surface of the stand and the

table surface. Remove the protective plastic from one side

of the adhesive strips and stick them on the stand bottom.

Then, remove the plastic from the other side of the strips

and affix the stand to the table;

C) carefully clean the bottom surface of the stand, remove

the protective film from the rubber feet and stick them in

the corresponding housing on the bottom surface. It is

also possible to fix an optional metal plate.

INSERTION INTO STAND

Pair the reader to the stand paying attention to insert the

handle into the stand clip (see figure above). Correct insertion

will be signaled by a beep; then, the reader will be ready to

read barcodes.

INTERFACE SELECTION

Follow the procedure to configure the interface required by your

application

USB Interface

RS232 Interface

Wedge Interface

Pen Interface

USB INTERFACE CONFIGURATION

The USB interface is compatible with:

Windows 98 (and later) IBM POS for Windows

Mac OS 8.0 (and later) 4690 Operating System

START-UP

As with all USB devices, upon connection, the Host performs

several checks by communicating with the Heron™. During this

phase the green LED on the Heron™ reader blinks and normal

operations are suspended. Two basic conditions must be met

before Heron™ is ready to read codes, the correct USB driver

must be loaded and sufficient power must be supplied to the

reader.

For all systems, the correct USB driver for the default

USB-KBD interface is included in the Host Operating System

and will either be loaded automatically or will be suggested by

the O.S. and should therefore be selected from the dialog box

(the first time only).

If the Host supplies sufficient power to the reader, the start-up

phase ends correctly, the green LED stops blinking and the

reader emits the beep OK signal.

If the Host does not supply sufficient power to the reader, a

dialog box will appear on the Host and the reader will be

blocked (green LED continues blinking). In this case,

disconnect the Heron™ USB cable at the Host (green LED

stops blinking), connect and power-up an external supply to the

Heron™ USB cable then reconnect the Heron™ USB cable to

the Host and close the dialog box. The reader emits the beep

OK signal. You can now read codes. At this point you can read

the USB interface configuration code according to your

application. Load drivers from the O.S. (if requested). When

configuring the USB-COM interface, the relevant files and

drivers must be installed from the USB Device Installation

software which can be downloaded from the web page

http://www.datalogic.com/services/support/.

The reader is ready.

TECHNICAL FEATURES

Heron



D130

Electrical Features

Power Supply

RS232 interface

5 Vdc ±5%

Consumption:

Maximum

Operating

Sleep mode

USB Suspend Mode

180 mA @ 5 Vdc

155 mA @ 5 Vdc

120 µA @ 5 Vdc

350 µA @ 5 Vdc

Max. Scan Rate 256 scans/sec

Reading Indicators LED, Good Read Spot, Beeper

Optical Features

Sensor CCD solid state (2048 pixels)

Illuminator LED array

Wavelength 630 ~ 670 nm

Max. LED Output Power 0.31 mW

LED Safety Class Class 1 EN 60825-1

Reading Field see reading diagrams

Max. Resolution 0.10 mm (4 mils)

PCS min. 15% (Datalogic Test Chart)

Environmental Features

Working Temperature 0 °C to + 55 °C

Storage Temperature -20 °C to + 70 °C

Humidity 90% non condensing

Drop Resistance IEC 68-2-32 Test ED

ESD Protection 16 KV

Protection Class IP30

Mechanical Features

Weight (without cable) about 160 g. (7 oz.)

Cable Length 2 m (6.1 ft.)

OPERATING TEST

Read the TEST codes below.

EAN-8

1234 5670

EAN-13

1 234567 000992

Code 39 (Normal)

17162

Code 128

test

Interleaved 2 of 5

0123456784

YOUR READER IS NOW READY TO READ BARCODES.

To change the defaults see the Software Configuration Manual.

Connect Heron™

USB to Host

Does a dialog

box appear

warning that Bus

power is not

sufficient?

Select desired USB

interface code

(USB-KBD is default)

Disconnect reader

at Host

Connect external

power supply to

cable and power up

Reconnect reader

cable to Host and

close dialog box

YES

Read test codes.

Reader is READY

Load drivers

(if requested)

Load drivers

(

if re

uested

)

Green LED blinks

Green LED off - BEEP OK

BEEP OK

First Start-Up

Green LED off

Successive start-ups will automatically recognize the previously

loaded drivers. If external power is used, verify that external

power is already supplied.

YES

Read test codes.

Reader is READY

Green LED blinks

Green LED off - BEEP OK

BEEP OK

Connect Heron™

USB to Host

Successive Start-Ups

Disconnect reader

at Host

Connect external

power supply to

cable and power up

Reconnect reader

cable to Host and

close dialog box

Does a dialo

box

appear warning

that Bus power is

not sufficient?

USB INTERFACE SELECTION

USB-KBD

i6"k

USB-COM*

i6"k

USB-IBM-Table Top

i6"k

USB-IBM-Hand Held

i6"k

USB-KBD-ALT-MODE

i6"!k

USB-KBD-APPLE

i6"'k

* When configuring USB-COM, the relevant files and drivers

must be installed from the USB Device

Installation software

which can be downloaded from the Heron™ USB web page

(see http://www.datalogic.com/services/support/).

CODE SELECTION

Enabled codes

• EAN 8/EAN 13 / UPC A/UPC E without ADD ON

check digit transmitted, no conversions

• Interleaved 2/5

check digit control and transmission, variable length

code; 4-99 characters

• Standard Code 39

no check digit control, variable length code; 1-99

characters

• Code 128

variable length code; 1-99 characters

Disabled codes:

EAN 128, ISBT128, Code 93, Codabar, pharmaceutical

codes, MSI, Plessey, Telepen, Delta IBM, Code 11,

Code 16K, Code 49, RSS Codes

ADVANCED FORMATTING PARAMETERS

concatenation disabled, no advanced formats defined

RS232 Nixdorf DEFAULT SETTINGS

DATA FORMAT

: code identifier enabled, no field adjustment,

code length not transmitted, no header, terminator = CR,

character replacement disabled

RS232 Fujitsu DEFAULT SETTINGS

9600 baud, no parity, 8 data bits, 1 stop bit, no handshaking,

delay disabled, rx timeout 2 sec., ack/nack disabled, FIFO

enabled, serial trigger lock disabled;

DATA FORMAT

: code identifier enabled, no field adjustment,

code length not transmitted, no header, terminator = CR,

character replacement disabled

RS232 ICL DEFAULT SETTINGS

9600 baud, parity even, 8 data bits, 1 stop bit, handshaking

RTS always on, delay disabled, rx timeout 9.9 sec., ack/nack

disabled, FIFO enabled, serial trigger lock disabled;

DATA FORMAT

: code identifier enabled, no field adjustment,

code length not transmitted, no header, terminator = CR,

character replacement disabled

WEDGE DEFAULT SETTINGS

USA keyboard, caps lock off, caps lock auto-recognition

enabled, num lock unchanged, inter-character and inter-

code delays disabled, control character emulation =

ctrl+shift+key;

DATA FORMAT

: code identifier disabled, no field adjustment,

code length not transmitted, no header, terminator =

ENTER, character replacement disabled

PEN EMULATION DEFAULT SETTINGS

interpret mode, conversion to code 39 disabled, output level

normal, idle level normal, minimum output pulse 600 µs,

overflow medium, inter-block delay disabled

POWER SAVE

scan rate max, standby disabled, sleep/USB suspended

disabled

READING PARAMETERS

hardware trigger, trigger active level, no trigger timeout,

Flash On = 1 sec, Flash Off = .6 sec, one read per cycle,

safety time .5 sec, beeper intensity high, tone 2, beeper

type monotone, beeper length short, good read spot

duration medium, stand recognition beep enabled;

automatic operation aiming light enabled

DECODING PARAMETERS

ink spread enabled, overflow control enabled, interdigit

control enabled, Puzzle Solver™ disabled, decoding safety

= one read

USB KEYBOARD NATIONALITY

USB-KBD users should select one of the following KEYBOARD

NATIONALITY codes.

Belge

i'+k

Deutsch

i'+k

English

i'+k

Español

i'+k

Français

i'+gk

Italiano

i'+bk

Svenskt

i'+k

USB KEYBOARD NATIONALITY (Continued)

USA

i'+]k

Japanese

i'+k

RS232 READER CONFIGURATION

Read the RESTORE DEFAULT code, then read the interface

selection code for your application.

RESTORE DEFAULT

iPk

RS232

Standard

i$1k

POS Systems

Nixdorf Mode A

i$.k

Fujitsu

i$.ek

ICL Mode

i$.`k

PEN READER CONFIGURATION

Read the RESTORE DEFAULT code, then read the PEN

interface selection code.

RESTORE DEFAULT

iPk

PEN

i$1#k

DEFAULT VALUES

USB DEFAULT SETTINGS

DATA FORMAT

: code identifier disabled, no field adjustment,

code length not transmitted, character replacement disabled.

USB KEYBOARD

: USA keyboard, inter-character and inter-

code delays disabled, control character emulation =

ctrl+shift+key;

USB COM

: no handshaking, delay disabled, rx timeout 5 sec.,

ack/nack disabled, FIFO enabled, serial trigger lock disabled;

Default Headers and Terminators for each USB mode:

USB-KBD: no header, terminator = ENTER

USB-KBD-ALT-MODE: no header, terminator = CR

USB-COM: no header, terminator = CR-LF

USB-IBM-TABLE TOP: not applicable

USB-IBM-HAND HELD: not applicable

RS232 Standard DEFAULT SETTINGS

9600 baud, no parity, 8 data bits, 1 stop bit, no handshaking,

delay disabled, rx timeout 5 sec., ack/nack disabled, FIFO

enabled, serial trigger lock disabled;

DATA FORMAT

: code identifier disabled, no field adjustment,

code length not transmitted, no header, terminator = CR-LF,

character replacement disabled

RS232 Nixdorf DEFAULT SETTINGS

9600 baud, parity odd, 8 data bits, 1 stop bit, handshaking

hardware (RTS/CTS), delay disabled, rx timeout 9.9 sec.,

ack/nack disabled, FIFO enabled, serial trigger lock disabled;

Autres manuels pour Heron D130

Table des matières

Autres manuels Datalogic Lecteur de codes-barres

Datalogic

Datalogic QuickScan QBT2500 Manuel utilisateur

Datalogic

Datalogic HandScanner SR Manuel utilisateur

Datalogic

Datalogic Gryphon I GM4102 Manuel utilisateur

Datalogic

Datalogic GryphonD432 Manuel utilisateur

Datalogic

Datalogic Gryphon GM44XX Manuel utilisateur

Datalogic

Datalogic QLM500 Manuel utilisateur

Datalogic

Datalogic Gryphon I GD4100 Manuel d'installation et d'exploitation

Datalogic

Datalogic DRAGON M SERIES Manuel utilisateur

Datalogic

Datalogic PowerScan Retail PD953X-RT Manuel utilisateur

Datalogic

Datalogic Magellan 1100i Manuel d'installation et d'exploitation

Datalogic

Datalogic Magellan 3300HSi Manuel utilisateur

Datalogic

Datalogic Gryphon I GM4100 guide Manuel utilisateur

Datalogic

Datalogic QuickScan I QD24 Series Manuel d'installation et d'exploitation

Datalogic

Datalogic DRAGON D101 Manuel utilisateur

Datalogic

Datalogic PowerScan PD96 Series Manuel d'installation et d'exploitation

Datalogic

Datalogic Cobalto CO5300 Manuel utilisateur

Datalogic

Datalogic DS6300 Manuel utilisateur

Datalogic

Datalogic DS4800 Manuel utilisateur

Datalogic

Datalogic MAGELLAN 3200VSI Manuel d'installation et d'exploitation

Datalogic

Datalogic DX8200 Manuel utilisateur

Datalogic

Datalogic QuickScan I QBT21X1 Manuel utilisateur

Datalogic

Datalogic PowerScan PD8530 Manuel utilisateur

Datalogic

Datalogic Gryphon I GM440 Series Manuel d'installation et d'exploitation

Datalogic

Datalogic DLL5100 Series Manuel utilisateur

Manuels Lecteur de codes-barres populaires d'autres marques

POSMicro

POSMicro Datalogic PowerScan D7100 Manuel utilisateur

Marson

Marson MT780 Guide de configuration rapide

NCR

NCR RealPOS Manuel utilisateur

Motorola

Motorola SE3300 Guide de configuration rapide

Element

Element P130BT Manuel utilisateur

Motorola

Motorola Symbol LS3008 Manuel d'installation et d'exploitation

Meec tools

Meec tools OBD-II / VAG Manuel utilisateur

SICK

SICK CLP 100 Manuel utilisateur

Royal Tag SA

Royal Tag SA I-Read Manuel utilisateur

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuel utilisateur

Meteor

Meteor 8310 Manuel utilisateur

Denso

Denso BHT-500B Manuel utilisateur

Motorola

Motorola MP6000 Instructions de montage

Newland

Newland NLS-HR15-BT Manuel utilisateur

ARTDEV

ARTDEV AS-1310 Manuel utilisateur

Aopos

Aopos AS290 Manuel utilisateur

ENS

ENS 367-5455 Manuel utilisateur

Atid

Atid AT188N Plus Manuel utilisateur
