Datalogic DS8100A-3002 Manuel utilisateur

DS8100A-3002

QUICK REFERENCE GUIDE

NOTE

This manual illustrates a typical Local Lonworks network application. For more details refer

to the DS8100A Reference Manual available on the CD. For complete scanner configuration

using the Genius™ configuration program refer to the Help On Line.

821001264 (Rev. D)

DS8100A-3002 QUICK GUIDE

UPDATES AVAILABILITY

UK/US The latest drivers and documentation updates for this product are available on Internet.

Log on to: www.automation.datalogic.com

ISu Internet sono disponibili le versioni aggiornate di driver e documentazione di questo

prodotto. Collegarsi a: www.automation.datalogic.com

FLes versions mises à jour de drivers et documentation de ce produit sont disponibles sur

Internet. Cliquez sur : www.automation.datalogic.com

DIm Internet finden Sie die aktuellsten Versionen der Treiber und Dokumentation von diesem

Produkt. Adresse : www.automation.datalogic.com

EEn Internet están disponibles las versiones actualizadas de los drivers y documentación de

este producto. Dirección Internet : www.automation.datalogic.com

SERVICES AND SUPPORT

Datalogic provides several services as well as technical support through its website. Log on to

www.automation.datalogic.com and click on the links indicated for further information:

PRODUCTS

Search through the links to arrive at your product page which describes specific Info, Features, Applications,

Models, Accessories, and Downloads including the Genius™ utility program, which allows device

configuration using a PC. It provides RS232 and Ethernet interface configuration.

SERVICE

- Overview - Warranty Extensions and Maintenance Agreements

- Sales Network-Listing of Subsidiaries, Repair Centers, Partners

- Helpdesk

- Material Return Authorization

LEGAL NOTICES

U.S. and international laws. Copying, or altering of this document is prohibited without express written consent

from Datalogic Automation S.r.l.

Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the

U.S.A. and the E.U.

Genius, PackTrack, ACR, ASTRA, CD SQUARE and ID-NET are trademarks of Datalogic Automation S.r.l.

All other brand and product names mentioned herein are for identification purposes only and may be trademarks

or registered trademarks of their respective owners.

Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or

consequential damages resulting from the use of this material.

DS8100A-3002 QUICK GUIDE

DS8100A-3002 GENERAL VIEW

Figure A

Laser Beam Output Window

Figure B

Programming Keypad

Phase On LED (Yellow)

Power On LED (Green)

TX Data LED (Green)

Network LED (Red)

Encoder LED (Yellow)

LCD Display

Figure C

Lonworks 17-pin Male Connector

Lonworks 17-pin Female Connector

1 2

2 3 4 5 6

DS8100A-3002 QUICK GUIDE

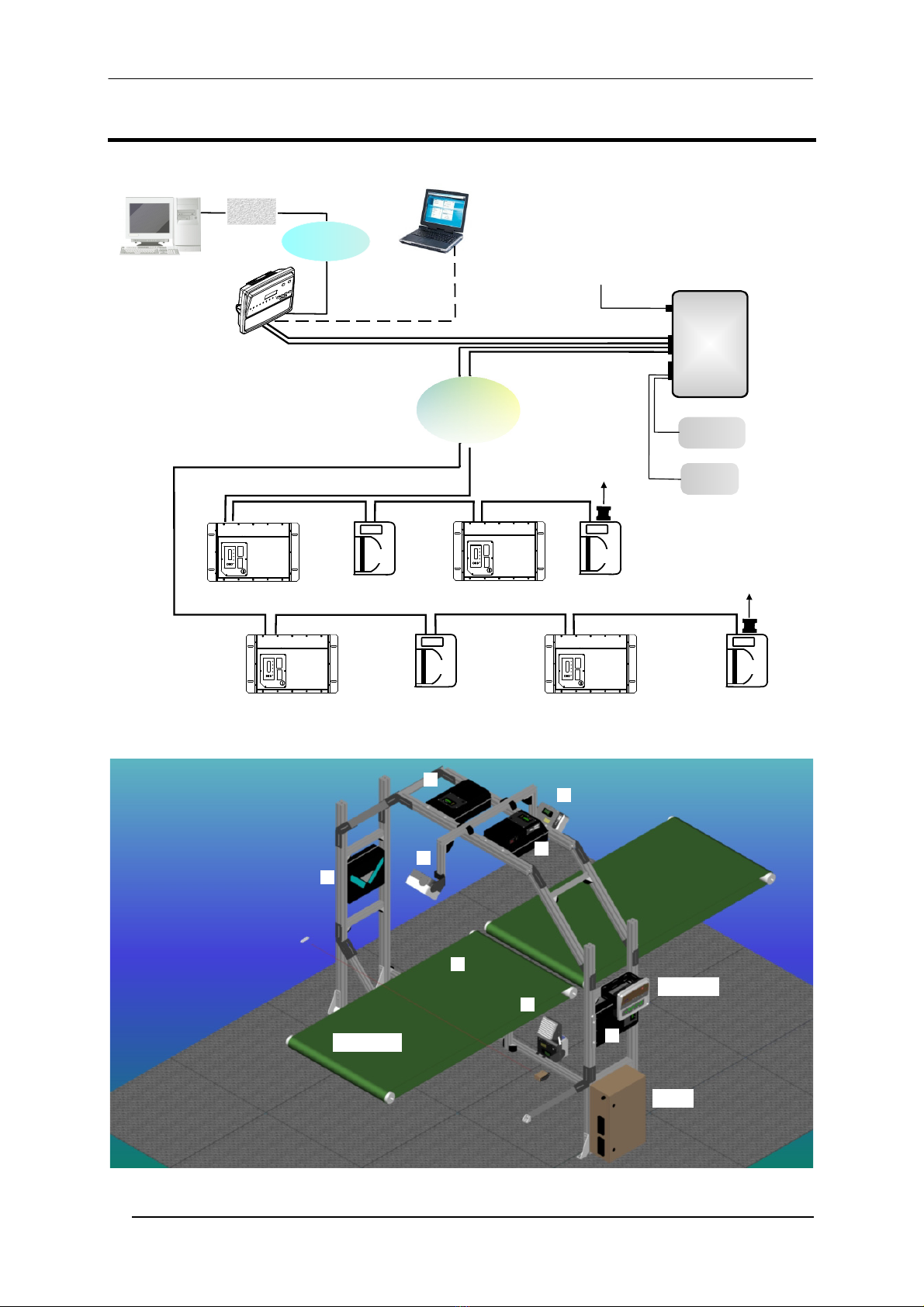

CONNECTIVITY

Local Lonworks Network

Large Synchronized Network with DX8200A and DS8100A Scanners

Example Large Synchronized Network Reading Station

Conveyor

SC6000

PWO

Extended I/O

Host

HUB

ETHERNET

SC6000 AUX

CAB-SC6003

CAB-SC6013

Power/Net

VAC INPUT

CAB-SC6103

Cable

PWO

LONWORKS

ENCODER

PS Aux

CAB-85xx

CAB-85xx CAB-85xx

CAB-85xx

BTK-8500

Bus Return

DX8200A-3002

CAB-85xx CAB-85xx

BTK-8500

Bus Return

CAB-85xx

C E G

HFD

DS8100A-3002 DX8200A-3002 DS8100A-3002

DX8200A-3002 DS8100A-3002 DX8200A-3002 DS8100A-3002

DS8100A-3002 QUICK GUIDE

Redundant Reading Station Layout with DX8200A and DS8100A Scanners

AUX

CAB-SC6103

Extended I/O

ETHERNET

SC6000

CAB-SC6003

CAB-SC6013

Power/Net

VAC INPUT

PWO

LONWORKS

ENCODER

PS Aux

CAB-85xx

BTK-8500

CAB-85xx

CAB-85xx CAB-85xx

Extended I/O

ETHERNET

SC6000

CAB-SC6003

CAB-SC6013

Power/Net

VAC INPUT

PWO

CAB-PWO 03

Redundancy

CAB-85xx

CAB-85xx CAB-85xx BTK-8500

DX8200A-3002

ENCODER

PS Aux

LONWORKS

Working

Controller

Protecting

Controller

to Host

DS8100A-3002 DX8200A-3002 DS8100A-3002

DX8200A-3002 DS8100A-3002 DX8200A-3002 DS8100A-3002

DS8100A-3002 QUICK GUIDE

Example Redundant Reading Station

ELECTRICAL CONNECTIONS

Two 17-pin connectors provide access to the scanner’s local Lonworks network used for both input and output

connections to build a multi-sided or omni-station system.

17-pin Lonworks Connector Pinout

Pin Name Function

A1 GND Supply voltage (negative pin)

A2 VS Supply voltage 20 to 30 Vdc (positive pin)

Cable shield A - internally connected by

1 CHASSIS capacitor to chassis

2 n.c. Not connected

Cable shield B - internally connected by

3 CHASSIS capacitor to chassis

4 TXAUX Transmit data of auxiliary RS232

(referred to SGND)

5 SGND Signal ground (connected to GND)

6 RXAUX Receive data of auxiliary RS232

(referred to SGND)

7 VS_I/O Supply voltage of I/O circuit

8 Lon A+ Lonworks a line (positive pin)

9 Lon A- Lonworks a line (negative pin)

10 Lon B+ Lonworks b line (positive pin)

11 Lon B- Lonworks b line (negative pin)

12 SYS_I/O System signal

13 SYS_ENC_I/O System signal

14 Reserved Internally connected

15 Ref_I/O Reference voltage of I/O circuit

A1 A2

Female - Output

A1 A2

Male - Input

17-pin Local Lonworks Connectors

Conveyor

SC6000

Working

PWO

SC6000

Protecting

PWO

DS8100A-3002 QUICK GUIDE

APPENDIX

TECHNICAL FEATURES

ELECTRICAL FEATURES

Supply Voltage 20 to 30 Vdc

Power Consumption 1.0 to 0.67 A; 20 W typical

1.5 to 1.0 A; 30 W Max. (including startup current)

Communication Interfaces Auxiliary Baud Rate

RS232 1200 to 115200

Other

Lonworks 1.25 Mb/s

OPTICAL FEATURES

Light Receiver Avalanche photodiode

Safety Class 630 to 680 nm

Wavelength Class 2-EN 60825-1; Class II-CDRH

Laser Control Security system to turn laser off in case of motor slow down

READING FEATURES

Scan Rate ≤1000 scans/s

Max. Resolution

Max. Read. Distance

Max. Read. Width

Max. Depth of Field

(see reading diagrams)

USER INTERFACE

LCD Display 2 lines by 20 characters LCD

Keypad 3 keys

LED Indicators Power ON (green)

Phase ON (yellow)

Encoder (yellow)

TX Data (green)

Network (red)

SOFTWARE FEATURES

Readable Codes Interleaved 2/5

Code 39 Standard

Codabar

Code 128

GS1-128 (ex EAN 128)

Code 93 (standard & full ASCII)

EAN/UPC (including Add-on 2 and Add-on 5)

GS1 DataBar (including Limited and Expanded)

Code Selection Up to 10 codes during one reading phase

Operating Modes PackTrack™

Configuration Mode Genius™ utility program

Parameter Storage Non-volatile internal FLASH

ENVIRONMENTAL FEATURES

Operating Temperature 0° to +50 °C (+32 to +122 °F)

Storage Temperature 20° to +70 °C (-4° to +158 °F)

Humidity -90% non condensing

Vibration Resistance

EN 60068-2-6

14 mm @ 2 to 10 Hz; 1.5 mm @ 13 to 55 Hz

2 g @ 70 to 200 Hz; 2 hours on each axis

Shock Resistance

EN 60068-2-27

30 g; 11 ms

3 shocks on each axis

Protection Class

EN 60529

IP65*

PHYSICAL FEATURES

Dimensions mm (inch) 217 x 173 x 127 (8.54 x 6.79 x 4.98)

Weight 5 Kg (11 lbs.)

* IP65 cables and connectors required (CAB-850x or BTK-8500).

DS8100A-3002 QUICK GUIDE

ACCESSORIES

Name Description Part Number

Power Supply

PWO-480 Power and Connect System 480W 93ACC1767

Cables and Terminators

BTK-8100 Bus Terminator Kit (5 pcs) 93ACC1090

BTK-8500 IP65 Terminator Kit (2 pcs) 93A051286

CAB-8100 10 wire shielded cable D 9.5 mm – 50 m 93ACC1120

CAB-8101 17-pin scanner/scanner connection cable 1.2 m 93A051020

CAB-8102 17-pin scanner/scanner connection cable 2.5 m 93A051030

CAB-8105 17-pin scanner/scanner connection cable 5 m 93A051040

CAB-8501 IP65 Cable Fam 8K 1,2 m 93A051283

CAB-8502 IP65 Cable Fam 8K 2,5 m 93A051284

CAB-8505 IP65 Cable Fam 8K 5 m 93A051285

Sensors

S30 Photocell Kit 93ACC1782

MEP-593 Photocell kit – PNP (PH-1) 93ACC1791

MEP-543 Photocell Kit – NPN 93ACC1728

OEK-2 Optical Encoder Kit + 10 m cable + Spring 93ACC1770

OEK-1 Optical Encoder Kit + 10 m cable 93ACC1600

Deflection Mirrors

GFC-80 90° mirror 93A251020

GFC-800A Adjustable Mirror for Close Distance Reading 93A201114

Brackets

FBK-8100 Fast bracket kit (2 pcs) 93ACC1130

US-8100 Bracket kit (10 pcs) 93ACC1140

FS-1 Frame Shaper (8 pcs) 93ACC1750

Miscellaneous

PLL-8000 Optocoupled PLL device 93ACC1280

ACS-81 Air cleaning system 93ACC1430

DS8100A-3002 QUICK GUIDE

MECHANICAL INSTALLATION

DS8100A-3002 can be installed to operate in any position. There are 16 screw holes (M6 X 8) on the sides of the

scanner for mounting. The following diagrams give the overall dimensions of the reader standard model and

mounting bracket. They may be used for their installation:

127

[4.98]

173

[6.79]

217

[8.54]

[1.97]

[2.66]

45°

[1.84]

45°

[1.97]

[1.84]

[2.66]

M6 N°16

DS8100A-3002 Overall Dimensions

inch

164

[6.45]

[0.19]

100

[3.93]

[1.18]

[0.63]

100

[0.59]

R 15

[1.88]

[0.59]

R 15 N°4

[3.93]

[0.59]

164

[6.45]

[3.15]

[1.77]

17.5

[0.68]

8.5 N°4

[0.33]

ST-163 Mounting Bracket Overall Dimensions

WARNING

When installing several scanners, take care to position them correctly so that no laser beam

enters the reading window perpendicularly and at the same level of the output beam of the

other scanners. This condition could occur more frequently for side mounted applications. If

these precautions are not followed, it may occur that the laser of the blinded scanner starts

blinking due to an internal circuit which temporarily turns the laser off when detecting a

power anomaly. To resolve this problem, it is sufficient to slightly change the inclination and

position of one of the two scanners involved.

inch

DS8100A-3002 QUICK GUIDE

READING DIAGRAMS

Note: (0,0) is the center of the laser beam output window.

DS8100A-3002 – 0.50 mm/20 mils

CONDITIONS

Code = Interleaved 2/5 or Code 39

PCS = 0.90

“Pitch“ angle = 0°

“Skew“ angle = 10°

“Tilt“ angle = 0°

(in)

015 32 (in)

24 40

040 60 (cm)

-10

(cm)

80 100 120 140

48 56

160

-40

-30

-20

-60

-50

-12

-8

-4

-20

-16

-24

Autres manuels pour DS8100A-3002

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Datalogic Lecteur de codes-barres

Datalogic

Datalogic Gryphon I GFE4500 Manuel d'installation et d'exploitation

Datalogic

Datalogic DS5100-X200 Manuel utilisateur

Datalogic

Datalogic Gryphon I GFS4400 Manuel d'installation et d'exploitation

Datalogic

Datalogic POWERSCAN SR Manuel utilisateur

Datalogic

Datalogic POWERSCAN 7000 2D Imager Manuel utilisateur

Datalogic

Datalogic QuickScan QM24XX Manuel utilisateur

Datalogic

Datalogic MAGELLAN 3200VSI Manuel d'installation et d'exploitation

Datalogic

Datalogic Magellan 800i Manuel d'installation et d'exploitation

Datalogic

Datalogic DS2400A Manuel utilisateur

Datalogic

Datalogic QuickScan I QBT21X1 Manuel utilisateur

Datalogic

Datalogic Touch 65 Pro Manuel utilisateur

Datalogic

Datalogic Gryphon I GD4100 Manuel d'installation et d'exploitation

Datalogic

Datalogic Gryphon D130 Manuel utilisateur

Datalogic

Datalogic Hand-Held Devices II Feuille d'instructions

Datalogic

Datalogic PowerScan PBT9501-AR Manuel utilisateur

Datalogic

Datalogic PowerScan PD9530 Manuel d'installation et d'exploitation

Datalogic

Datalogic Arex 420 Manuel utilisateur

Datalogic

Datalogic Magellan 1100i Manuel d'installation et d'exploitation

Datalogic

Datalogic PowerScan D8300 Manuel utilisateur

Datalogic

Datalogic Touch 65 Pro Manuel utilisateur

Datalogic

Datalogic PowerScan PM9501 Manuel utilisateur

Datalogic

Datalogic Gryphon I GBT4400 Manuel utilisateur

Datalogic

Datalogic Heron D130 Manuel utilisateur

Datalogic

Datalogic QuickScan Lite QW2100 Manuel utilisateur

Manuels Lecteur de codes-barres populaires d'autres marques

POSMicro

POSMicro Datalogic PowerScan D7100 Manuel utilisateur

Marson

Marson MT780 Guide de configuration rapide

NCR

NCR RealPOS Manuel utilisateur

Motorola

Motorola SE3300 Guide de configuration rapide

Element

Element P130BT Manuel utilisateur

Motorola

Motorola Symbol LS3008 Manuel d'installation et d'exploitation

Meec tools

Meec tools OBD-II / VAG Manuel utilisateur

SICK

SICK CLP 100 Manuel utilisateur

Royal Tag SA

Royal Tag SA I-Read Manuel utilisateur

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuel utilisateur

Meteor

Meteor 8310 Manuel utilisateur

Denso

Denso BHT-500B Manuel utilisateur

Motorola

Motorola MP6000 Instructions de montage

Newland

Newland NLS-HR15-BT Manuel utilisateur

ARTDEV

ARTDEV AS-1310 Manuel utilisateur

Aopos

Aopos AS290 Manuel utilisateur

ENS

ENS 367-5455 Manuel utilisateur

Atid

Atid AT188N Plus Manuel utilisateur
