Datakom DKG-116 Manuel utilisateur

DKG-116 User Manual V-02 (

11.08.2010)

Tel: +90-216-466 84 60

http://www.datakom.com.tr

Fax: +90-216 364 65 65

[email protected]

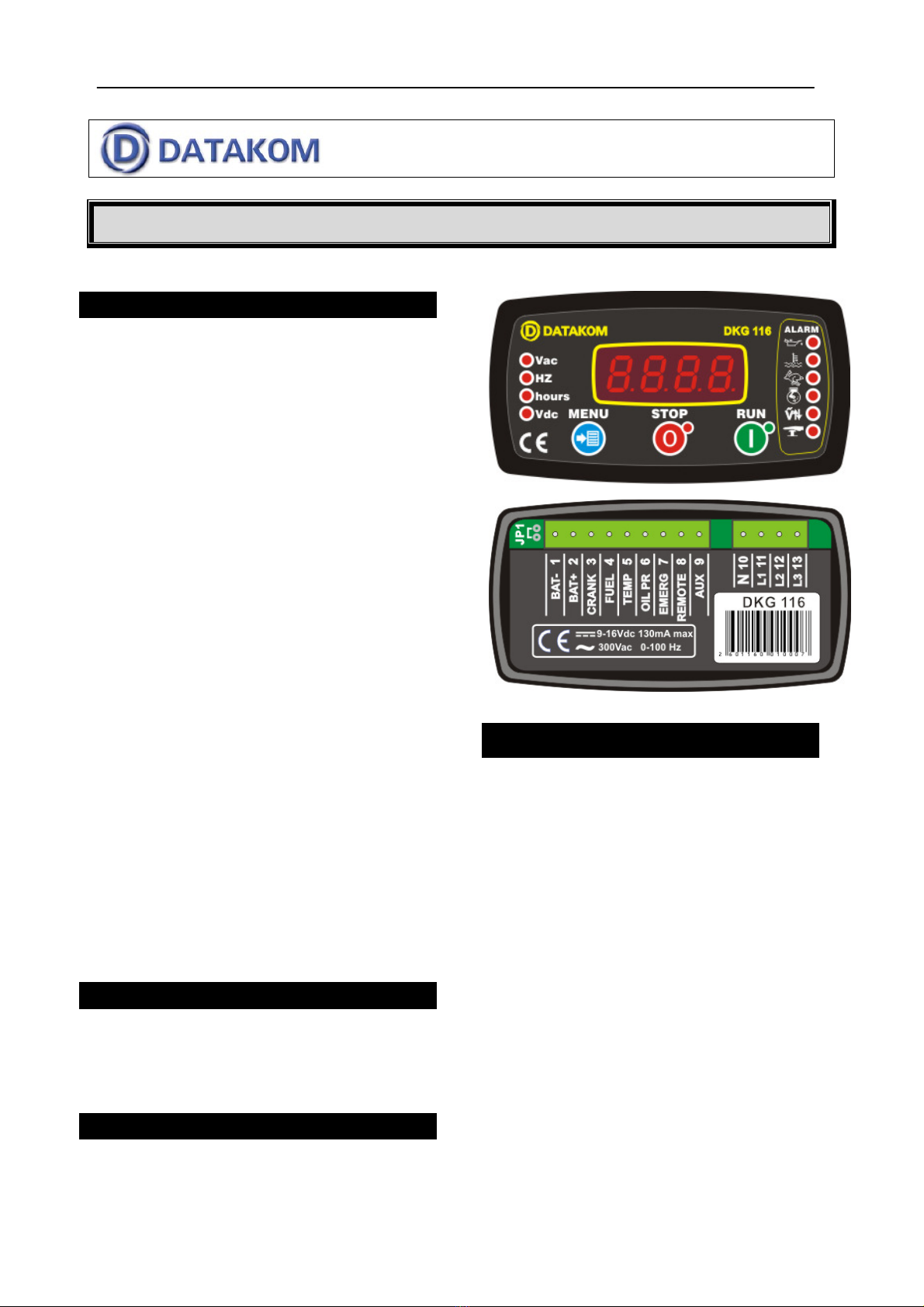

DKG-116 MANUAL AND REMOTE START UNIT

DESCRIPTION

The DKG-116 is a low cost

gasoline/diesel genset control unit

designed to start and stop a genset both

manually and remotely.

The manual control is made using RUN

and STOP pushbuttons on the front

panel. The remote control is made via

REMOTE START input signal.

When RUN button is pressed or a Remote

Start signal arrives, the engine will be

cranked up to 3 times. When it runs, the

crank relay will be immediately deactivated

and after Holdoff timer delay, fault

checking will be enabled. When the engine

is running, if a fault condition is detected

then the engine is shutdown immediately

and the unit indicates the source of the

failure through related alarm led.

If STOP button is pressed or the Remote

Start signal disappears, the genset will

continue to run during cooldown period. At

the end of the period the engine will stop.

The MENU button selects display

parameter scroll and allows program

mode entry and lamp test functions.

The total engine run hours is kept in a

tamper-proof non-erasable memory which

is not affected by power failures.

MEASUREMENTS

Generator Volts: L1-N, L2-N, L3-N

Generator Volts: L1-L2, L2-L3, L3-L1

Generator Frequency

Battery Voltage

OPTIONS

Auxiliary output (negative pulling).

FEATURES

Both Manual and remote control

Generator protection

Built in alarms and warnings

Remote Start operation available

True RMS measurements

Tamper-proof engine hours display

Field adjustable parameters

High current Fuel and Crank outputs

Protected semiconductor auxiliary

output

Digital inputs: 4

Survives cranking dropouts

Sealed front panel

Standard panel dimensions: 96x48mm

Plug-in connection system

DKG-116 User Manual V-02 (

11.08.2010)

PRECAUTIONS FOR INSTALLATION AND SAFE USE

Failure to follow below instructions will result in death or serious injury.

•Circuit breakers must be connected serially to BAT+, PHASE-L1, PHASE-L2 and

PHASE-L3 terminals, in close proximity of the unit.

•Fuses must be of fast type with a maximum rating of 6A.

•Disconnect all power before working on equipment .

•When the genset is running, do not touch terminals.

•Do not try to clean the device with solvent or the like. Only clean with a dried cloth.

•Verify correct terminal connections when wiring.

•Electrical equipment should be serviced only by competent service personnel. No

responsibility is assured by the manufacturer or any of its subsidiaries for any

consequences arising out of the use of this material.

•Only for front panel mounting.

PROGRAMMING

Both High Temperature and Emergency Stop inputs must be connected to

Battery negative prior to enter the programming mode.

The unit offers 8 programmable parameters listed below.

SYMBOL

RANGE

FACTORY

SET DESCRIPTION

U-Lo

U-LoU-Lo

U-Lo

70-500 V 170 V Low AC voltage shutdown limit

U-HI

U-HIU-HI

U-HI

70-500 V 300V High AC voltage shutdown limit

nFrq

nFrqnFrq

nFrq

0-1 0 Nominal frequency: 0=50Hz 1=60Hz

OIL

OILOIL

OIL

0-1 0 Oil input: 0=pressure switch 1=level switch

FUEL

FUELFUEL

FUEL

0-1 0 Fuel output type 0:Fuel 1:Stop

rLY3

LY3LY3

LY3

0-2 0 Relay 3 function 0:Alarm 1:Choke 2:Stop

CHOt

CHOtCHOt

CHOt

0-15 sec 0 Choke timer in seconds

8 3-1p

3-1p3-1p

3-1p

0-1 0 Number of phases: 0=3ph 1=1ph

The program mode is entered by long-pressing the MENU button. Each depression of the

MENU button will switch to the next parameter.

Another long press will enable the lamp test mode. Then any depression of MENU button will

return the display to normal mode.

If no key is pressed, then the unit will return to normal display mode with a delay.

DIESEL ENGINE OPTION SELECTION

In order to control diesel engines, solder a conductive wire to

JP1 terminals situated next to terminal 1, as shown in the

picture.

DKG-116 User Manual V-02 (

11.08.2010)

When genset is in off mode; press

button

for 3 sec. to enter program mode and display the

Low AC Voltage limit.

Press

RUN

STOP

buttons until requested value

is displayed.

Press

button for saving the Low AC Voltage

limit and displaying the High AC Voltage limit.

Press

RUN

STOP

buttons until requested value

is displayed.

Press

button for saving the High AC Voltage

limit and displaying the Nominal frequency

parameter.

Press

RUN

STOP

buttons until requested value

is displayed.

Press

button for saving the Nominal

frequency parameter and displaying the Oil input

type.

Press

RUN

STOP

buttons until requested value

is displayed.

Press

button for saving the Oil input type

and displaying the Fuel output type.

Press

RUN

STOP

buttons until requested value

is displayed.

Press

button for saving the Fuel output type

and displaying the Relay-3 function.

Press

RUN

STOP

buttons until requested value

is displayed.

Press

button for saving Relay-3 function and

displaying the Choke timer.

Press

RUN

STOP

buttons until requested value

is displayed.

Press

button for saving the Choke timer

and displaying the number of phases.

Press

RUN

STOP

buttons until requested value

is displayed.

Any time on settings, press

button for 3 sec.

to exit from program mode.

U-Lo

U-LoU-Lo

U-Lo

170

170 170

170

U-

U-U-

U-

HIHI

300

300 300

300

nfrq

nfrqnfrq

nfrq

0 0

OIL

OILOIL

OIL

0 0

FUEL

FUELFUEL

FUEL

0 0

rLy3

rLy3rLy3

rLy3

0 0

CHOt

CHOtCHOt

CHOt

0 0

RUN

STOP

RUN

STOP

RUN

STOP

RUN

STOP

RUN

STOP

RUN

STOP

RUN

STOP

RUN

STOP

0 0

3-1P

3-1P3-1P

3-1P

DKG-116 User Manual V-02 (

11.08.2010)

CONNECTION DIAGRAM

TECHNICAL SPECIFICATIONS

Alternator voltage: 15 to 300 V-AC (Ph-N)

Alternator frequency: 50 or 60 Hz nominal.

Measurement Accuracy: 0.5% + 1 digit

Overspeed: nominal frequency + 14%

(+24% overshoot)

Underspeed: 30 Hz

Crank time: 10 sec.

Crank rest: 10 sec.

Crank attempts: 3

Stop timer: 10 sec.

Cooldown timer: 30 sec.

Holdoff timer: 10 sec.

DC Supply Range: 9.0 to 16.0 V-DC

Cranking dropouts: survives 0 V for 100ms.

Typical Standby Current: 12mA-DC (display off)

Maximum Operating Current: 130 mA-DC

Fuel and Crank outputs: 10A @ 12V-DC

Auxiliary Output: 1A @ 12V-DC (negative pulling

protected semiconductor output)

Operating temp.: -40°C (-40°F) to 80 °C (176°F).

Maximum humidity: 95% non-condensing.

Dimensions: 102 x 55 x 40 mm (WxHxD)

Packed weight: 140 g

Case Material: High Temp. ABS/PC (UL94-V0)

IP Protection: IP65 (front panel), IP30 (rear)

Conformity (EU directives)

-2006/95/EC (low voltage)

-2004/108/EC (EMC)

Norms of reference:

EN 61010 (safety requirements)

EN 61326 (EMC requirements)

PANEL CUTOUT DIMENSIONS

PACKAGING INFORMATION

Pieces per Package: 24

Package Size: 280 x 170 x 215mm (LxWxH)

Package Weight: 3.6 kg

DATAKOM Electronics Limited

Tel : +90-216-466 84 60

Fax : +90-216-364 65 65

e-mail : datakom@datakom.com.tr

http: www.datakom.com.tr

44mm
