This manual walks though the steps of setting up the USB-Yagi Plug & Play WiFi

antenna from quick start followed by detailed explanation of what each

parameter does. It talks about the STATION mode for accessing a remote

hotspot, and using the USB-Yagi as a local ACCESS POINT for sharing the

Internet with other WiFi computer clients

Instruction

Manual

Version 0.215.7

NextG 007GTi PRO USB-Yagi Instruction Manual

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or

translated into any language or computer language, in any form or by any means, electronic,

mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of

this Company .This company makes no representations or warranties, either expressed or implied, with

respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for

any particular purpose. Any software described in this manual is sold or licensed "as is". Should the

programs prove defective following their purchase, the buyer (and not this company, its distributor, or

its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential

damages resulting from any defect in the software. Further, this company reserves the right to revise

this publication and to make changes from time to time in the contents hereof without obligation to

notify any person of such revision or changes. The software and specifications are subject to change

brand and product names mentioned in this manual are trademarks and/or registered trademarks of

their respective holders

Linux Open Source Code

Certain danets products include software code developed by third parties, software code is subject to

the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL"). Please see the

GNU (www.gnu.org) and LPGL(www.gnu.org) Websites to view the terms of each license. The GPL Code

and LGPL Code used in danets products are distributed without any warranty and are subject to the

copyrights of their authors. For details, see the GPL Code and LGPL Code licenses. You can download

the firmware-files at http://www.danets.com under "Support" page.

NextG 007GTi PRO USB-Yagi Instruction Manual

Table of Contents

1. PACKING LIST .................................................................................................................................................................... 4

2. QUICK START ..................................................................................................................................................................... 5

2.1 INSTALLATION AND DEVICE CONNECTION ............................................................................................................................. 5

2.2 CHOICE OF LOCATION ............................................................................................................................................................... 5

2.3 ADJUSTMENT............................................................................................................................................................................ 6

3. SCANNING THE WIFI SIGNAL –A QUICK GUIDE ............................................................................................... 7

3.1 MEDIATEK WIRELESS UTILITY (MEDIATEK)OR WINDOWS ZERO CONFIGURATION (WZC)................. 7

3.2 WORKING WITH WINDOWS ZERO CONFIGURATION (WZC)............................................................................................ 8

3.2.1 Configuration of NIC by using WZC under Windows 7 and VISTA....................................................... 8

3.2.2 Configuration of NIC by using WZC under Windows XP .......................................................................... 9

3.3 WORKING WITH MEDIATEK ................................................................................................................................................. 13

4. ADVANCED MEDIATEK FEATURES ON WINDOWS 8 AND 7.................................................................... 15

4.1 TURN ON/OFF RF................................................................................................................................................................. 15

4.2 SECURITY ................................................................................................................................................................................. 15

4.3 SIGNAL STRENGTH ................................................................................................................................................................. 15

4.4 SITE SURVEY........................................................................................................................................................................... 16

4.5 LINK INFORMATION................................................................................................................................................................. 16

4.6 PROFILE .................................................................................................................................................................................... 17

4.6.1 Example to Add a PROFILE with encryption................................................................................................. 18

4.6.2 Example to Add a PROFILE without encryption.......................................................................................... 19

4.6.3 Example to setup an Ad-Hoc wireless connection.................................................................................... 20

PC1:............................................................................................................................................................................................ 21

PC2:............................................................................................................................................................................................ 22

5. APPLE MAC OS X DRIVER INSTALLATION......................................................................................................... 25

5.1 LOCATE THE DRIVER IN THE CD-ROM............................................................................................................................... 25

5.2 MAC OS XDRIVER INSTALLATION.................................................................................................................................... 25

5.3 RUNNING THE WIRELESS UTILITY ...................................................................................................................................... 29

5.4 SITE SURVEY.......................................................................................................................................................................... 30

5.4.1 Connecting to a Wireless Network................................................................................................................. 30

5.4.2 Keying in the Authentication\ Encription Password ............................................................................... 31

APPENDIX I............................................................................................................................................................................. 33

NextG 007GTi PRO USB-Yagi Instruction Manual

1. Packing List

Installation of the USB-Yagi is straight forward. As soon as you open up the box, you will be able to find

the following items:

A USB-Yagi High Power Plug & Play antenna with a tripod

A USB2.0 extender cable

A CD-ROM software drivers for Windows 8/7/VISTA/XP, Linux and MAC OS X

An installation guide

If you plan to build the Universal WiFi Repeater using the +35dBm NextG USB-Yagi Plug & Play

Antenna, you could purchase the USB-Omni kit online from the link below.

http://www.danets.com/turbotenna/UsbOmniApRepeater.php

Add the Power RF Amplifier Kit from the link below if extra horse power is required.

http://www.danets.com/turbotenna/PowerAmpKit.php

NextG 007GTi PRO USB-Yagi Instruction Manual

2. Quick Start

2.1 Installation and Device Connection

Install the CD-ROM software driver before you plug in the USB-Yagi antenna to you PC or laptop

computer. This avoids the antenna being recognized by another existing WiFi software driver which

might not be fully compatible with the antenna’s original software driver.

Before making any device and cable connection to the computer, you have to install the CD software

driver and utility from fresh.

Your CD should have the most current software version. Otherwise, you could obtain the latest software

driver and utility in the link below.

For Apple MAC OS X 10.8 Mountain Lion

http://www.danets.com/download/RTUSB_D2870-4.2.6.0_UI-4.0.8.0_2012_09_28.dmg

For Windows 7 and VISTA

http://www.danets.com/support/Windows7DriverMediatek.exe

For Windows 8

http://www.danets.com/support/Windows8DriverMediatek.exe

For Windows XP

http://www.danets.com/support/WindowsXpDriverMediatek.exe

Insert the CD-ROM into the CD/DVD drive of your computer.

As soon as the AutoPlay window appears, double click “SETUP.EXE” to install the software driver. If the

AutoPlay window does not pop up, you could also go to the CD/DVD drive under “My Computer” and

double click the SETUP icon.

Reboot your computer.

Once completed, you could plug in the USB-Yagi antenna to any spare USB port of your computer using

the USB2.0 cable supplied in the kit.

2.2 Choice of Location

You may either setup the antenna on a table or a tall wooden book shelf near the ceiling. Extend the legs

of the tripod to maintain stability. Never put the antenna on a metal cabinet or behind a metal structure.

If you intend to setup the antenna outdoor such as roof top, balconies, poles or towers, be sure to install

an arrestor for lightning protection.

Once you have chosen the location, make sure that your RF cable is long enough to each your wireless

router or WLAN client adapter device. Point the antenna in the direction of the signal source.

NextG 007GTi PRO USB-Yagi Instruction Manual

2.3 Adjustment

Ideally the antenna should be pointing at the signal source whitout any

obstructions. If there is a wall getting in the way, try to veer the antenna in

other directions until you find the sweet spot with the best signal strength.

Because the antenna has linear polarization, you may find that you get a

better signal by rotating it slightly clockwise or anti-clockwise on the tripod

along its cylindrical axis.

Since the RF cable is pretty rigid, special attention is required for connecting

the RP-SMA end of the cable to the Repeater in order not to break off the

connector from the Repeater’s casing.

Cable tie is recommended to fix the cable before fitting it in the Repeater.

Figure 1 Rotate to change the

angle of polarization for optimal

signal reception.

NextG 007GTi PRO USB-Yagi Instruction Manual

3. Scanning the WiFi Signal –A Quick Guide

3.1 MEDIATEK WIRELESS UTILITY (Mediatek) OR WINDOWS ZERO

CONFIGURATION (WZC)

As the title suggests, two types of wireless utilities are possible. The Windows Zero Configuration

provides the basic wireless networking configuration whose user interface is consistent across various

Windows Operating Systems from XP, VISTA to Windows 7; and the more sophisticated Mediatek

Wireless Utility (Mediatek) with the WPA supplicant functionality.

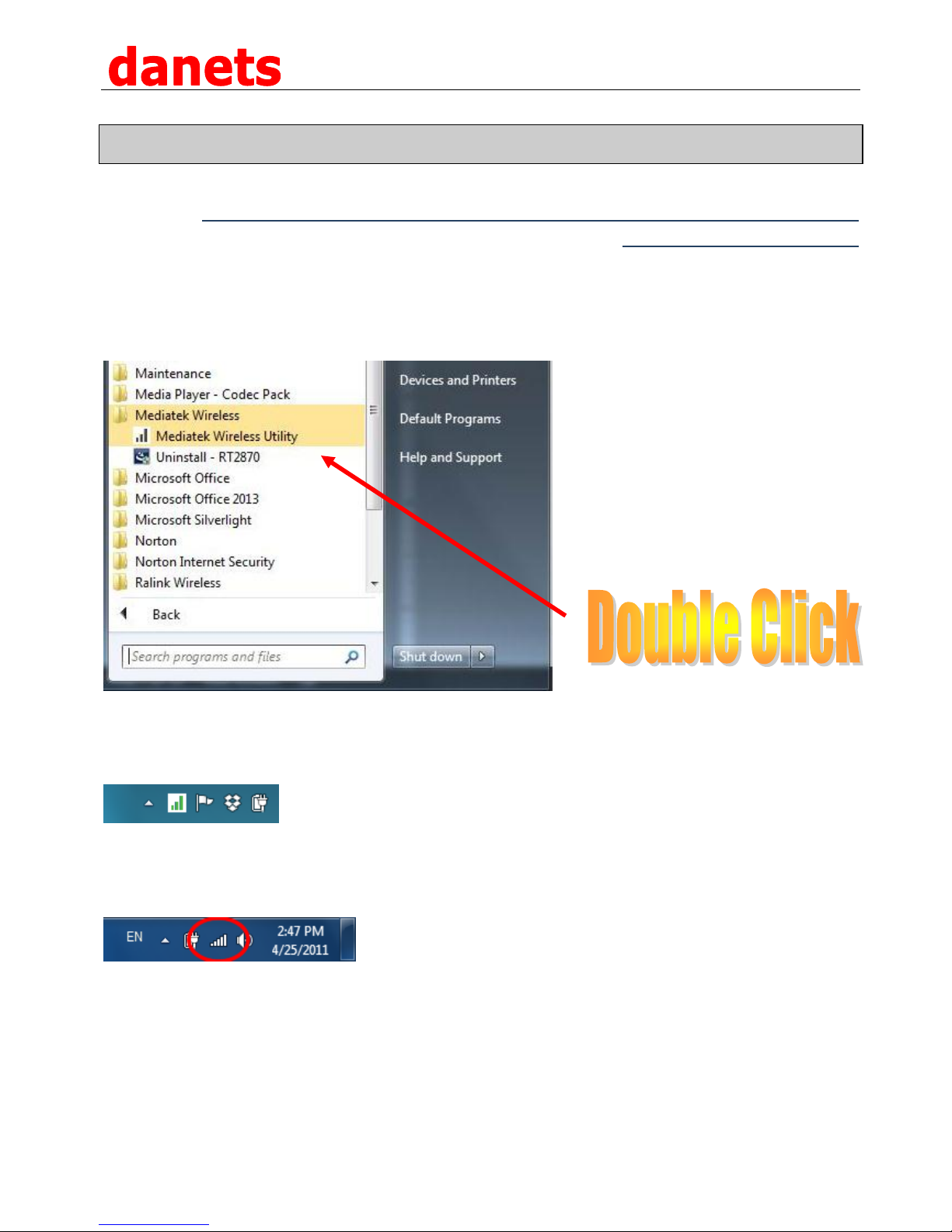

As soon as Windows starts, you could invoke the Mediatek Wireless Utility from the “All Programs”

Start Menu (see above) so that the Mediatek icon appears at the lower right hand corner of the

computer screen.

Mediatek

Or you may setup the network connection using the Windows Network and Sharing Center (also known

as Windows Zero Configuration, WZC). Windows 7 is used for the purpose of illustration.

Mediatek works in parallel with WZC. When WZC is active, Mediatek provides only the monitoring

function, such as showing the link stats, network status, statistic counters, advance feature status,

WMM status and WPS status. It won’t interfere with WZC’s configuration or profile functions.

NextG 007GTi PRO USB-Yagi Instruction Manual

3.2 Working with Windows Zero Configuration (WZC)

Go to Section 3.3 if you want to use Mediatek instead.

3.2.1 Configuration of NIC by using WZC under Windows 7 and VISTA

When WZC is activated, you could attempt to connect to one of the wireless networks picked up by the

antenna. If the wireless network is encrypted, a pop-up box will appear prompting you to key in its

security password.

NextG 007GTi PRO USB-Yagi Instruction Manual

3.2.2 Configuration of NIC by using WZC under Windows XP

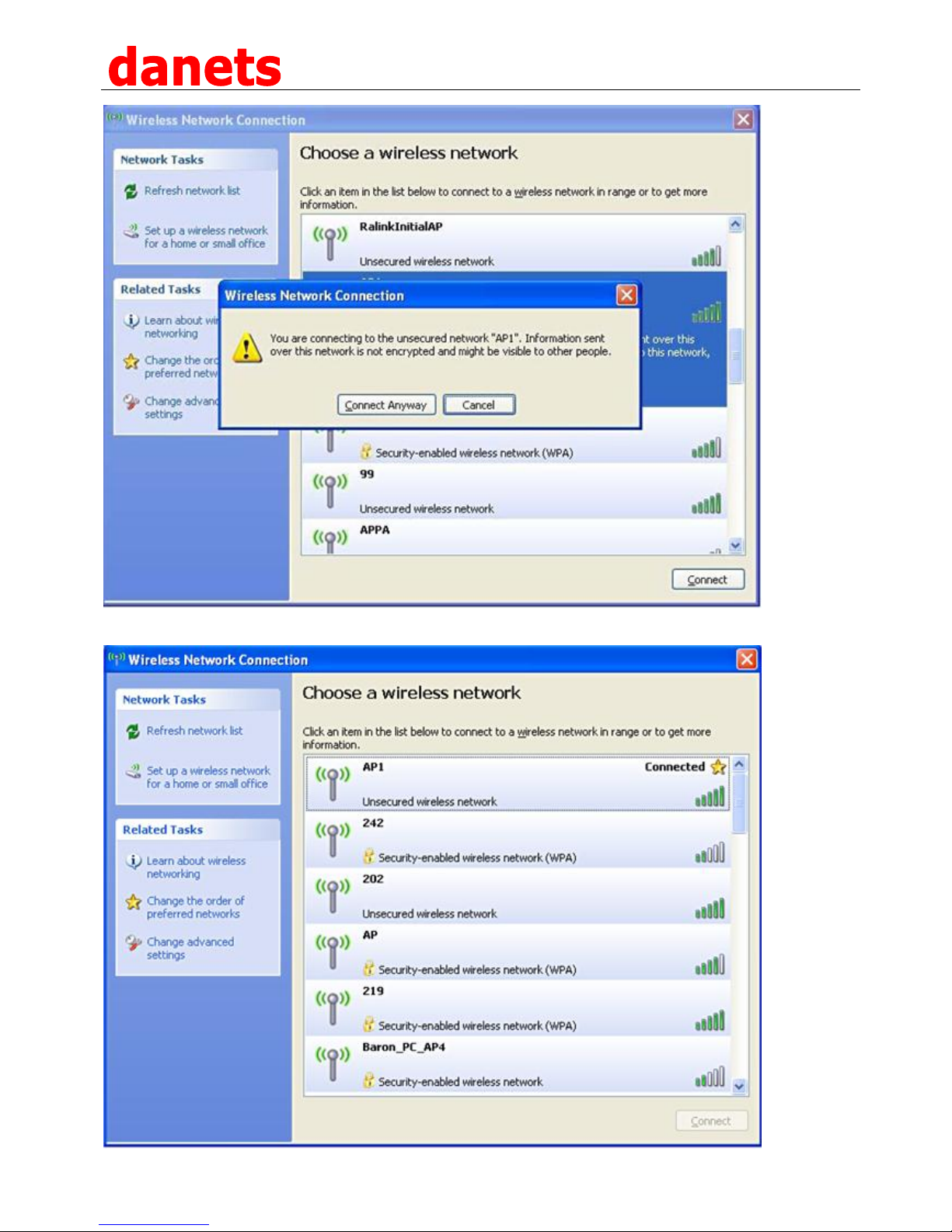

Before you connect to any wireless network, the status prompt pops up like this:

Right click the Network Connection icon in the task bar, and select “View Available Wireless Networks:

A new window pops up showing the list of Access Points (or APs) available for connection.

You may either double click the SSID or highlight it with the mouse pointer followed by clicking “Connect

Anyway”.

NextG 007GTi PRO USB-Yagi Instruction Manual
