CE870™ Instant Issuance System
Quick Install Guide
2 CE870 Instant Issuance System
CE870 Instant Issuance System Quick Install Guide
1. Select a Location for the Printer
• Install the printer in a location that is clean and well
ventilated, free of vibration or shock.
• For venting and clearance, choose an area that has the
following measurements:
• Single-Hopper System: 27 inches (686 mm) wide,
31 inches (788 mm) deep, and at least 27.4 inches
(696 mm) high.
• Multi-Hopper System: 28 inches (711 mm) wide,
41 inches (1041 mm) deep, and at least 30 inches
(762 mm) high.
Refer to the printer’s Installation and Administrator’s
Guide for complete site requirements.
• Do not install the printer in direct sunlight.
• Install the system in a secure location.
• Install the system in a location that has access to two
AC outlets and a network port.
Refer to your printer’s Installation and Administrator’s Guide,
found on the Owner’s Library CD, for detailed installation
instructions.
3 CE870 Instant Issuance System
CE870 Instant Issuance System Quick Install Guide
2. Unpack the System
Remove the printer and the embosser from their shipping
cartons.
Single-Hopper Printer
Multi-Hopper Printer
4 CE870 Instant Issuance System
CE870 Instant Issuance System Quick Install Guide
Embosser
3. Remove Shipping Items
a. (Multi-hopper printer only): Unlock the printer and open
the printer supplies access door and the multi-hopper
cover.
b. Remove the packing material inserted behind the
hopper and inside the cover.
5 CE870 Instant Issuance System
CE870 Instant Issuance System Quick Install Guide
c. Unlock the embosser and remove the indent ribbon and
topping foil cartridges.
d. Remove the foam “T” and block inserts used to secure
the embosser topping and transport mechanisms during
shipping.
6 CE870 Instant Issuance System
CE870 Instant Issuance System Quick Install Guide
Bolt
Washer
Work
Surface
Lock Nut
4. Secure the System
a. Secure the embosser to the work surface (if required).
Refer to the printer’s Installation and Administrator’s
Guide for detailed installation instructions and
measurements.
7 CE870 Instant Issuance System
CE870 Instant Issuance System Quick Install Guide
Interconnect
Cable
5. Assemble the Printer and Embosser
a. Locate the interconnect cable in the cable routing
area of the embosser, and make sure that it remains
accessible.
b. Slide the printer locking lever inside the embosser to the
left to move the mounting lock to the unlocked position.
c. Lift the printer over the embosser and align the pins on
the embosser with the holes on the underside of the
printer.
8 CE870 Instant Issuance System
CE870 Instant Issuance System Quick Install Guide
Interconnect
Cable
Data
Port
d. Press down carefully, but rmly, on the printer to
position it.
e. Push the printer locking lever to the right to lock the
printer to the embosser. Make sure that the printer is
locked securely to the embosser.
f. Connect the interconnect cable from the embosser to
the lower data port on the printer.
9 CE870 Instant Issuance System
CE870 Instant Issuance System Quick Install Guide
6. Connect the Power Cords
a. Connect the printer power cord into the printer and into
the power supply.
b. Connect the power supply cord into the power outlet.
c. Connect the embosser power cord into the embosser
and power supply.
d. Connect the power supply cord into the power outlet.
10 CE870 Instant Issuance System
CE870 Instant Issuance System Quick Install Guide
Do not separate
7. Load Supplies
Supplies are ordered separately.
a. Load the indent ribbon onto the cartridge.
Autres manuels pour CE870
3
Table des matières
Autres manuels DataCard Accessoires pour imprimantes
DataCard
DataCard ImageCard series Manuel utilisateur
DataCard

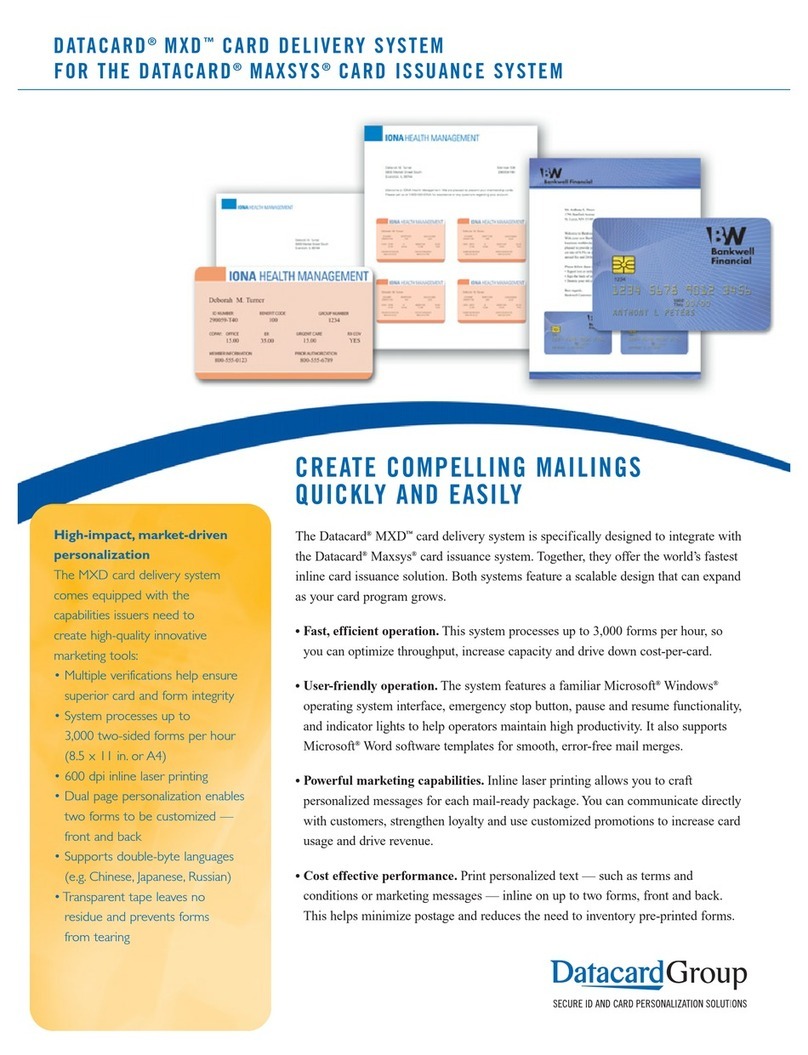

DataCard Maxsys Manuel utilisateur
